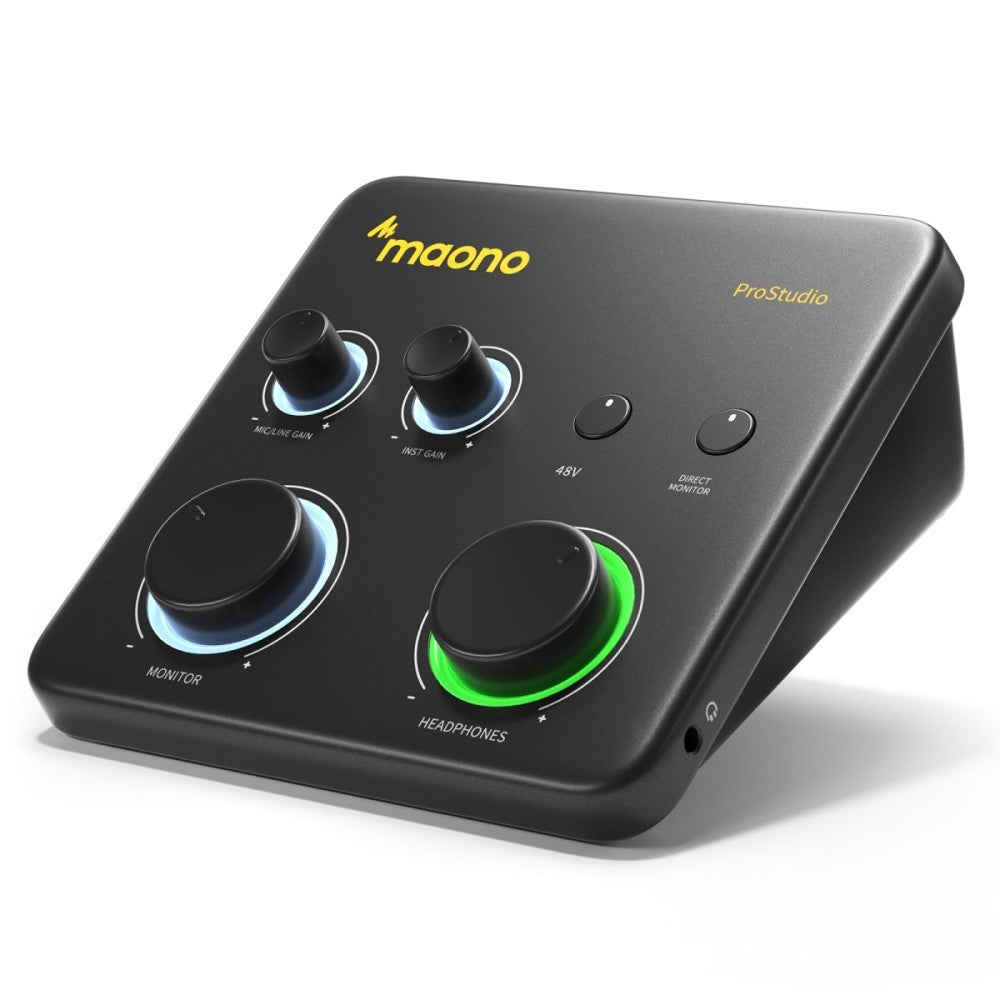

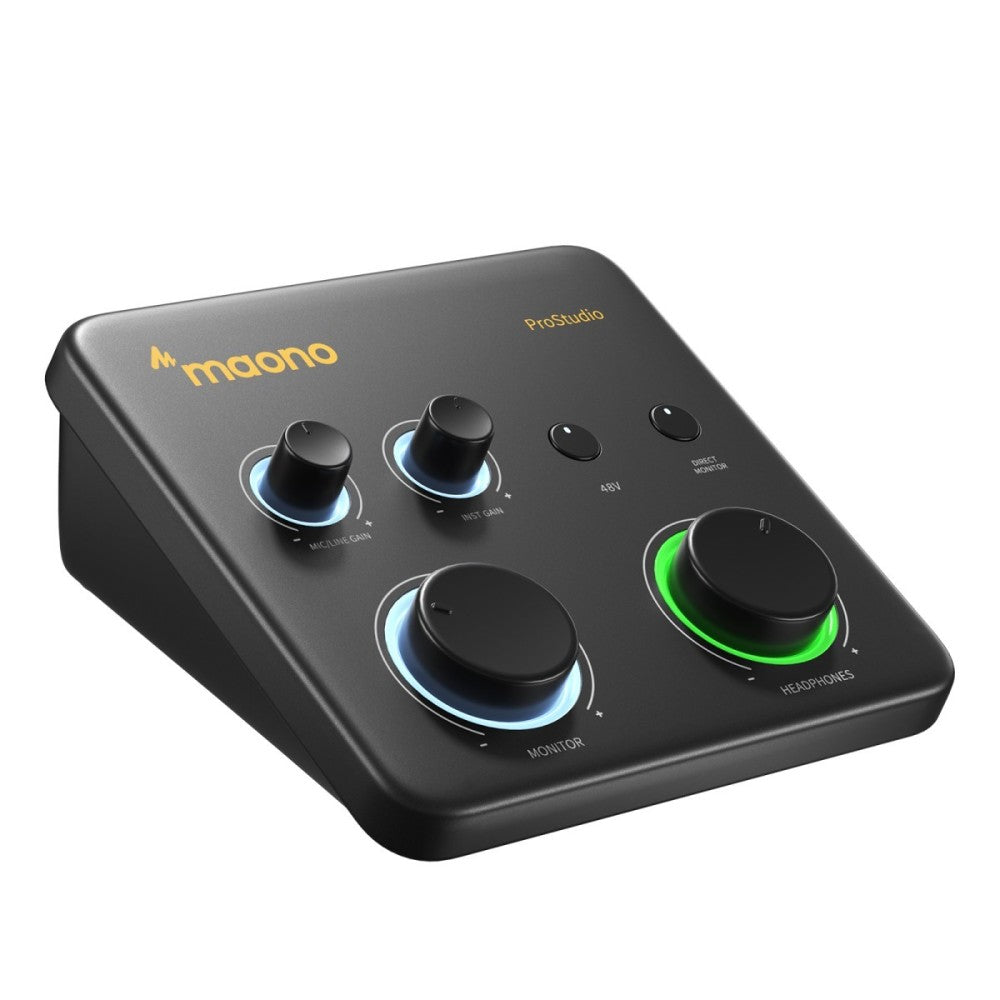

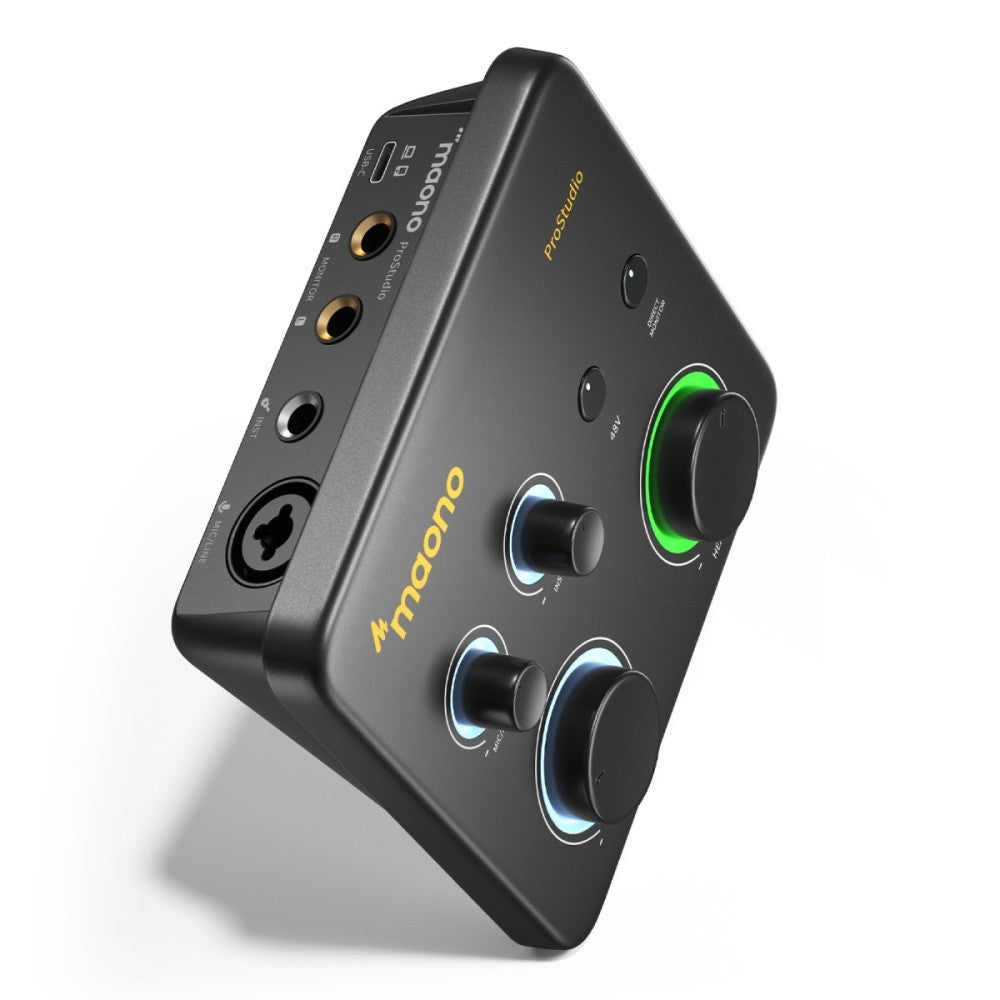

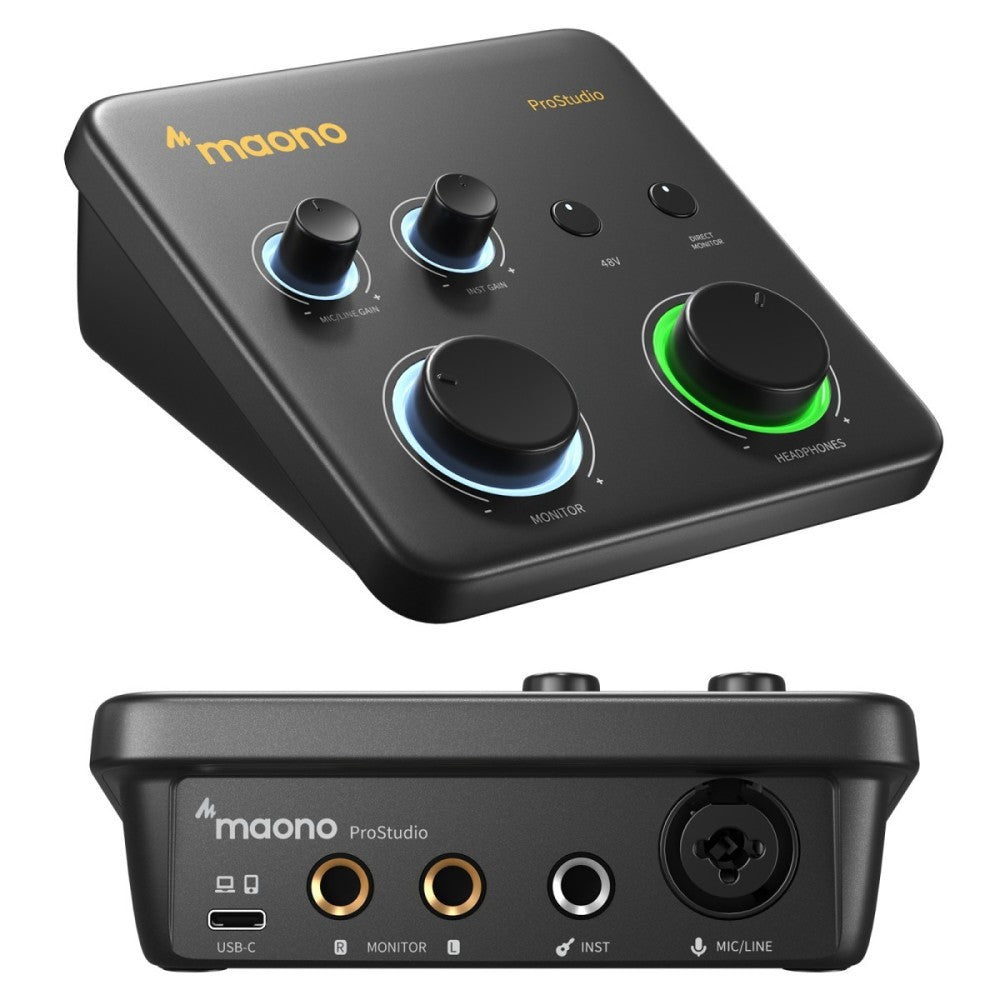

MAONO PS22 Lite USB Audio Interface PRO-STUDIO 2x2
Estimated delivery in Italy between 16 and 18 November
Pay in 3 installments of €23,00 interest-free
Pay in 3 installments of €23,00 interest-free with PayPal
Split into 3 installments of €23,00 with your card via HeyLight
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
FEATURES
The Maono ProStudio PS22 Lite audio interface is the latest addition to the ProStudio series. With a microphone preamplifier offering up to 56 dB of gain range, high-quality sampling frequency at 192 kHz/24 bit, and a compact 2-in/2-out configuration, PS22 Lite delivers professional studio-level sound for your audio and music production needs. Enhance your workflow with Maono Routing Center Windows software, which provides access to four virtual channels and two loopback channels. This versatility enables musicians, podcasters, streamers, and content creators to maximize their creative potential. Take your audio production to the next level with PS22 Lite, the perfect tool for capturing exceptional audio quality in your application.
SPECIFICATIONS
- 24 bit/192 kHz sampling frequency
- Microphone preamplifiers with gain range up to 56 dB
- 2-in/2-out configuration
- ASIO driver
- Advanced routing software
- Four virtual channels and two loopback channels
- Direct monitoring switch
- USB-C bus powered
- Frequency response for microphone inputs: 20Hz~20kHz, ±3dB
- Dynamic range for microphone inputs: 104 dB (A-weighted)
- THD+N ratio for microphone inputs: 0.065%
- Ein noise for microphone inputs: -123 dB (A-weighted)
- Maximum input level for microphone inputs: 8 dBu
- Gain range for microphone inputs: -6~+50dB
- Impedance for microphone inputs: 2.8 KO ±30%
- Frequency response for line inputs: 20Hz~20kHz, ±3dB
- Dynamic range for line inputs: 104 dB (A-weighted)
- THD+N ratio for line inputs: 0.073%
- Maximum input level for line inputs: 12 dBu
- Gain range for line inputs: -10~46dB
- Impedance for line inputs: 4.3KO ±30%
- Frequency response for instrument inputs: 20Hz~20kHz, ±3dB
- Dynamic range for instrument inputs: 104 dB (A-weighted)
- THD+N ratio for instrument inputs: 0.15%
- Maximum input level for instrument inputs: 12 dBu
- Gain range for instrument inputs: -10~44dB
- Impedance for instrument inputs: 100KO ±30%
- Frequency response for main output: 20Hz~20kHz, ±0.5dB
- Dynamic range for main output: 106dB (A-weighted)
- THD+N ratio for main output: 0.005%
- Maximum output level for main output: 6dBu
- Impedance for main output: 400O ±30%
- Frequency response for headphone output: 20 Hz~20 kHz, ±0.5 dB
- Dynamic range for headphone output: 103 dB (A-weighted)
- THD+N ratio for headphone output: 0.0045%
- Maximum output power per headphone output: 100 mW
- Impedance per headphone output: 10O ±30%
