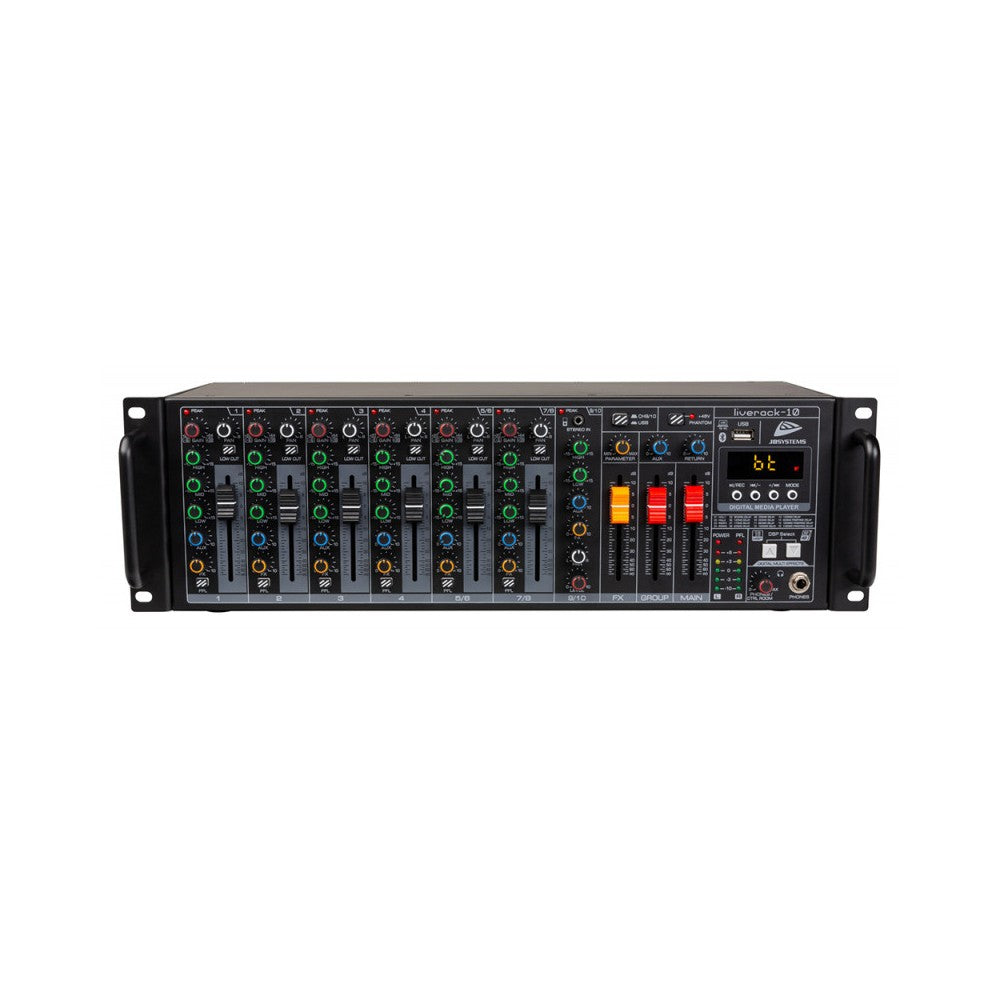

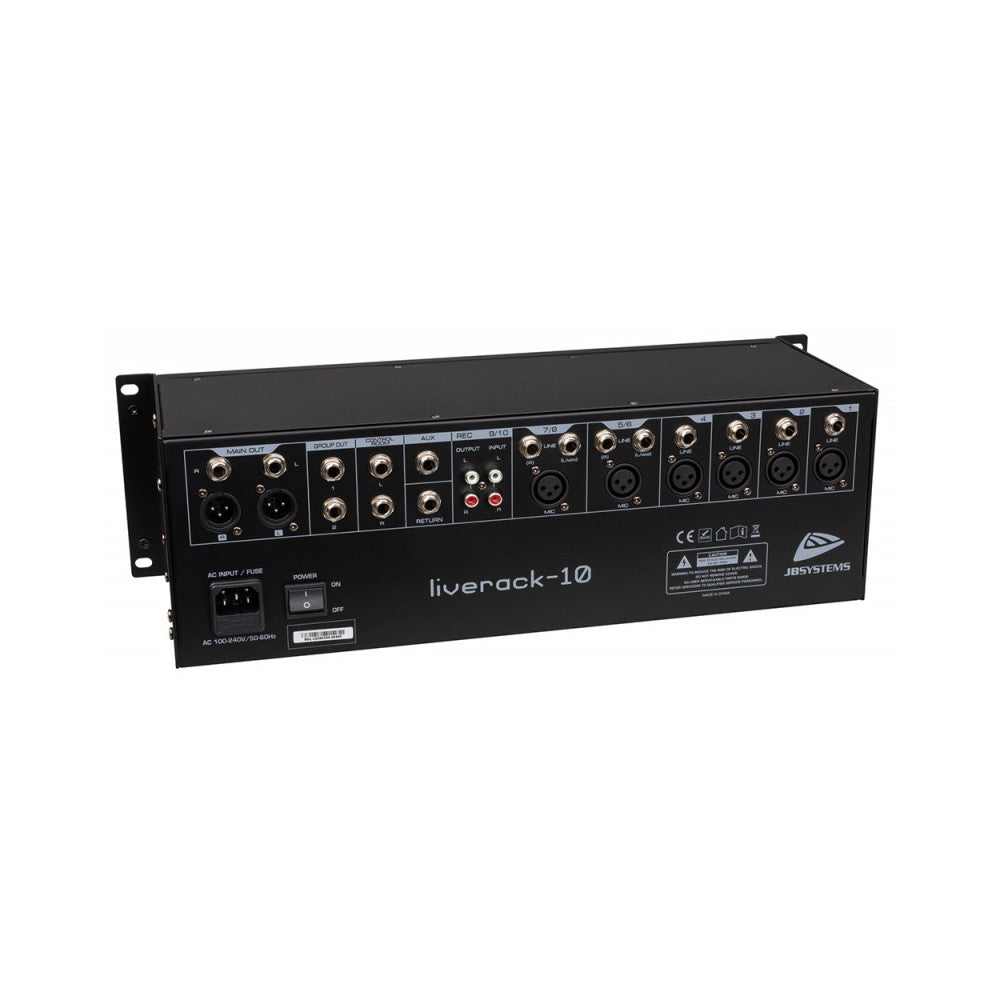

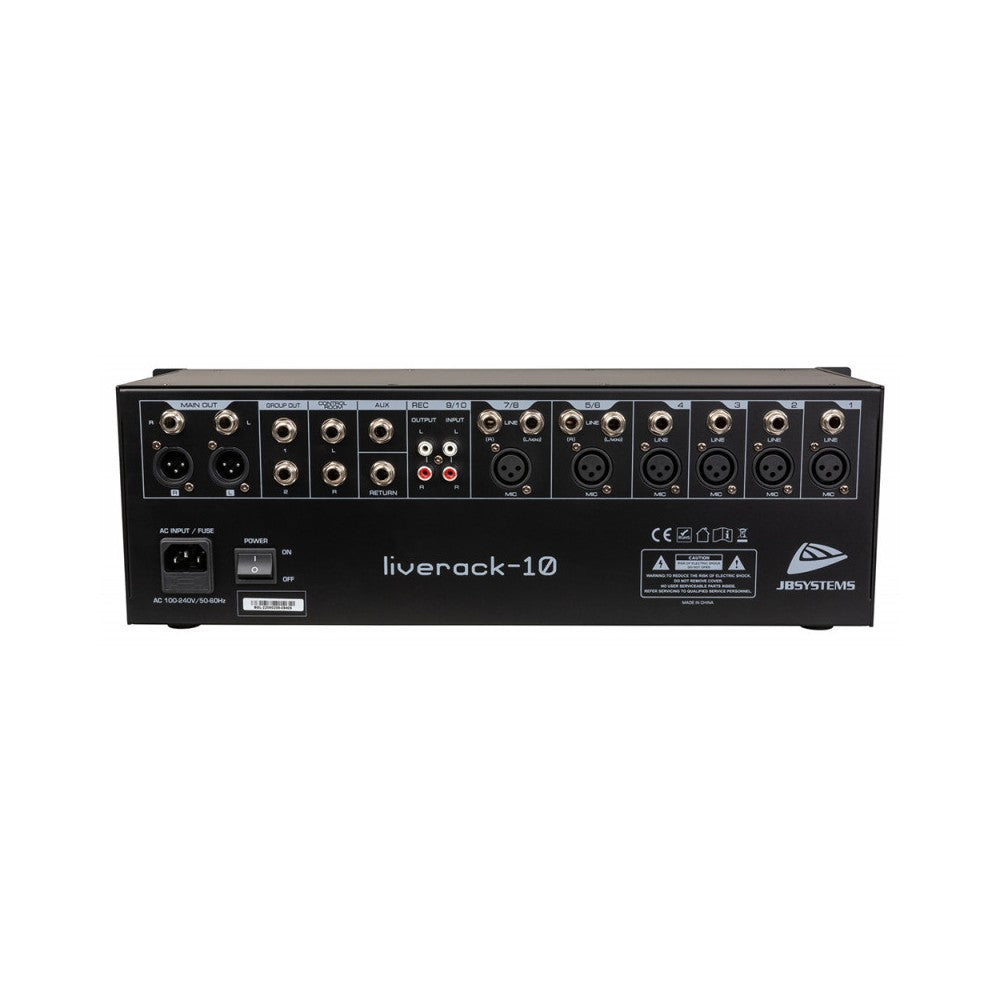

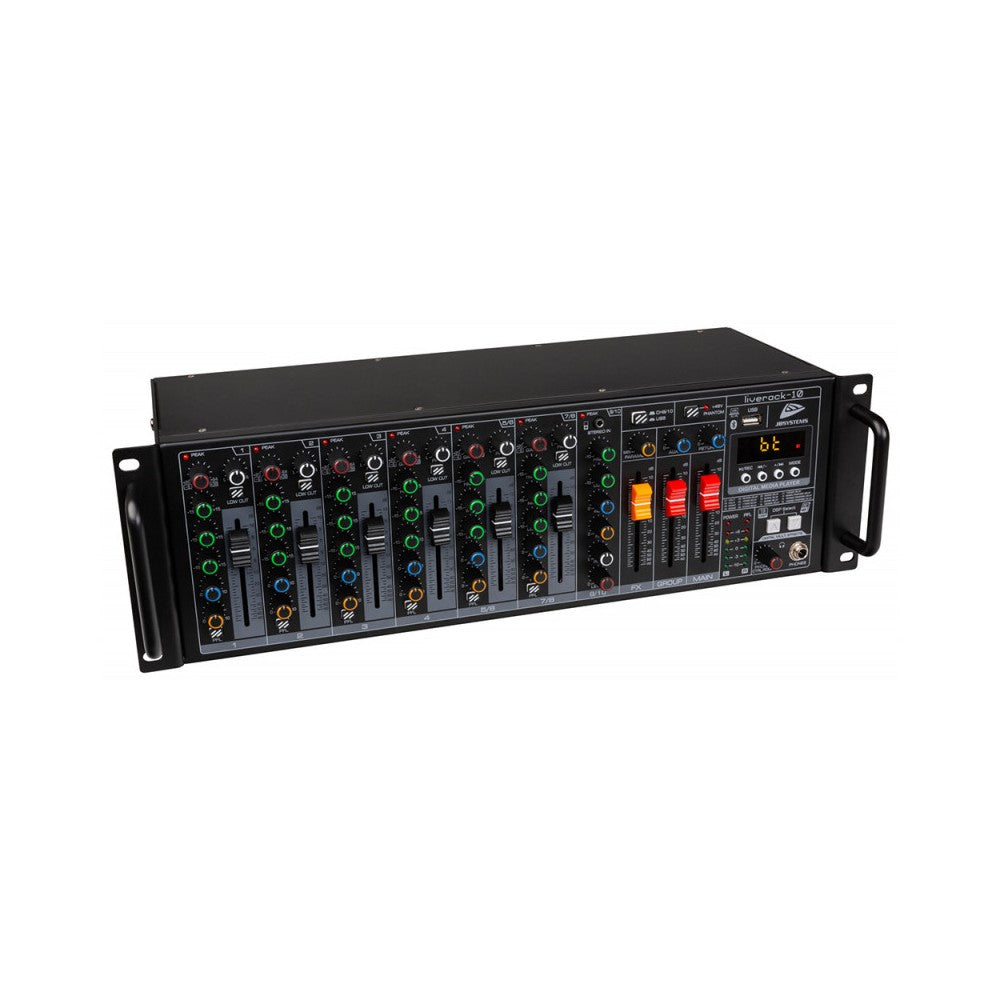

JB SYSTEMS 10-channel PA mixer in 19" rack format
Estimated delivery in Italy between 29 June and 6 July
Paga in 3 rate da €72,33 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
FEATURES
Multipurpose PA mixer in standard 19" rack format, 10 inputs / 7 channels.
Main features:
- 10 inputs on 7 channels: 4 MIC / line, 2 mono / stereo line, 1 mono / stereo / USB / player line
- Internal 32-bit DSP unit with 16 effects + separate parameter control
- Bidirectional USB connector on the front panel, for both mono recording or stereo playback via PC/Mac
- Internal WMA, WAV, FLAC, APE, and MP3 media player for playing files from USB memory sticks; the media player can also be used as a mono MP3 recorder (128 kbps)
- Integrated Bluetooth receiver
- 1 Master output + 1 Group output with individual level control
- Auxiliary send + return input with individual level control
- Global 48 V Phantom power switch
- Headphone output + control room output with level control
- Input control on all channels:
- Gain (not on inputs 9-10 / media player)
- Pad
- Low Cut switch (not on input 9-10 / media player)
- High, mid, low tone controls (high, low on input 9-10 / media player)
- Auxiliary send (Post Fader)
- Effect send
- Channel level adjustment with fader
- PFL button (not on input 9-10 / media player)
SPECIFICATIONS
| General: dimensions (W x D x H) | 48 x 20 x 15 cm |
|---|---|
| General: weight | 4.14 kg |
| General: power input | 100 - 240 VAC 50/60 Hz |
| General: energy label | no |
| General: power consumption | 25 W |
| General: color | black |
| General: display | no |
| General: fixation | 19" rack mountable |
| General: RU | no |
| Audio: min. frequency | 20 Hz |
| Audio: max. frequency | 20,000 Hz |
| Audio: supported audio formats | APE, FLAC, MP3, WAV, WMA |
| Audio: supported audio media | USB |
| Audio: functions | equalizer, sound effects |
| Connections: input | 3 pin XLR, RCA, jack, USB, Bluetooth |
| Connections: output | 3 pin XLR, RCA, jack |
Couldn't load pickup availability
User Manual
Official technical documentation in PDF format.
