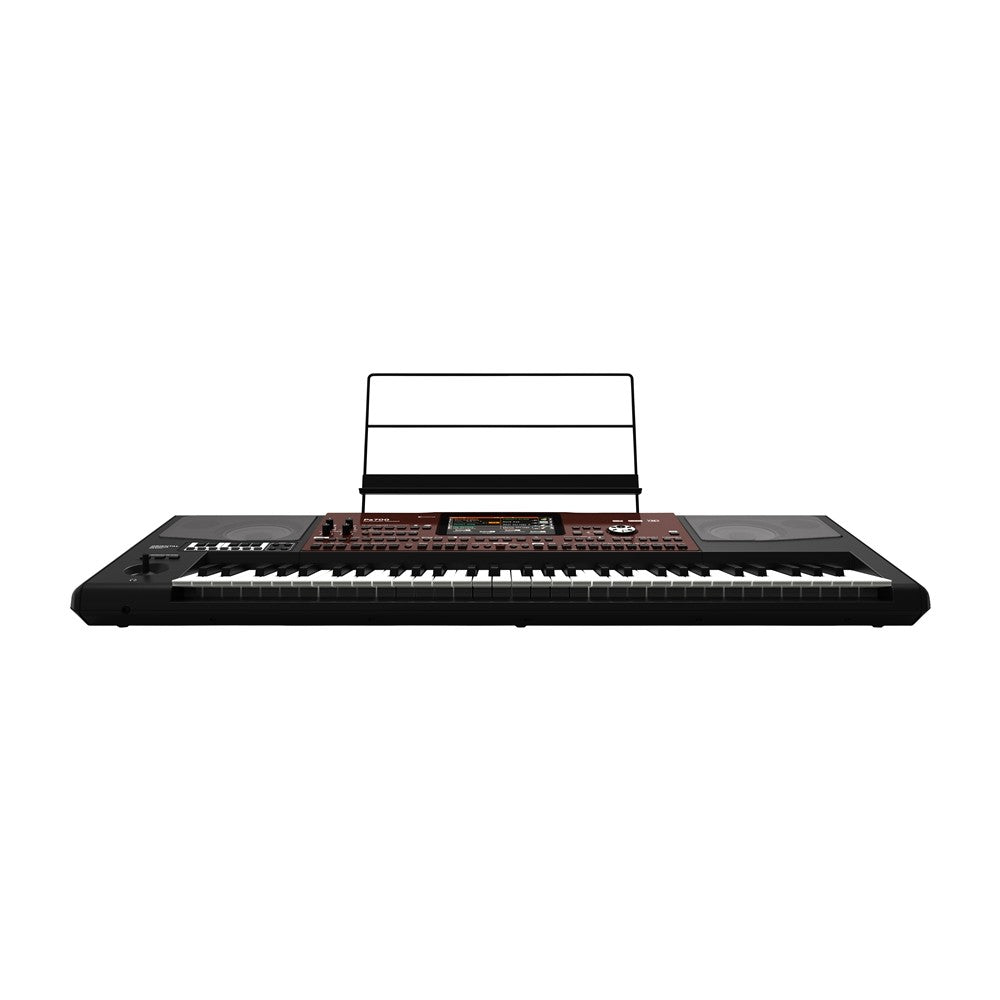

KORG PA700 OR High Performance Arranger oriental version

High Performance Arranger Oriental version

KORG PA700 OR is the latest High Performance Arranger in the renowned Pa professional keyboard series.
KORG PA700 OR has a rich, completely renewed sound database, with most sounds created using the famous "Defined Nuance Control" technology, which allows for an even greater degree of realism.
KORG PA700 OR's sound generation system uses an internal PCM memory 4 times larger than that of the previous best-selling Korg Pa600, and a 256MB USER PCM memory (using data compression). The locations for internal Styles have now been increased to 1,152, to cover every stylistic and musical need. The amplification system has been further improved and perfected, with a powerful and dynamic sound. The instrument comes standard with an RGB video output, for fun Karaoke performances or useful support for the entertainer musician.
A completely revolutionary function for an arranger implemented on KORG PA700 OR is KAOSS FX, which allows for creative control of your performance. Morphing between Variations and Drum Kit types, Mixing between various accompaniments, Reshaping of Styles, Delay, Arpeggios, up to the most radical and extreme DJ effects are just some of the possibilities offered in real time by this fantastic new function.
KORG PA700 OR is the version of the Arranger Workstation with Middle Eastern musical resources.

Specifications

• The Oriental version has musical resources typical of Middle Eastern countries.
• Sound generation system: Enhanced EDS-X (Enhanced Definition Synthesis-eXpanded), capable of providing vivid and realistic sounds.
• Large internal sound ROM memory, supplemented by 256 MB of User PCM memory (compressed), to provide the best possible sound quality.
• 2 Assignable Switches, 2 Assignable Knobs, 4-way Joystick, for complete control of sound articulations (DNC – Defined Nuance Control).
• 61 velocity-sensitive keyboard.
• Compact, thin and lightweight cabinet
• Large 7” TFT TouchView™ Display
• New, even simpler Layout and completely renewed graphical interface.
• New "Search" function to locate musical resources even faster.
• “Dual-Cone” amplification system capable of delivering dynamic and powerful sound.
• More than 370 Factory Styles, each with 4 variations and 4 Fill Ins + Break, plus 24 User Banks, for virtually unlimited storage of modified or personal Styles.
• Direct SongBook to instantly increase the capacity of the internal database.
• User and Direct banks can now be renamed to identify and find your personal Styles more quickly, the entered names appear in the selection windows.
• The Chord Sequencer function records every harmonic progression in real time, and can now be stored in each Style or in SongBook Entries.
• The Style Creator Bot automatically generates a complete Style, including a Chord Sequence, from a MIDI Song.
• Multiple effects processor: 2 Insert and 2 Master Effects for accompaniment; 1 Insert Effect and 2 Master Keyboard Set; Final Limiter and Parametric EQ; Vocal Processor with 5 dedicated effects
• Improved compatibility with Lyrics in graphic format (+G) for MP3s.
• Improved compatibility for sounds for Songs in GM and GS formats.
• The Detect Chord function scans the tracks of a MIDI Song, identifies the chords, and then saves them as readable events in the Lyrics or Score pages.
• Completely programmable SongBook Database based on Styles, SMF, Karaoke, MP3 with instant recall of any setting.
• User definable Set Lists. Filtering and sorting options, Direct Access mode.
• Extended multi-language character set. Lyrics can be displayed in their original languages (except Oriental and Arabic languages).
• Style and SongBook editing operations are even easier and more intuitive.
• Import of major sample formats: KORG, WAV, AIFF and SoundFont™.
• 512 User Sound Locations, 256 User Drum Kit Locations.
• MIDI connection can now be made via the USB HOST port (in addition to USB DEVICE and all MIDI ports). This allows immediate connection of compatible external controllers, such as the Korg HAVIAN 30 digital piano, the KORG Nano and Micro series, without using special adapters.
• MicroSD Card slot (not included) allows data storage and protection.
• Keyboard: 61 keys (C2 – C7) velocity sensitive
• Operating System: Upgradable operating system, Multitasking, Load while play
• Sound Generation: EDS-X (Enhanced Definition Synthesis – eXpanded)
• Filters with resonance, 3-band EQ on each sound
• Polyphony: 128 voices (max.), 128 oscillators
• Pads: 4 Programmable Pads + Stop Button; Pad Record Function
• General Controls: Master Volume, Fade In/Out, Keyboard-Acc/Song Balance, Ensemble, Octave Transpose, Master Transpose, Joystick, 2 Assignable Knobs, 3 Assignable Switches, Tempo +/-, Tempo Lock; Metronome On/Off, Dial, Search, Shift Split, Record
• Scale Controls: Virtual Pad for quarter tone control (Quarter Tone SubScale), and 4 x Scale Presets
• Control Inputs: Damper Pedal (supports half-pedaling with optional DS-1H pedal)
• Assignable Pedal/Switch (programmable)
• Audio Inputs - Audio Inputs: Line (Left/Right): 1/4” jacks, +20dBm, 12k Ohm; Mic/Guitar (Left): 1/4” jack, with Gain control (0 — +40dB)
• 12k ohm (Mic) / 500k ohm (Guitar)
• Audio Outputs - Audio Outputs: Left/Right, 1/4” jack, +21dBm, 0.003% THD+N@+18dBm; Headphone Output (1/4” jack), 16-200 Ohms (50 Ohms suggested)
• Internal amplification system: Amplification: 2 x 25W; Speakers: 2 x Dual Cone Speakers with Bass Reflex Box
• MIDI: Standard MIDI IN, OUT connectors; USB to MIDI using the USB port; HOST: memory and controls, DEVICE: personal computers; 8 user-definable MIDI Set Ups
• USB: Type A (Host), Type B (Device); 2.0 High-Speed (480 Mbit/s) connection. Low-Speed (1.5 Mbit/s) and Full-Speed (12 Mbit/s). Devices can only be connected via a high-speed USB HUB.
• Memory: Internal Memory: 960 MB; External USB drives (not included)
• microSD Card (not included); slot protected on the back panel by a plastic cover.
• Display: 7” Wide, capacitive color, TouchView™ TFT Display
• Video Out: RCA connector
• Clock: Internal System Clock
• Consumption: 100–240 Volts, 50/60 Hz, 25 Watts normal use / < 0.3 Watts in standby
• Included accessories AC power cord, Music stand, Quick Guide (manual)
