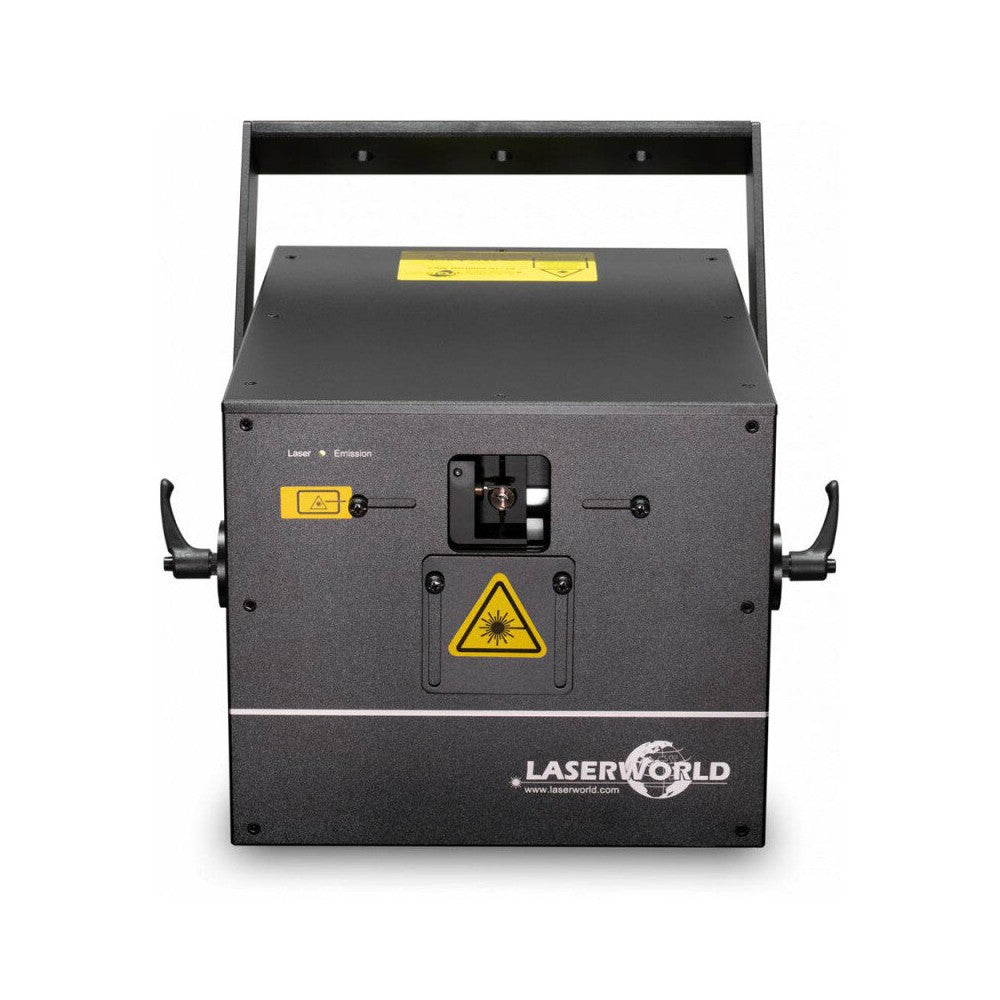

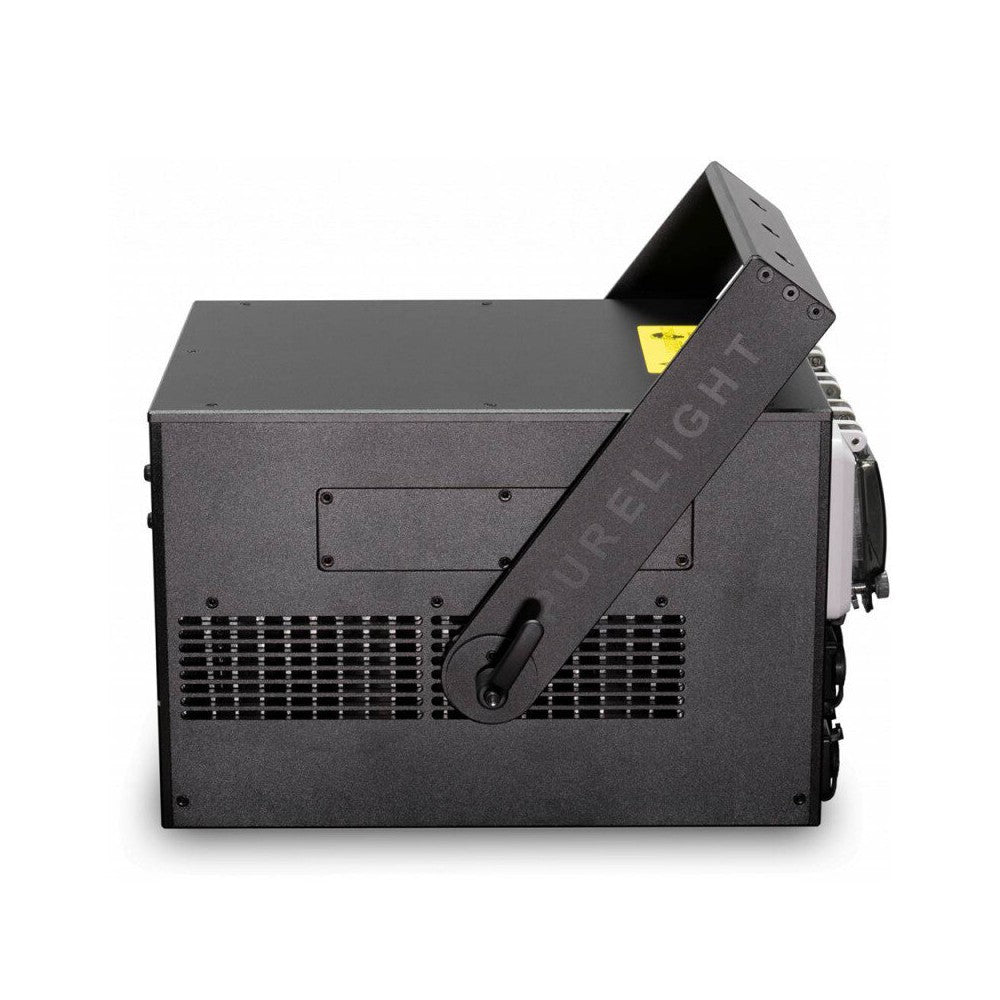

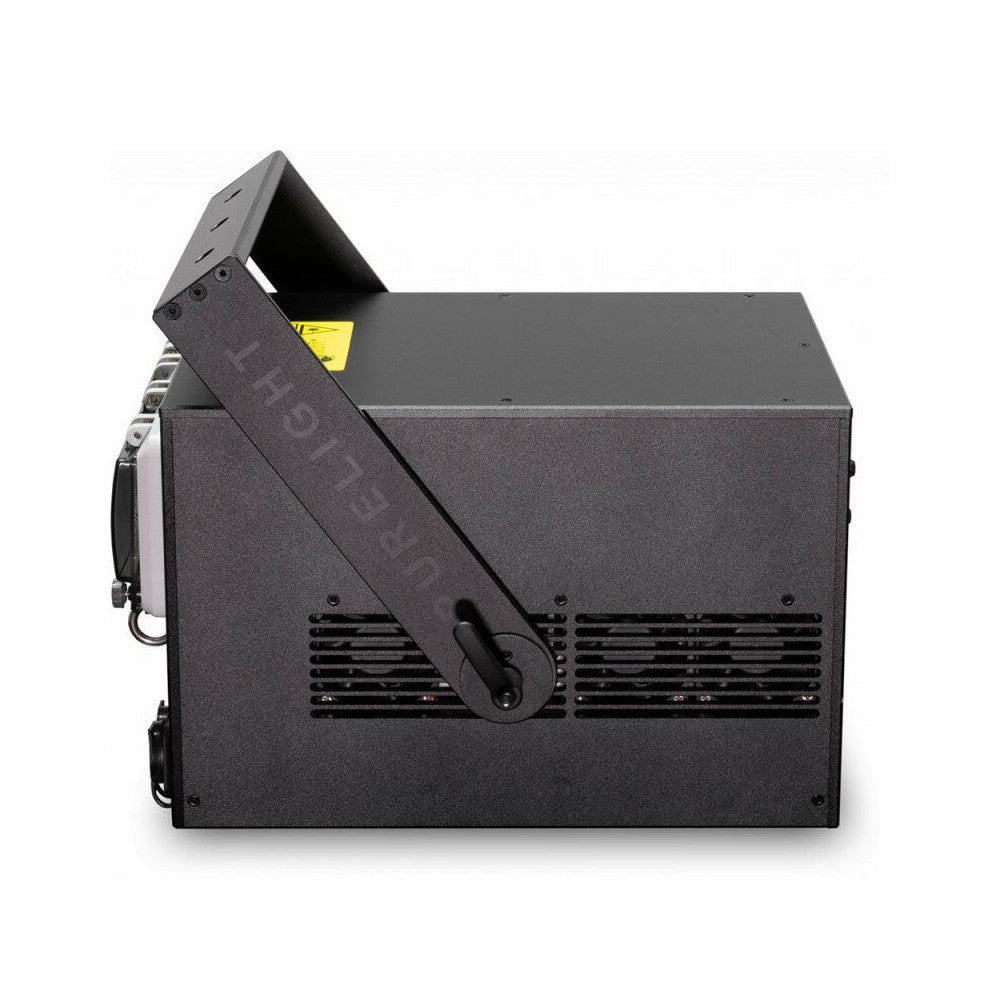

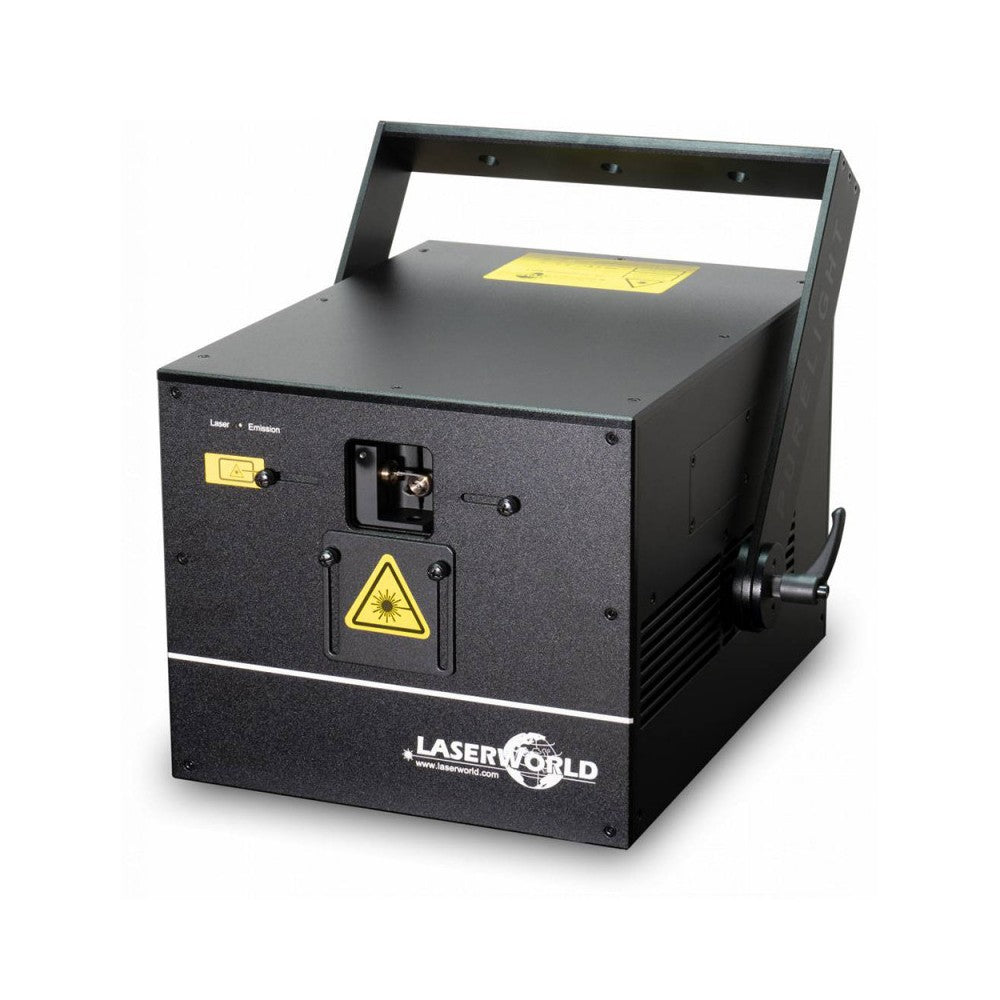

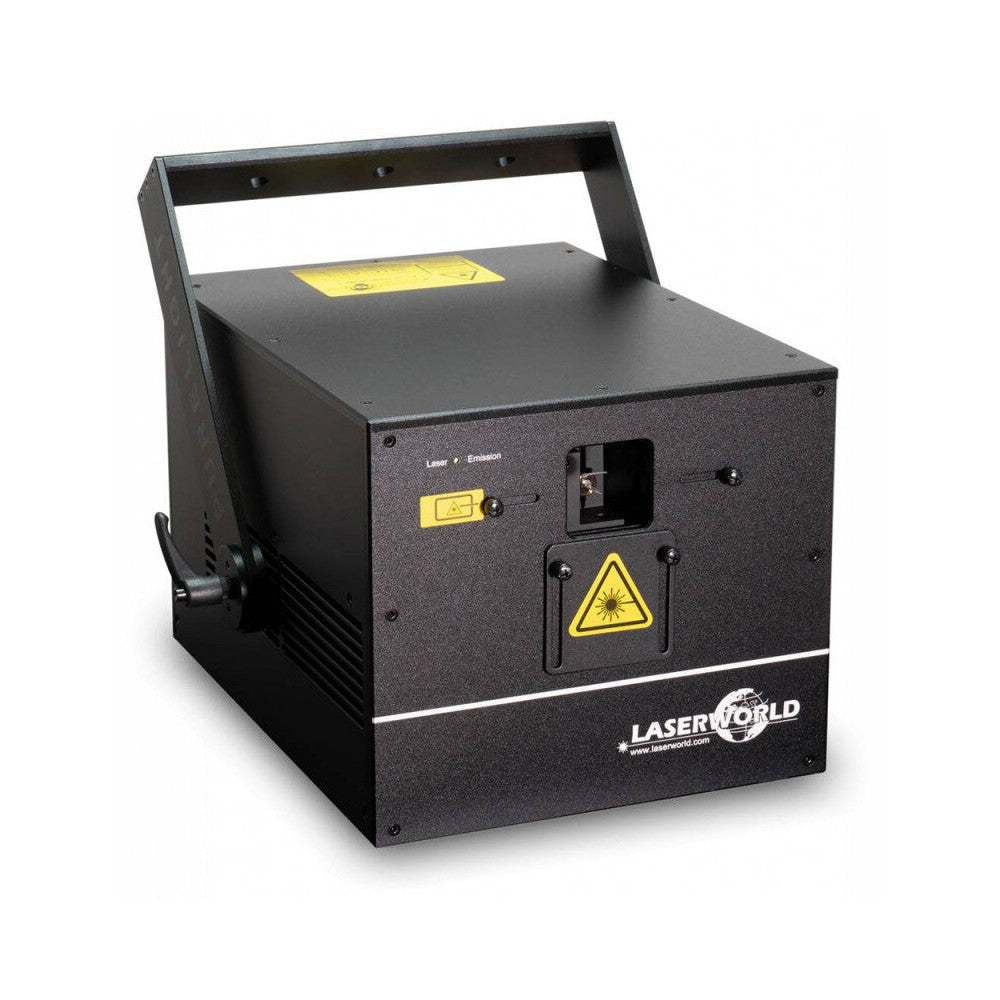

Laserworld Purelight Series Laser Projector 5,000 mW with ShowNet

FEATURES

An extremely powerful full-color laser projector, designed for professional entertainment lighting applications, including live stages, concerts, shows and TV productions, music festivals, discos, DJs, nightclubs, bars, parties, rental companies, and service providers.
The Laserworld PL-5000RGB MK3 laser show projector is diode-based and has good white balance, with linear color fading behavior and high visibility. Laserworld PL-5000RGB MK3 units have an integrated network DAC for Showcontroller and Showeditor, Touchdesigner, MadLaser, ILD Render, but can also be controlled with any ILDA laser control software like Pangolin Quickshow, Pangolin Beyond, LSX, Lasergraph DSP, etc. via an external ILDA interface. They also have built-in memory with preset patterns, which can be easily triggered via DMX / ArtNET and automatic mode.

Laserworld PL-5000RGB MK3 features an integrated ShowNET network interface and free laser show software. The advantages of the Laserworld PL-5000RGB MK3 projector are: a low-cost yet powerful solution for laser applications that require power, ideal for large discos and medium to large stages, brilliant colors with excellent linear color fading behavior, ideal for long-distance laser shows and basic graphic projections.

This projector has a beam diameter of approximately 5.0 mm and a beam divergence of 1.0 mrad. The guaranteed output power at the aperture is 5000 mW, and the individual source powers are: 1200 mW / 638 nm (red), 1'700 mW / 520 nm (green), 3000 mW / 450 nm (blue). The fast scanners operate at a speed of 40 kpps @ 8° ILDA and can perform a max. scan angle of 50°.

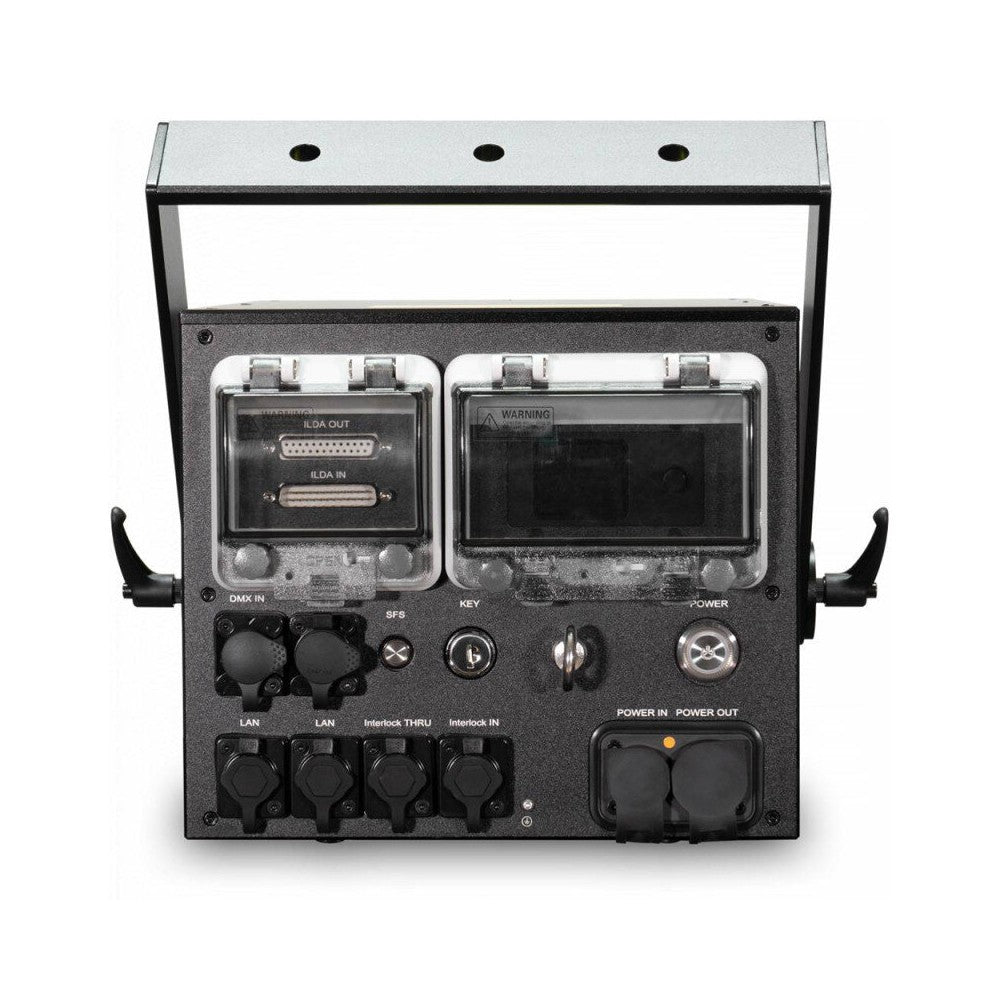

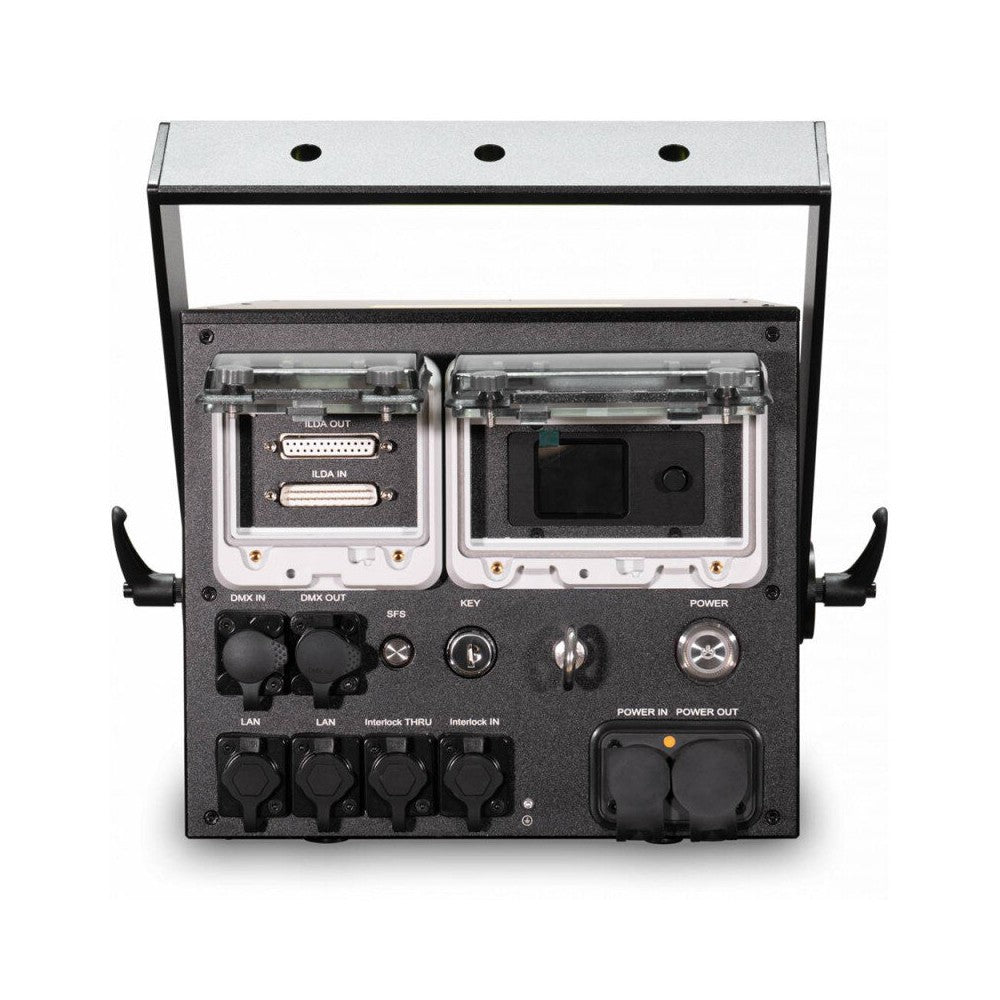

The projector is entirely assembled with Sealed Housing technology and is cooled through external cooling fins (bottom part); this minimizes maintenance operations. On the back of the unit are potentiometers for color settings, so that the color balance can be adjusted quickly. The X / Y axis can also be inverted via buttons. In addition, the scan safety limit can be set on the back of the laser.

Laserworld PL-5000RGB MK3 features an integrated ShowNET network interface with free laser control software included. Showcontroller software is also supported and can be purchased additionally. The integrated ShowNET allows direct input via ILDA and LAN. In addition to DMX, individual frames can be triggered via ArtNet. You can play custom frames and shows from an integrated SD card (included with the device), even in stand-alone mode.

SPECIFICATIONS

• Guaranteed power at aperture: 5000 mW
• Power red: 1200 mW / 638 nm
• Power green: 1700 mW / 520 nm
• Power blue: 3000 mW / 450 nm
• Beam specifications: ca. 5.0 mm / 1.0 mrad
• Scanner: 40 kpps @ 8° ILDA
• Max. scan angle: 50°
• Laser source: diode
• Laser class: 4
• Operation modes: ILDA, DMX, LAN, ArtNet, ILDA streaming, integrated SD card, stand-alone, Master/Slave
• Basic patterns over 120 (layers, tunnels, fences, waves, etc.)
• Accessories: Incl. Waterproof flight case, key, power cable, manual; full version Showeditor software license included
• IP rating: IP54
• Power supply: 85 - 250 V_AC 50/60 Hz
• Power consumption: 150 W
• Dimensions: 320 x 220 x 180 mm
• Weight: 10.1 kg
