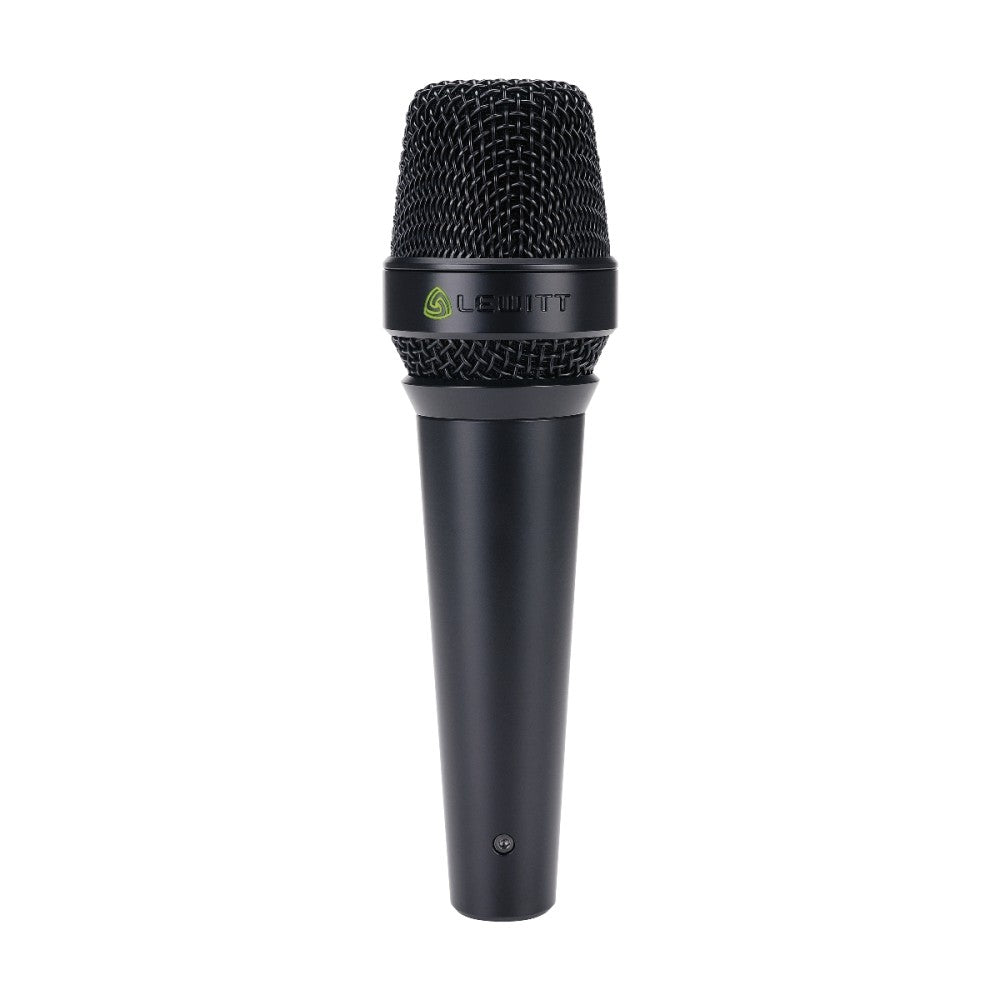

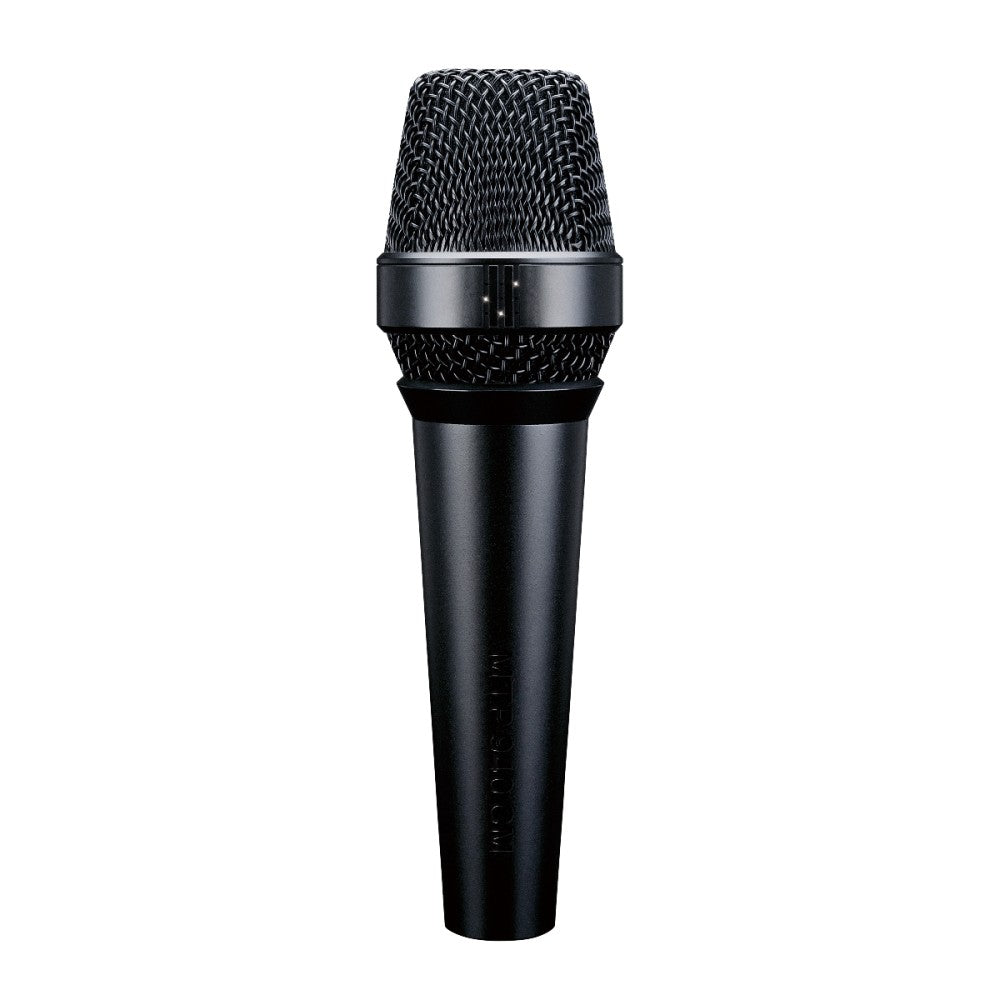

LEWITT MTP 940 CM Condenser Microphone

Condenser Microphone

Studio performance on stage – only the top model of the MTP series can give you that. Only with the MTP 40 CM is it possible to guarantee cutting-edge technological standards in live and studio applications with a single product, the most innovative and complete condenser microphone ever made – a milestone in sound engineering. The externally polarized large-diaphragm capsule gives the voice harmony, infinite detail, and authenticity. The sound source passes through the microphone with clarity and authenticity and is processed with impressive feedback resistance and almost total elimination of unwanted breath noises, popping, and all kinds of noise generated by use. The MTP 40 CM develops a dynamic range of 135 dB – the widest ever achieved by a live microphone – thanks to its high headroom and the Direct Coupling circuit design, a proprietary LEWITT technology that allows for a self-noise of only dB. For this reason, the MTP 40 CM is also the ideal choice for the studio, where the goal is to create a live atmosphere accompanied by a very high degree of acoustic perfection. The technical characteristics and possibilities offered by the MTP 40 CM make it a product capable of excelling among the most highly rated professional microphones. 3 different selectable polar patterns – extended cardioid, cardioid, and supercardioid – simplify recording from the most diverse sound sources; from solo vocals to choirs up to the classic unplugged live with a singer and an acoustic instrument. A three-level high-pass filter effectively controls the proximity effect, allowing the best possible adaptation to the recorded source. And the three-level selectable pre-attenuator ensures safe use even in environments with very high SPL. The LED system, which can be disabled or enabled by the user, provides great simplicity for controlling settings and operating parameters even in dimly lit environments. The sturdy construction of the microphone makes it ready even for the most intensive applications, such as grueling large international tours. For all those who dream of a microphone with studio performance on stage or a live atmosphere in the studio and uncompromising quality, the MTP 40 CM is the right choice. The excellent synergy between versatility, innovation, and great attention to sound makes it a new benchmark in the world of high-end microphones.

SPECIFICATIONS

• 1" dual-system capsule with external polarization, ultra-thin gold-layered diaphragm - precise transient frequency response for a rich, nuanced, and authentic sound
• Linear frequency response for an authentic and natural sound
• Three different polar patterns – cardioid, extended cardioid, supercardioid – for maximum flexibility in the most diverse live or recording situations
• Impressive dynamic range of 135 dB-A and a self-noise of only dB-A thanks to the innovative Direct Coupling technology (patent pending) for maximum realism and distortion-free sound detail
• 3-level selectable preamplifier (0 dB, 6 dB, and 12 dB) to handle very high sound pressure levels
• 3-level selectable high-pass filter for direct control of the proximity effect in relation to the live situation or the singer's requirements
• Illuminated status and setting indicators for convenient control even in live situations without light
• Protected slide switches to prevent accidental displacement of settings
• Effective integrated pop filter for excellent protection without compromising the purity of the high-frequency response
• Ultra-durable die-cast metal housing capable of withstanding tours and all the most grueling applications over time
• Reinforced steel mesh grille
• Excellent tolerance for sudden changes in load impedance
• Gold-plated anti-corrosion 3-pin XLR connector
• Supplied in retail packaging with two MTP 40 MCs shock mounts and DTP 40 Lb leather microphone bag
• Recommended applications: Solo and backing vocals, high-profile live and studio
• Acoustic operating principle: externally polarized pressure gradient transducer
• Transducer Ø: 25.4 mm 1 inch
• Directional pattern: Extended Cardioid, Cardioid, Supercardioid
• Frequency response: 20 to 20,000 Hz
• Sensitivity: 10 mV / Pa (-40 dBV), cardioid
• Signal-to-noise ratio: 85 dB-A
• Equivalent noise level: dB-A, cardioid (IEC 61672-1)
• Dynamic range of the microphone amplifier: 135 dB-A
• Maximum SPL threshold 0.5% THD: 144 dB, pre-attenuation 0 dB --- 150 dB, pre-attenuation 6 dB --- 156 dB, pre-attenuation 12 dB
• Pre-attenuator: 6 dB, 12 dB, selectable
• Low-cut filter curve: 12 dB / octave at 100 Hz, 6 dB / octave at 250 Hz
• Nominal impedance: < 150 ohms
• Load impedance: > 1,000 ohms
• Power supply: 48 V +/- 4 V (IEC 61 38)
• Consumption: 5.5 mA (IEC 61 38)
• Connector: Gold plated 3-pin XLR
