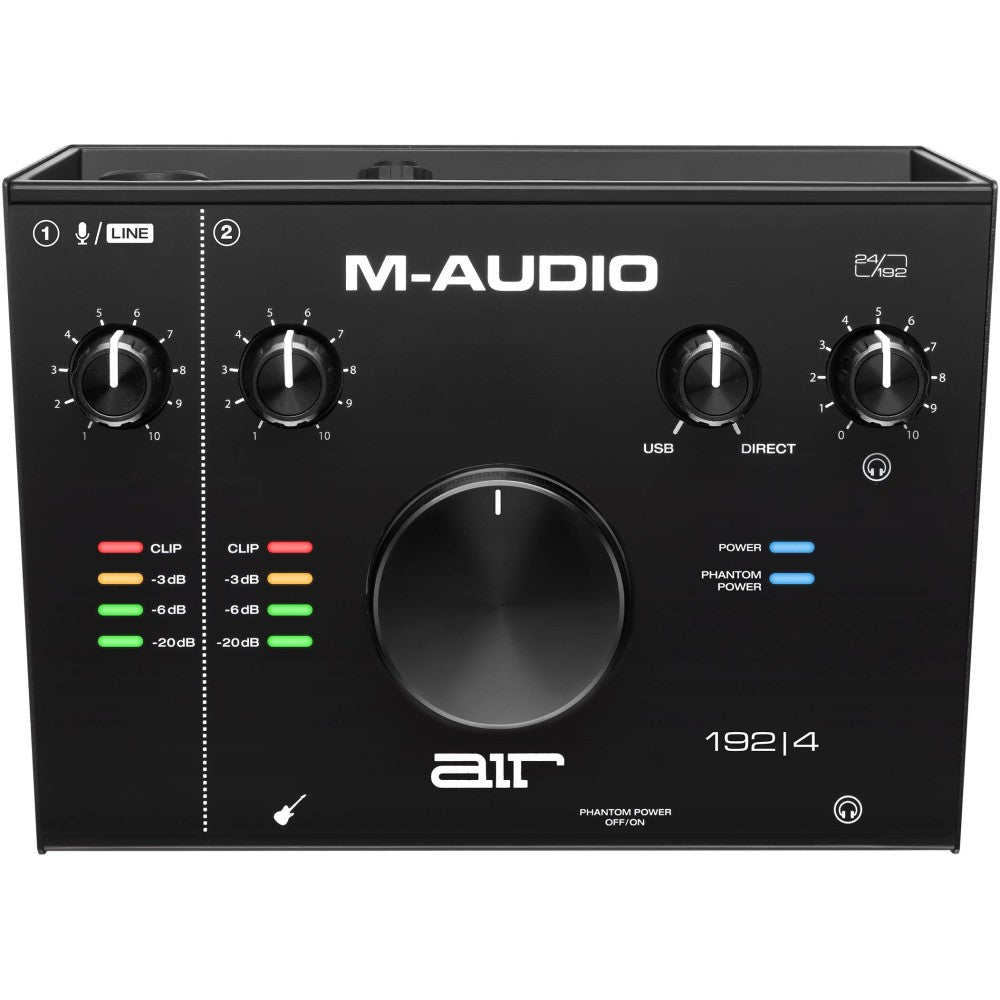

M-AUDIO AIR 192|4 2-in 2-out USB Audio/MIDI Interface

USB audio/MIDI interface with 2 in 2 out

M-AUDIO AIR 192|4 is a USB audio/MIDI interface with 2 in 4 out that allows for impeccable studio-quality recordings at 24-bit/192kHz with an intuitive and easy-to-use audio interface. The M-AUDIO AIR 192|6 allows you to record up to 2 channels simultaneously with its dedicated balanced XLR+¼" combo input and a brand new ¼" instrument input with a gain and impedance stage specially designed to provide maximum accuracy when recording a guitar or bass connected directly to the interface.
M-AUDIO AIR 192|4 comes complete with a software package that has everything to start making professional recordings immediately. With 2 powerful DAWs to meet production needs, M-AUDIO AIR 192|4 includes Pro Tools | First M-Audio Edition and Ableton Live Lite.
M-AUDIO AIR 192|4 also features a full set of effects plugins, virtual instruments, and a Loop package to meet all production needs. Whether you need a guitar sound, a reverb or a delay, your effects needs are covered by Eleven Lite, a package of 20 effects plugins and AIR's Creative FX Collection Plus.
M-AUDIO engineers designed the Crystal preamps to offer sound engineers, producers, and musicians a transparent, low-noise preamp that ensures the best sound from microphones and captures performances with extreme fidelity. The M-AUDIO AIR 192|4 incorporates pristine A/D converters to provide 24-bit resolution digital audio for an explosive dynamic range that captures every nuance and subtlety of your performance.
M-AUDIO AIR 192|4 not only offers a high-speed USB connection to provide ultra-low round-trip latency (2.59 ms*) between the machine and hardware, but also includes monitor mix control for direct listening of source inputs, providing zero-latency technology.

Specifications

• Audio resolution up to 24-bit / 192kHz for professional recordings and monitoring
• High-speed USB-C connection, with latency between input and output of only 2.59 ms*
• Extremely transparent Crystal preamps for unparalleled recording quality
• LED VU meters for precise level display
• 1 balanced combo mic/line input with dedicated gain control, level indicator, and +48V phantom power
• 1 instrument input in 1/4” jack format with dedicated gain control and level indicator
• ¼” jack outputs and ¼” headphone output with independent volume control
• Robust metal chassis; large central knob for quick volume adjustment
• USB / Direct knob for zero-latency monitoring of signals
• Software bundle: Ableton Live Lite; Creative FX Collection; Xpand!2; Mini Grand; Touch Loops; Revalver - 2x Amps, 3x Cabs, 3x Mics, 3x Effects; MPC Beats - 3 Virtual Instruments (TubeSynth, Electric, Bassline), 80 FX Plugins (AIR Channel Strip, Half Time); 2 GB of factory content with bonus F9 instrument library

Microphone Input 1 (Balanced XLR)

• Frequency response 20 Hz - 20 kHz (+0.1 dB)
• Dynamic range 104 dB (A-weighted)
• Signal-to-noise ratio 104 dB (+1.0 dBu, A-weighted)
• THD + N 0.003%
• Preamp EIN -128 dBu (maximum gain, 150 Ω source, A-weighted)
• Maximum input level +1.5 dBu
• Gain range 55 dB

Line Input 1 (Balanced 1/4" [6.35 mm] TRS)

• Frequency response 20 Hz - 20 kHz (+0.05 dB)
• Signal-to-noise ratio 101 dB (1 kHz, +4 dBu, A-weighted)
• THD + N 0.003%
• Maximum input level 16 dBu
• Gain range 55 dB

Input 2 Inst (Unbalanced 1/4" [6.35 mm] TS)

• Frequency response 20 Hz - 20 kHz (+0.05 dB)
• Dynamic range 100 dB (A-weighted)
• Signal-to-noise ratio 102 dB (+4 dBu, A-weighted)
• THD + N 0.004%
• Maximum input level 6 dBu
• Input impedance 1 MΩ
• Gain range 24 dB

Main Outputs, L and R (Balanced, differential 1/4" [6.35 mm] TRS)

• Frequency response 20 Hz - 20 kHz (+0.06 dB)
• Dynamic range / signal-to-noise ratio 102 dB (A-weighted)
• THD + N 0.005%
• Maximum output level +7 dBu (1 kHz, -1 dBFS)

Headphone Output (1/4” [6.35 mm] impedance-balanced TRS)

• THD + N 0.005%
• Output impedance 10 Ω
• General
• USB-bus-powered
