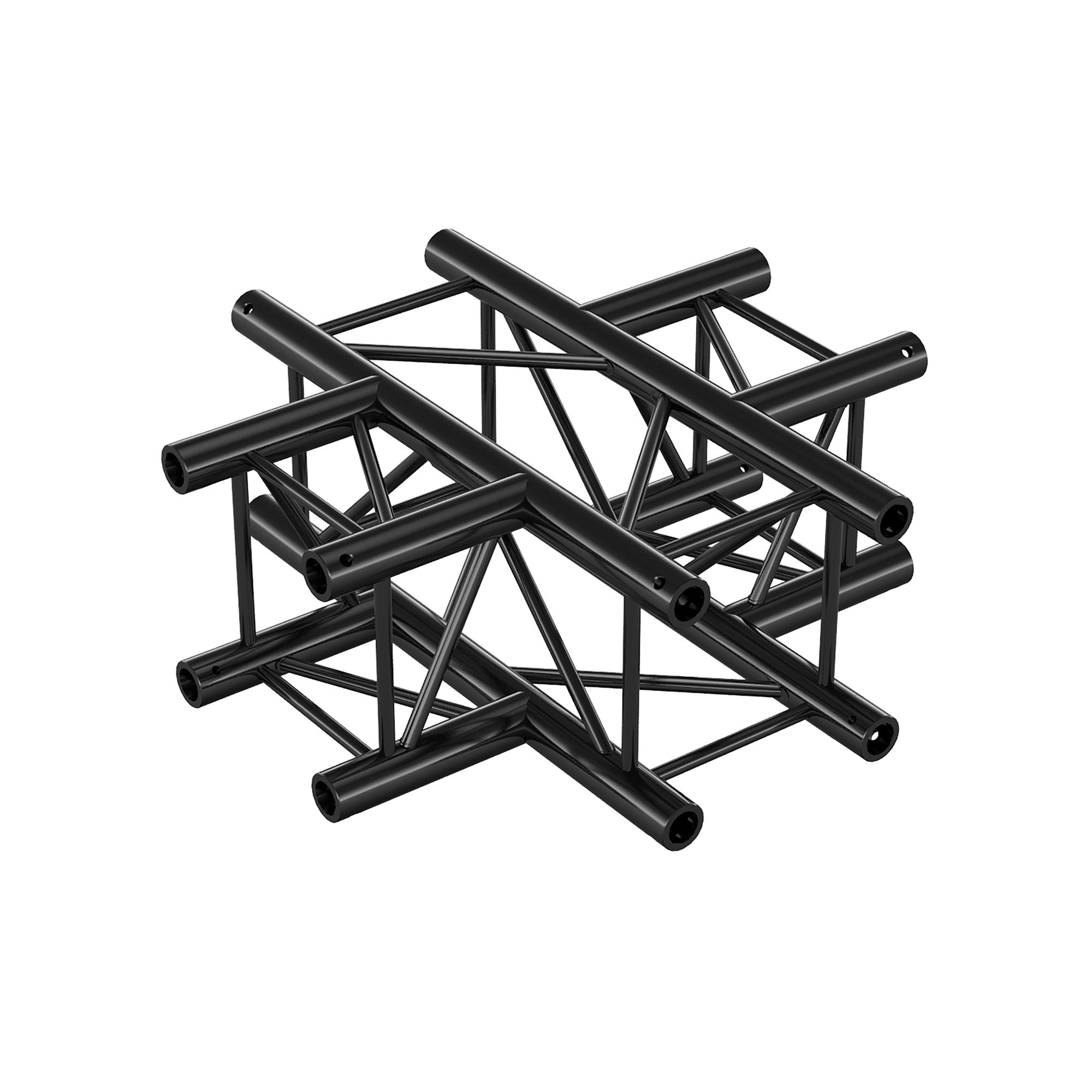

MILOS Pro-30 Square F Truss - Cross 4-way F (Prolyte Ø 27.8 mm compatible), Black QCV41 - 90° corner - heavy duty - black - F
Estimated delivery in Italy between 18 and 20 August
Pay in 3 installments of €243,33 interest-free
Pay in 3 installments of €243,33 interest-free with PayPal
Split into 3 installments of €243,33 with your card via HeyLight
Simulate your installment financing with Findomestic
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
QCV41 - 90° corner - heavy duty - black - F
Heavy Duty Pro-30 Square 4-way Corner Trusses FThe Pro-30 Heavy Duty truss provides excellent span and weight loading characteristics and is very well equipped to be used for medium to large applications. It is ideal for spans up to 20mtr. Constructed from certified aluminum alloy tube of 48x3mm thickness with 16x2mm bracings. Each length has a durable construction with an anti-torsion diagonal brace. The Heavy Duty truss is available in aluminum color or powder coated in black, RAL9005. Both colors are available as F-truss compatible with Prolyte or G-truss compatible with Global/Euro. Since the female connectors are Pro-30 standard, you can easily combine the Heavy Duty truss with your current truss.
A = 710 mm
B = 710 mm
Combining different brands of trussing should always be approved by a competent and adequately qualified third party. This party must draw up a risk assessment and perform the structural calculations. Using unapproved combinations is at the user's own risk.
SPECIFICATIONS
- Length (mm): 710 mm
- Length (m): 0.71 m
- Dimensions: 290 mm x 290 mm
- Main tube diameter: 48 x 3 mm
- Diagonal diameter: 16 mm
- Weight: 8.42 kg
- Finish: Powder coating
- Color: Black
- Truss type: 4-way / Cross
- Truss angle degrees: 90°
- Truss system: F Ø 27.8 mm
- Compatibility: Prolyte
- Included accessories: 4x Spigot Set, Pin, Spring
