MILOS Pro-30 Square F Truss - T-cross + Down 4-way F (Prolyte Ø 27,8 mm compatible), Silver QLVF40 - 90° angle - heavy duty - silver - F
Estimated delivery in Italy between 18 and 20 August
Pay in 3 installments of €151,66 interest-free
Pay in 3 installments of €151,66 interest-free with PayPal
Split into 3 installments of €151,66 with your card via HeyLight
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
QLVF40 - 90° angle - heavy duty - silver - F
T-cut + 4 way down Pro-30 square F heavy duty trussThe Pro-30 Heavy Duty truss offers excellent span and weight load characteristics and is very well equipped for use in medium to large applications. It is ideal for spans up to 20mtr. Constructed from certified 48x3mm thick aluminium alloy tubes with 16x2mm braces. Each length has a durable construction with an anti-torsion diagonal strut. The Heavy Duty truss is available in aluminium colour or powder-coated in black, RAL9005. Both colours are available as Prolyte compatible F-truss or Global/Euro compatible G-truss. As the female connectors are standard Pro-30, you can easily combine the Heavy Duty truss with your existing truss.

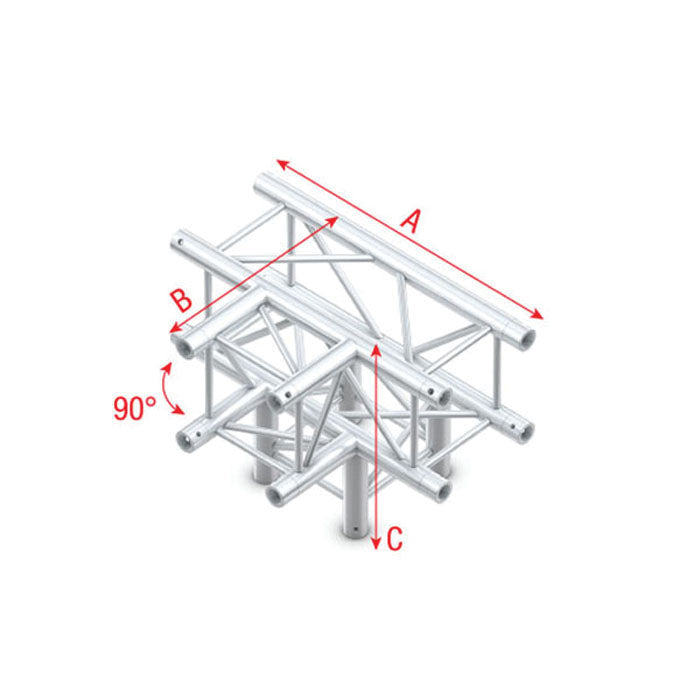

A = 710 mm
B = 500 mm
C = 500 mm
Do you already own a Prolyte truss? Check this compatibility chart to find the right Milos equivalent for your setup.
Combining different brands of trusses must always be approved by a competent and adequately qualified third party. This party must draw up a risk assessment and carry out the structural calculations. The use of unapproved combinations is at the sole risk of the user.
SPECIFICATIONS
- Length (mm): 710 mm
- Length (m): 0.71 m
- Height (mm): 500 mm
- Height (m): 0.5 m
- Dimensions: 290 mm x 290 mm
- Main tube diameter: 48 x 3 mm
- Brace tube diameter: 16 mm
- Weight: 12.6 kg
- Finish: Polished
- Colour: Silver
- Truss type: 4-way / Down / T-Cross
- Truss angle degrees: 90°
- Truss system: F Ø 27.8 mm
- Compatibility: Prolyte
- Included accessories: 4x Spigot Set, Pin, Spring
