Mxr M310 Textures™ Granular Synth Engine

M310 Textures™ Granular Synth Engine is MXR's synth pedal that breaks down the signal into "Grains" to generate pads, rhythms, reverbs, delays, and much more. It features stereo inputs and outputs with mono, wet/dry, and true stereo output options, 8 presets ranging from generative loops with octaves to polyphonic synthesizers, 3 operating modes - delay, auto-freeze, and layers - that manage how Grains are sampled and reproduced, and controls for Size, Overlap, Pitch, Reverse, Delay, Regen, and Mix. The reverb, filter, and vibrato add depth and dimension to the sound.
Watch the video of the MXR M310 Textures™ Granular Synth Engine
Overview of the MXR M310 Textures™ Granular Synth Engine
The MXR Textures™ Granular Synth Engine breaks down sound and reworks it into entirely new forms. Thanks to granular synthesis, the audio signal is divided into small fragments, called Grains, and reproduced according to the selected settings. Along with dynamic processing, this process allows the pedal to record what is played and transform it into a continuously evolving combination of sounds and timbres: brilliant pads, glitch rhythms, expansive regenerating reverbs, and much more. A true sound laboratory in pedal format, where each Grain can be freely shaped.
In simple terms, MXR Textures™ records the incoming audio signal into a buffer and plays it back, similar to a delay or a looper. What distinguishes this pedal, however, is the way the audio is reproduced. In a delay, there is a predetermined time interval between recording and signal playback; Textures™, on the other hand, divides the audio into smaller segments, called Grains, and plays them individually. Each Grain has a start position within the recording and a size, which determines its playback duration. The Grain size can be thought of as a read window: increasing it includes a larger portion of the recorded audio. A small size produces short, fragmented sound impulses, while a larger size allows entire musical passages several seconds long to be played back. Grains can also be overlapped. Without overlap, only one Grain is played at a time. By increasing the overlap, multiple fragments of the recording are played simultaneously and interact with each other, generating a denser and more articulate effect.
Whether you're a guitarist experimenting in your room looking for the ambient atmospheres of your favorite album, a noise rock musician who loves to weave dreamy soundscapes under riffs and solos, or a sound designer working on a film score, the MXR Textures Granular Synth Engine is a creative space without boundaries. A self-contained universe of musical possibilities that fits directly on your pedalboard. Connect your instrument and let inspiration guide you.
Strengths of the MXR M310 Textures™ Granular Synth Engine
Transforms your signal into shimmering pads, glitchy rhythms, and ever-evolving sound textures.
Eight ready-to-use presets allow you to start experimenting immediately, from regenerative loops with octaves to unstable and vibrant polyphonic synthesizers.
Three operating modes — Delay, Auto-Freeze, and Layers — determine how grains are sampled and reproduced.

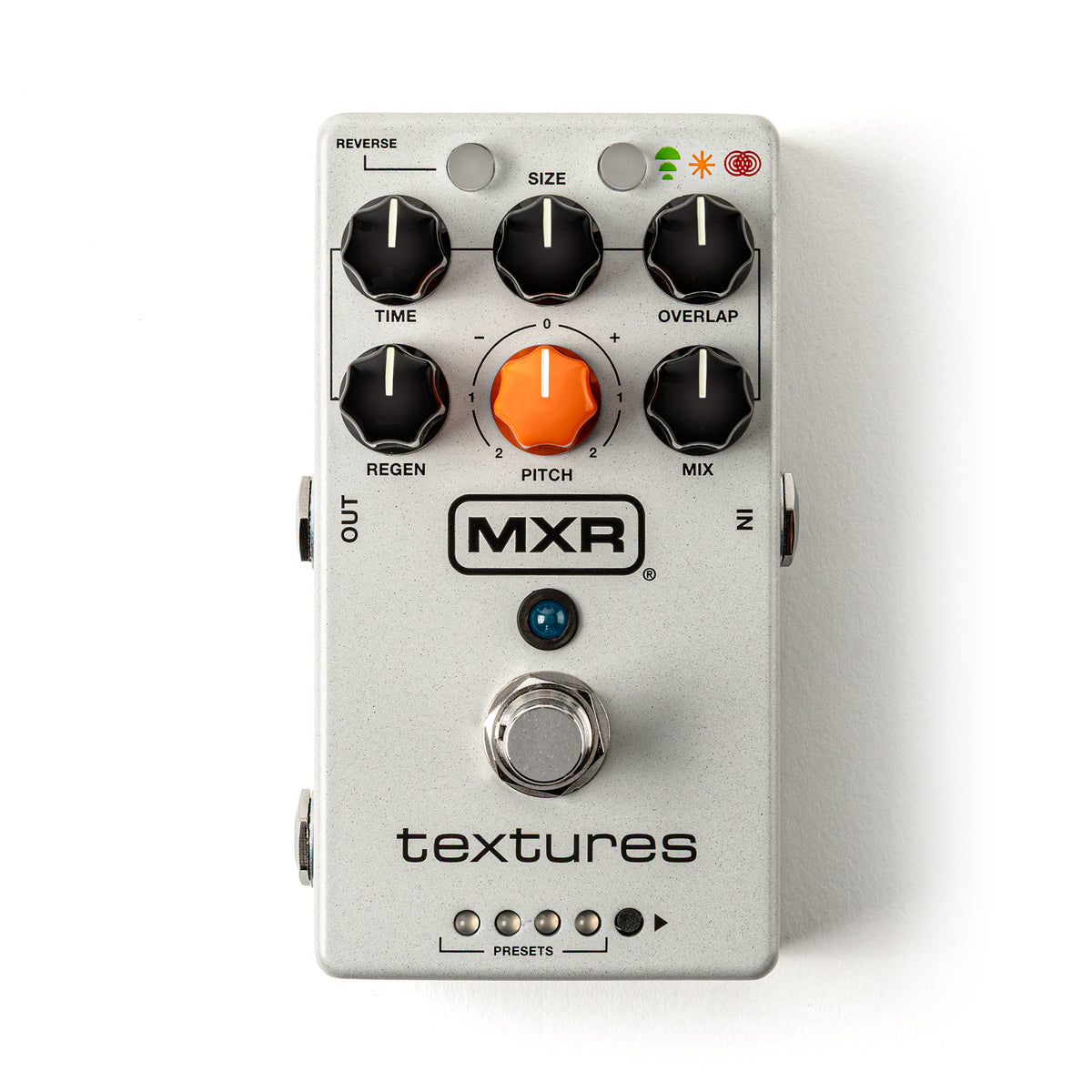

Size, Overlap, Pitch, Reverse, Delay, Regen, and Mix controls allow you to precisely shape each individual grain.
Built-in reverb, filter, and vibrato add further depth and dimension to the sound.
Advanced adjustments provide access to randomization, detailed effect fine-tuning, and tap tempo.
Full stereo inputs and outputs, with mono, wet/dry, and true stereo output options, plus compatibility with expression pedals and the MXR Split + Tap.
Specifications of the MXR M310 Textures™ Granular Synth Engine
Input Impedance: 1 MΩ
Output Impedance: 100 Ω
Maximum Input Level: +5 dBV
Noise Floor: -97 dBV
Current Consumption: 300 mA
Power Supply: 9 V DC, center negative
