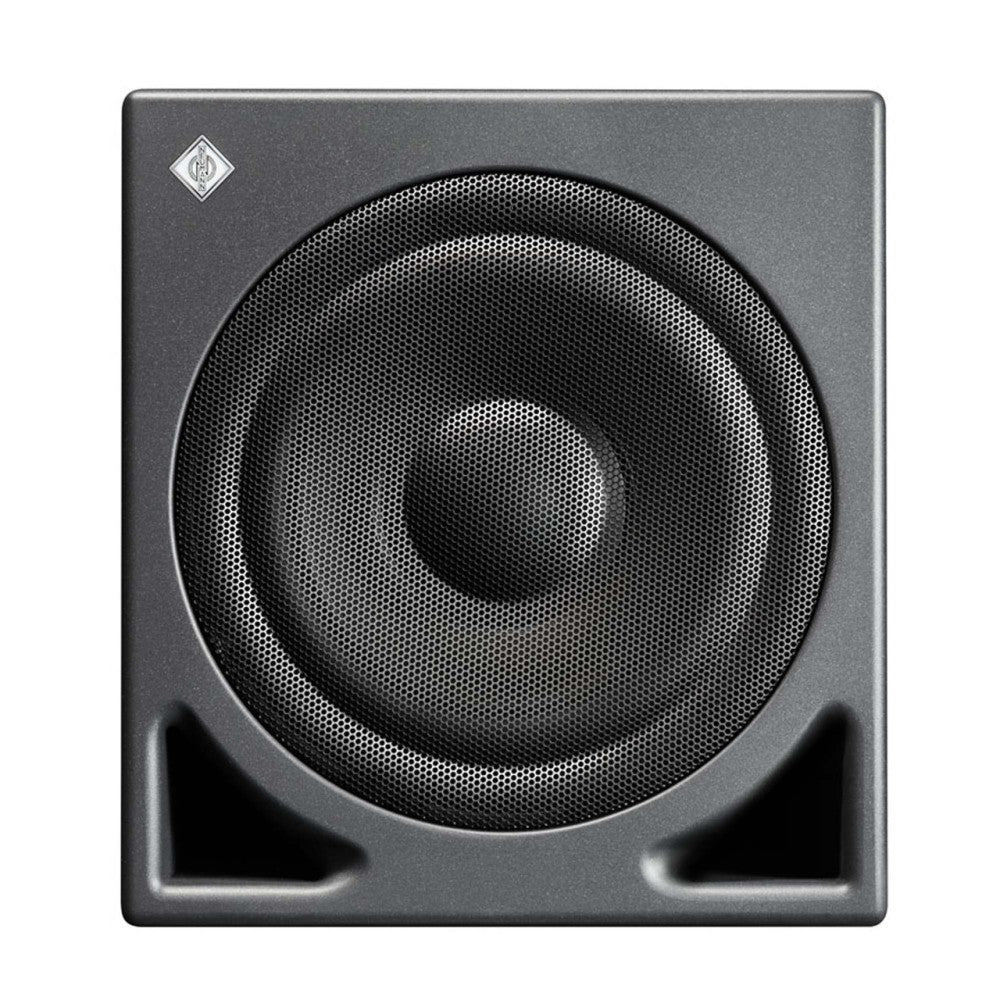

NEUMANN KH 810 10" Active Studio Subwoofer
Estimated delivery in Italy between 18 and 22 June
Paga in 3 rate da €859,66 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
10" Active Subwoofer
The NEUMANN KH 810 is a response to the latest evolution of new HD-DVD and Blu-ray formats, offering a new 7.1 High Definition Bass Manager™. Eight analog channels or an optional digital card with 8 input channels, 24-bit, 192 kHz ensures flexible interconnectivity for modern studios. Four LFE channel processing modes guarantee compatibility with all formats. The built-in volume and a remote hardware control allow for centralized system control independent of the source, while the electronics can be remotely positioned to reduce cabling. Utilizing the output sum, Plane Wave Bass Array™ (PWBA™) technology acoustically improves lateral consistency in the listening area. Bass extends down to 18 Hz.
The NEUMANN KH 810 was designed to integrate with the wide range of K+H monitors and can be used alone or in cascade to make larger systems more efficient and produce higher SPLs.
The NEUMANN KH 810 is suitable for music, broadcast, post-production, monitoring, and mixing & mastering.
Specifications

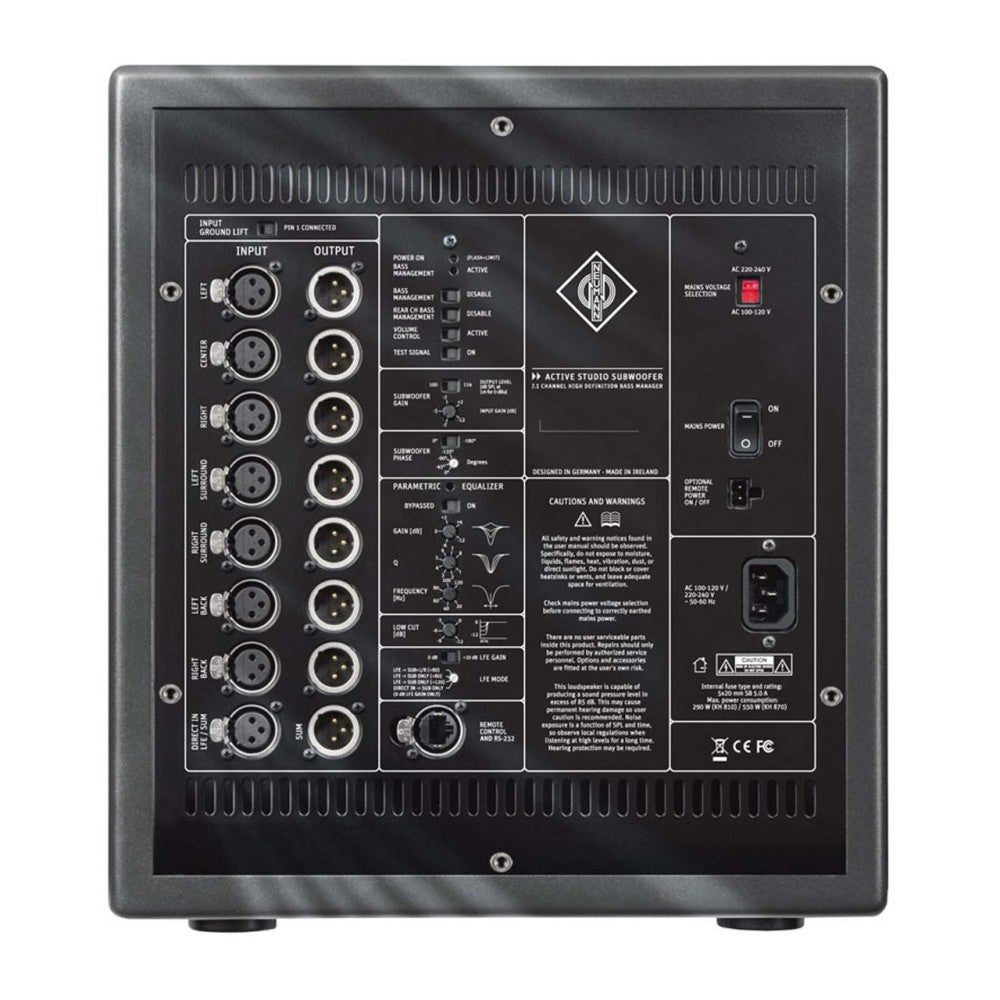

- 7.1-channel High Definition Bass Management™
- Compatible with all formats from mono to 7.1
- 4th order 80 Hz active crossover, bypassable
- 4 LFE processing modes
- Volume control via optional remote or RS-232
- Acoustic controls adapt the subwoofer's response to the environment
- Output level, Low Cut, Parametric Equalizer, Phase control in 45° steps with built-in test signal
- Optional input for 8-channel digital card (4 x AES3/AES3id/SPDIF), with 156 2010/2011
- Remotable electronics (REK 2 and an SC nn)
- Integrated limiter
- Remote power supply with two modes (0 V and 12 V trigger)
- Frequency response: at -3 dB in free field 18 - 300 Hz, at ± 3 dB Bandpass in free field 19 - 300 Hz, at ± 2 dB Self-generated noise <20 dB
- Sine wave output with THD <0.5% at 1 m: 95 dB SPL (> 45 Hz)
- Amplifier: continuous (peak) output power (THD <0.1%): 160 W (200 W)
- Controller design: Analog, active
- Main channel crossover frequency: 80 Hz
- Equalization: bass cut: 30 Hz, -12 dB ... 0
- Parametric equalizer: Bypassable - Parametric equalizer
- Gain: 4 ... -12 dB
- Parametric equalizer
- Frequency: 20 ... 120 Hz
- Volume control: Remote hardware or RS-232
- Protection circuits: Peak and thermal limiters
- Input/output channels: 7.1 / 7+sum
- Balanced impedance: 13 kohm
- Input sensitivity: -8 and +6 dBu
- CMRR: > 60 dB @ 15 kHz
- LFE gain: 0 / +10 dB
- Gain control: 2 ... -12 dB
- Digital input: XLR format (BNC format): AES3 (AES3id, S/PDIF)
- XLR impedance, balanced: 110 ohm
- BNC impedance, unbalanced: 75 ohm (input/output)
- Digital converter: resolution architecture: 16 ... 24-bit DAC, ??
- Sampling rate: 20 ... 206 kHz (CRS).
- Monitors and indicators: power: red LED
- Limit/clip: "flashing" red LED
- Active bass management: green LED
- Power supply: 220 - 240 / 100 - 120 V AC (switchable)
- Standby consumption: 35 W
- Full power consumption: 290 W
- Cabinet surface finish: Painted
- Baffle cover: Metal grille included
- Driver: Magnetically shielded
- Woofer: 265 mm (10")
Dimensions
- HxWxD: 360 x 330 x 645 mm
- Weight: 26 Kg
