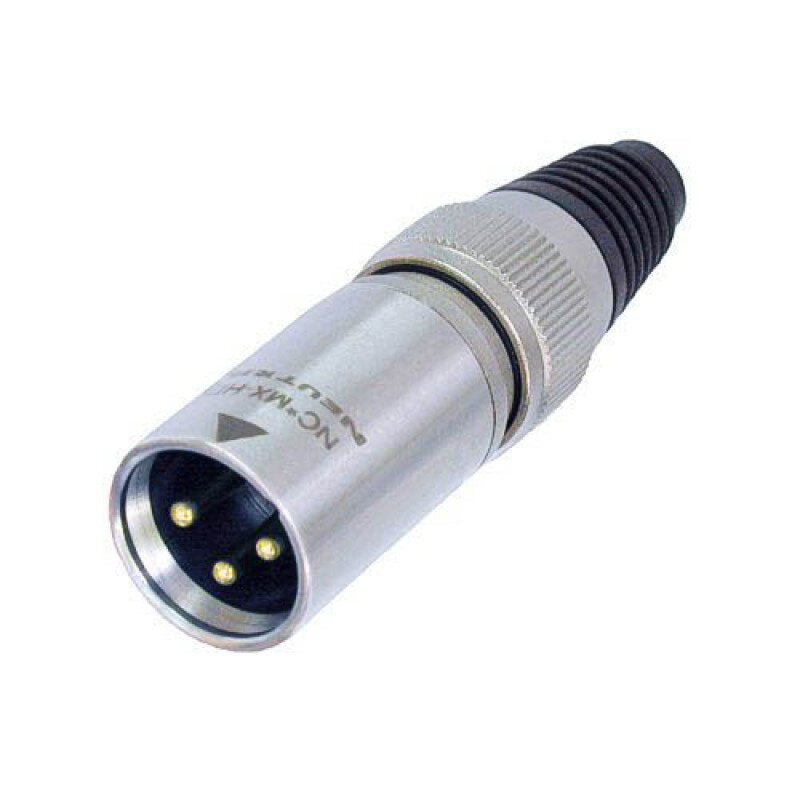

Neutrik NC3MX-HD
Estimated delivery in Italy between 12 and 14 October
Pay in 3 installments of €6,00 interest-free
Pay in 3 installments of €6,00 interest-free with PayPal
Split into 3 installments of €6,00 with your card via HeyLight
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
CARATTERISTICHE
Connettore XLR maschio a 3 poli volante "Heavy Duty". Serie X-HD con involucro interamente in metallo e contatti placati oro per applicazioni in esterno. Protezione alla polvere e all'acqua, IP 65. Il pressacavo di tipo mandrino e la boccola passacavo in gomma morbida consentono lo scarico della trazione del cavo. Ideale abbinamento con i connettori volanti Serie X-HD o da pannello MPR-HD.
SPECIFICHE
- "Heavy duty" cable connector for outdoor use
- All metal design
- M. connector in stainless steel
- NC*MX-HD mates with NC*FX-HD cable connector
- Dust and water protected according IP 65 in mated condition
- Gold contacts
- Chuck type strain relief system for secure clamping of cables
- Boot with rubber gland gives high protection against bending stresses
- Title NC3MX-HD
- Connection Type XLR
- Gender M.
- Capacitance between contacts ≤ 4 pF
- Contact resistance ≤ 3 mohm
- Dielectric strength 1,5 kVDC
- Insulation resistance > 10 Gohm (initial)
- Rated current per contact 16 A
- Rated voltage < 50 V
- Cable O.D. 3.5 - 8.0 mm
- Insertion force ≤ 20 N
- Withdrawal force ≤ 20 N
- Lifetime > 1000 mating cycles
- Wiresize max. 2.5 mm2
- Wiresize max. 14 AWG
- Wiring Solder contacts
- Locking device Latch lock
- Boot Polyurethan
- Bushing Stainless steel
- Contact plating 0.2 µm Au hard alloy over 2 µm Ni
- Contacts Brass (CuZn39Pb3)
- Insert Polyamide (PA 6.6 30 % GR)
- Locking element Stainless steel
- Shell Stainless steel
- Shell plating none
- Strain relief Polyacetal (POM)
- Sealing jacket EPDM
- Approvals UL
- Flammability UL 94 HB
- Standard compliance IEC 61076-2-103
- Protection class IP 65
- Solderability Complies with IEC 68-2-20
- Temperature range -30 °C to +80 °C
Features & Benefits
Product
Electrical
Mechanical
Material
Environmental
