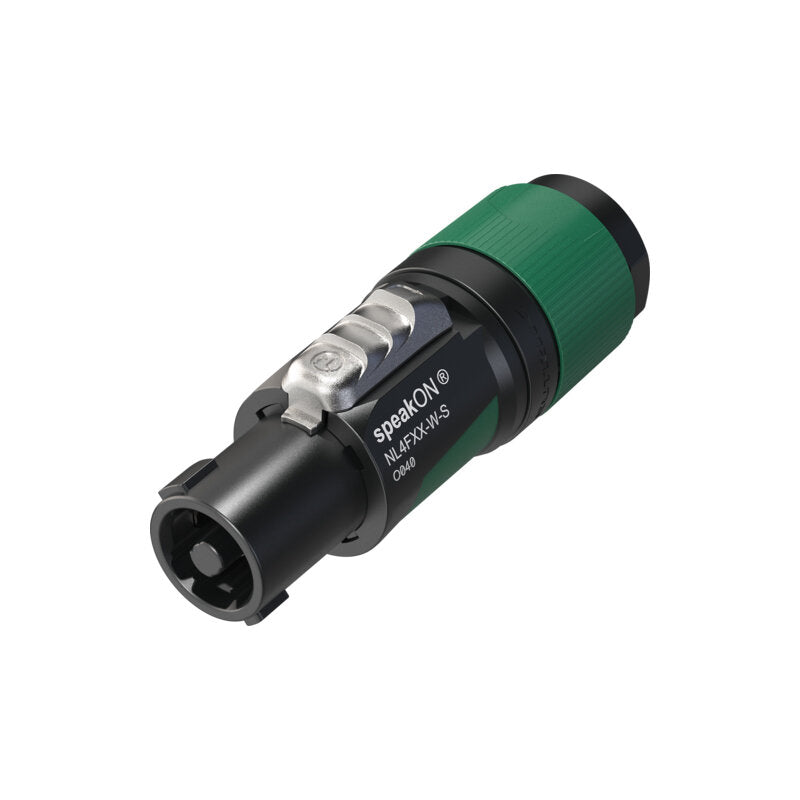

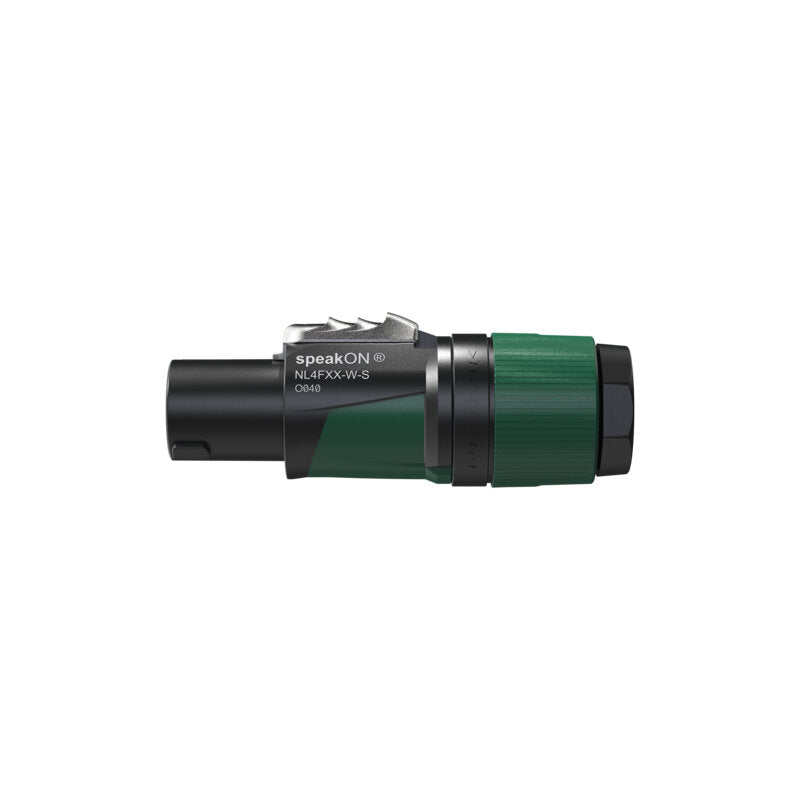

Neutrik NL4FXX-W-S
Estimated delivery in Italy between 12 and 14 October
Pay in 3 installments of €2,66 interest-free
Pay in 3 installments of €2,66 interest-free with PayPal
Split into 3 installments of €2,66 with your card via HeyLight
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
CARATTERISTICHE
Connettore volante (per cavi) speakON 4 poli, assemblaggio terminale a vite, esclusiva boccola di bloccaggio Neutrik e pressacavo a mandrino per cavi di diametro da 6 mm a 12 mm.
Dotati di una protezione antipiega migliorata grazie alla boccola bicomponente e corrente nominale fino a 37 A RMS, i connettori speakON sono lo standard del settore per i collegamenti degli altoparlanti.
I connettori per cavi Neutrik sono estremamente affidabili e robusti con un collaudato sistema twist lock e contatti solidi con terminali a vite che includono una protezione del filo intrecciato.
Caratteristiche principali
- Fino a 37 A RMS di corrente nominale
- Esclusiva boccola di bloccaggio Neutrik e serracavo per cavi con diametro da 6 mm a 12 mm
- Certificazione IEC 61984, UL 1977 e CSA C22.2 No.182.3
- Standard di qualità Neutrik superiore, estremamente robusto e affidabile
- Facile da montare perché il pressacavo si blocca meccanicamente con l'inserto e si allinea con l'alloggiamento
- Sistema twist lock semplice e affidabile
- Design ergonomico con alloggiamento stampato bicomponente antiscivolo
- Protezione antipiega migliorata grazie alla boccola bicomponente
SPECIFICHE
Technical characteristics
Electrical
| Contact resistance | ≤ 2 mohm |
| Dielectric strength | 2.8 kVAC |
| Insulation resistance | > 10 Gohm (initially) |
| Number of electrical contacts | 4 |
| Rating Europe | IEC 61984: 37 A 250 VAC |
| Rating USA | UL1977: 35 A 250 VAC |
| Rating Canada | CSA C22.2 No.182.3: 24 A 250 VAC |
| Attention |
This product is strictly not intended for use as an AC or DC power supply connector! |
Mechanical
| Cable O.D. | 6 - 12 mm |
| Lifetime | typically 5000 mating cycles |
| Wiresize | 1.5 – 4 mm2 |
| Wiresize | 17 – 11 AWG |
| Locking device | Twist lock |
| Termination | screw type terminals |
Material
| Contact plating | Ag |
| Contacts | copper alloy |
| Insert | polyamide (PA6.6) |
| Locking element | zinc diecast |
| Shell | polyamide (PA6) / TPE |
| Strain relief | polyketone |
| Bushing | polypropylene / TPE |
Environmental
| Temperature range | -33 °C to +80 °C |
| Protection class | IP20 |
| Flammability acc. to UL94 | V-0 |
