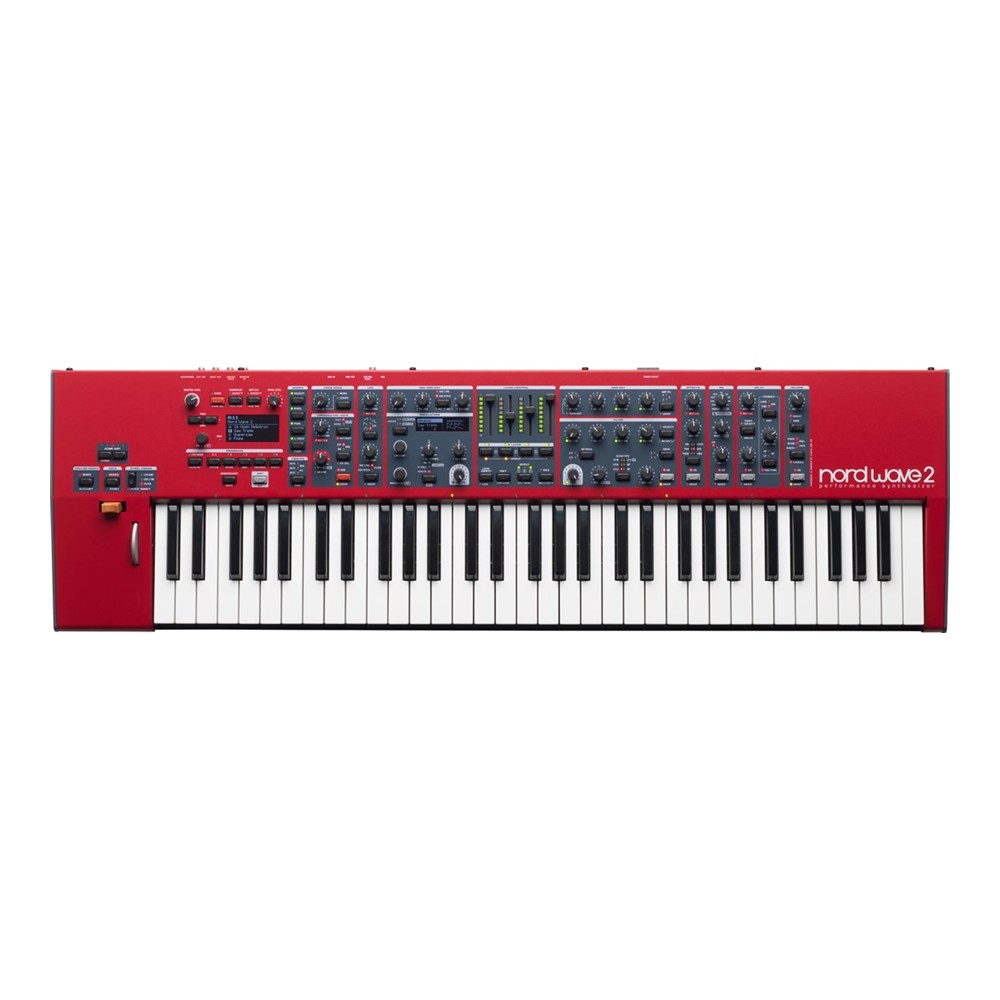

Nord NORD WAVE 2-Performance Synthesizer

NORD WAVE 2 - Performing Synthesizer

The Nord Wave 2 is a powerful 4-part synthesizer that combines virtual analog, sample, FM, and wavetable synthesis, with an extremely intuitive layer-based interface. With 48 voices of polyphony, innovative performance features, and practical controls, the Nord Wave 2 boasts extraordinary tonal capabilities thanks to advanced layering and real-time modifications made possible by its extensive control panel.

MAIN FEATURES

•

• 4-part synthesizer with dedicated Volume/Pan Faders

• Synthesis: sampling, virtual analog, wavetable and FM

• 48 voices of polyphony

• OLED display for PROGRAM and OSCILLATOR sections

• 1 GB user memory, compatible with the Nord Sample Library 3.0 sound library

• User-replaceable internal samples

• 61-note keyboard with Aftertouch


OPERATIONAL FEATURES

•

• Advanced Arpeggiator with Polyphonic Trigger Mode

• Gate for generating interesting rhythmic effects

• Advanced Morph function with Impulse Morph

• Control of arpeggiator, LFO and Effects via Master Clock


OSCILLATORS

Analog: Basic, Shape, Multi, Sync & Noise up to 16 oscillators
Samples
Wavetable
FM up to 8 operators
True Unison Mode

Modulation

LFO with 5 Waveforms
Versatile Sync and Routing options
AD/AR Envelope

Amp
ADSR Amp envelope
Transient Attack Mode

Filter
12/24 dB lowpass, lowpass M, band pass, high pass, e LP+HP
Filter Drive
ADSR Envelope

Effects

FX section with: Tremolo, Pan, Ring Modulation, Chorus, Ensemble and Vibe
EQ section with Drive
Advanced Delay section
Reverb section with 5 environments, plus: Dark, Bright and Chorale modes

THE MOST VERSATILE NORD SYNTHESIZER EVER

The NORD Wave 2 offers no less than 4 independent synthesizers in one, with exceptional layering possibilities between classic waveforms and samples. Dedicated OLED displays for the Program and Oscillator sections provide a clear overview of parameters during sound creation or modification, while the full range of instantly modifiable functions and effects make the Wave 2 our most versatile performance synthesizer ever.

Monitor mode

The new Monitor Mode function displays the settings for the Amp and Filters Envelope in the Program display for optimal control of these parameters.

LAYER SECTION

The Wave 2 features a Layer section for each PROGRAM with dedicated Faders to easily and simultaneously control the Volume or Pan of all 4 Layer parts. This also includes useful functions for quick layer selection, pan control, soloing, and multi-editing.

Group Mode

The new Group function allows you to group 2, 3 or 4 Layers to share the same filter, envelope, arpeggiator, LFO and effects settings; ideal for creating complex multi-layered sounds that can be modified as a single coherent sound.

OSCILLATOR SECTION

The Oscillator section offers 4 different synthesis modes for each of the 4 Layers: Analog, Wavetable, FM, and Samples, easily selectable thanks to the new feature: Direct Category Mode; Oscillator Control allows additional control over Shape, Sync, or Detune.

Oscillator Categories

Analog: A wide range of classic and advanced analog waveforms, rich in harmonics.

Basic: Saw, Pulse, Pulse Width, Sine, Square with basic tuning controls.
Shape: Waveforms where Osc Control can modify the shape of the waveform itself.
Multi: 2 or more waveforms combined, where Osc Control adjusts the amount of Detune and Spread.
Sync: Soft and Hard, where Osc Control controls the Sync Frequency.
Noise: White Noise

Samples: Includes a carefully selected range of high-quality samples from the Nord Sample Library 3.0, with the ability to add personal Samples via the Nord Sample Editor 3. Internal Samples can be used immediately to create various sounds, while the "Raw Samp" function facilitates the modeling of a personal timbre from scratch.

Wavetable: A large number of advanced Wavetables that provide a wide range of tonal characteristics.

FM: 2, 3, and 4 operator configurations with harmonic and inharmonic spectrum variations.

Unison: The Wave 2 features an effective Multi-oscillator Unison effect, capable of generating true Superwaves with hundreds of simultaneous waveforms, to achieve extremely thick and consistent (Fat) sounds.

COMPATIBLE WITH NORD SAMPLE LIBRARY 3.0

The Sample section has 1 GB of memory and comes pre-loaded with a vast and carefully selected range of quality Samples including: strings, brass, guitars, choirs, chromatic percussion, as well as exclusive licensed sounds from the legendary Mellotron and Chamberlin. All sounds are easily replaceable using the Nord Sound Manager.

Create and transfer your samples

Adding instruments with custom Samples has never been easier, thanks to the new Nord Sample Editor 3 for Mac and Windows, which allows you to map, loop, and transfer Samples to the Nord Wave 2 in an instant.

FILTER SECTION

This section features 6 filter types: classic 12 and 24 dB low-pass, high-pass, high-pass/low-pass, and a band-pass filter, along with the extraordinary emulation of the legendary Mini's transistor Ladder filter. The exclusive modeling of these filters has allowed us to capture the true essence of classic analog instruments, enabling their extremely precise reproduction. The Filter section also features a complete ADSR envelope.

LFO AND MODULATION SECTION

The Wave 2 features a dedicated LFO for each Layer with a selection of waveforms plus an AD/AR modulation envelope, with dedicated Velocity setting and Invert Mode. The LFO has several parameters controllable via Morphing, while the modulation frequency can be synchronized with the Master Clock.

AMP ENVELOPE

The Amp section features a complete ADSR envelope and the new effective Transient Attack mode to add more impact to sounds.

MORPHING AND IMPULSE MORPH

The Wave 2 features a wide range of modulatable parameters via Morph, which in turn can be controlled by four different sources: Velocity, Aftertouch, Wheel, and Control Pedal. Multiple parameters can also be quickly assigned to the same Morph source. The powerful Impulse Morph function is also present, allowing instant modification of any timbre parameter.

Wheel Assignment

The Modulation Wheel can be instantly assigned to: LFO, Oscillator Control or Filter

ADVANCED POLYPHONIC ARPEGGIATOR WITH GATE

The classic or polyphonic arpeggiator, with directly editable patterns, makes the Wave 2 a true rhythmic powerhouse!

Polyphonic mode

In Poly mode, the polyphonic arpeggiator retriggers all keys, both those pressed normally and those under the control of the selected Pattern, with various inversions generating interesting harmonic variations.

Gate mode

This brand new mode "cuts" the sound following a precise rhythmic pattern with adjustable intensity.

MASTER CLOCK

The Wave 2's Master Clock allows LFO, Arpeggiator, and effects to be synchronized via internal or external MIDI clock. With the Master Clock, individual arpeggio patterns used on Layers can be synchronized with Delay and LFO. The Tap Tempo function allows manual and real-time adjustment of the Clock speed.

EFFECTS SECTION

Each Layer has an independent effects section, with a wide selection of high-quality stereo effects, modeled after vintage "Stompboxes" and instantly modifiable.

Modulation Effects

Tremolo, Pan, Ring Modulator, Chorus, Ensemble and Vibe effects with controls for: Rate (modulation speed) and Amount (modulation intensity). All effects are controllable via pedal, or other Morph sources, and can also be synchronized to the Master Clock to generate rhythmic effects.

EQ & Drive

EQ with: Bass and Treble controls or a single-band "Sweepable" EQ. There is also a brilliant simulation of a Tube Drive valve circuit.

Delay

Advanced Stereo Delay effect with Ping Pong mode, Analog Mode, and Tap Tempo. New creative features include options to add Ensemble, Chorus, Vibe, HP/LP filter, and BP effects to the Feedback Loop.

Reverb

The Reverb section features 5 different ambient sizes: Booth, Room, Stage, Hall, and Cathedral (New), which add spatiality and depth to sounds. The Amount parameter (intensity) is now controllable via Morphing, while the "Bright" and "Dark" modes give the effect a brighter or darker character, and finally the new "Chorale" adds a refined touch of modulation to the reverb.

SPLITS & LAYERS

Having four identical and equally powerful synthesizers simultaneously opens up new horizons for timbre programming via Layering. The Split mode allows for 3 split points on the keyboard with 4 different zones, also controllable via Crossfade. The versatile Hold function allows each Slot to be locked and held in the background independently, while other musical parts are played simultaneously.

SOUND MANAGER

The Nord Wave 2 is compatible with Nord Sound Manager software for OS X and Windows. Nord Sound Manager allows for easy reorganization, backup, and transfer of Programs.

MIDI CONTROL

The Wave 2 offers the convenience of MIDI over USB, ideal for use with an external sequencer or with the Sound Manager software (included).

KEYBOARD

The Nord Wave 2 features a 61-key (C-C) semi-weighted, Waterfall keyboard with Aftertouch.

HARDWARE

Like all Nord instruments, the Nord Wave 2 is handcrafted in the Nord factory in Stockholm with incredible attention to detail and quality control.
