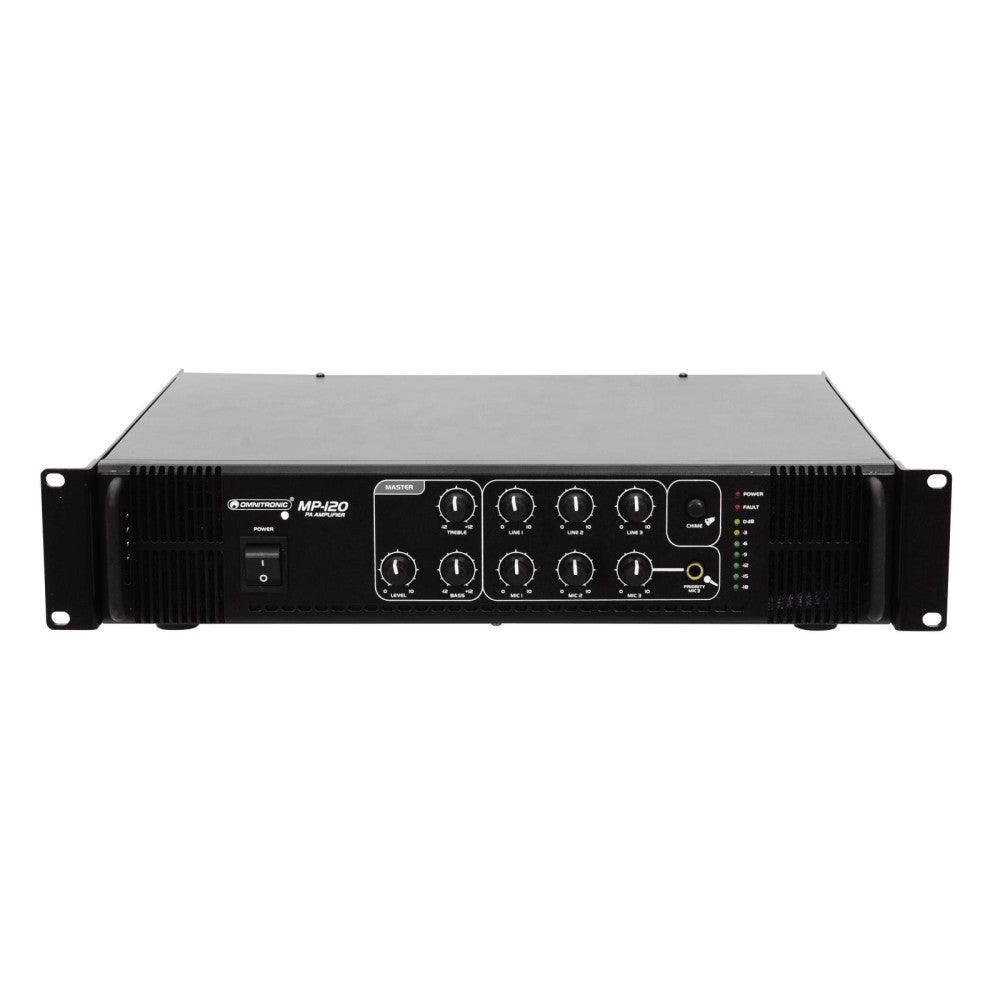

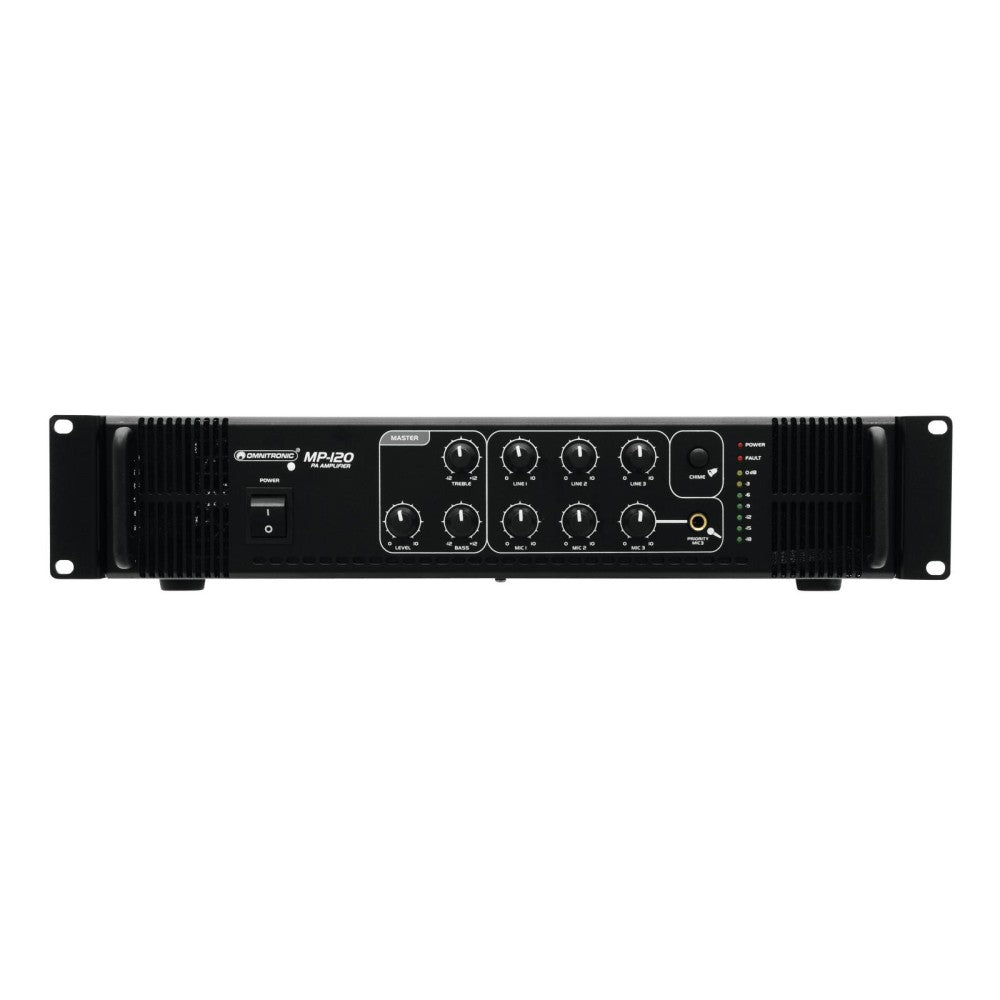

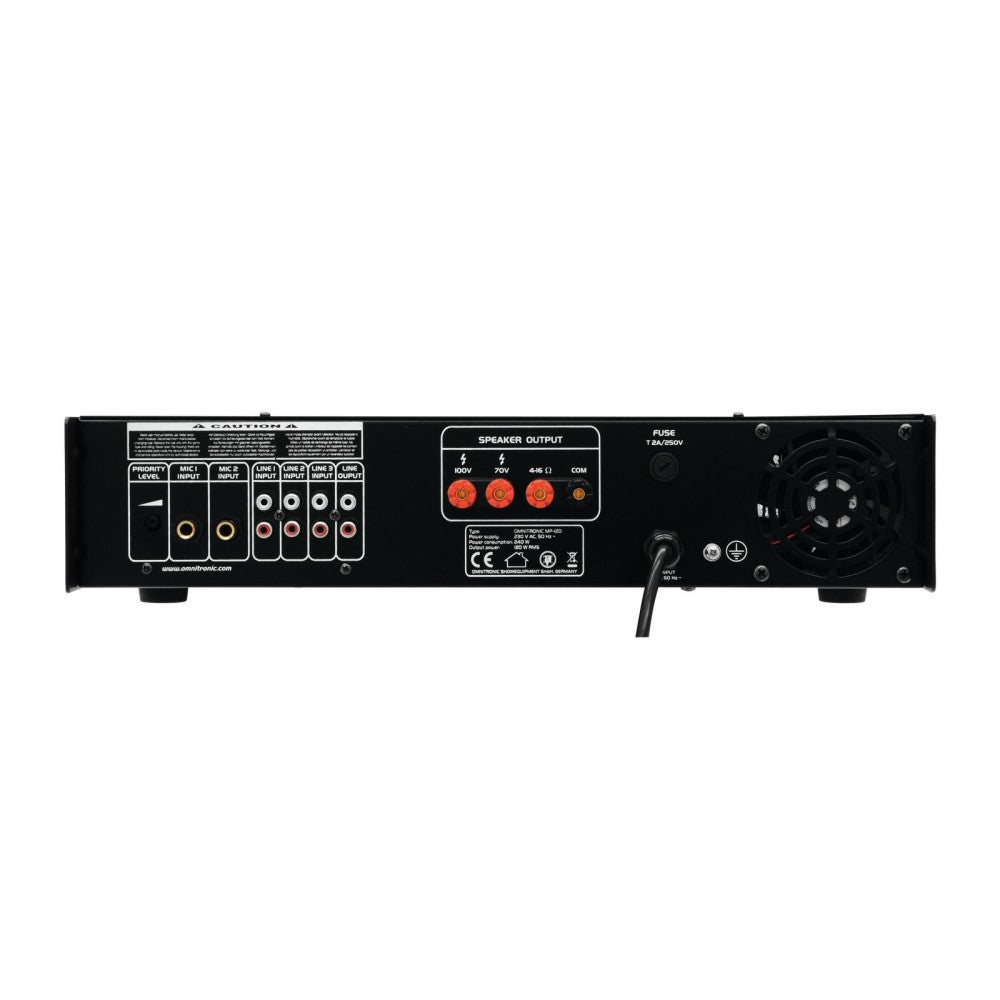

OMNITRONIC MP-120 120-watt Mono Amplifier
Estimated delivery in Italy between 16 and 18 June
Paga in 3 rate da €98,66 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
Mono Amplifier 120 watts
The Omnitronic MP-120 ELA mixing amplifier is your reliable partner when working with ELA sound systems. Thanks to its 19" format, it is ideal for both mobile and fixed installations. The ELA speaker outputs with 70 V and 100 V audio transformers or 4-16 ohm speakers leave nothing to be desired. In addition, you can also connect a device with line level (e.g. mixer) to the line out. With 6 mixable inputs you always remain flexible. Connect up to 3 microphones and 3 line-level devices. Announcements are a priority The microphone input 3 on the front panel offers an adjustable priority circuit. It enables you to make important announcements with automatic and continuously adjustable level reduction of all signals. Use the gong to further highlight your announcement. Protection features A fan protects the interior of your MP-120 from overheating. In addition to a switch-on delay, it has overload and short-circuit protection circuits. In these cases, your speakers are electrically isolated from the amplifier. The FAULT LED lights up and both the MP-120 and your speakers are protected against damage. Mono PA mixing amplifier, 120 watts.
Specifications
- PA outputs for 70 V or 100 V PA speakers or for low-impedance speakers (4-16 ohms)
- 3 microphone inputs (6.3 mm jack, unbalanced) with separate level controls
- Microphone input 3 with adjustable priority circuit
- 3 line inputs (RCA stereo) with separate level controls
- 1 line output (RCA stereo)
- Chime, switchable
- Treble and bass control for the output signal
- 7-fold LED level display
- Master control for the output signal
- Fan-cooled
- Protection circuits with LED indication: overcurrent, short-circuit, switch-on delay
- Housing design: (19") 48.3 cm rack installation 2 U
- Power supply: 230 V AC, 50 Hz
- Power consumption: 240.00 W
- Output power: 120 W RMS
- Power connection: Fixed power supply cable with safety plug
- Frequency range: 80 - 14000 Hz
- S/N ratio: >75 dB Microphone; line >85dB
- Impedance: 4-16 Ohm; 100 V ELA
- Equalizer: Chanal: 1 x 2-band tone control Mono
- Circuitry: Class AB
- Connections: Input: 3 x microphone via 6.3 mm jack (unbalanced)
- Input: 3 x line via Stereo RCA
- Output: 1 x line via Stereo RCA
- Output: Speakers via screw terminal
Couldn't load pickup availability
Accessori consigliati
User Manual
Official technical documentation in PDF format.
About Omnitronic
Omnitronic is a German company specializing in the production of professional audio equipment and event technology. The Omnitronic catalog includes active and passive loudspeakers, power amplifiers, audio mixers, portable PA systems, microphones, and DJ accessories. Designed for musicians, DJs, sound engineers, and event organizers, Omnitronic products offer excellent value for money, making them ideal for both fixed installations and live and mobile use. On musicdelivery.net, you'll find the entire Omnitronic range: powered speakers, subwoofers, DJ mixers, complete audio systems, and components for professional setups, with fast shipping throughout Italy and dedicated support.
