OMNITRONIC PAS-215A MK4 2-way Top, active, DSP, BT
Estimated delivery in Italy between 16 and 18 June
Paga in 3 rate da €172,53 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
Active speaker with 15" woofer, 1" driver, 400 W RMS LF, 50 W RMS HF
Active PA speaker system for touring applications and permanent installations
Optimised in combination with PAS subwoofers
DSP-controlled bi-amp amplifier (Class D)

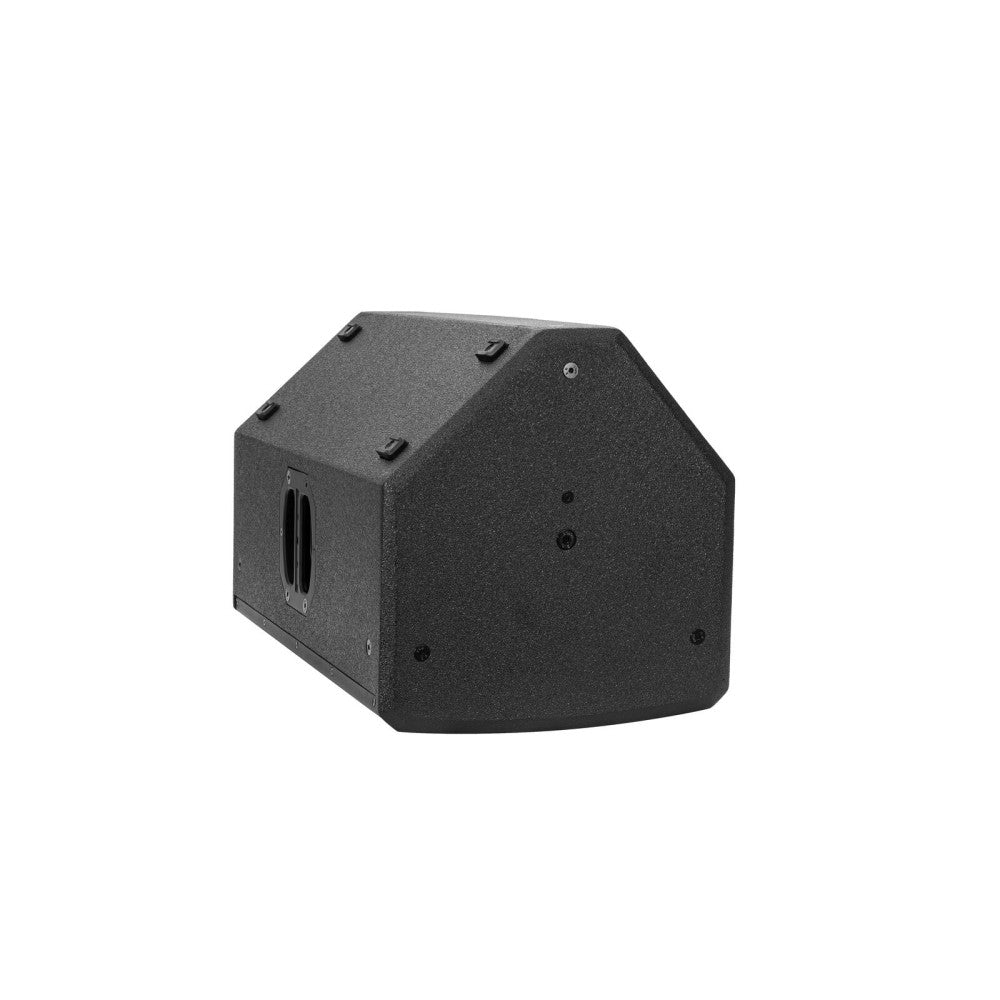

Multi-functional trapezoidal multiplex cabinet with monitor shape
Stereo Bluetooth linking for wireless stereo operation with 2 connected systems
Digital signal processor
DSP preset: MUSIC; LIVE; CLUB; VOICE
The device is cooled by a fan
Controllable via Bluetooth
Bluetooth: Range up to 10m
Dual flange
With rigging points
Black metal grille with acoustic foam
2 sturdy carrying handles
Technical specifications
Power supply: 230 V AC, 50 Hz
Total installed power: 700 W
Protection class: CL I
Power connection: Power supply via cold appliance inlet (M) mounting version power connection cable with safety plug included
Device fuse: 5 x 20 mm, T 4 A replaceable fuse
Load capacity: Program: 800W LF; Nominal: 400W RMS LF; Program: 100W HF; Nominal: 50W RMS HF
Frequency range: 50 - 20000 Hz
Maximum sound pressure: 125 dB
DSP: Digital signal processor
DSP preset: MUSIC; LIVE; CLUB; VOICE
Directionality: 90° x 60°
Cooling: 1 x Fan
Low cut: 100Hz, switchable
Activation: Bluetooth
Bluetooth: With stereo linking (TWS)
Bluetooth device name: OMNITRONIC PAS-215A MK4
Maximum: Bluetooth: up to 10m
Mounting system: Dual flange:
Rigging points: 12 x M8 thread; 4 x M10 thread
Switching: Class D Biamp

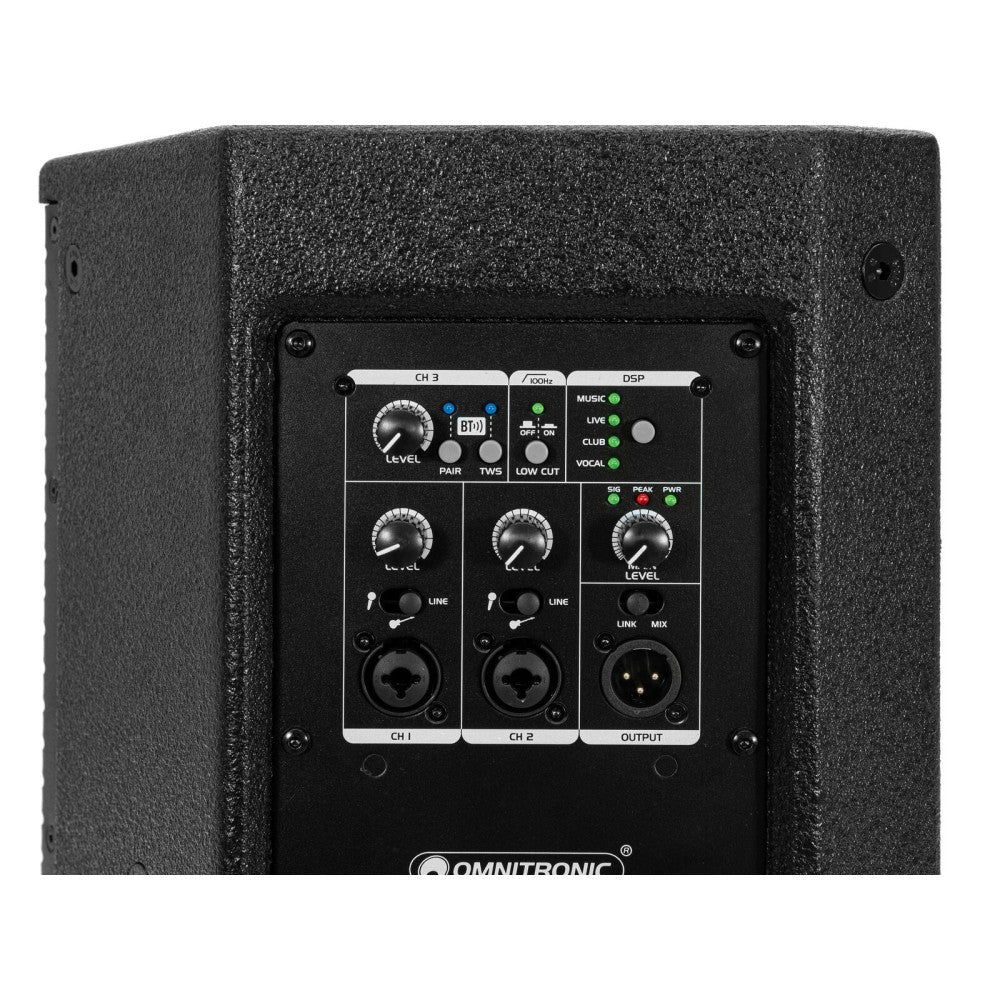

Controls: Mains switch, Master control, Volume control per channel, Input sensitivity switch, Source switch; Connect, Low-cut switch
Protection circuit: Limiter; Turn-on transients
Status LED: Power, Signal, Peak, low cut, Pairing; Stereo, DSP preset
Connections: Input: Mic-Line-Hi.Z via 2 x 3-pin XLR/6.35 mm jack combination socket (F) built-in version; Output: line via 1 x 3-pin XLR (M) built-in version
Speaker: 1 x 15" Woofer with ferrite magnet; Basket material: steel; cone material: cardboard/paper; 3" woofer voice coil; 1 x 1" tweeter with ferrite magnet; 1.75" tweeter with compression driver voice coil
Speaker type: Compact enclosure
Enclosure type: Bass reflex
Carrying handle: 2 Piece
Material: Multi-layer plywood, 15 mm, painted
Colour: Black
Dimensions: Width: 41.5 cm; Depth: 71 cm; Height: 40 cm; Weight: 23.60 kg
Couldn't load pickup availability
User Manual
Official technical documentation in PDF format.
