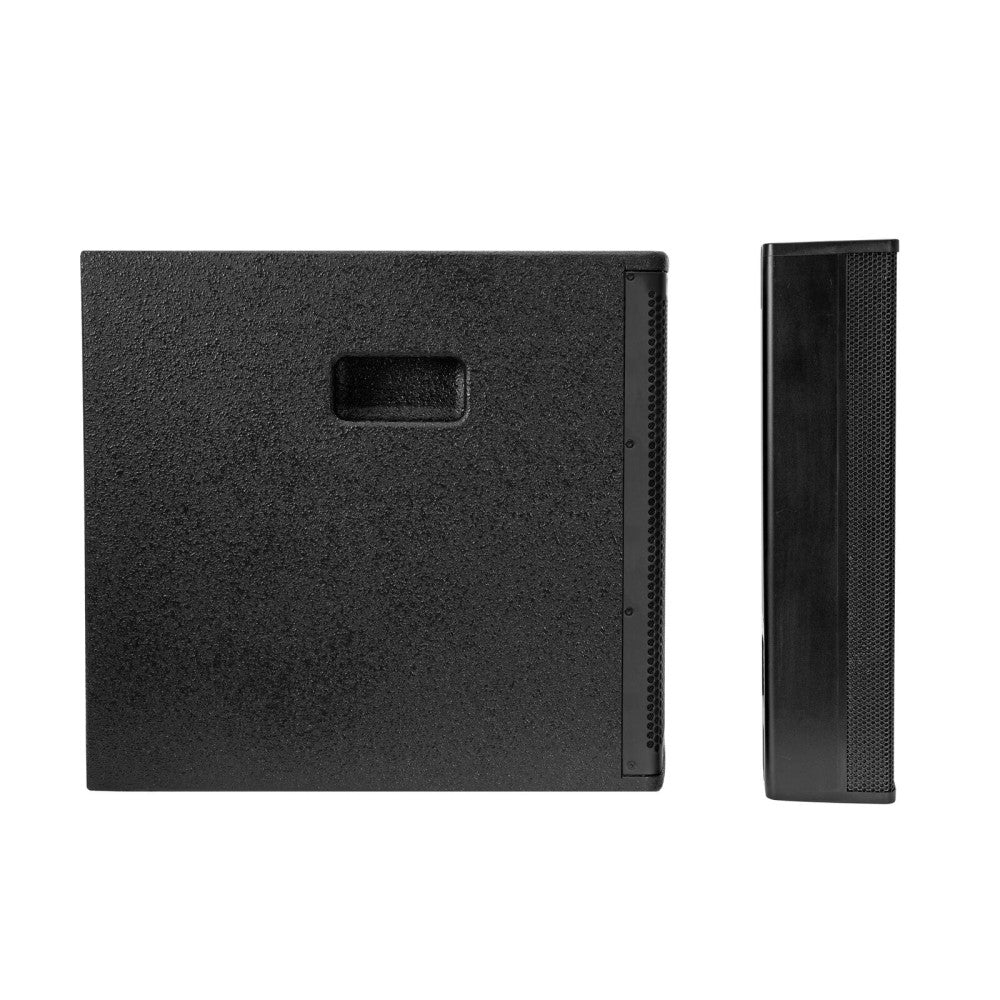

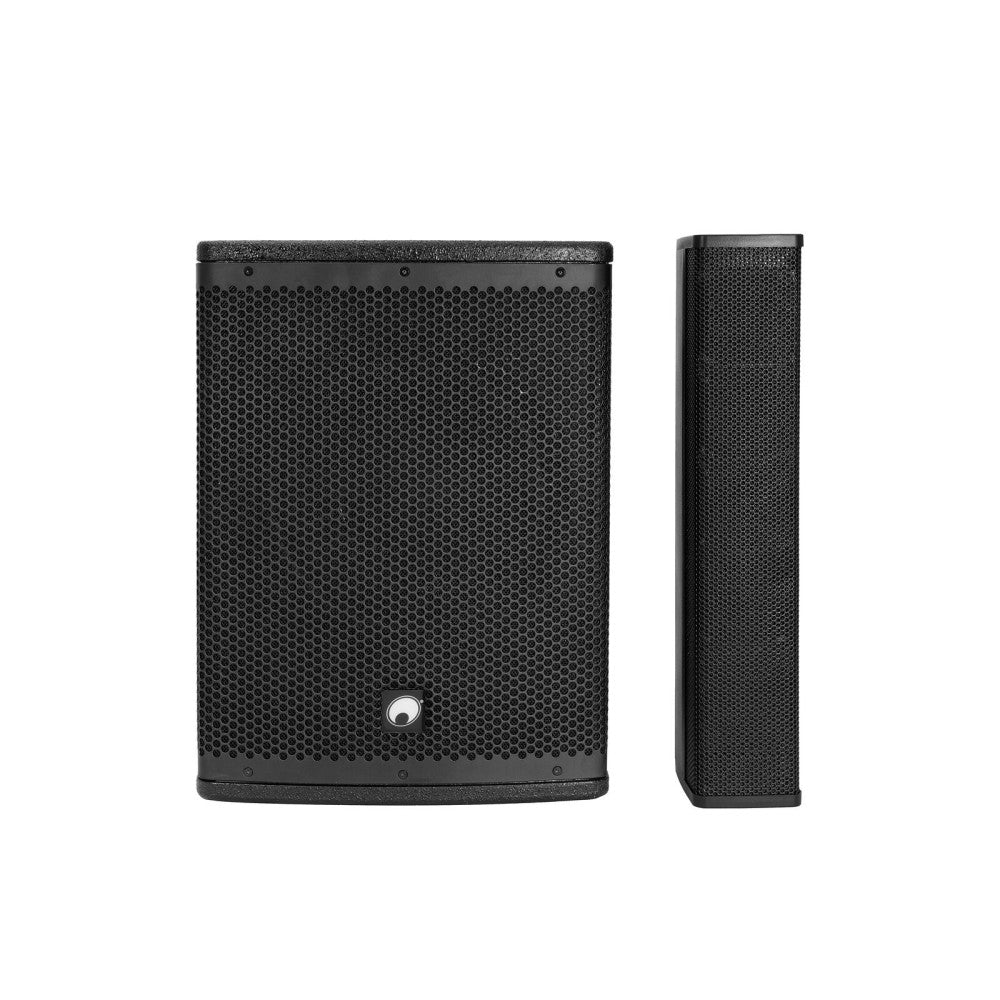

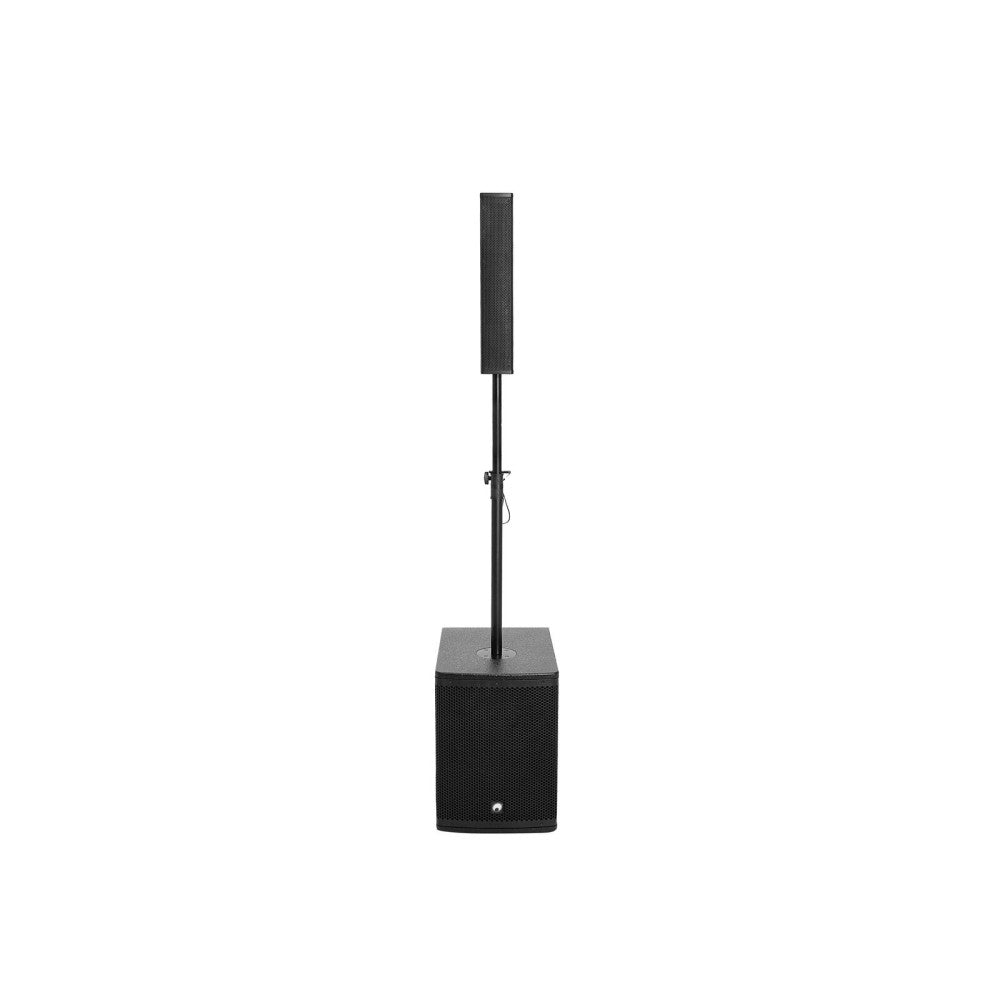

OMNITRONIC ROD-1043 Active Column Speaker System
Estimated delivery in Italy between 16 and 18 June
Paga in 3 rate da €142,23 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
ROD - 1043
The ROD-1043 is an active column PA system with high-power subwoofer, 2-channel power mixer, and full-range column speaker for mobile applications. The system offers one mono input (XLR and 6.3 mm jack) and one stereo line input (RCA). The amplifier delivers 200 W and 150 W of power. The latest Bluetooth technology with TWS support ensures fast, stable wireless connections to Bluetooth audio sources and allows for linking two ROD systems for stereo setups.
Mobile column PA system with DSP, mixer, stereo Bluetooth connection, 350 W RMS
Multiband compressor; Multistep limiter; Active phase correction; Delay compensation
Excellent sound quality and high reach
Stereo Bluetooth connection for wireless stereo operation with 2 connected systems
Metal grille
Bass
2 Concave carrying handles
4 Plastic feet
Integrated amplifier module
Digital signal processor
DSP presets: FLAT; CLUB; VOICE; BASS BOOST; BASS REDUCTION
Controllable via Bluetooth
Bluetooth: Range up to 10m in buildings
Technical specifications
Output power: 350 W RMS System
Frequency range: 42 - 20000 Hz System
Maximum sound pressure: 125 dB System
DSP: Multiband Compressor; Multistep Limiter; Active Phase Correction; Delay Compensation
Weight: 19.20 kg
Bass
Frequency range: 42 - 150 Hz
Recording system: M20 thread
Speaker: 1 x 10" Woofer with ferrite magnet; Basket material: steel; 2" woofer voice coil; Cone material: cardboard/paper
Speaker type: Subwoofer
Housing type: Bass reflex
Concave carrying handle: 2 Piece
Transport aid: 4 x plastic feet
Material: MDF (medium-density fibreboard), 16 mm
Color: Black, structured surface
Dimensions: Width: 32 cm; Depth: 46.5 cm; Height: 44.5 cm; Weight: 16.5 kg
Integrated amplifier module
Power supply: 100-240 V AC, 50/60 Hz
Total connected power: Max. 250 W
Protection class: CL I
Output power: 1 x 200 W RMS LF; 1 x 150 W RMS (4 Ohm) HF
Power connection: Power supply via cold devices (M) built-in version power cable with protective plug present
Device protection fuse: 5 x 20 mm, T 2.5 A replaceable fuse
DSP: Digital signal processor
DSP presets: FLAT; CLUB; VOICE; BASS BOOST; BASS REDUCTION
Activation: Bluetooth
Bluetooth: Version: 5.3 with stereo connection (TWS)
Bluetooth device name: ROD-1043
Max.: Bluetooth: up to 10m in buildings
Carrier deviation: 2.4 GHz
Switching: Class D
Controls: Volume control, Power switch, Input sensitivity switch
Protection circuit: Short circuit; DC voltage; Limiter; overload
Status LED: Signal, Limit, DSP preset, Pairing, Link

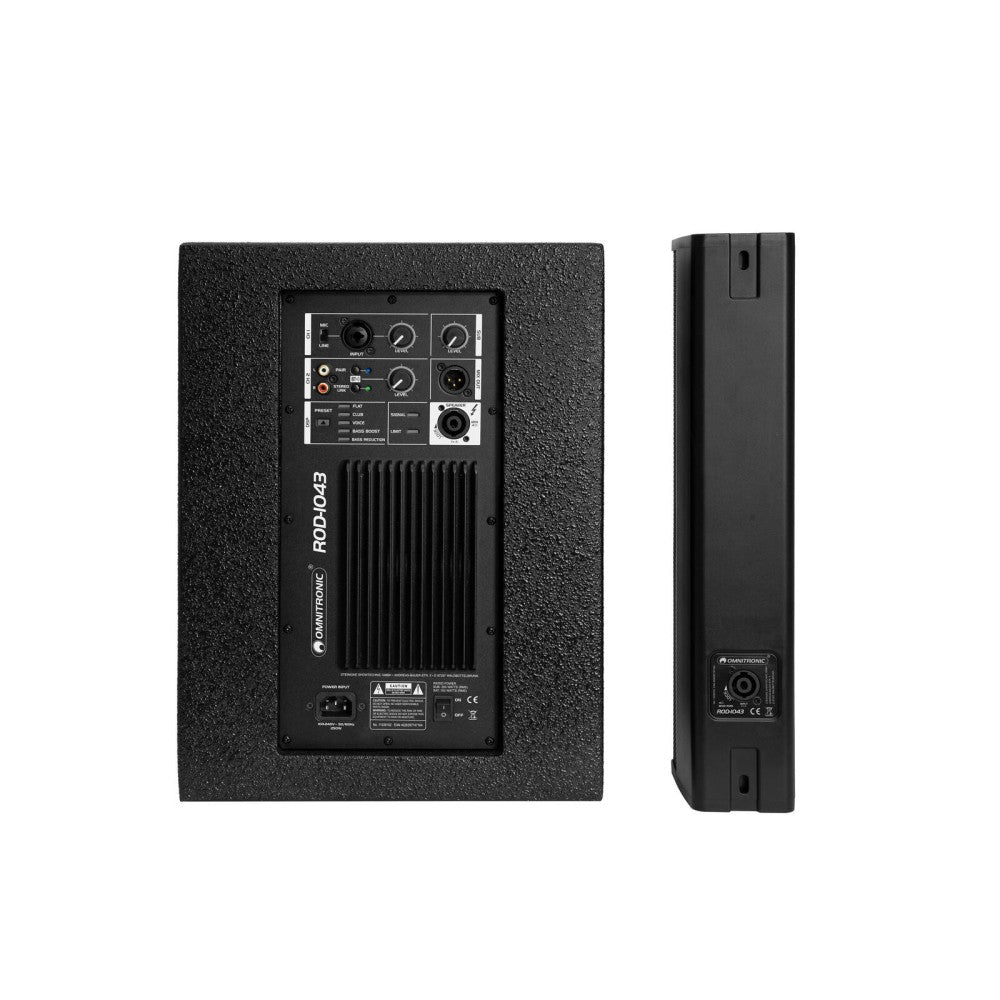

Connections: Input: mic/line via 1 x combination socket XLR 3-pin/6.35 mm jack (F) built-in version; Input: line via 1 x RCA stereo; Output: line via 1 x XLR (M) 3-pin built-in version; Output: top via 1 x Speaker built-in socket (F)
Channels input: 1 x Stereo via RCA or Bluetooth, channel control via knob; 1 x Mono with Mic-Line switch via Combination socket (XLR/JACK), channel control via knob
Crossover frequency: 150 Hz
Top
Load capacity: Program: 160W
Rated: 80W AES
Frequency range: 150 - 20000 Hz
Sensitivity: 90 dB (1W/1m)
Directivity: 100° x 20°
Impedance: 1 x 4 Ohm top
Recording system: Flange: Ø 25mm

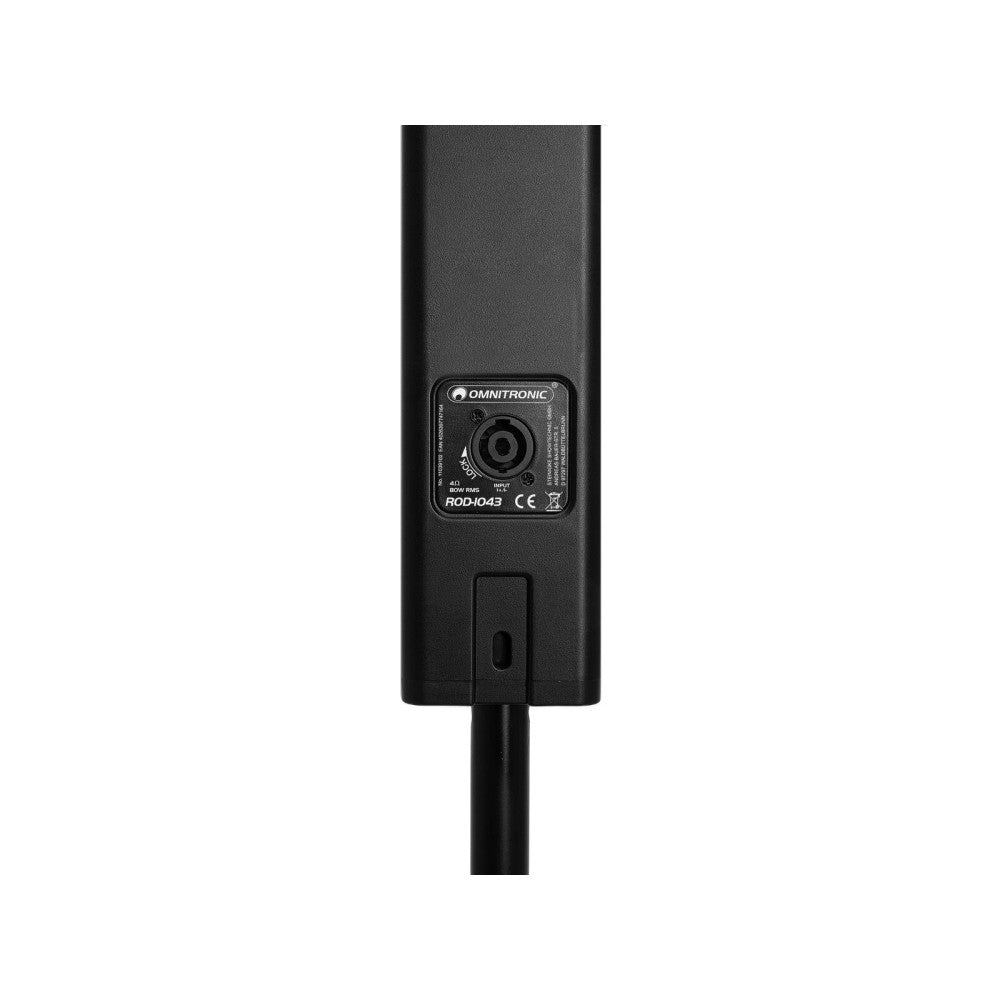

Connections: Input: top via 1 x Speaker built-in socket (F)
Speaker: 4 x 3" broadband speaker with neodymium magnet; Basket material: steel; 0.75" broadband voice coil speaker; Cone material: cardboard/paper
Speaker type: Column speaker
Housing type: Closed cabinet
Material: Hard plastic
Color: Black
Dimensions: Width: 8.5 cm; Depth: 10.5 cm; Height: 45 cm; Weight: 1.43 kg
Spacer rod
Height: max.: 95 cm; min.: 59 cm
Adjustable in 4 steps with safety bolt

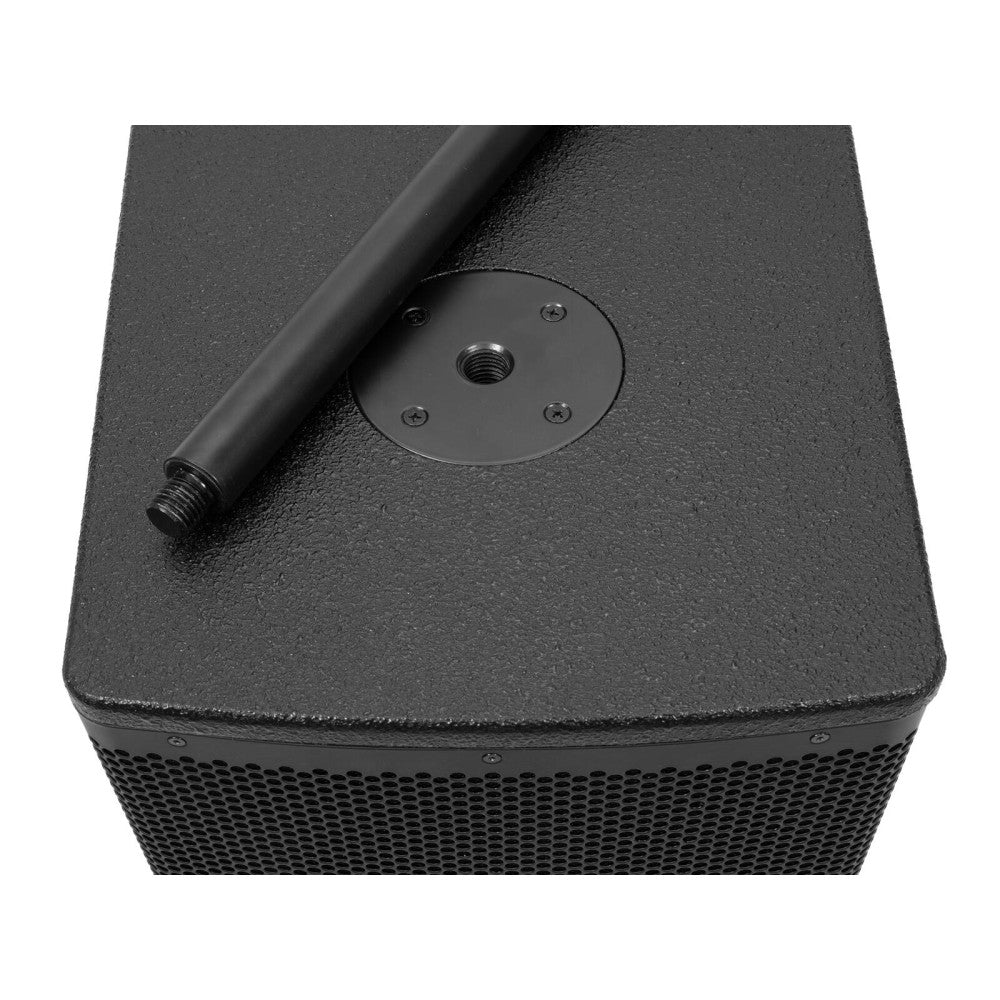

Recording system: M20 thread
Pivot: Ø 25mm
Type (generic tripod): Hand extendable tripod/Pole mount for speaker
Material: Steel, lacquered
Weight: 0.74 kg
Power cord/Mains cable
Cable construction: 3 x 0.75 mm² H05VV-F
Cable length: 1.80 m
Speaker cables
Cable construction: 2 x 0.75 mm² speaker cables
Cable length: 2 m
