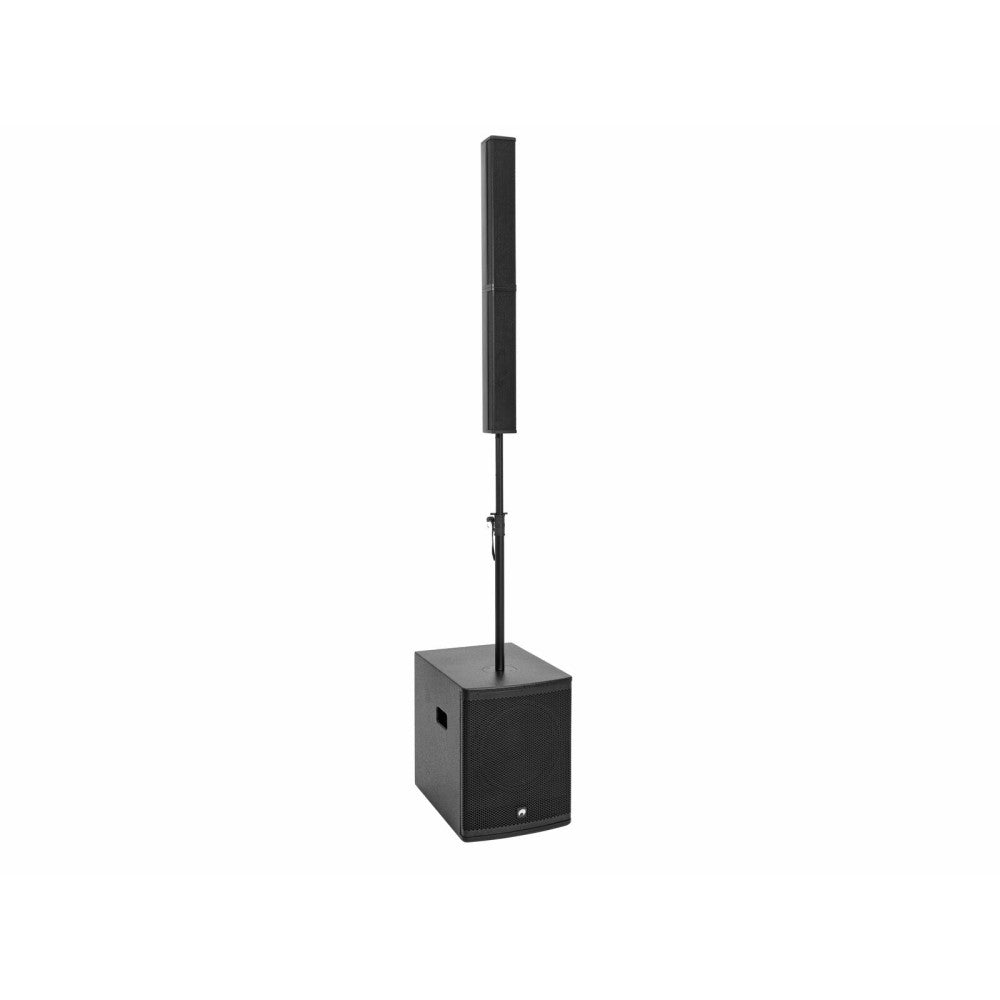

OMNITRONIC ROD-1283 Active column speaker system
Estimated delivery in Italy between 6 and 10 November
Pay in 3 installments of €216,33 interest-free
Pay in 3 installments of €216,33 interest-free with PayPal
Split into 3 installments of €216,33 with your card via HeyLight
Simulate your installment financing with Findomestic
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
The ROD-1283 is an active PA system with impressive volume reserves and excellent audio performance for DJs and musicians on the move.
The intelligent design with a 12" subwoofer and satellite speakers enables 2.1 configuration and full-range speaker configuration in mono mode. The satellites can be stacked without cables and connected to the subwoofer cabinet via an intelligent snap mechanism.
The integrated amplifier delivers up to 800 watts of power and is protected by a limiter. The 4-channel digital mixer can be conveniently controlled via a display and encoder. It offers a wide range of inputs for connecting microphone, instrument, keyboard and laptop.
The latest Bluetooth technology with TWS support ensures fast and stable wireless connections to Bluetooth audio sources and connects two ROD systems for stereo configurations. Convenient EQ presets are used for rapid application-specific sound shaping.
Mobile column PA system with DSP, mixer, stereo Bluetooth connection, 800 W RMS
Multiband compressor; multistep limiter; active phase correction; delay compensation; 3-band EQ
4-channel mixer
2.1 stereo mode or 1.1 mono mode with stacked modules
Stereo Bluetooth connection for wireless stereo operation with 2 connected systems
Bass
Black Metal Grille with acoustic foam
2 concave handles for transport
4 plastic feet
Integrated amplifier module
Integrated amplifier module
Digital signal processor
DSP Presets: MUSIC; LIVE; SPEECH; 80 Hz low cut; FLAT
Multicolor LCD Screen
Controllable via Bluetooth
Bluetooth: Range up to 10m indoors
The device is cooled via a low-noise fan
Technical Specifications
Output Power: 800 W RMS System
Frequency Range: 40 - 20000 Hz System
Maximum Sound Pressure: 128 dB System
DSP: Multiband Compressor; Multistep Limiter; Active Phase Correction; Delay Compensation; 3-band EQ
Weight: 25.90 kg
Bass
Frequency Range: 40 - 150 Hz
Mounting System: M20 Thread
Speaker: 1 x 12" Woofer with ferrite magnet; Basket Material: steel; 2.5" voice coil woofer; Cone Material: cardboard/paper
Speaker Type: Subwoofer; Structure Type: Bass reflex
Concave Transport Handle: 2 Piece
Transport Aid: 2 x plastic feet
Material: MDF (medium-density fiberboard), painted
Color: Black, textured surface
Material Thickness: 16 mm
Dimensions: Width: 37 cm; Depth: 52 cm; Height: 48 cm; Weight: 22.5 kg
Integrated amplifier module
Power supply: 230 V AC, 50 Hz
Total installed power: Maximum 400 W
Output power: 1 x 500 W RMS LF; 2 x 150 W RMS (8 Ohm) HF; 1 x 300 W RMS (4 Ohm) HF
Electrical connection: Power supply via cold devices (M) recessed version power cable with safety plug included
Device protection fuse: 5 x 20 mm, T 3.15 A replaceable fuse
DSP: Digital signal processor
DSP Presets: MUSIC; LIVE; SPEECH; 80 Hz low cut; FLAT
Cooling: 1 x Low-noise fan
Filter: Low cut: 80 Hz
Activation: Bluetooth
Bluetooth: Version: 5.3 with stereo connection (TWS)
Bluetooth device name: ROD-1283
Maximum: Bluetooth: up to 10m indoors
Carrier frequency: 2.4 GHz
Switching: Class D
Display type: Multicolour LCD screen
Controls: Power switch, Encoder, Menu, BACK button
Protection circuit: Overheating; Short circuit; DC voltage; Limiter
Status LED: Limit
Connections: Input: mic/line via 1 x 3-pole XLR/6.35 mm jack combination socket (F) recessed version; Input: line via 2 x 3-pole XLR/6.35 mm jack combination socket (F) recessed version; Input: line via 1 x stereo RCA; Output: line via 1 x 3-pole XLR (M) recessed version; Output: speaker via 2 x Speaker mounting socket (F)
Crossover frequency: 150 Hz
Speaker
Load capacity: Program: 160W
Nominal: 80W AES
Frequency range: 150 - 20000 Hz
Sensitivity: 90 dB (1W/1m)
Directivity: 100° x 20°
Impedance: 8 Ohm speaker
Mounting system: Flange: Ø 25mm
Connections: Input: speaker via 1 x Speaker mounting socket (F)
Link: special connector
Loudspeaker: 4 x 3" full-range loudspeaker with neodymium magnet; Basket material: steel; 0.75" full-range loudspeaker voice coil
Cone material: cardboard/paper;
Loudspeaker type: Column speaker
Structure type: Sealed enclosure
Material: Hard plastic
Colour: Black
Dimensions: Width: 8.5 cm; Depth: 10.5 cm; Height: 45 cm; Weight: 1.50 kg
Spacer rod
Height: Maximum: 95 cm; Minimum: 59 cm
Adjustable in 4 steps with safety bolt
Type (generic tripod): Hand-extendable tripod/High stand for speaker
Material: Steel, painted
Mains cable/Power cable
Cable structure: 3 x 0.75 mm² H05VV-F
Cable length: 1.8 m
Speaker cables
Cable structure: 2 x 0.75 mm² speaker cables
Cable length: 2 m; 5 m
Couldn't load pickup availability
Accessori consigliati
User Manual
Official technical documentation in PDF format.
