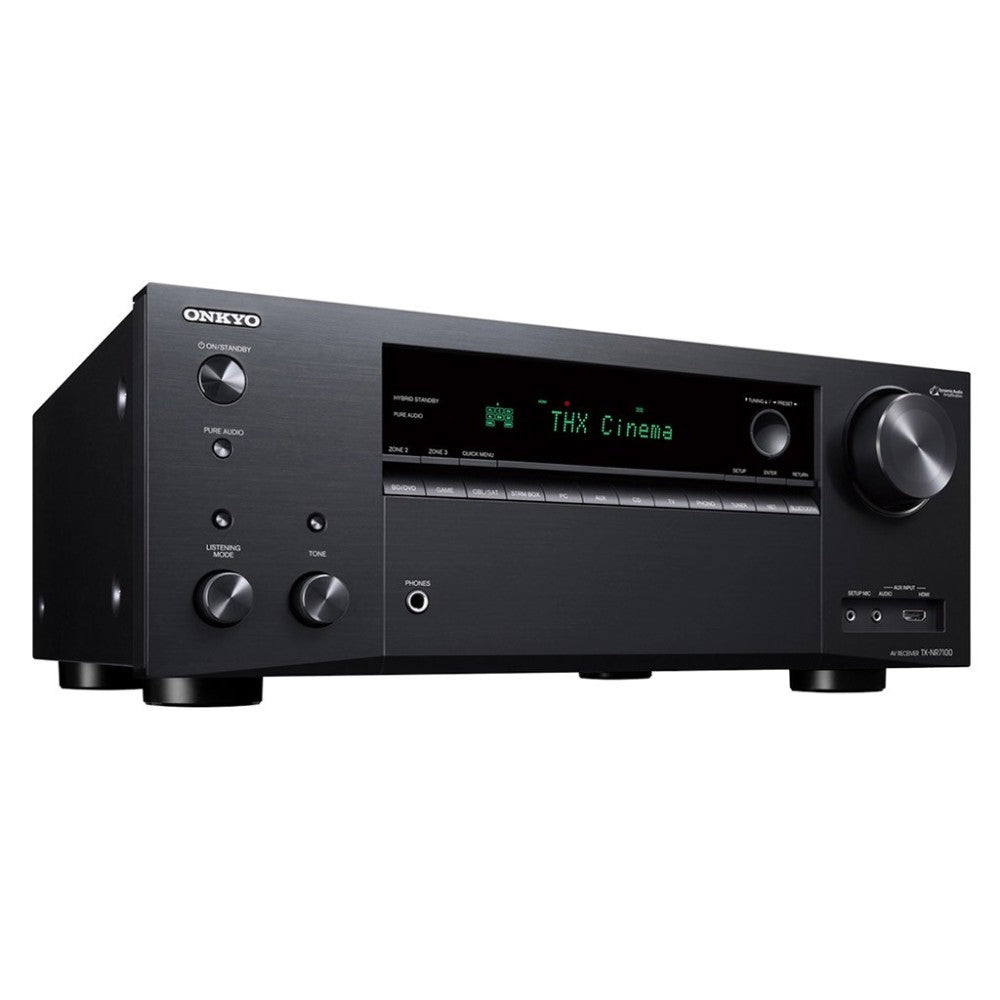

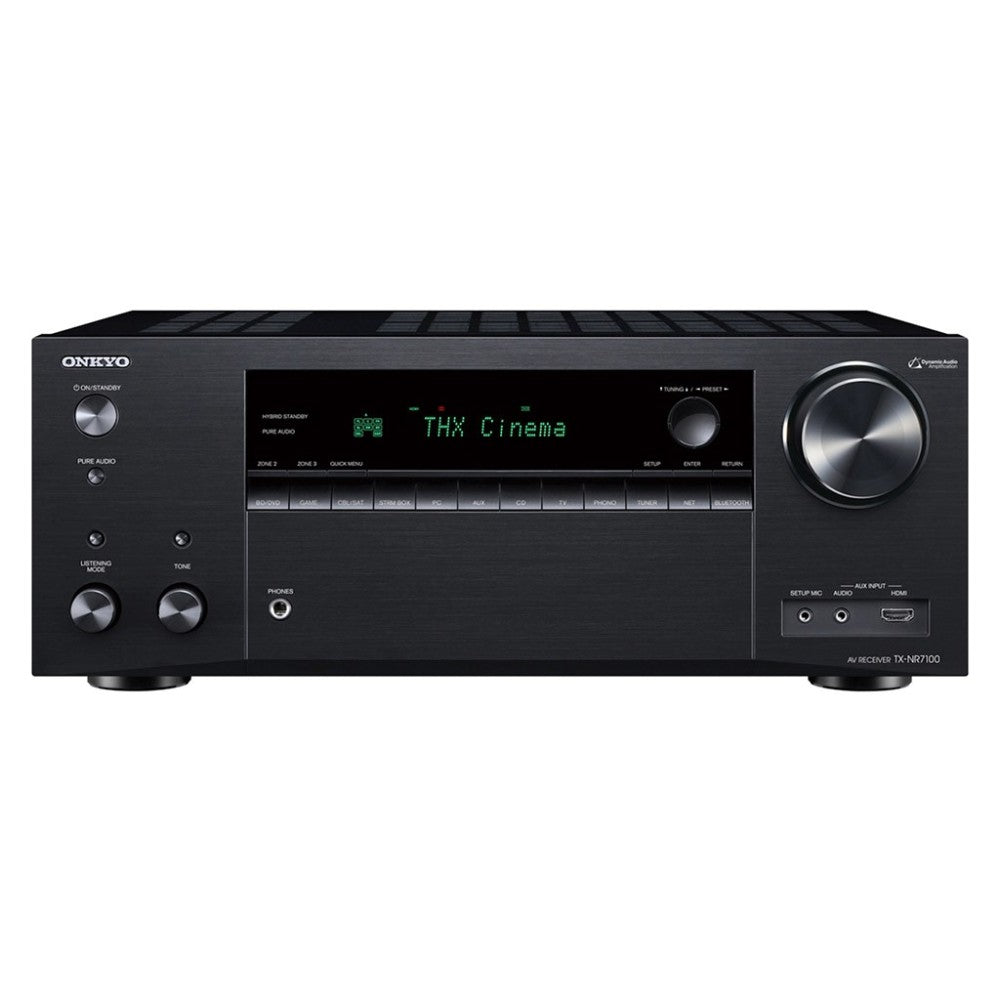

ONKYO TX-NR7100

Smart AV Receiver, 9.2-channel 8K/4K Ultra HD Audio/Video receiver with high-level Audiophile, Videophile and Gaming performance - 3D video passthrough resolution up to 8K/60p (7680x4320 px, 24/25/30/48/50/60 Hz, 4:4:4/4:2:2/4.2.0, 8/10/12 bit) and 4K/120p (4096/3840x2160 px, 24/25/30/48/50/60/100/120 Hz, 4:4:4/4:2:2/4.2.0, 8/10/12 bit) - 9 Class AB amplification channels with 170 Watt RMS per channel into 6 Ohm (185 Watt per channel, 1 kHz, THD 10%, one channel driven / 100 Watt per channel, THD 0.08%, 9 channels driven FTC) with DAA (Onkyo Dynamic Audio Amplification) system featuring H.C.P.S. (High Current Power Supply), Non-Phase Shift Amp and VLSC (Vector Linear Shaping Circuitry) technologies - power supply stage with proprietary high-current, low-noise power transformer, bank of high-capacity Custom-Made Dynamic Power Audio-Grade capacitors - digital/analog conversion circuit based on 24 bit / 192 kHz TI Burr-Brown PCM1690 DAC chip with independent 32 bit / 384 kHz TI Burr-Brown PCM5101A DAC for auxiliary zones - state-of-the-art environmental acoustics calibration and correction software with built-in Dirac Live® Room Calibration Full Bandwidth license, with the option to alternate it with the proprietary AccuEQ Room Calibration software - official IMAX Enhanced Mode and THX Certified Select2 certifications - dedicated processing for Gaming content with ultra-fast, crystal-clear, and lag-free 8K and 4K/120UHD image reproduction at low latency - 1080p content upscaling to 4K/8K resolution - Pure Audio Mode and Direct Mode for sound reproduction with maximum fidelity and purity - sophisticated DSP algorithms for 3D audio virtualization and/or upmixing Dolby Atmos Height Virtualizer, DTS Virtual:X, Dolby Surround and DTS Neural:X, effective in recreating an immersive multidimensional sound field with any speaker configuration, even without dedicated rear, surround, or height channels - independent tone control circuit for each channel (excluding Zone 3) - Klipsch Optimized Mode, with carefully calibrated crossover values, for perfect matching with Klipsch speakers - AccuReflex phase-matching technology to ensure consistent phase emission to Dolby Atmos-Enabled channels - advanced adjustable Vocal Enhancer function capable of increasing dialogue and vocal intelligibility - HDMI 2.1 HDCP 2.3 Full Bandwidth 40GBPS interfaces with eARC/ARC (Enhanced/Audio Return Channel), VRR (Variable Refresh Rate), QFT (Quick Frame Transport), ALLM (Auto Low Latency Mode), DSC (Display Stream Compression) technologies, high dynamic range streams HDR10+, HDR10, Dolby Vision, HLG, BT.2020 and extended support for the most powerful and widespread stereo (DSD 2.8 MHz with DSD/PCM conversion, PCM 24 bit / 192 kHz), multi-channel (PCM 7.1 24/192) and Bitstream (Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-ES, DTS 96/24, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS Express, DTS:X, IMAX DTS, IMAX DTS:X) audio encodings - latest generation streaming technologies and services, with official Roon Tested support, Chromecast Built-In, Apple AirPlay 2, Spotify, Amazon Music, Tidal, Deezer, Pandora, TuneIn - compatibility with Wi-Fi Multi-Room DTS Play-Fi and Works with Sonos Certified streaming, with the ability to simultaneously and independently pair with three Sonos Ports in three different zones - integration with Smart Home ecosystems (including Apple AirPlay 2, Amazon Alexa, Google Home) with support for Siri, Ok Google Assistant, Alexa voice commands - DAB+ digital and FM analog radio tuner with 40 storable preset stations - built-in MM Phono stage and headphone amplifier - USB port compatible with high-capacity storage formatted with FAT/FAT32 file systems - SACD stereo and multi-channel playback via HDMI - playback from network Music Server and USB storage of high-resolution formats DSD DSF/DSDIFF (.dsf/.dff 2.8 MHz, 5.6 MHz, 11.2 MHz), PCM up to 24 bit / 192 kHz (Apple Lossless ALAC 24/96 .m4a/.mp4, FLAC, AIFF, WAV) and PCM 16 bit / 44.1 kHz (MP3, WMA, WAV, AIFF, AAC .aac/.m4a/.mp4/.3gp/.3g2, FLAC, LPCM, Apple Lossless ALAC .m4a/.mp4) - HDMI ports: 7x inputs (3x 2.1 8K/4K 40Gbps, 3x 2.1 8K/4K 24Gbps, 1x 2.0 4K 9Gbps on the front panel) / 2x outputs (1x Main In/Out 2.1 eARC/ARC 8K/4K 40Gbps, 1x 2.1 8K/4K 40Gbps / 2.0 4K 18Gbps) - analog video inputs: 1x set Component Pr/Pb/Y RCA, 2x Composite RCA - S/PDIF digital audio inputs: 1x coaxial electrical RCA, 1x optical Toslink - unbalanced stereo analog audio inputs: 6x set L/R RCA, 1x set L/R Phono MM RCA, 1x 3.5 mm jack on the front panel - unbalanced analog pre-out outputs: 1x set L/R RCA, 2x subwoofer RCA - 1x set L/R unbalanced analog audio output RCA (Zone 2 / Zone B) - 9x pairs of multi-channel power output terminals for speakers with nominal impedances between 4 and 16 Ohm, with the ability to use the Height 1 and Surround Back outputs to route the signal to separate rooms (Zone 2 and Zone 3) and/or to bi-amplify the front speakers and/or for additional Height 2 channels - separate and isolated wireless and wired network communication modules to reduce high-frequency noise and prevent it from interfering with the audio signal - Bluetooth transceiver with bi-directional technology, with 24-bit audio stream transmission via Qualcomm aptX HD, aptX, AAC, SBC codecs - network interfaces with Quad Core 1.8 GHz NXP Wi-Fi chip (IEEE 802.11 Dual Band a/b/g/n/ac 5 GHz/2.4 GHz) and Ethernet RJ45 (10BASE-T/100BASE-TX) - headphone output with 6.3 mm jack on the front panel, compatible with headphones with impedance between 8 and 600 Ohm - 3.5 mm jack microphone input, RS-232 serial control port, 3.5 mm jack IR socket for external sensors, 12 V Trigger output with 3.5 mm jack - advanced configuration via OSC menu or from computer via web browser - remote control and measurement microphone included - optional rack mount bracket, sold separately - Black finish - dimensions (W x H x D) 435 x 173.5 x 379.5 mm - weight 10.4 Kg
