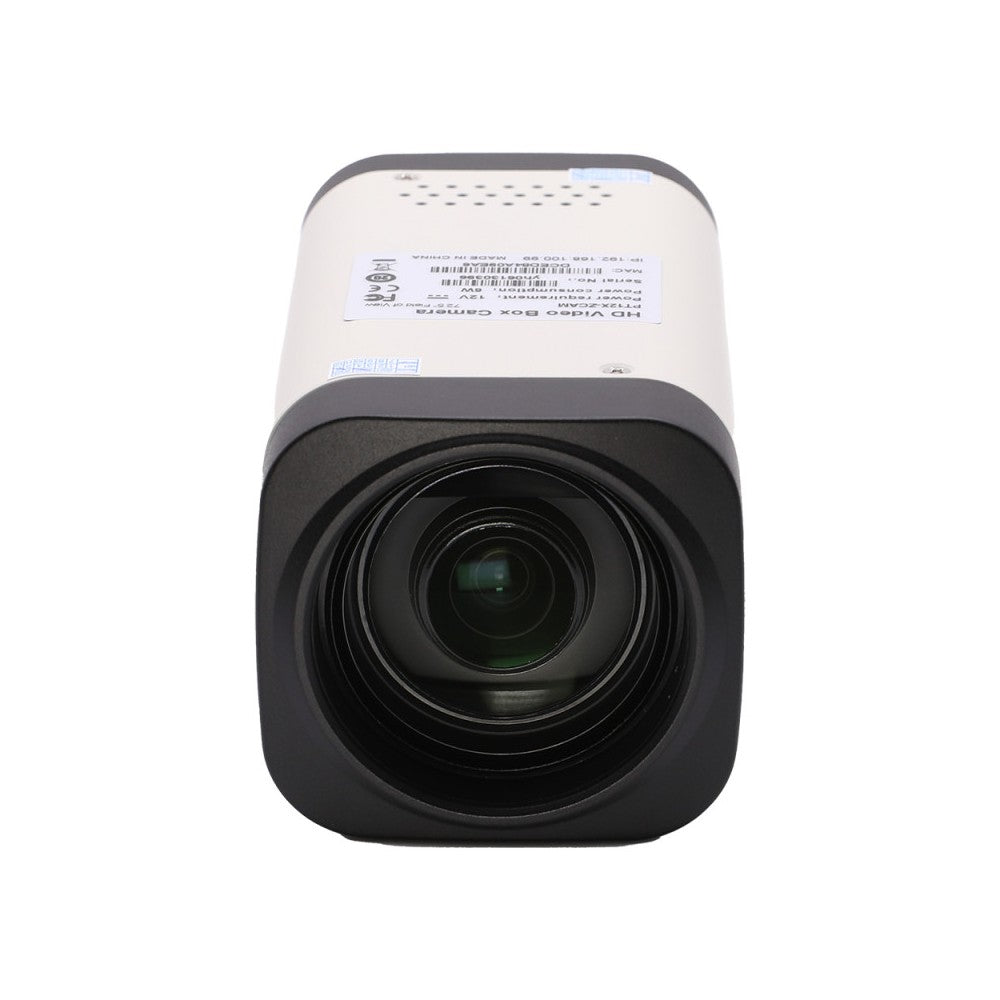

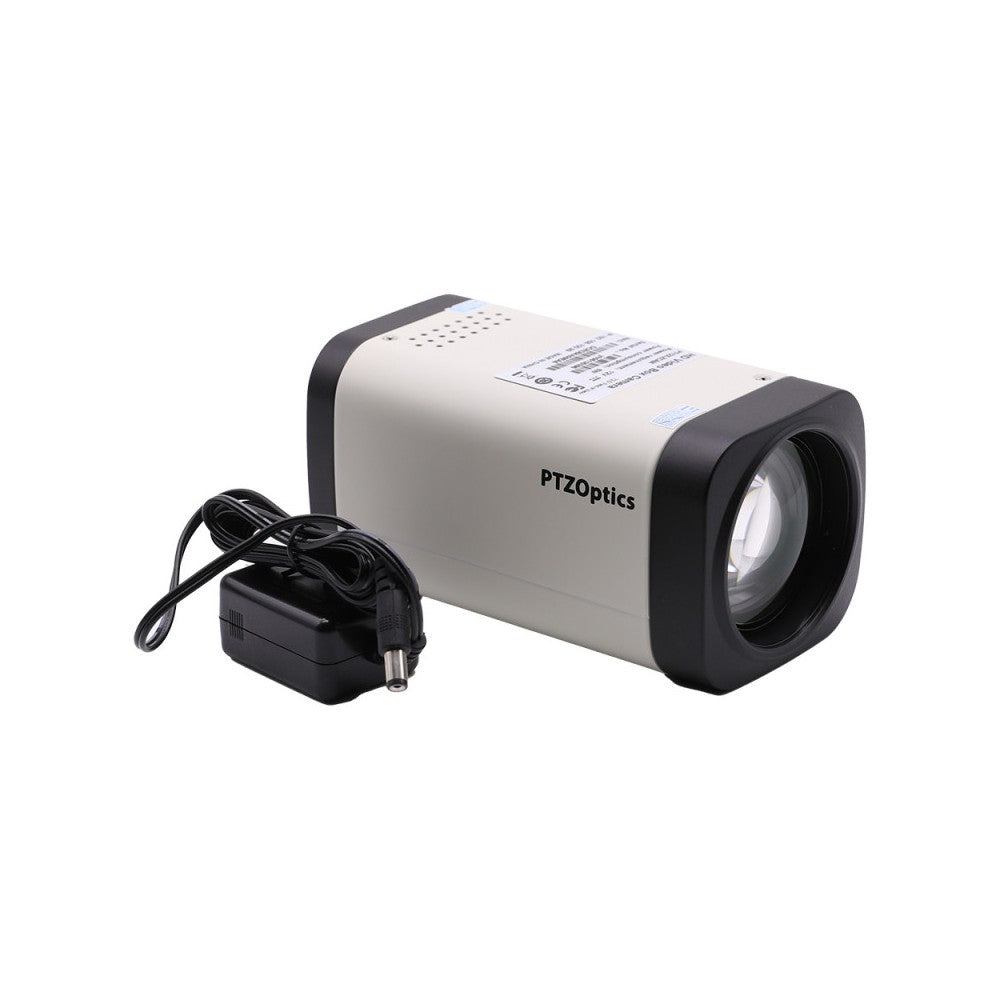

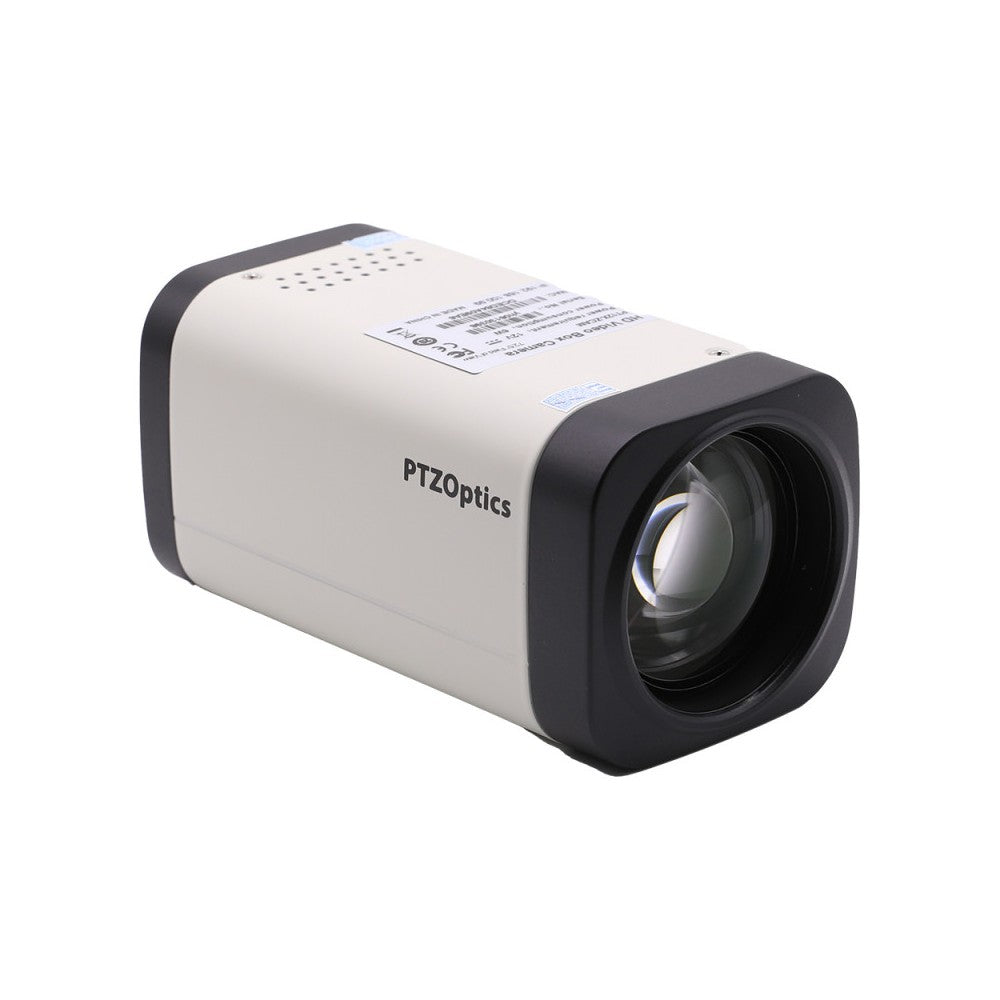

PTZOptics 12x optical zoom static box camera, FHD, 30 fps, 72.5° HFOV, HD-SDI | IP, PoE, white
Paga in 3 rate da €211,00 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
FEATURES
Robust box camera belonging to the ZCam family, designed for static shooting in specialized applications such as broadcasting, video surveillance and industrial monitoring. It is also ideal for live streaming and recording events such as graduations, sporting events, musical performances, etc. With its 12x optical zoom, it is designed to capture specific areas and in combination with traditional PTZOptics PTZ cameras, it offers more angle options for video production.
Designed for multiple uses, this box camera is compact and easy to configure and integrate into a variety of production workflows. Cameras can be deployed up to 100 m away with standard Ethernet cabling.
Each ZCam includes the NDI option for seamless integration into network video production software, such as vMix, Wirecast, xSplit, MimoLive, OBS, Livestream Studio, etc. PTZOptics ZCams can also be used with a wide variety of video switchers from brands like Blackmagic Design, Roland, and NewTek and remotely controlled with optimized settings for camera exposure, white balance, noise reduction, and more.
Remote control options are also available if needed. Use the built-in zoom/focus controls in your favorite video production software like OBS, Livestream Studio, Wirecast, vMix, mimoLive, or Tricaster, or one of the hardware joystick controllers like the PTZOptics IP joystick, the serial joystick, or the SuperJoy. The free IP control application for Mac or PC, the open-source control software on GitHub, and the OBS plug-in are also available.
Finally, we would like to mention the availability of a wide range of free software solutions for PTZOptics users, including the Camera Management Platform (CMP) for camera management, control, color correction, and automatic tracking, the possibility of control via app for desktop and mobile devices, plug-ins and integrations for popular platforms, including OBS and Twitch, camera configuration and management tools, and support and testing utilities.
SPECIFICATIONS
- Video sensor: Panasonic 1/2.7" CMOS, 2.07 Mpixel
- Frame rates: full frame rates 1080p-60/50/30/25, 1080-60/50, 720p-60/50/30/25
- Focal length: 12x optical, f = 3.5 ~ 42.3 mm, F1.8 - F2.8
- Zoom length: 12x
- Field of view: 72.5° (wide)
- Min. illumination: 0.5 lx at F1.8, AGC ON
- Scanning mode: progressive
- Vertical flip & mirror supported
- Shutter speed: 1/30 s – 1/10,000 s
- SNR: ≥ 55 dB
- Horizontal angle of view: 6.9° (tele) to 72.5° (wide)
- Vertical angle of view: 3.9° (tele) to 44.8° (wide)
- Wide dynamic range: supported
- White balance: auto, 3000 K / indoor, 4000 K, 5000 K / outdoor, 6500 K-1, 6500 K-2, 6500 K-3, one push (ok), manual
- Digital noise reduction: 2D & 3D
- Analog audio inputs: line IN, 3.5 mm (IP stream only)
- Video outputs: video over Ethernet (1080p @ 30 fps capable), 3G-SDI (up to 1080p @ 60 fps capable)

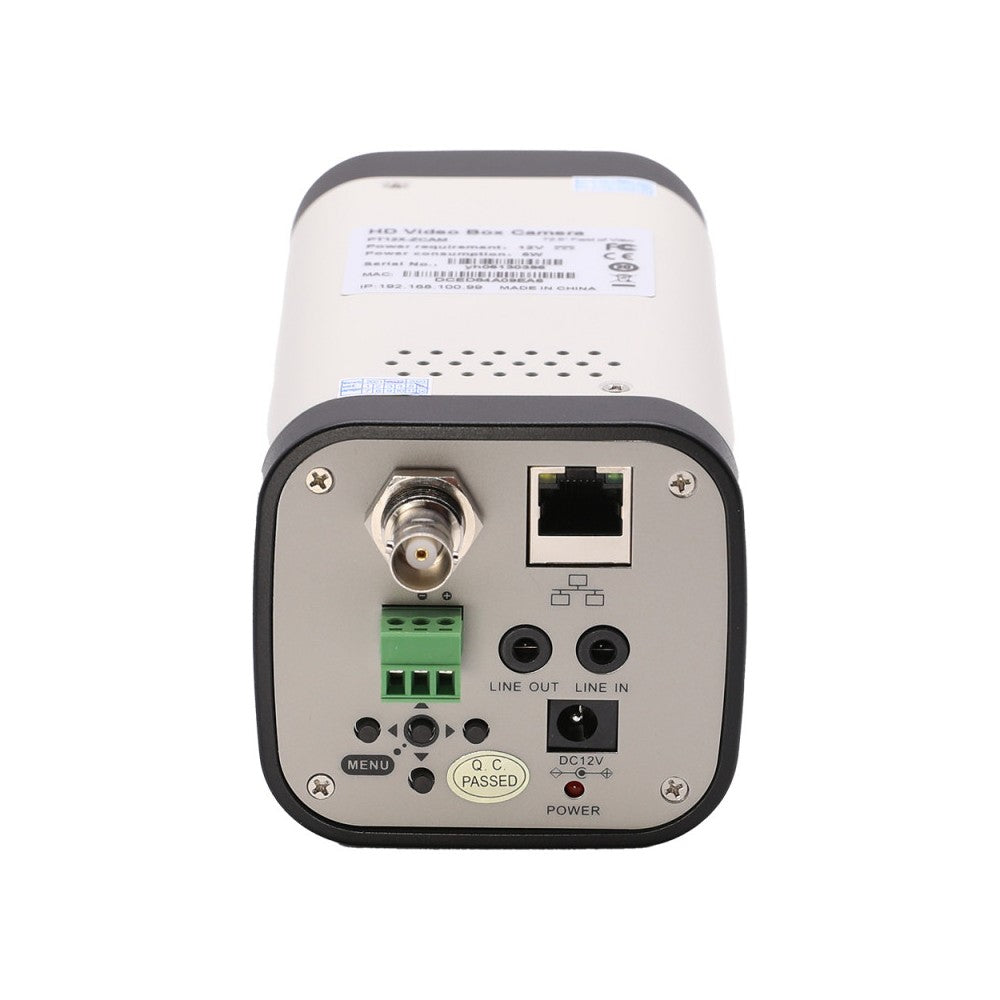

- Connectors: 3G-SDI (BNC – 75 ohm, F.), 10/100 RJ-45
- Aspect ratios: 4:3, 16:9
- Standard resolutions: PAL, PAL wide, NTSC, NTSC wide
- Output resolution range: 720p30 to 1080p60
- Frame rate: up to 60 fps (IP stream limited to 30 fps)
- IP streaming:
- Video bitrate range: 32 – 20,480 kbps
- Maximum 1080p frame rate 30 fps
- Maximum 720p frame rate 30 fps
- Audio bitrate options: 96 kbps, 128 kbps, 256 kbps
- AAC audio encoding
- Audio sample rate options: 44.1 kHz, 48 kHz
- Recommended max. cable length for SDI (based on standards): 100 m
- Recommended max. cable length for Ethernet (based on standards): 108 m
- DHCP: supported
- Static: IP supported
- Multicast: supported
- Dual streaming: supported
- 720p 120 fps: supported
- HTTP port number: default 80
- RTSP port: default 554
- PTZ port: default 5678
- UDP port: default 1259
- Web Management: supported, Guest & Admin logins
- RS-485: 3 position terminal block
- Baud rate: 2400 / 4800 / 9600 bits
- IP: PTZOptics VISCA over IP
- Recommended maximum cable length for RS-485: 1200 m
- Power supply: 12 W (max.)
- Input voltage: 12 VDC (10.8 – 13.0 VDC) or PoE 802.3af
- Power over Ethernet: standard PoE supported
- Dimensions (W x D x H): 79 x 145 x 74 mm
- Box dimensions: 254 x 127 x 127 mm
- Camera weight: 0.63 kg
- Boxed weight: 2.45 kg
Technical characteristics
Camera and lens
Audio
Video outputs
Networking
Camera control
Power
Physical specifications
