PTZOptics PT20X4K-PRODUCER-SJOY

FEATURES

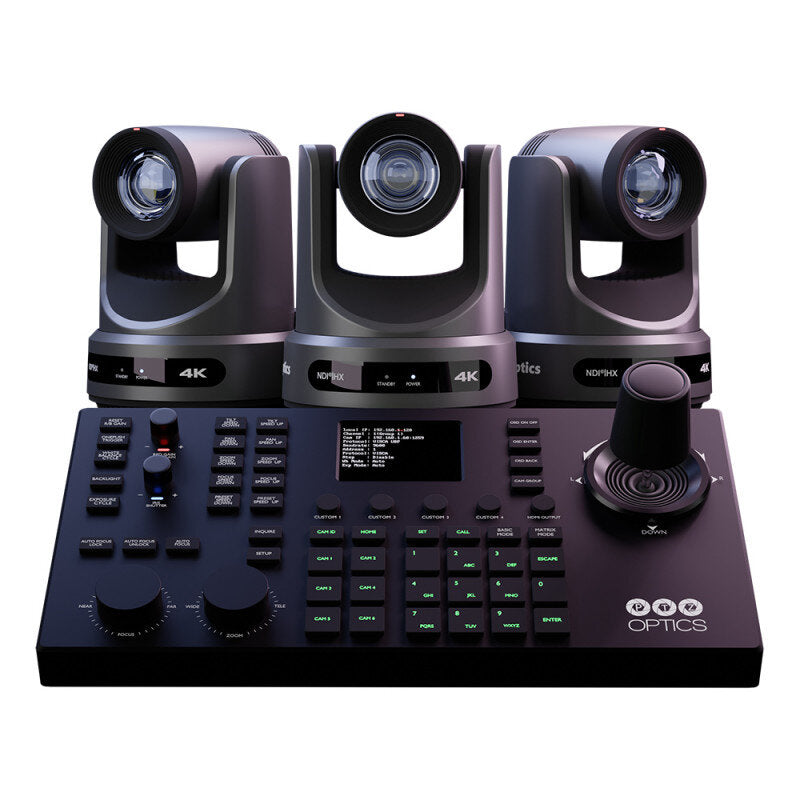

Kit including 3 PT20X-4K-GY-G3 cameras and 1 IP & Serial joystick controller PT-SUPERJOY-G1.

The package is completed by the Camera Management Platform (CMP) software for managing, controlling, color correcting, and auto-tracking PTZ cameras.

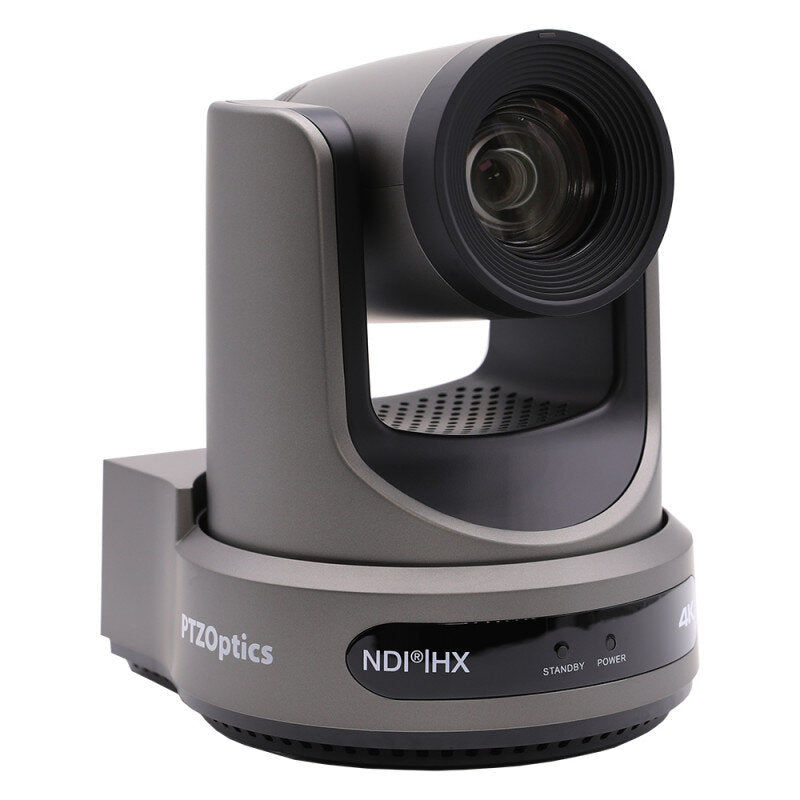

PT20X-4K-GY-G3

High-quality PTZ camera equipped with a 1/1.8" CMOS sensor with 8.42 Mpixel resolution capable of capturing video up to 4K UHD at 60 fps or 1080p at 60 fps over SDI. Its Sony CMOS sensor enables high performance in low-light scenarios, also thanks to the 3D noise reduction system, while the bright 20× optical zoom F1.58 ~ F3.95 offers a horizontal field of view of 60.7°. There is also a digital zoom of up to 16x with a cropped image of 256 x 144 pixels.

A very important feature of the PTZOptics Move 4K 20x is the auto-tracking functionality, which allows for the automatic following of the framed subject without the need for a camera operator. The exclusive Presenter Lock technology allows the camera to lock onto a specific person up to 76m away, even if others are simultaneously present in the frame. Furthermore, this integrated auto-tracking feature allows users to easily switch from one speaker to another on stage with the simple click of a button.
The updated PTZOptics Web UI provides everything you need in a simple menu system, obviously including auto-tracking management.

There are several output options, common to all Move 4K models, including SDI, HDMI, USB, and IP. The camera is also equipped with native NDI|HX3, which allows for the distribution of broadcast video content through a low-latency IP infrastructure and stable frame rates up to 4K resolution, for unprecedented performance and versatility. The RJ45 interface supports PoE+.

Users can control the Move 4K PTZs using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive, or Tricaster, or by using a hardware joystick controller of the same brand. There is also seamless integration with Blackmagic switchers.
In addition, they can be controlled remotely from anywhere in the world using a variety of tools, including NDI and cloud-based software such as Zoom. Users can also live stream directly to CDNs (Content Delivery Networks) such as Facebook and YouTube. It can also be remotely controlled both via the supplied remote controller and the dedicated App. A Tally light is also present.

The Voice-Tracking feature, now in beta version, is available, which uses beamforming algorithms to detect and follow the speaker's voice, automatically performing pan, tilt, and zoom on the subject regardless of their position in the room.

Several mounting options are available, and, not least, a 5-year warranty provided by the manufacturer.

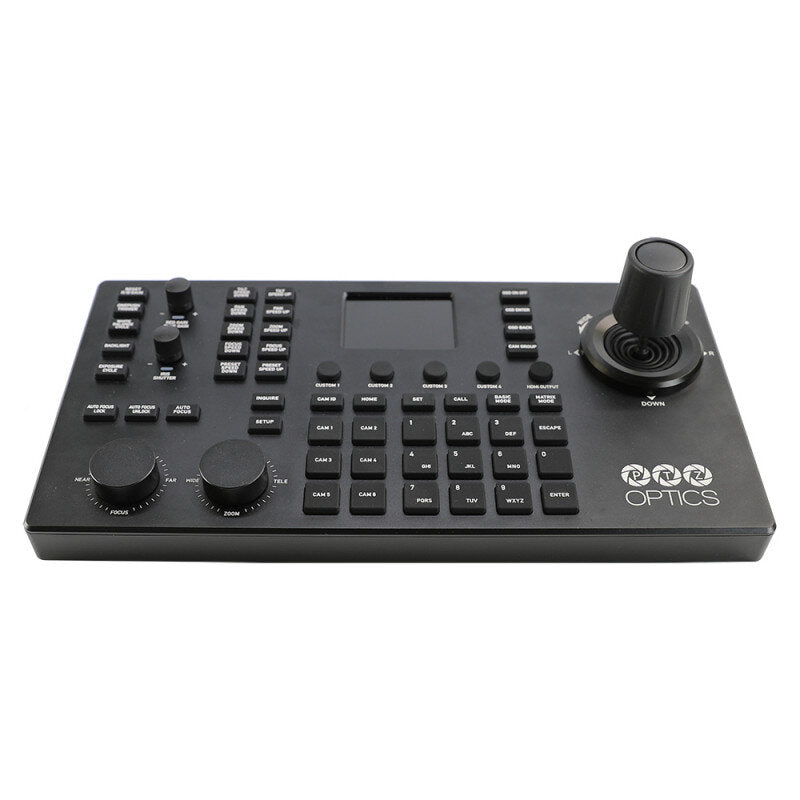

PT-SUPERJOY-G1

Joystick controller for PTZ cameras designed for smooth and efficient workflows with simultaneous NDI, IP, and serial control for a wide range of PTZ cameras (in addition to PTZOptics). SuperJoy takes Pan, Tilt, and Zoom functions to the next level in a simplified user interface with advanced controls for experienced users, including IP controls for cameras, lights, projector screens, and more using four customizable buttons. The powerful Super-Preset buttons are programmable to activate multi-preset commands synchronized across up to 4 groups of cameras with up to 7 cameras each, as well as a fifth group of 227 cameras.

SuperJoy offers an intuitive, tactile interface, based on ergonomic rubber controls and pressure-sensitive dials, which simplifies and optimizes even the most complex production setups. Backlit buttons and knobs with status feedback indicate available camera modes, while optional tablet/computer control can allow for remote monitoring. With three user-focused control modes, designed to suit different skill levels, SuperJoy offers unparalleled flexibility for production teams of all backgrounds and experience. Use Basic and Basic Plus modes to limit functions to presets and single-camera control. Matrix mode allows operators to recall presets on up to 3 cameras. Finally, experienced users will be able to program custom buttons for production automation.

The HDMI video output provides a 1080p preview for any camera connected to SuperJoy that has an RTSP video feed available for use. This HDMI video output is ideal for displaying cameras on a local network. In this way, a SuperJoy controller can be set up anywhere on a network to obtain PTZ camera controls with a low-latency live video preview.

SPECIFICATIONS

Technical characteristics

PT20X-4K-GY-G3

Image sensor & lens

• Video sensor: 1/1.8", Sony CMOS sensor, effective pixels: 8.42 M
• Lens: f = 6.25 - 125 mm, F1.58 - F3.95 (31 - 589 mm, 35 mm equivalent)
• Resolution and frame rate:
  • HDMI: 3840 × 2160p 60 / 59.94 / 50 / 30 / 29.97 / 25, 1920 × 1080p 60 / 59.94 / 50 / 30 / 29.97 / 25, 1920 × 1080i 60 / 59.94 / 50, 1280 × 720p 60 / 59.94
  • SDI: 1920 × 1080p 60 / 59.94 / 50 / 30 / 29.97 / 25, 1920 × 1080i 60 / 59.94 / 50, 1280 × 720p 60 / 59.94
• Digital zoom: off (3840 × 2160), 2× (1920 × 1080), 3× (1280 × 720), 4× (960 × 540), 8× (480 × 270), 16× (256 × 144)
• Field of view: horizontal: 3.5° (tele) - 60.7° (wide), vertical: 1.9° (tele) - 34.1° (wide)
• Min. lux: 0.5 lx @ (F1.8, AGC ON)
• Shutter: 1/30 s - 1/10,000 s

Pan/Tilt movement

• Pan movement: ±170°
• Pan speed: 1.7° - 100°/s
• Tilt movement: +90° to -30°
• Tilt speed: 1.7° - 69.9°
• Presets: 255
• Video tracking supported
• Image flip, mirror and freeze supported

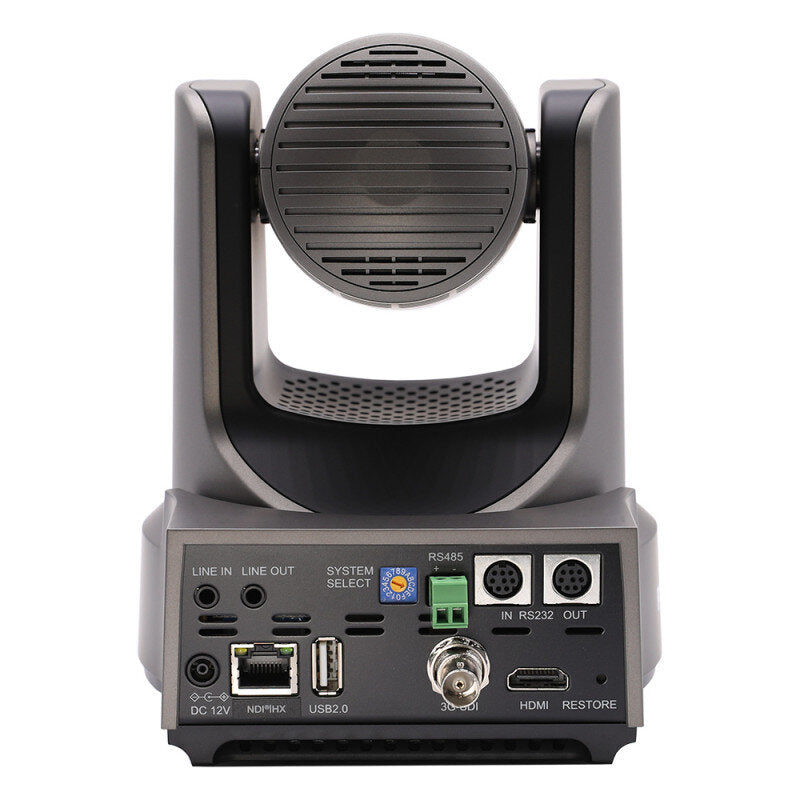

Rear board connectors

• HD video output:
  • 1 × RJ45: 10/100/1000M adaptive Ethernet port424M standard
  • 1 × HDMI version 2.0
  • 1 × USB 2.0 type A
  • 1 × 3G-SDI: BNC type, 800 mV_p-p, 75 ohm, along to SMPTE 424M standard
• Audio interface: 1 × 3.5 mm line level input
• Communication interface:
  • 1 × 8 pin mini-DIN RS232 input, max. distance 30 m, protocol: VISCA / Pelco-D / Pelco-P
  • 1 × 8 pin mini-DIN RS232 output, max. distance 30 m, protocol: VISCA / Pelco-D / Pelco-P
  • 1 × 2 pin Phoenix port, RS485 input / output, max. distance 1200 m, protocol: VISCA / Pelco-D / Pelco-P
• Network interface RJ45: 10/100/1000M adaptive Ethernet port, supports PoE+ (802.3at)
• Power jack JEITA type (DC input 12 V)

Power options

• Power supply: 12 V_DC / PoE+ (802.3at)
• Input power: 18 W (max.)

Physical specifications

• Material: aluminum, plastic
• Color: grey
• Working environment: indoor
• Operating temperature: -10 to 40 °C
• Storage temperature: -40 to 60 °C
• Dimensions (W × D × H): 16.84 × 14.15 × 16.45 cm
• Weight: 1.47 kg

PT-SUPERJOY-G1

• Connections: RS-232, RS-485, RS-422, RJ-45
• Maximum cameras: 255 total cameras - 28 cameras (4 groups of 7 channels) plus a group with up to 227 cameras
• Recommended max. distance: RS-232 / RS-422 15 m, RS-485 1200 m, Ethernet 100 m
• Baud rate: 1200 - 19,200 bps
• Power: 6 W (12 V_DC) / PoE (802.3af) (only use one power source at a time)
• Working temp: -10 to 50 °C
• Working humidity: 10 - 90% (non-condensation)
• Dimensions: (W × D × H): 37 × 18 × 10.1 cm
• Weight: 1.7 kg
