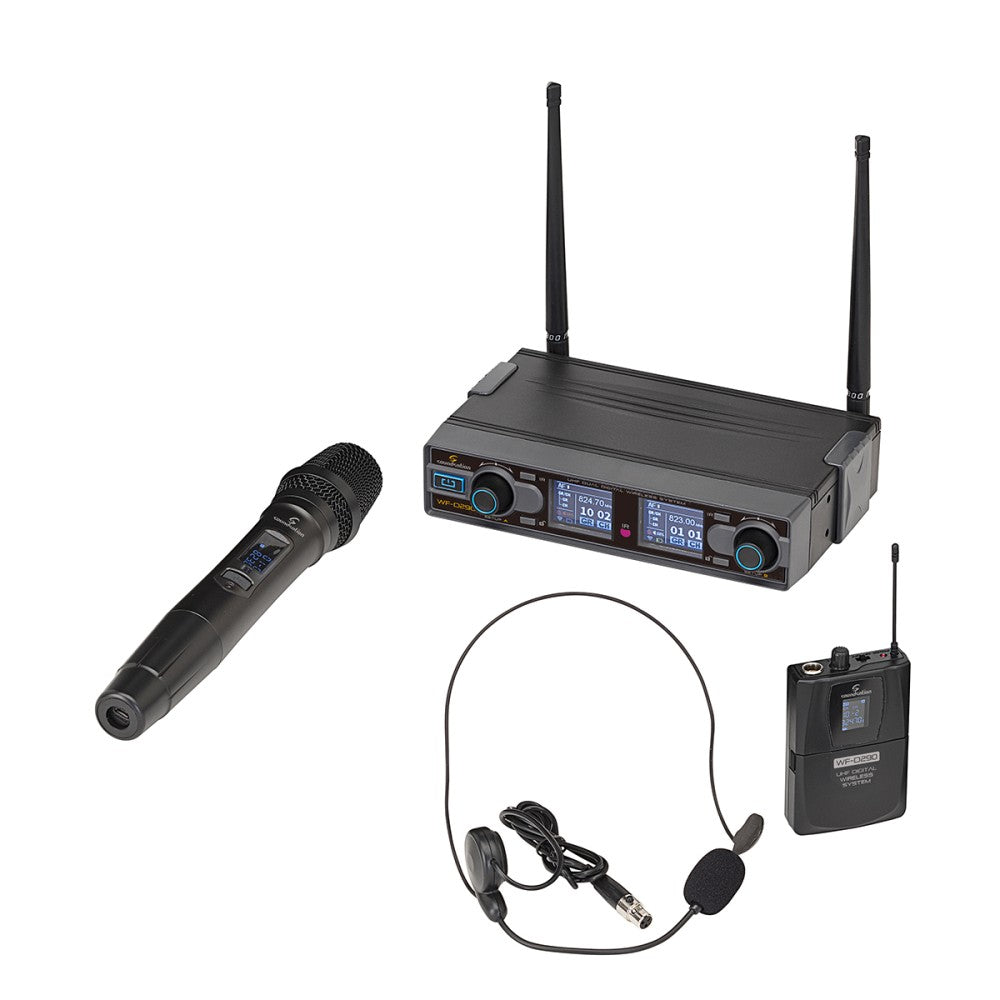

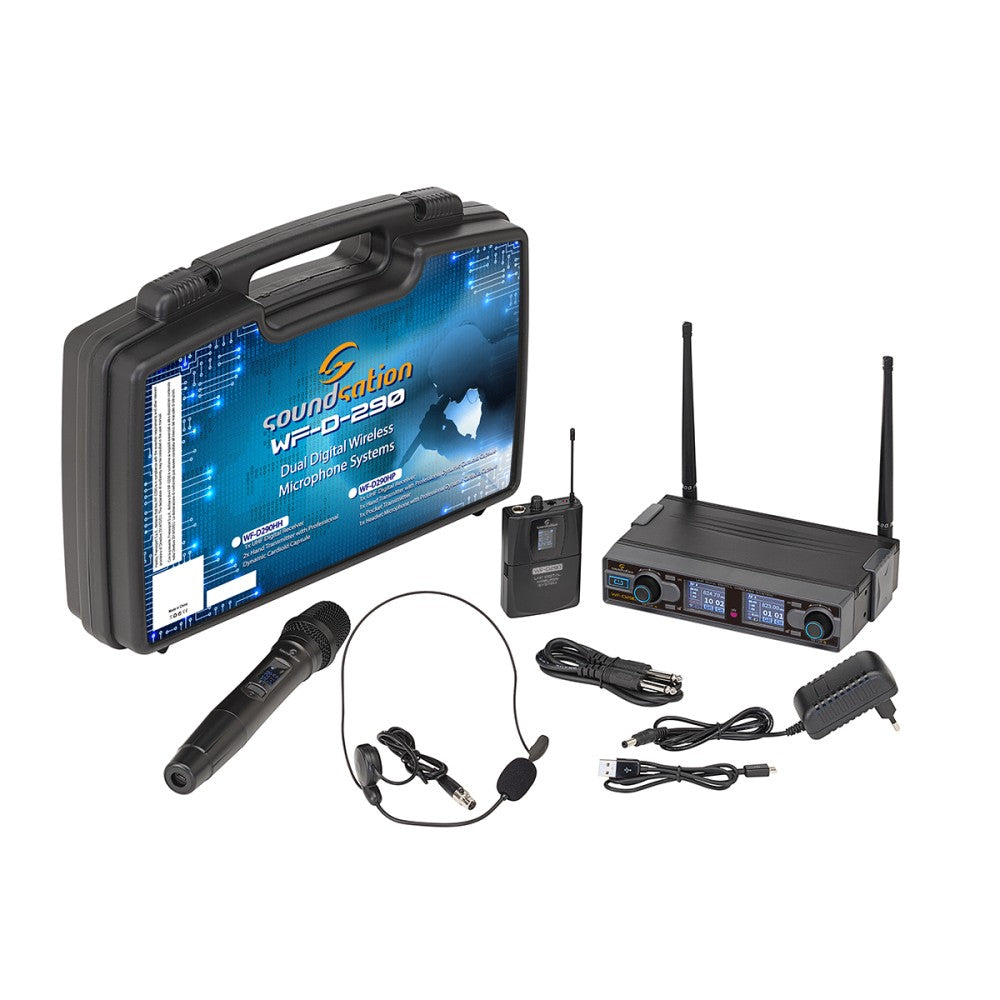

RADIOMIC. DIGITAL DUAL UHF SOUNDSATION WF-D290HP 1 HANDHELD TX + 1 BODYPACK TX HEADSET 823-832MHz
Estimated delivery in Italy between 16 and 18 June
Paga in 3 rate da €62,33 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
FEATURES
The SOUNDSATION WF-D2 0 system adopts a new digital transmission technology and hardware encryption of audio data, which allows for superior audio quality (compared to analog UHF systems), very low latency (better than 2.4 GHz systems), and maximum security thanks to hardware encryption. The 16-bit digital ID technology avoids interference even on the same frequency and allows continuous data exchange between transmitter and receiver, such as battery level, transmission power, squelch operation, etc. The system features automatic scanning and frequency spectrum display, which allow the user to select the least disturbed frequencies in any environment where it operates. It has 0 frequencies for each receiver, divided into 10 groups, each containing channels. The user interface is very simple and intuitive, thanks to the receiver's color TFT display and the simplicity of its setup menus. The handheld transmitter and body-pack, however, are equipped with LCD displays with an automatic shutdown function to save battery life. The handheld microphone also has a rechargeable lithium battery that can be recharged via the USB port on the back of the receiver. Finally, there are two optional kits for rack mounting 1 or 2 receivers, respectively, 1 or 2 standard 1" rack units.
SPECIFICATIONS
- UHF band 823-832 MHz
- Digital audio transmission technology
- 16-bit Digital Pilot technology
- Monitoring of AF signal level and battery charge directly on the receiver
- Dual antenna with diversity technology
- No interference even on the same frequency
- Ultra-low audio latency
- 48 Hz sampling rate
- Frequency response 30 Hz-20 kHz

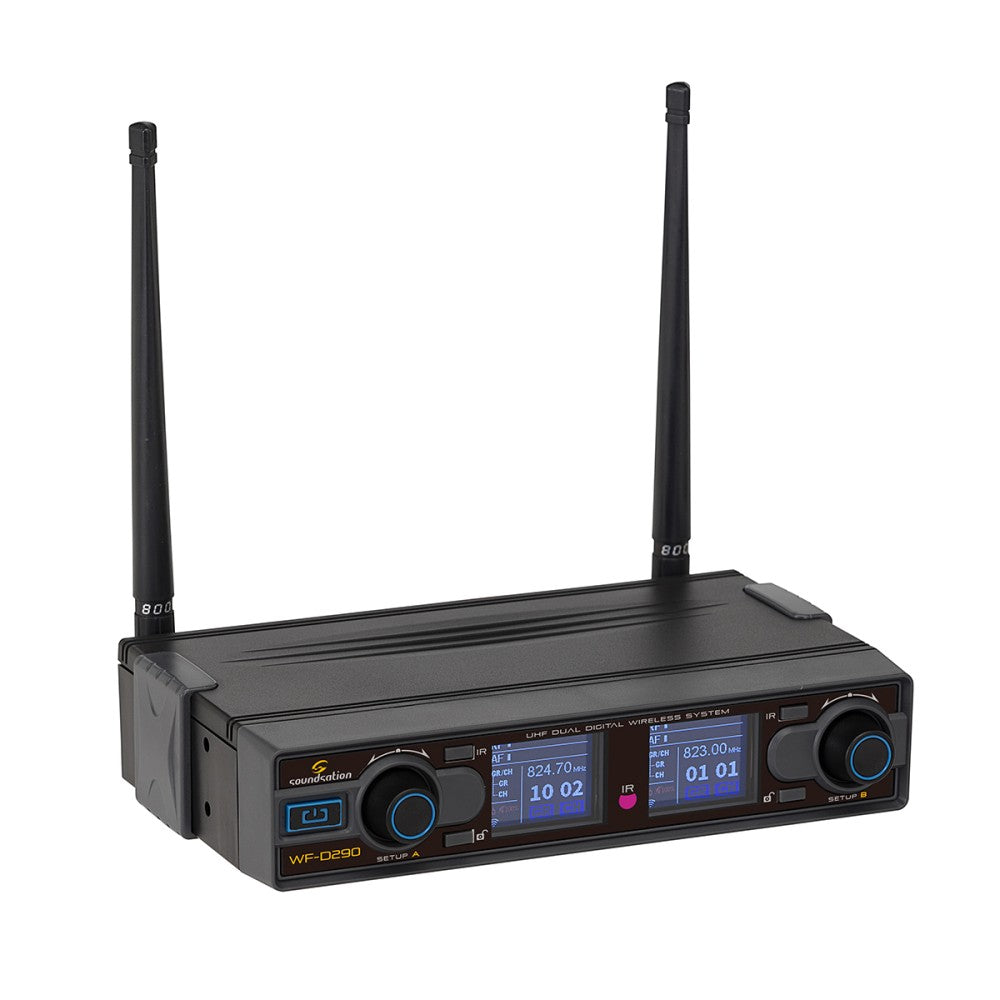

- Color TFT display and menu settings on the receiver
- Automatic frequency scan and spectrum display
- Ideal distance 50 m (without obstacles)

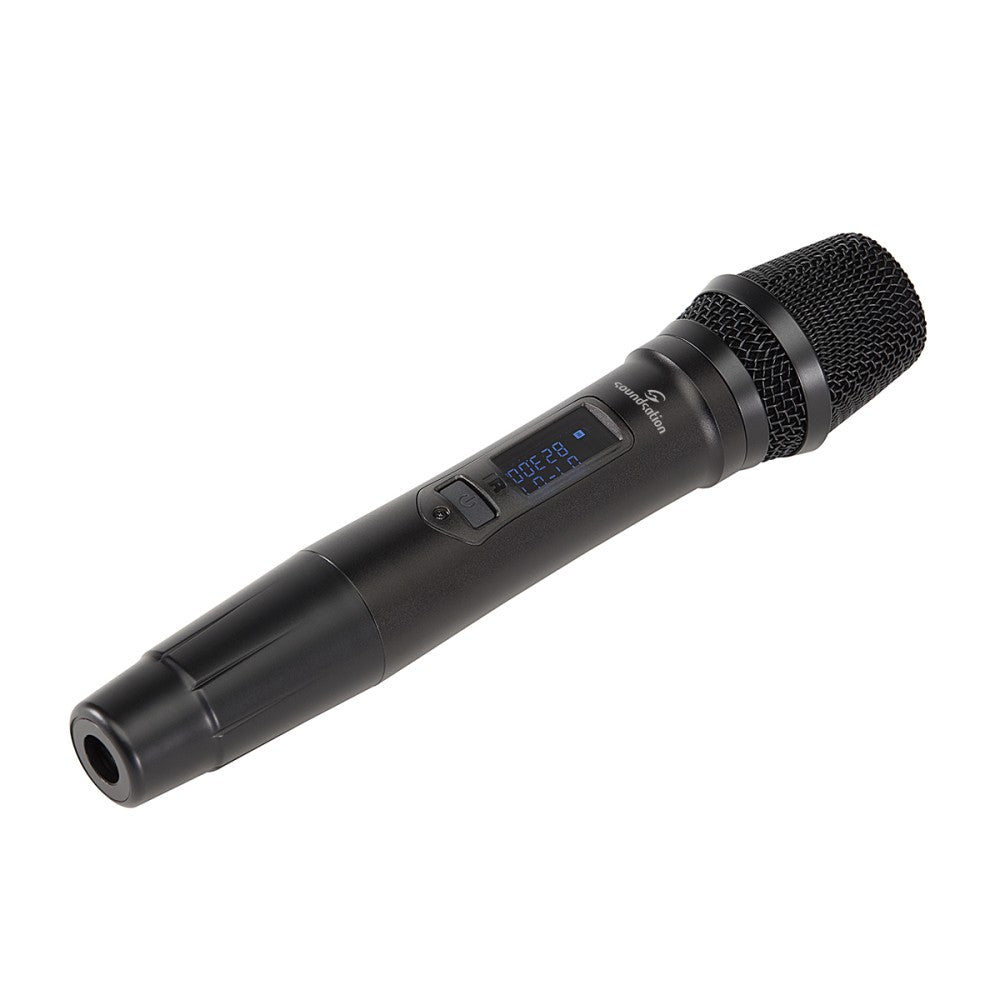

- Professional handheld microphone with cardioid dynamic capsule

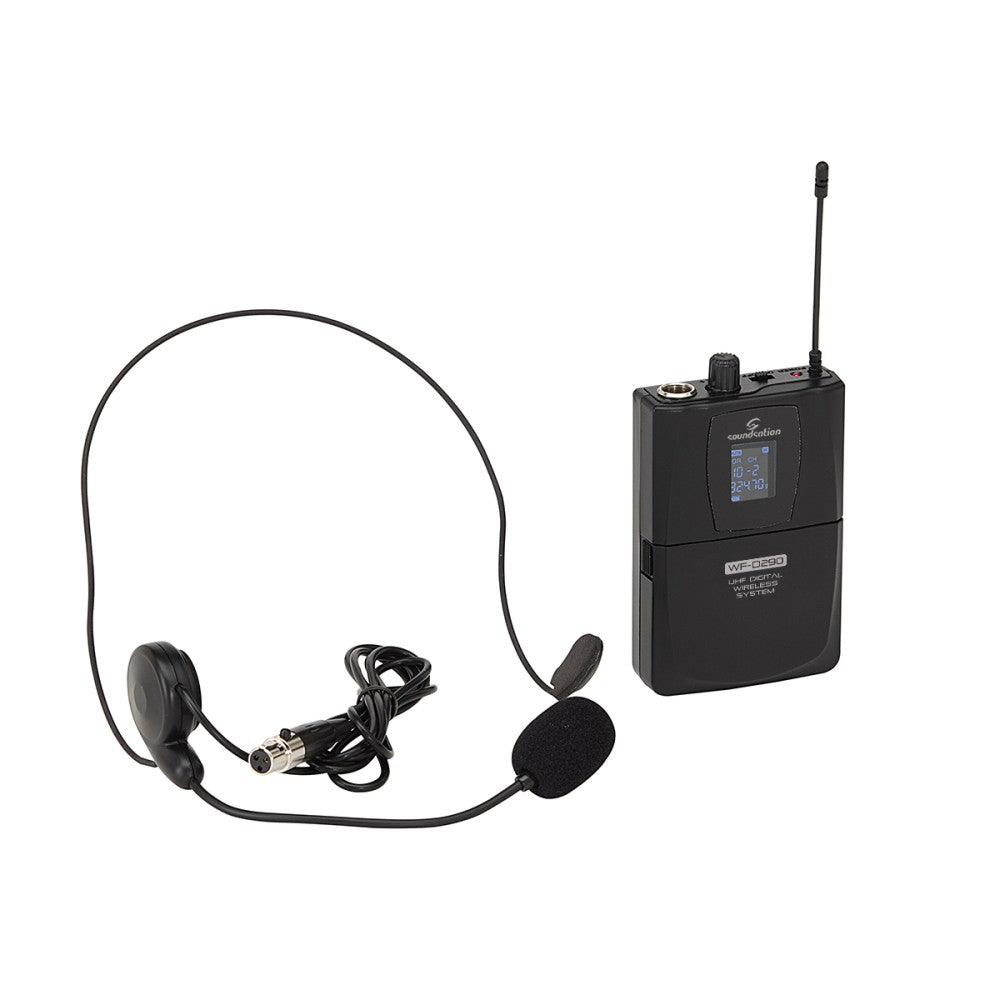

- Pocket transmitter with locking connector
- TX-RX synchronization with infrared for quick system setup
- Professional and lightweight headset with professional high-sensitivity cardioid condenser capsule
- Rack mounting kit for 1 or 2 receiver units to 1x or 2x 1" rack units (optional)
- Frequency band: UHF 823-832 MHz
- Bandwidth: MHz
- Channel width: 100 kHz
- Preset Groups/Channels: 10 groups, frequencies in each group
- Dynamic range: > 8 dB
- Total Harmonic Distortion: <0.1%
- Frequency response: 30 Hz-20 kHz/±2 dB

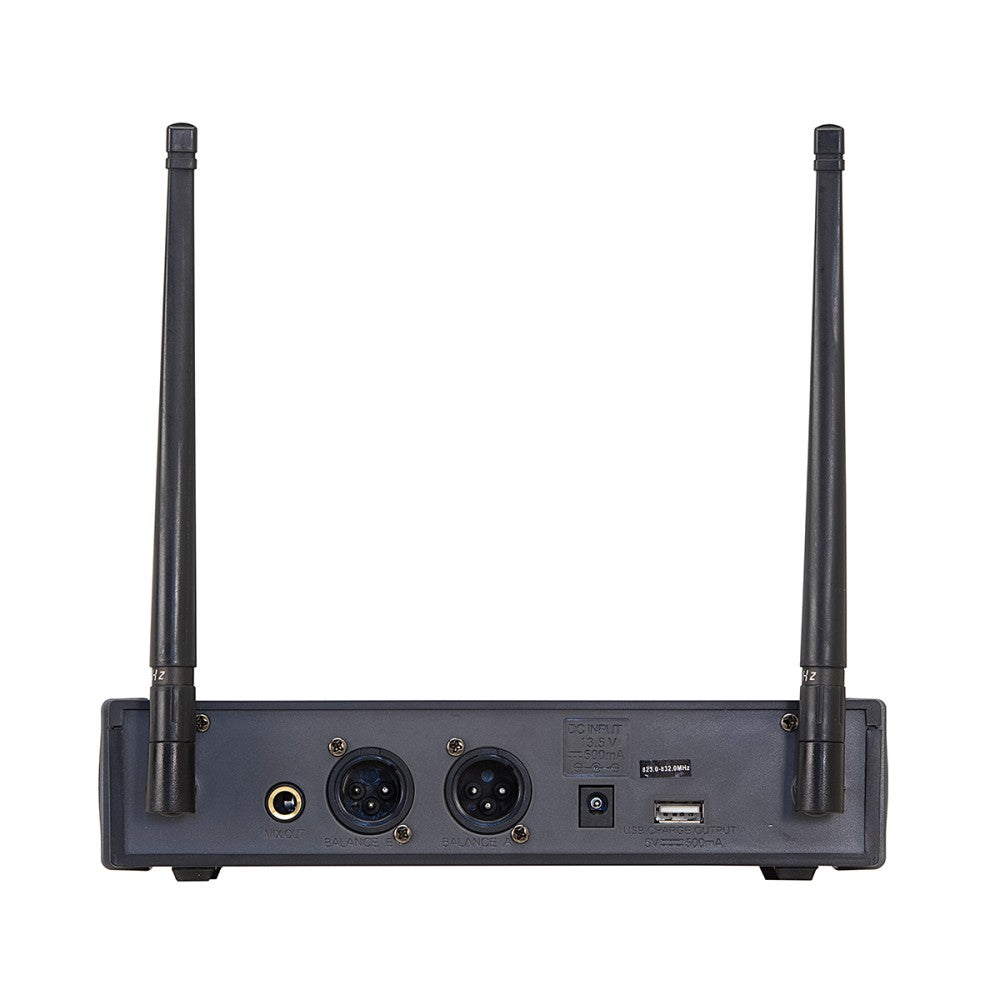

- Audio output level: Balanced 400 mV; unbalanced 400 mV
- Packaging dimensions (LxHxD): 436x104x324 mm
- Gross packaging weight: 2.5 kg
- Receiver Power Supply: DC 12V/1000 mA
- Receiver power consumption: 5 W
- Signal-to-noise ratio: > 8 dB
- Receiver input sensitivity: -5 dBm
- Transmission delay: <3 ms
- Receiver dimensions (LxHxD): 210x45x118 mm (antenna not included)
- Receiver antenna: 255mm (unfolded)
- Receiver net weight: 0.4 kg
- Transmission power: 10 mW (Max)
- Modulation type: DQPSK
- Handheld transmitter battery: 1 rechargeable 3.7 V - 1200 mAh lithium battery (type 18500)
- Pocket transmitter batteries: 2 AA batteries (type AA) 1.5 V each
- Usage time: 5 hours (HI transmission power); 7 hours (LO transmission power)
- Battery charging time (handheld transmitter only): Approx. 3.5 hours
- Handheld microphone dimensions (LxHxD): Ø35(min)-Ø46(max)x240 mm
- Handheld microphone net weight: 0.26 kg (batteries included)
- Pocket transmitter dimensions (LxHxD): 62x103x30 mm
- Bodypack Antenna (L/PxH): Ø3x mm
- Pocket transmitter net weight: 0.132 kg (batteries included)
