RELACART UR-222D 2-Channel UHF System 823-832 + 863-865 MHz
Estimated delivery in Italy between 14 and 16 September
Pay in 3 installments of €155,72 interest-free
Pay in 3 installments of €155,72 interest-free with PayPal
Split into 3 installments of €155,72 with your card via HeyLight
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke

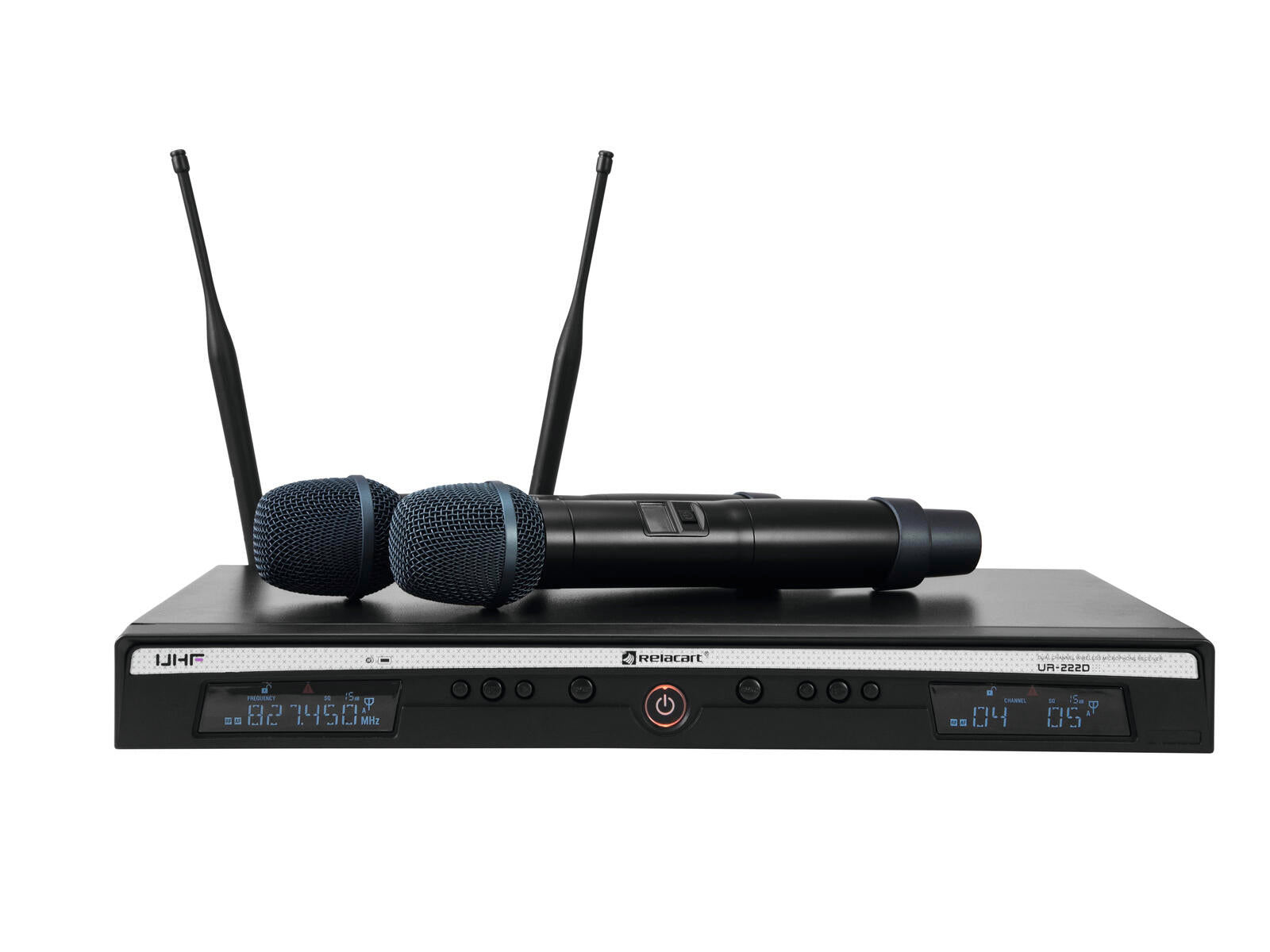

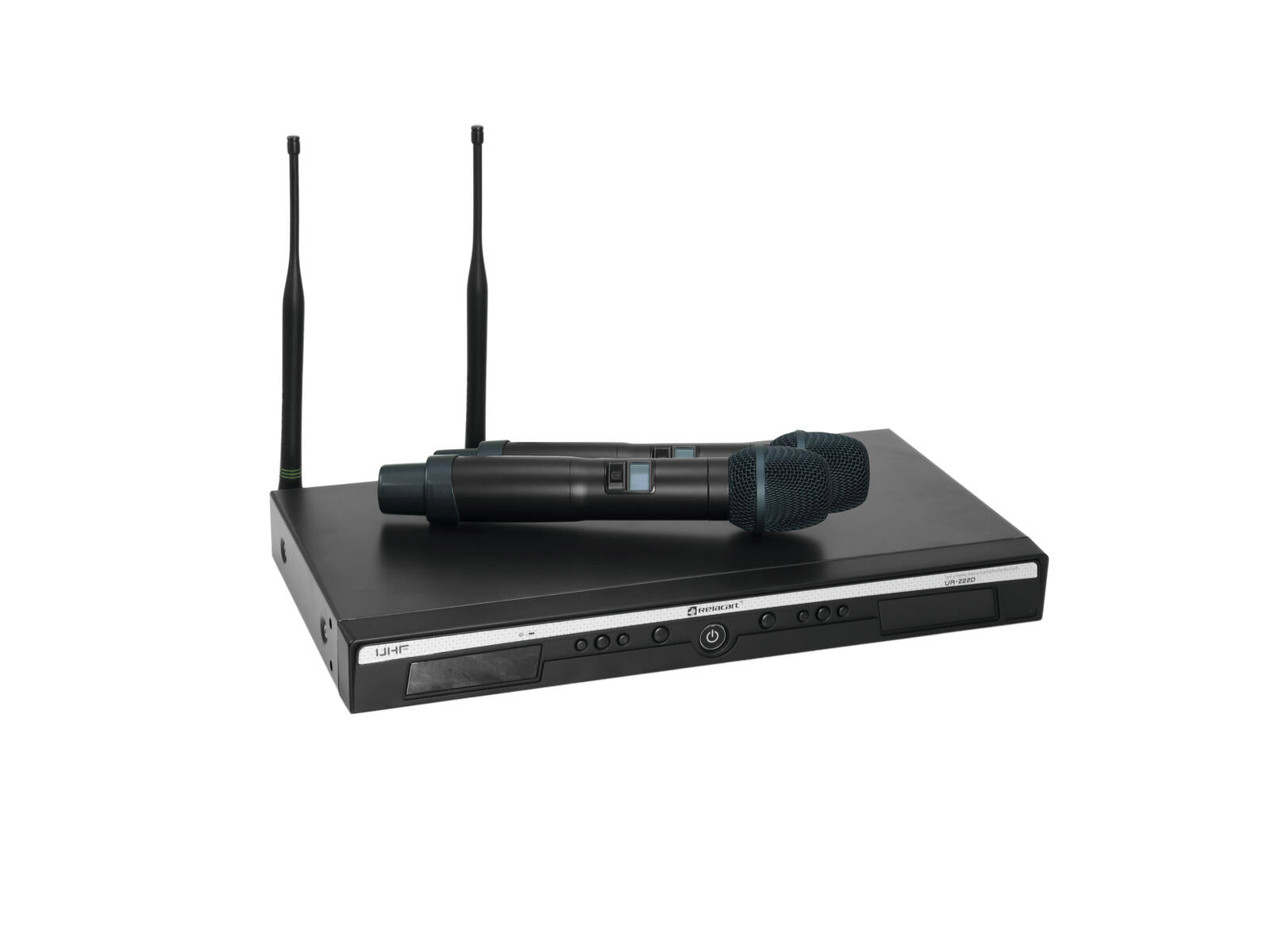

True diversity wireless microphone system with two channels, 823-832 MHz + 863-865 MHz

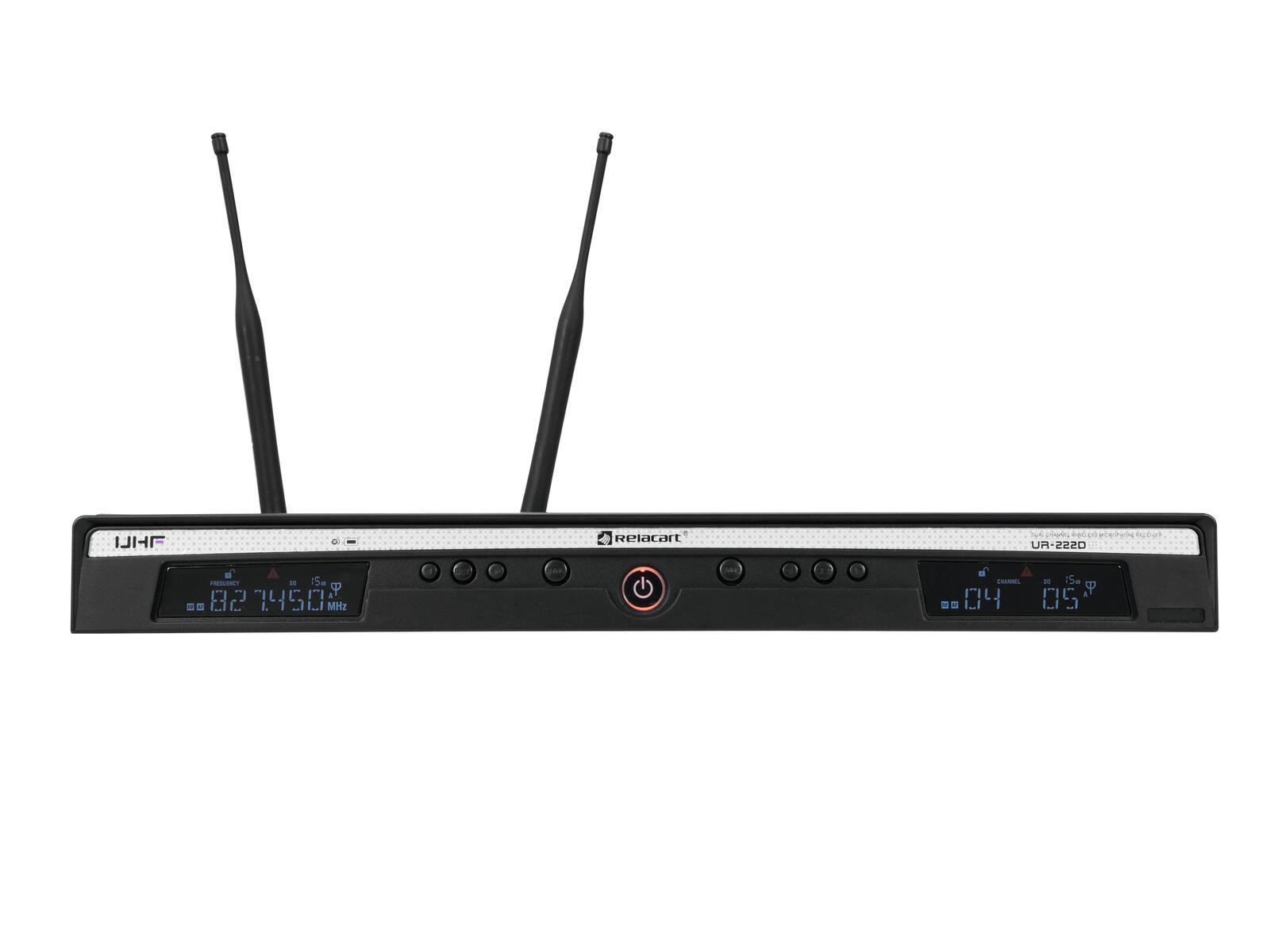

RELACART UR-222D 2-channel UHF receiver 823-832 + 863-865 MHz
2-channel multi-frequency wireless receiver with high-quality diversity reception
- 10 groups with 90 fixed frequencies within an 11 MHz switching bandwidth
- Pilot tone squelch technology to eliminate wireless RF interference
- Automatic frequency scanning (AFS) to find interference-free channels
- Simple and error-free synchronization between receiver and transmitter via infrared signal
- 2 removable BNC antennas allowing use with R-14D antenna splitter
- Robust metal housing
- Rack installation (19") 48.3 cm possible 1 U
- Operating range up to 80m line of sight
- UHF 863 - 865 MHz License-free and approved in Europe
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- Up to 9 transmitters can be used in parallel without interference
- Multi-color LCD display
- Charge status indicator
- Desktop console housing
RELACART UH-222D Microphone 823-832 + 863-865 MHz
Handheld microphone with PLL multi-frequency transmitter
- Dynamic handheld microphone with pilot tone UHF technology (PLL)
- Ergonomic aluminum alloy housing, suitable for touring
- 10 groups with 90 fixed frequencies within an 11 MHz switching bandwidth
- Simple and error-free synchronization between receiver and transmitter via infrared signal
- Adjustable RF output power Hi/Low
- Adjustable gain level Hi/Mid/Low
- M-022 capsule
- Directly compatible with Shure SM58 capsule
- Polar pattern: Supercardioid
- Operating range up to 80m
- UHF 863 - 865 MHz License-free and approved in Europe
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- OLED display
- Charge status indicator
Scope of delivery
1 x RELACART UR-222D 2-channel UHF Receiver 823-832 + 863-865 MHz
- 1 x receiver
- 1 x external power supply
- 2 x antenna
- 2 x mounting bracket
- 6 x screw
- 2 x jack cable
- 1 x user manual
- 1 x declaration of conformity
2 x RELACART UH-222D Microphone 823-832 + 863-865 MHz
- 1 x microphone
- 1 x user manual
- 1 x declaration of conformity
| Type: | Wireless set |
| Weight: | 2.89 kg |
| RELACART UR-222D 2-channel UHF Receiver 823-832 + 863-865 MHz | |
| Type: | Receiver |
| Power supply: | 100-240 V AC, 50/60 Hz 12V DC 1000 mA |
| Power consumption: | 5 W |
| Power connection: | Mains input via coaxial power connector (M), built-in version with power cord and AC adapter (included) |
| Number of channels: | 2 |
| Frequency range: | 45 - 18000 Hz |
| S/N ratio: | >105 dB |
| Range: | Range up to 80m line of sight |
| Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz |
| Diversity: | Antenna diversity |
| Switching bandwidth: | 11 MHz |
| Frequency stability: | ± 0.0005 % |
| Parallel mode: | Max. 9 transmitters |
| Modulation: | FM |
| Frequency selection: | 90 switchable frequencies In 10 groups with up to 10 preset frequencies each |
| Display type: | Multi-color LCD display |
| Display readout: | Channel, frequency, group, RF signal level; AF audio level, antenna A/B, charge status indicator |
| Controls: | Navigation buttons, menu, groundlift selector |

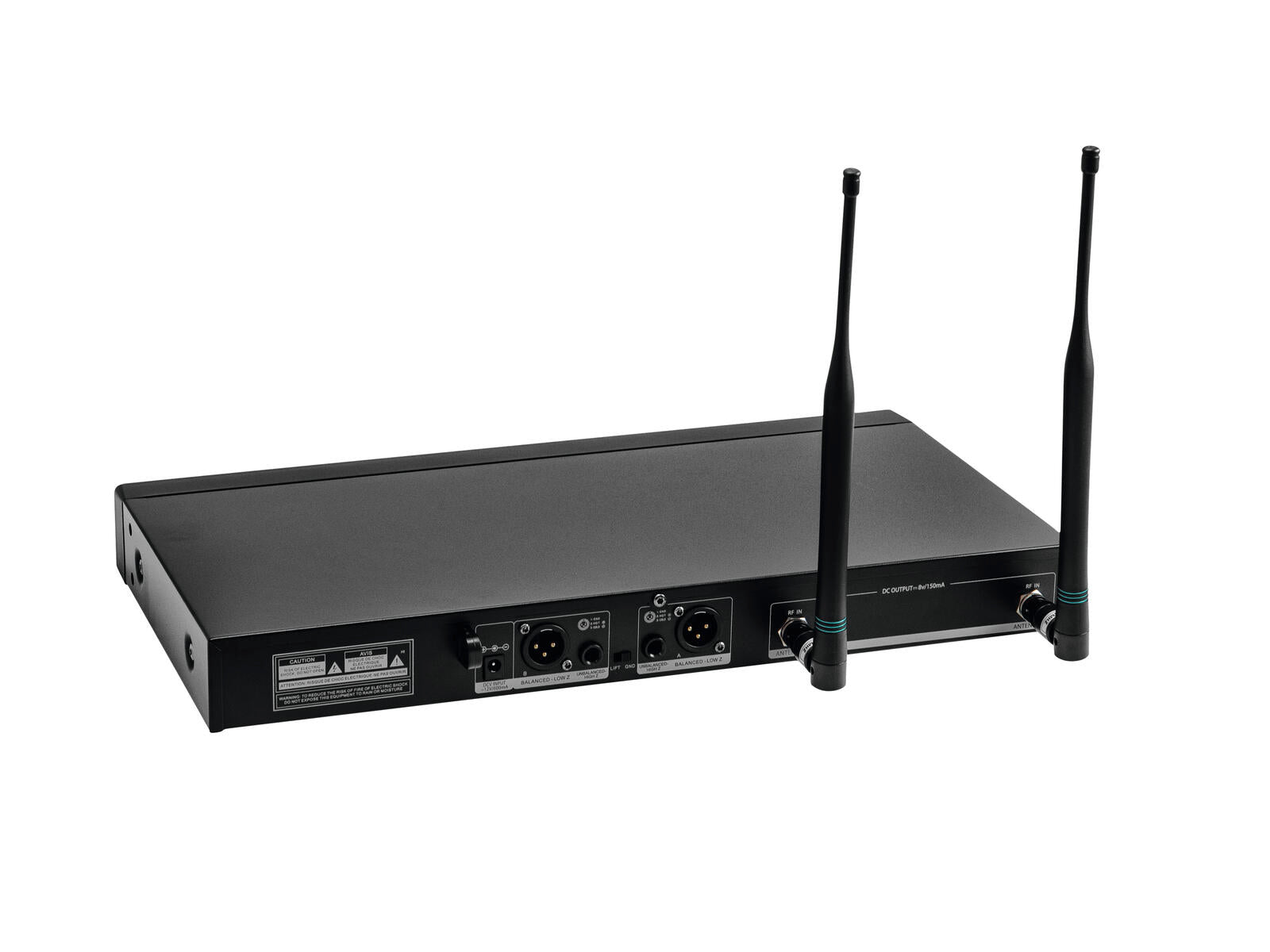

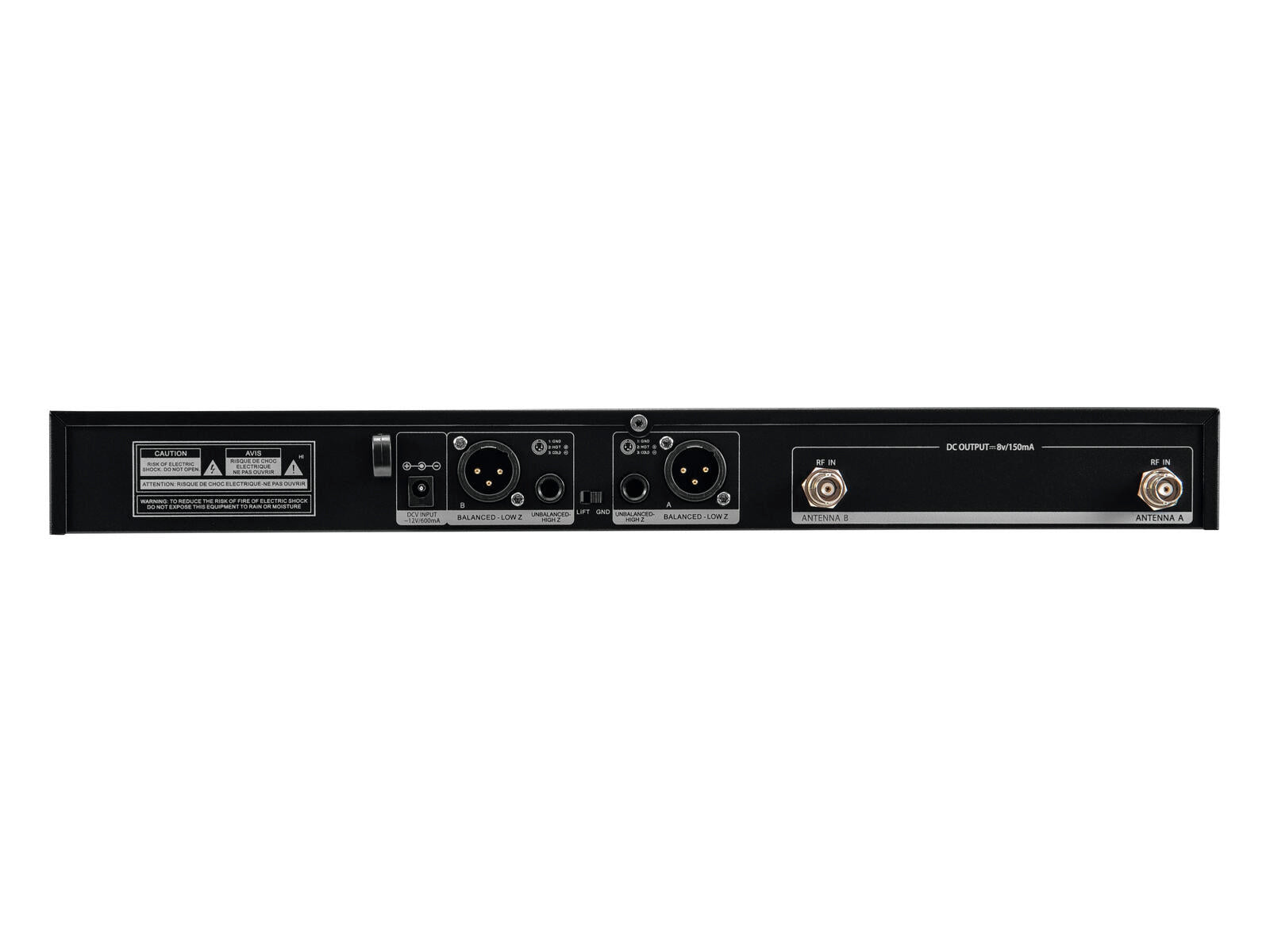

| Connections: | Output: line via 2 x 3-pin XLR Output: line via 2 x 6.3 mm jack (unbalanced) Antenna via 2 x BNC (F) 8 V |
| Material: | Metal |
| Color: | Black |
| Housing design: | Desktop console housing Rack installation (19") 48.3 cm possible 1 U |
| Dimensions: | Width: 41 cm Depth: 25.5 cm Height: 4.4 cm |
| Weight: | 2.32 kg |
| RELACART UH-222D Microphone 823-832 + 863-865 MHz | |
| Type: | Handheld transmitter |
| Power supply: | 3V DC |
| Capsule type: | Dynamic |
| Polar pattern: | Supercardioid |
| Battery: | 2 x AA (not included) |
| Frequency range: | 120 - 16000 Hz |
| Sensitivity: | -53 dB |
| Max. SPL: | 145 dB |
| Range: | Range up to 80m |
| Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz |
| Switching bandwidth: | 11 MHz |
| RF output power: | 5 mW (LO); 10 mW (HI) |
| Modulation: | FM |
| Frequency selection: | 90 switchable frequencies In 10 groups with up to 10 preset frequencies each |
| Display type: | OLED display |
| Display readout: | Charge status indicator, frequency, group, channel; Mute |
| Controls: | Gain switch (high-mid-low), transmitter power switch (high-low) |
| Switch: | On/off/mute switch |
| Material: | Aluminum |
| Dimensions: | Length: 26 cm Diameter: Ø 5.4 cm |
| Weight: | 0.28 kg |
