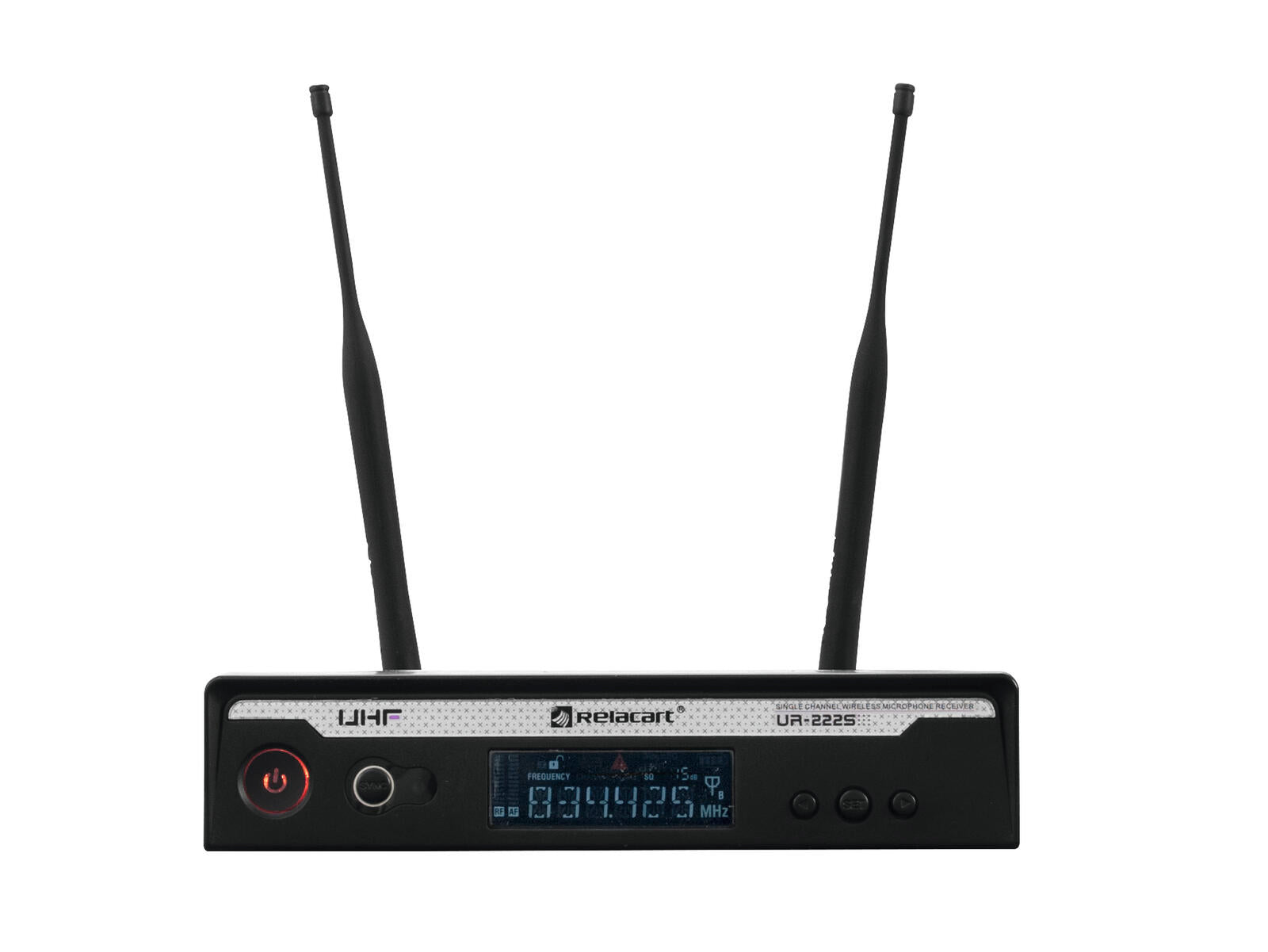

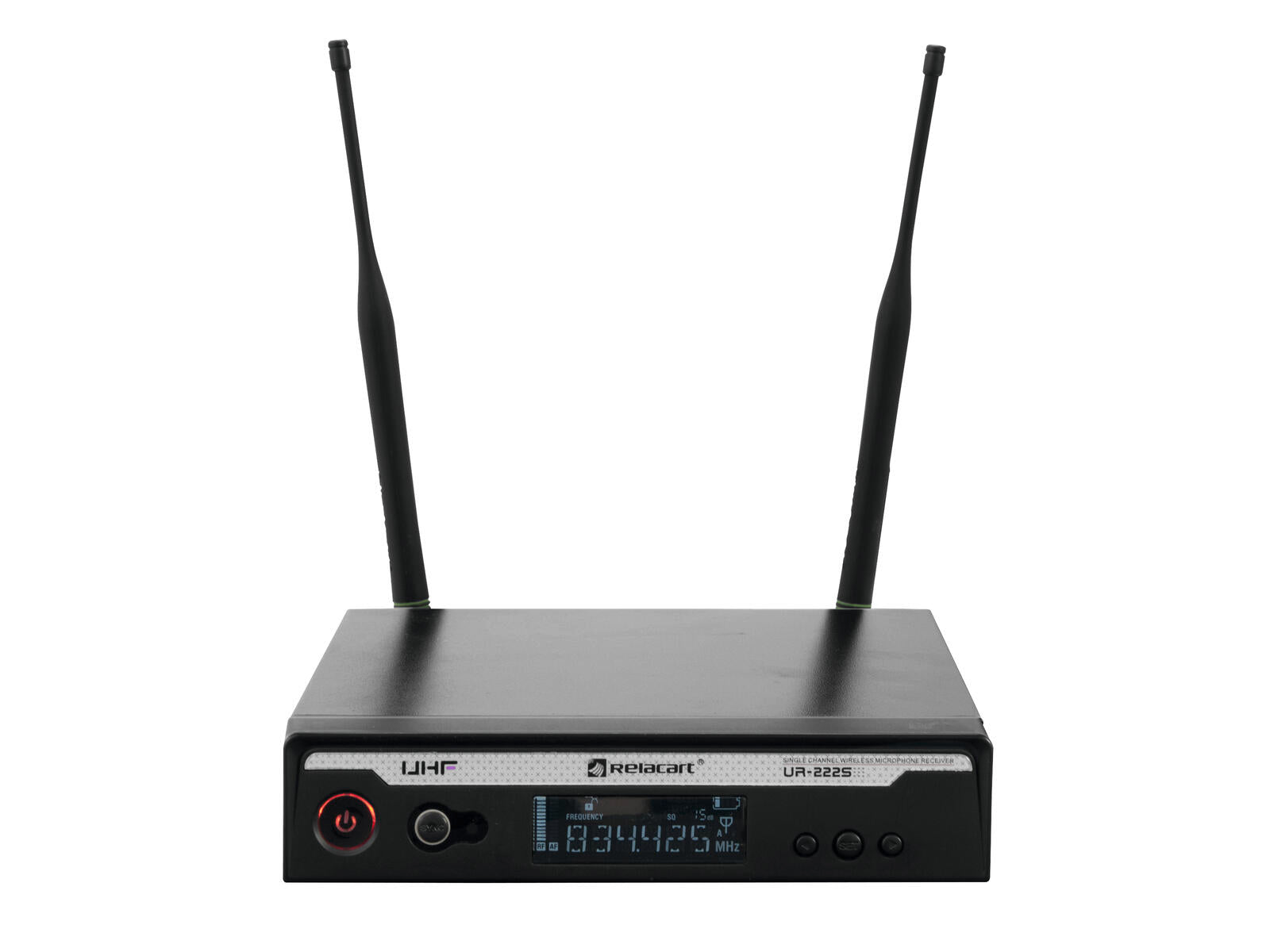

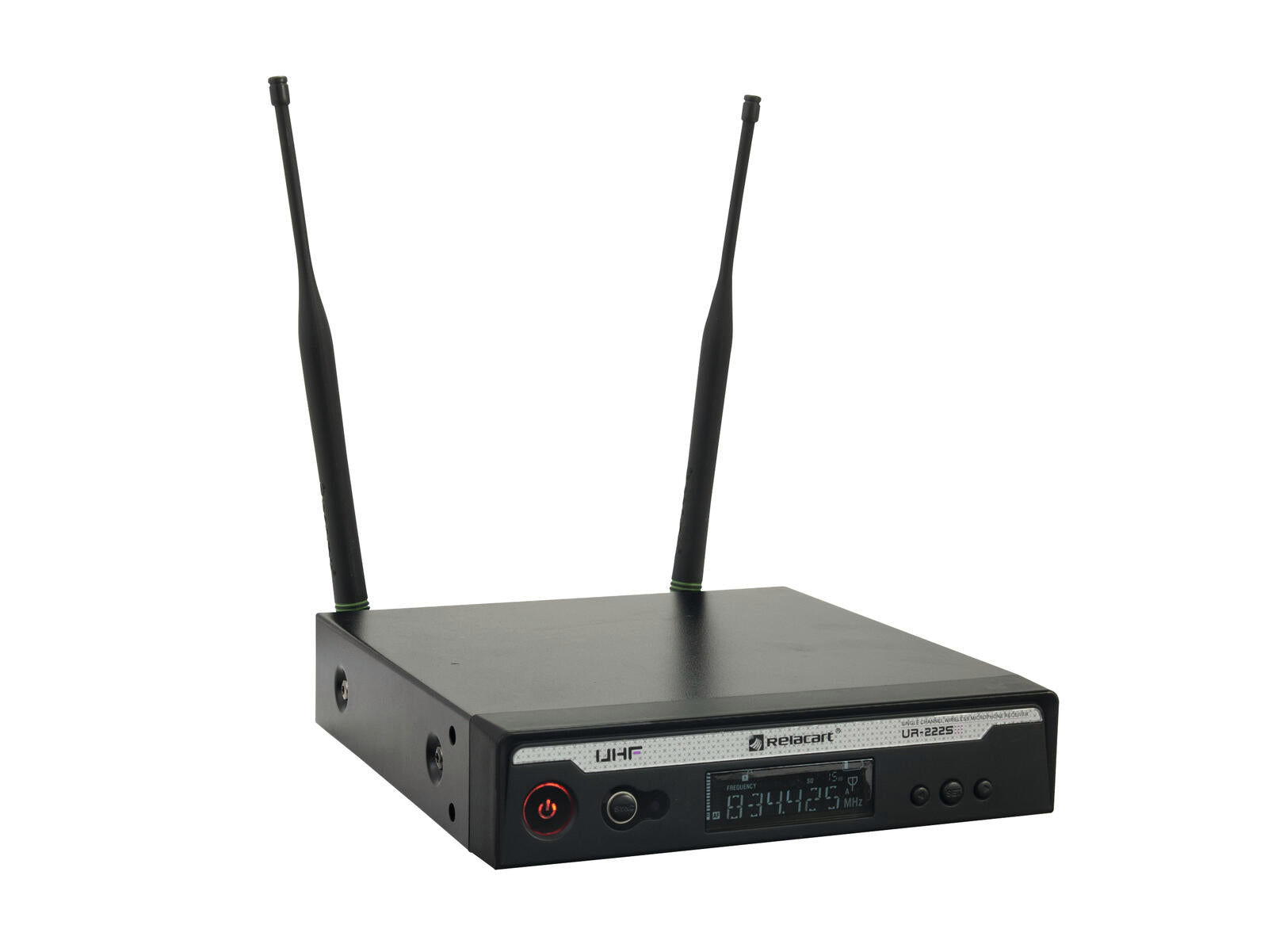

RELACART UR-222S 1-channel UHF Receiver 823-832 + 863-865 MHz
Estimated delivery in Italy between 5 and 7 October
Pay in 3 installments of €64,96 interest-free
Pay in 3 installments of €64,96 interest-free with PayPal
Split into 3 installments of €64,96 with your card via HeyLight
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
Multi-frequency radio receiver with high-quality diversity reception
- 10 groups with 90 fixed frequencies within an 11 MHz switching bandwidth
- Pilot frequency squelch technology eliminates wireless RF interference
- Automatic Frequency Scan (AFS) finds interference-free channels
- Simple and error-free synchronization between receiver and transmitter via infrared signal
- 2 removable BNC antennas allow use with the R-14D antenna splitter
- Rack installation (19") 48.3 cm 1 U possible
- Operating range up to 80m
- UHF 863 - 865 MHz license-free and approved in Europe
- UHF 823 - 832 MHz license-free and approved in large parts of Europe
- Up to 9 transmitters can be used in parallel without interference
- Multicolor LCD display
- Charge status indicator
- Desktop housing
Scope of delivery
- 1 x receiver
- 1 x external power supply
- 2 x antenna
- 1 x jack cable
- 3 x mounting bracket
- 8 x screw
- 1 x user manual
- 1 x declaration of conformity

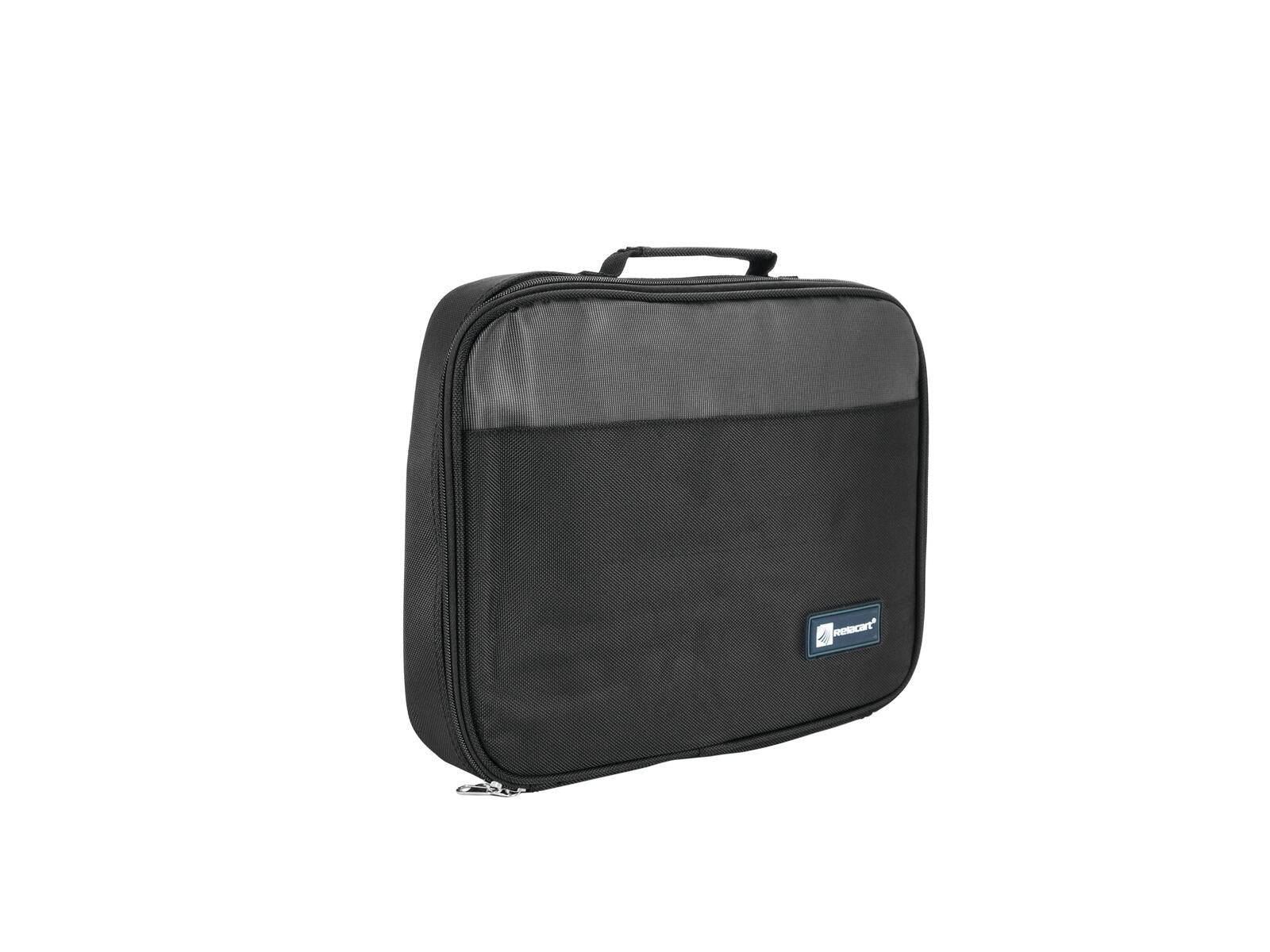

- 1 x bag
| Type: | Receiver |
| Power supply: | 100-240 V AC, 50/60 Hz 12V DC 1000 mA |
| Power consumption: | 3 W |
| Power connection: | Mains input via coaxial power connector (M) installation version, power supply cable with AC adapter (provided) |
| Number of channels: | 1 |
| Frequency range: | 45 - 18000 Hz |
| S/N ratio: | >105 dB |
| THD: | <0.7 % at 1 kHz |
| Range: | Range up to 80m |
| Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz |
| Diversity: | Antenna diversity |
| Switching bandwidth: | 11 MHz |
| Frequency stability: | ± 0.005 % |
| Parallel mode: | Max. 9 transmitters |
| Modulation: | FM |
| Frequency selection: | 90 switchable frequencies In 10 groups with up to 10 preset frequencies each |
| Display type: | Multicolor LCD display |
| Display readout: | Charge status indicator, antenna A/B, RF signal level, AF audio level; frequency |
| Controls: | Groundlift selector, menu, navigation keys |

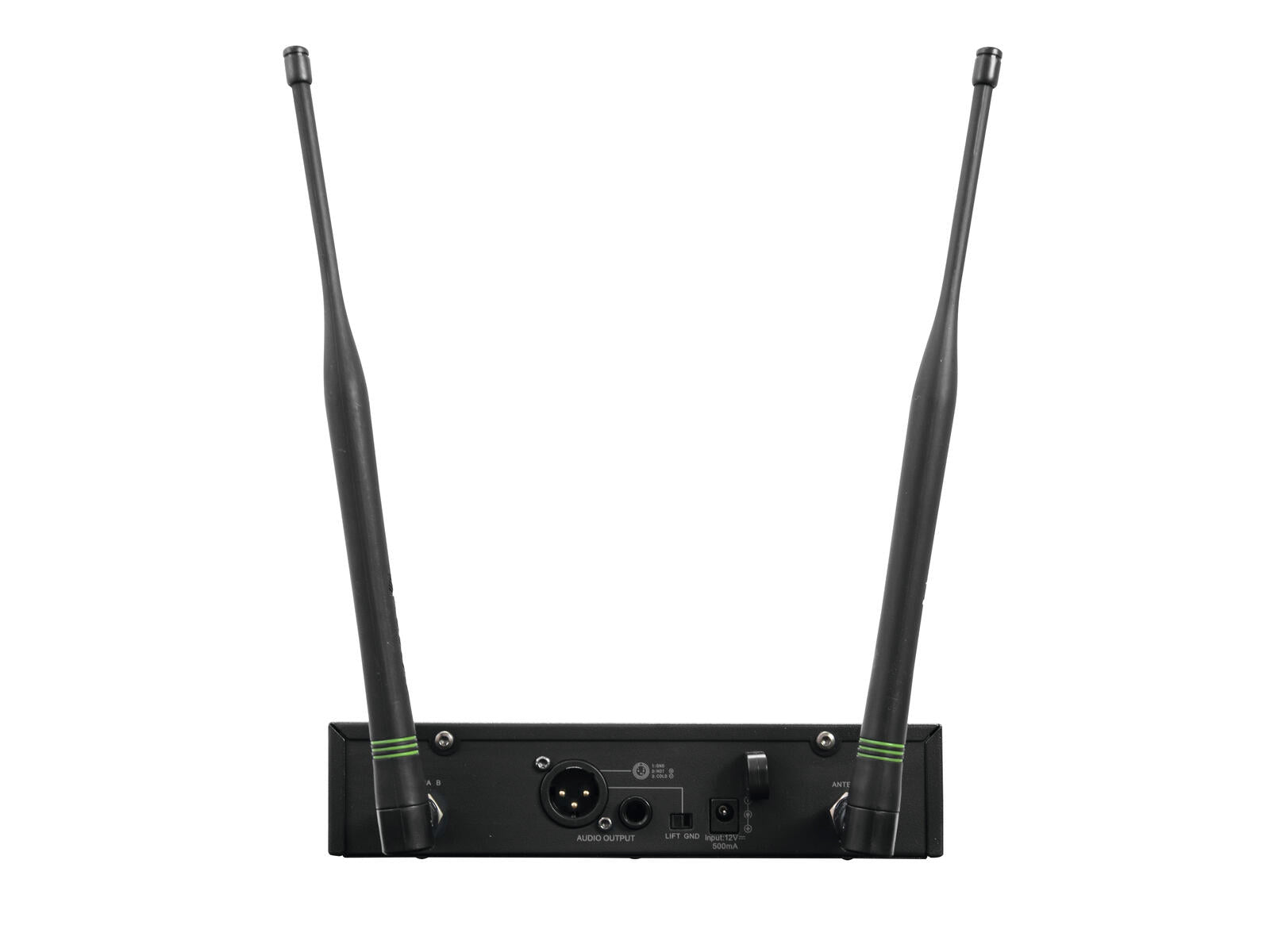

| Connections: | Antenna via 2 x BNC (F) 8 V Output: microphone via 1 x XLR (M) 3-pole installation version Output: microphone via 1 x 6.3 mm jack (unbal.) |
| Switch: | On/off switch |
| Material: | Metal |
| Color: | Black |
| Housing design: | Desktop housing Rack installation (19") 48.3 cm 1 U possible |
| Dimensions: | Width: 20 cm Depth: 26 cm Height: 4.4 cm |
| Weight: | 1.95 kg |
Couldn't load pickup availability
Accessori consigliati
User Manual
Official technical documentation in PDF format.
About Relacart
Relacart is a brand specializing in the design and production of wireless audio systems and professional communication solutions. The catalog includes wireless microphones, UHF systems, wireless conference microphones, transmitters, receivers, and accessories dedicated to events, presentations, training, shows, and installations. Thanks to extensive experience in developing audio transmission technologies, Relacart offers reliable, intuitive, and high-performance products, designed to meet the needs of professionals, companies, organizations, and audiovisual industry operators. Discover the Relacart range and find the most suitable wireless solution for your professional audio applications.
