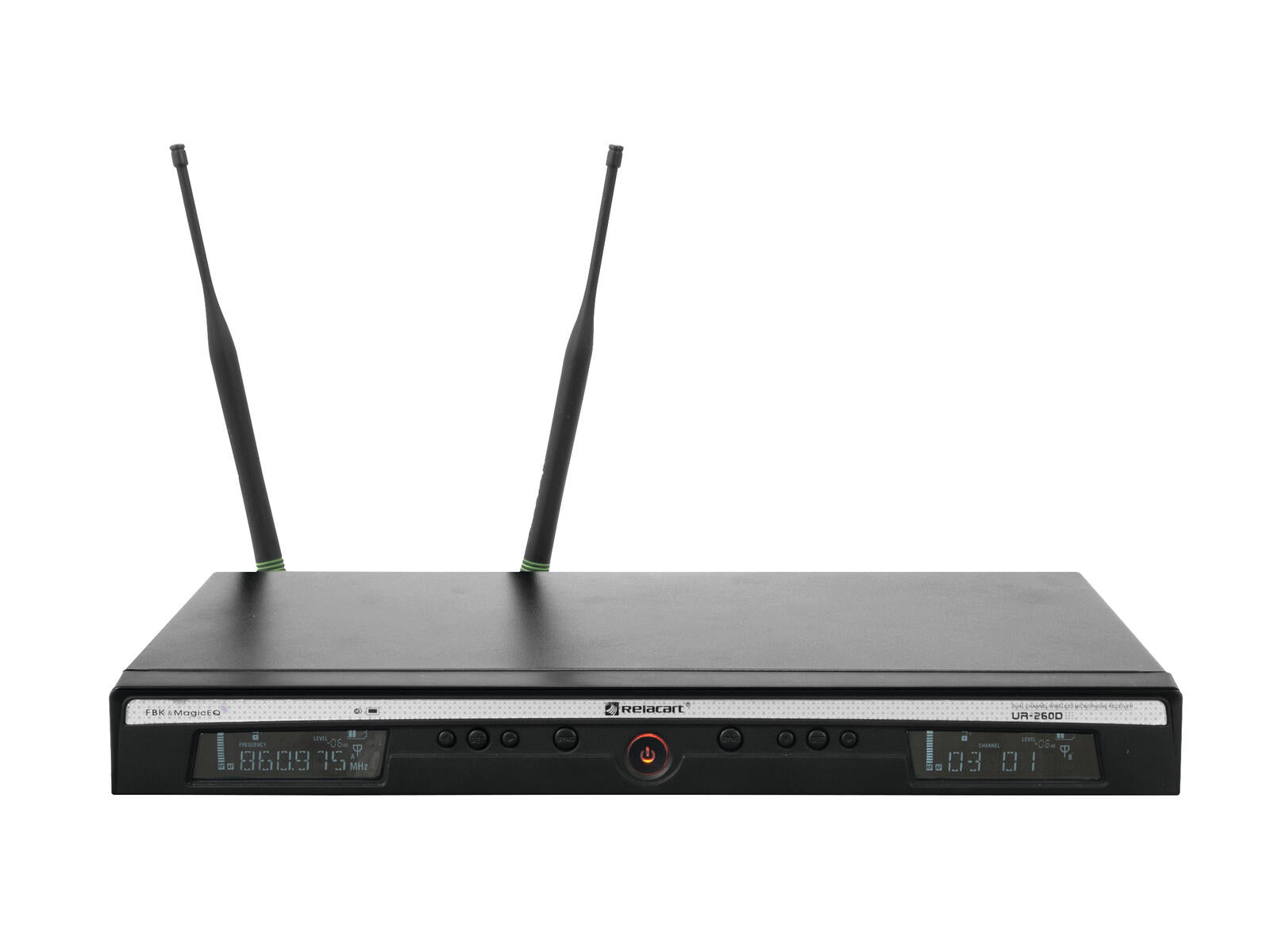

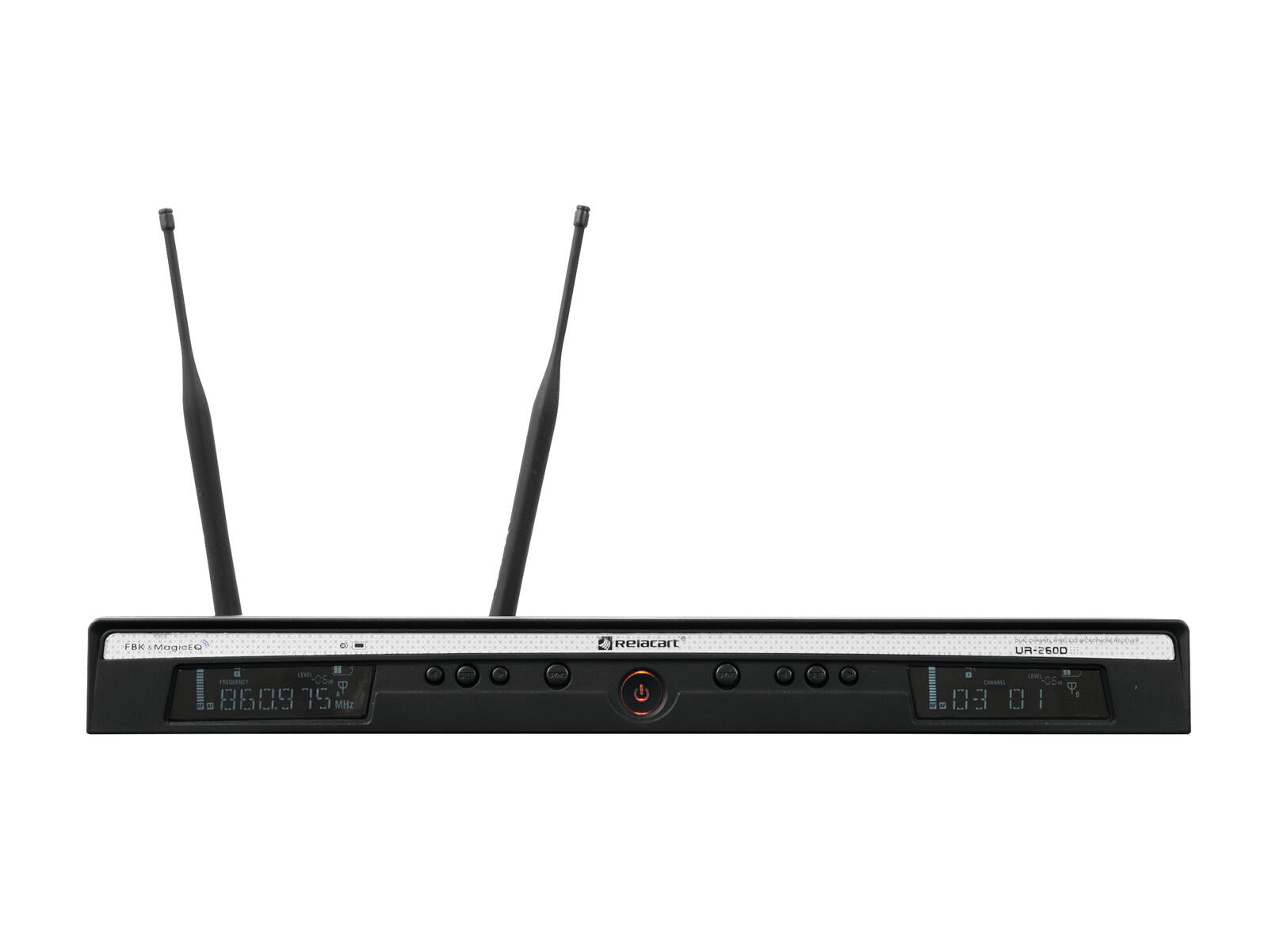

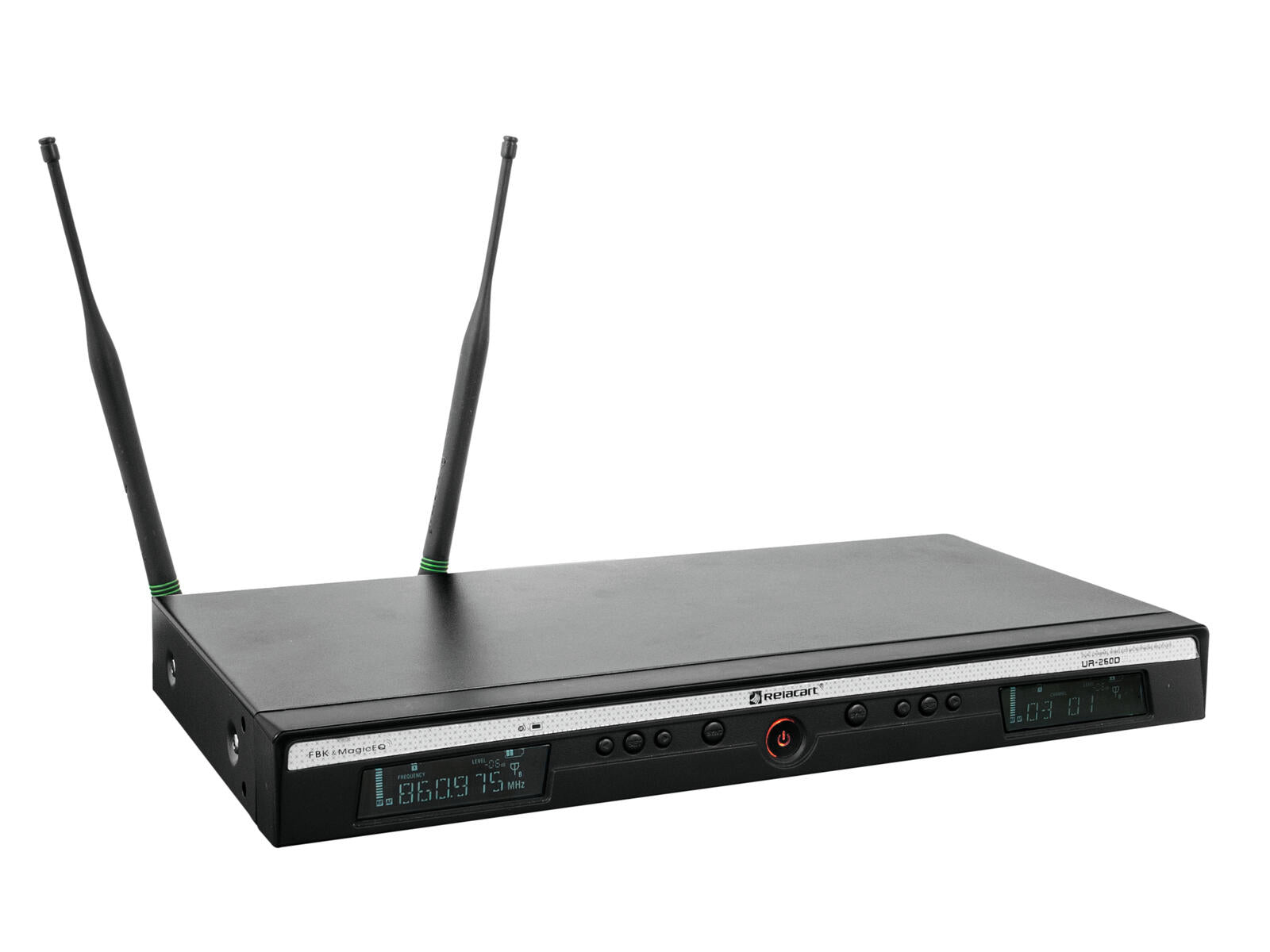

RELACART UR-260D 2-channel UHF Receiver 823-832 + 863-865 MHz
Estimated delivery in Italy between 20 and 24 August
Pay in 3 installments of €104,45 interest-free
Pay in 3 installments of €104,45 interest-free with PayPal
Split into 3 installments of €104,45 with your card via HeyLight
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
Wireless diversity receiver with DSP for microphone modeling and PC software
- 2-channel multi-frequency wireless receiver with 24-bit processor for high-level audio quality
- Integrated MagicEQ enables extraordinary handheld microphone modeling
- Choose from 7 presets based on famous microphone models (e835, beta58, e935, D5, SM57, N/D767a, SM58) and 3 user-definable presets
- Integrated Feedback Killer effectively eliminates feedback, ensuring maximum gain and increased clarity on every microphone
- DSP programming and management via Ethernet port and intuitive PC software
- High-quality antenna diversity reception
- 10 groups with 90 fixed frequencies within an 11 MHz switching bandwidth
- Pilot tone squelch technology eliminates wireless RF interference
- Automatic frequency scanning (AFS) locates interference-free channels
- Simple and error-free synchronization between receiver and transmitter via infrared signal
- Multiple units can be connected with network cables
- Lock function prevents unwanted changes to settings
- 2 removable BNC antennas allow use with the R-14D antenna splitter
- Robust metal housing
- Rack installation option (19") 48.3 cm 1 U
- 96kHz, 24-bit digital signal processor
- Operating range up to 80m
- License-free and approved UHF 863 - 865 MHz in Europe
- License-free and approved UHF 823 - 832 MHz in most of Europe
- Up to 9 transmitters can be used in parallel without interference
- Multi-color LCD display
- The device can be connected via RJ-45 (F) built-in version to PC in combination with RELACART Magic EQ software
- Desktop console housing
Scope of delivery
- 1 x receiver
- 2 x antenna
- 1 x external power supply
- 1 x jack cable
- 2 x mounting bracket
- 6 x screw
- 1 x user manual
- 1 x declaration of conformity
| Type: | Receiver |
| Power supply: | 100-240 V AC, 50/60 Hz 12V DC 1000 mA |
| Power consumption: | Max. 9 W |
| Protection class: | Protection class III |
| Power connection: | Mains input via coaxial power connector built-in version (M), power cable with AC adapter (supplied) |
| Number of channels: | 2 |
| Frequency range: | 45 - 18000 Hz |
| S/N ratio: | >100 dB |
| THD: | <0.5 % at 1 kHz |
| Network connection: | Protocol: Ethernet TCP/IP via 1x RJ-45 (F) built-in version |
| DSP: | 96kHz, 24-bit digital signal processor |
| Range: | Range up to 80m |
| Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz |
| Diversity: | Antenna diversity |
| Switching bandwidth: | 11 MHz |
| Frequency stability: | ± 0.005 % |
| Parallel mode: | Max. 9 transmitters |
| Modulation: | FM |
| Frequency selection: | 90 switchable frequencies In 10 groups with up to 10 preset frequencies each |
| Display type: | Multi-color LCD display |
| Control elements: | Power switch, groundlift selector, menu, navigation buttons |

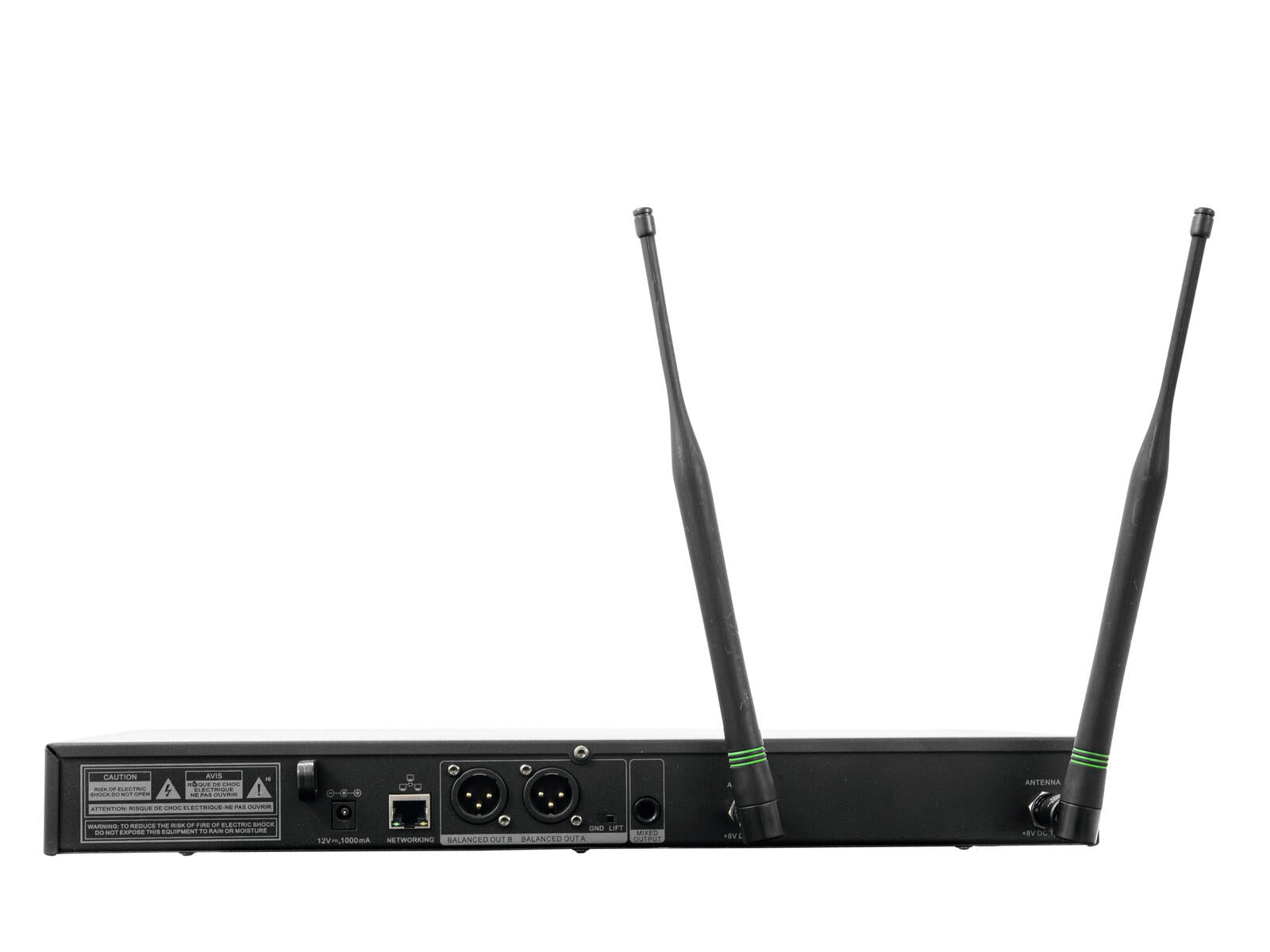

| Connections: | Antenna via 2 x BNC (F) 8 V Output: microphone via 2 x 3-pin XLR (M) built-in version Output: line via 1 x 6.3 mm jack (unbal.) |
| Material: | Metal |
| Color: | Black |
| PC connection: | RELACART Magic EQ software via RJ-45 (F) built-in version |
| Housing design: | Desktop console housing Rack installation option (19") 48.3 cm 1 U |
| Dimensions: | Width: 41 cm Depth: 26 cm Height: 4.3 cm |
| Weight: | 2.50 kg |
