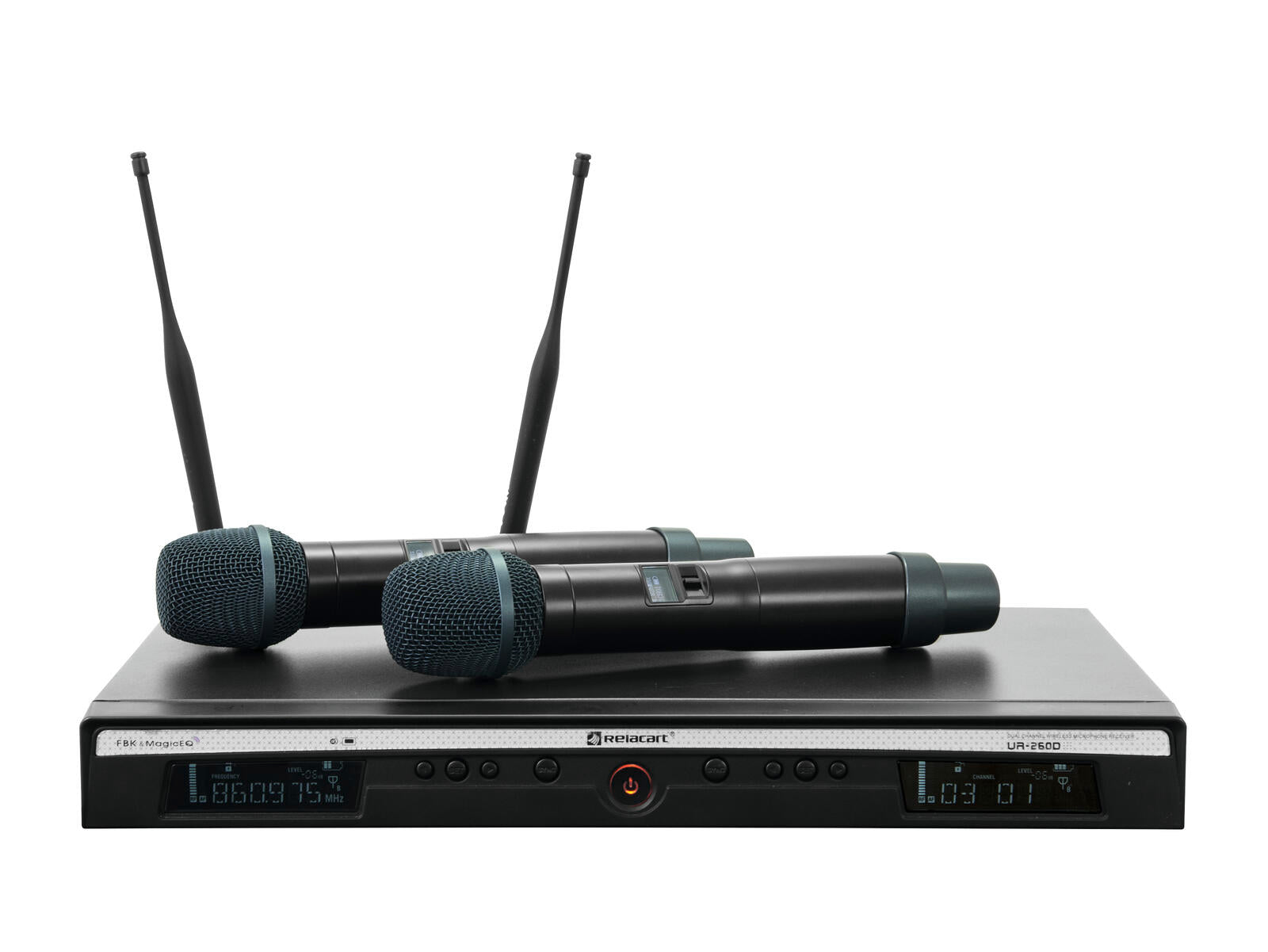

RELACART UR-260D 2-channel UHF System 823-832 + 863-865 MHz
Estimated delivery in Italy between 20 and 24 August
Pay in 3 installments of €171,32 interest-free
Pay in 3 installments of €171,32 interest-free with PayPal
Split into 3 installments of €171,32 with your card via HeyLight
Simulate your installment financing with Findomestic
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
System with DSP for microphone modeling and PC software, 823-832 + 863-865 MHz
RELACART UR-260D 2-channel UHF receiver 823-832 + 863-865 MHz
Wireless diversity receiver with DSP for microphone modeling and PC software
- 2-channel multi-frequency wireless receiver with 24-bit processor for high-level audio quality
- Integrated MagicEQ allows for extraordinary modeling of handheld microphones
- Choose between 7 presets based on popular microphone models (e835, beta58, e935, D5, SM57, N/D767a, SM58) and 3 user-customizable presets
- Integrated Feedback Killer effectively eliminates feedback, ensuring maximum gain and increased clarity on every microphone
- DSP programming and management via Ethernet port and user-friendly PC software
- High-quality antenna diversity reception
- 10 groups with 90 fixed frequencies within a switchable 11 MHz bandwidth
- Pilot tone squelch technology eliminates wireless RF interference
- Automatic Frequency Scan (AFS) finds interference-free channels
- Simple, error-free synchronization between receiver and transmitter via infrared signal
- Multiple units can be linked together via network cables
- Lock function to prevent unwanted setting changes
- 2 removable BNC antennas allow use with the R-14D antenna splitter
- Robust metal housing
- Rack mount (19") 48.3 cm possible, 1 U
- Digital signal processor 96kHz, 24 bit
- Operating range up to 80m
- UHF 863 - 865 MHz license-free and approved in Europe
- UHF 823 - 832 MHz license-free and approved in most of Europe
- Up to 9 transmitters can be used in parallel without interference
- Multi-color LCD display
- The device can be connected via RJ-45 (F) mounting version to PC in combination with RELACART Magic EQ software
- Desktop console housing
RELACART UH-222D Microphone 823-832 + 863-865 MHz
Handheld microphone with multi-frequency PLL transmitter
- Dynamic handheld microphone with UHF pilot tone technology (PLL)
- Ergonomic aluminum alloy housing, suitable for touring
- 10 groups with 90 fixed frequencies within a switchable 11 MHz bandwidth
- Simple, error-free synchronization between receiver and transmitter via infrared signal
- Adjustable RF output power Hi/Low
- Adjustable gain level Hi/Mid/Low
- M-022 capsule
- Directly compatible with Shure SM58 capsule
- Polar pattern: Supercardioid
- Operating range up to 80m
- UHF 863 - 865 MHz license-free and approved in Europe
- UHF 823 - 832 MHz license-free and approved in most of Europe
- OLED display
- Charge status indicator
Scope of delivery
- 1 x receiver
- 2 x antenna
- 1 x external power supply
- 2 x microphone
- 1 x jack cable
- 1 x mounting bracket
- 1 x bag
- 1 x user manual
- 1 x declaration of conformity
1 x RELACART UR-260D 2-channel UHF receiver 823-832 + 863-865 MHz
- 1 x receiver
- 2 x antenna
- 1 x external power supply
- 1 x jack cable
- 2 x mounting bracket
- 6 x screw
- 1 x user manual
- 1 x declaration of conformity
2 x RELACART UH-222D Microphone 823-832 + 863-865 MHz
- 1 x microphone
- 1 x user manual
- 1 x declaration of conformity
| Type: | Wireless set |
| Weight: | 3.07 kg |
| RELACART UR-260D 2-channel UHF receiver 823-832 + 863-865 MHz | |
| Type: | Receiver |
| Power supply: | 100-240 V AC, 50/60 Hz 12V DC 1000 mA |
| Power consumption: | Max. 9 W |
| Protection class: | Protection class III |
| Power connection: | Mains input via coaxial power connector (M), mounting version with power cord and AC adapter (included) |
| Number of channels: | 2 |
| Frequency range: | 45 - 18000 Hz |
| S/N ratio: | >100 dB |
| THD: | <0.5 % at 1 kHz |
| Network connection: | Protocol: Ethernet TCP/IP via 1x RJ-45 (F) mounting version |
| DSP: | Digital signal processor 96kHz, 24 bit |
| Range: | Range up to 80m |
| Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz |
| Diversity: | Antenna diversity |
| Switchable bandwidth: | 11 MHz |
| Frequency stability: | ± 0.005 % |
| Parallel operation: | Max. 9 transmitters |
| Modulation: | FM |
| Frequency selection: | 90 switchable frequencies In 10 groups with up to 10 preset frequencies each |
| Display type: | Multi-color LCD display |
| Controls: | Power switch, groundlift selector, menu, navigation keys |
| Connections: | Antenna via 2 x BNC (F) 8 V Output: microphone via 2 x XLR (M) 3-pin, mounting version Output: line via 1 x 6.3 mm jack (unbal.) |
| Material: | Metal |
| Color: | Black |
| PC connection: | RELACART Magic EQ software via RJ-45 (F) mounting version |
| Housing design: | Desktop console housing Rack mount (19") 48.3 cm possible, 1 U |
| Dimensions: | Width: 41 cm Depth: 26 cm Height: 4.3 cm |
| Weight: | 2.50 kg |
| RELACART UH-222D Microphone 823-832 + 863-865 MHz | |
| Type: | Handheld transmitter |
| Power supply: | 3V DC |
| Capsule type: | Dynamic |
| Polar pattern: | Supercardioid |
| Battery: | 2 x Mignon (AA) (not included) |
| Frequency range: | 120 - 16000 Hz |
| Sensitivity: | -53 dB |
| Max. SPL: | 145 dB |
| Range: | Range up to 80m |
| Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz |
| Switchable bandwidth: | 11 MHz |
| RF output power: | 5 mW (LO); 10 mW (HI) |
| Modulation: | FM |
| Frequency selection: | 90 switchable frequencies In 10 groups with up to 10 preset frequencies each |
| Display type: | OLED display |
| Display indicators: | Charge status indicator, frequency, group, channel; Mute |
| Controls: | Gain switch (high-mid-low), transmit power switch (high-low) |
| Switch: | On/off/mute switch |
| Material: | Aluminum |
| Dimensions: | Length: 26 cm Diameter: Ø 5.4 cm |
| Weight: | 0.28 kg |
