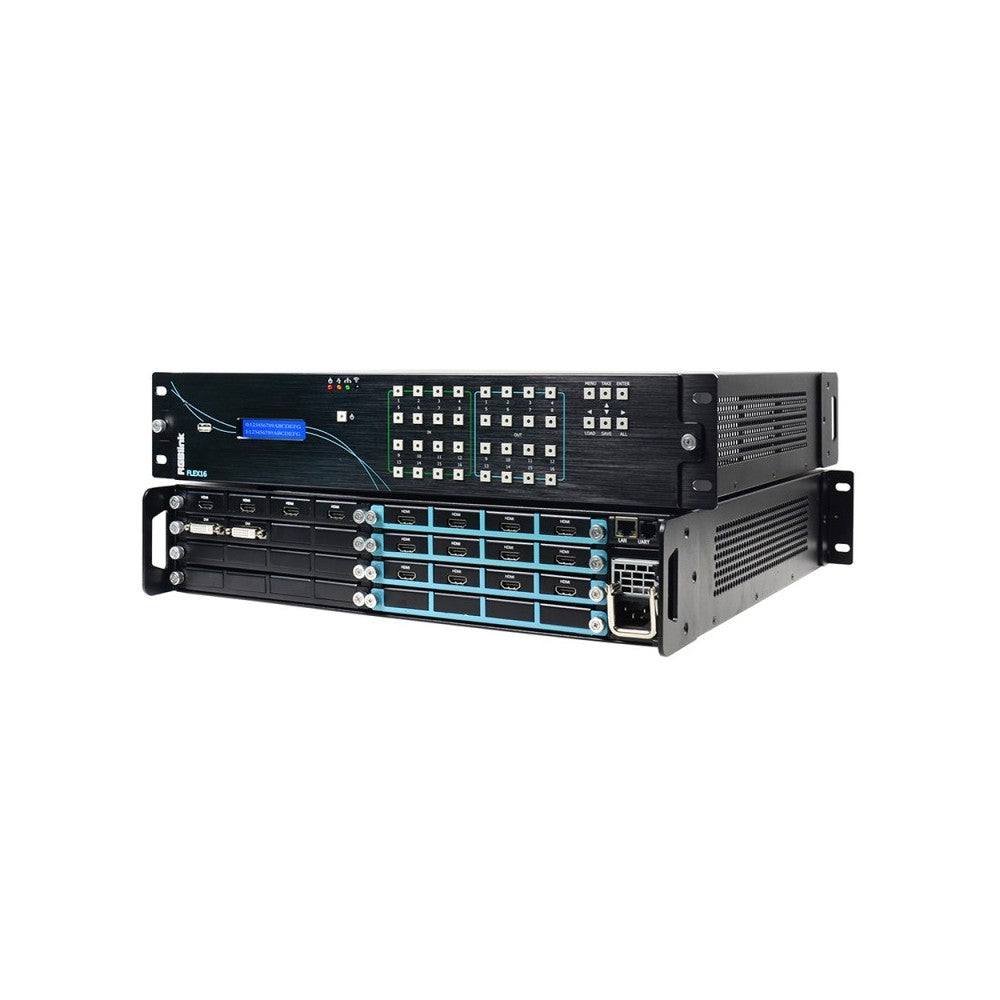

RGBlink 16x16 Matrix & Videowall processor incl. 4 EXT4F-IM and 4 EXT4F-OS
Estimated delivery in Italy between 18 and 22 June
Paga in 3 rate da €846,33 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
FEATURES
FLEX 16S with Basic front panel and videowall processor. FLEX 16S is an innovative modular processing system for mixed-signal matrix applications. The product supports up to 16 input and 16 output signals, all modular. With a wide range of signal options available, FLEX 16S is an ideal solution for environments where different video devices and signals are employed. With onboard preset storage and easy access from the front panel, via RGBlink XPOSE, or via RGBlink OpenAPI, FLEX 16S offers flexible video control for professional video environments. FLEX 16S transforms FLEX 16 into a videowall controller with up to 32 mega pixels. Including 4 EXT4F-IM and 4 EXT4F-OS. Input and output modules sold separately.
SPECIFICATIONS
• 16x16 fully modular inputs and output
• s Mixed format input and output matrix
• 38 mega pixel capacity
• Automatic signal switching
• Save & Recall up to 256 Presets
• Output up to 1080P@60Hz, 2048x1152@60Hz, 2560x816@60Hz
• EDID Management
• Matrix and Splicing
• Matrix Control via front panel
• Control via RGBlink OpenAPI via UDP (TCP/IP) or RS232.
• Configuration & control with XPOSE software and open API
• Lan / Serial port for communication
Maximum Resolution Supported: 32Kx1K or16Kx2K screen
Input port: 4 Slots, up to 8 2k inputs
Support module type: DP1.1/DVI/3G-SDI/USB2.0 /HDMI /HDBaseT/H.264/Type C/Fiber
Output port: 4 Slots, up to 16 2K inputs
Support module type: DVI/HDMI/ 3G-SDI/HDBaseT/DP1.1/Fiber
Layers: With EXT-OS output card, up to 16 layers, one output max support 4 layers
OS output modules included
• 32 x 32 Matrix and Splicing
• 64 Mega pixel capacity
• Support signal auto-switching
• Store up to 256 presets on board
• EDID management support
• Remote control via LAN or RS232
Connectors:
Input:
8 slots, up to 32 inputs
Select from:
• DVI Module: 1 x DVI (compatible with DVI, VGA, YPbPr, CVBS)
• 3G SDI Module: 2 x BNC (1 In | 1 loop)
• HDMI Module: 1 x HDMI-A
• USB Module: 2 x USB-A (1 In | 1 loop)
• HDBaseT Module: 1 x RJ45
Output:
8 slots, up to 32 Outputs
Select from:
• 3G SDI Module: 2 x BNC
• HDMI Module: 1 x HDMI-A
• DVI Module: 1 x DVI (compatible with DVI, VGA, YPbPr, CVBS)
• DisplayPort Module: 1 x DisplayPort

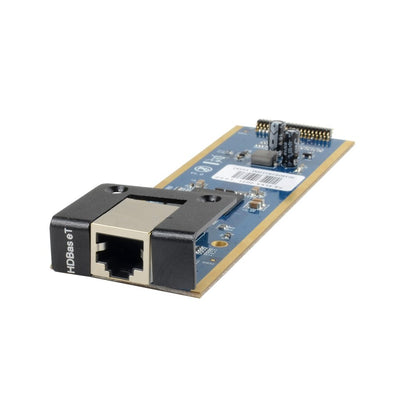

• HDBaseT Module: 1 x RJ45
Communication:
• LAN: 1 x RJ45
• RS232: 1 x RJ11
Power:
2 slots up to 2 power
1 x IEC (each PSU)
Performance:
Input Resolutions:
SDI:
• SMPTE: 480i | 576i | 720p@50/59.94/60 | 1080i@50/59.94/60 | 1080p@23.98/24/25/29.97/30/50/59.94/60
DVI | HDMI | HDBaseT* | USB:
• SMPTE 480i | 576i | 720p@50/59.4/60 | 1080i@50/59.94/60 | 1080p@50/59.54/60
• VESA 800x600@60 | 1024x768@60 | 1280x720@50/59.94/60 | 1280x800@60 | 1280x960@60 | 1280x1024@60 | 1400x1050@60 | 1600x1200@60 | 1920x1080@23.98/24/25/29.97/30/50/59.94/60 | 2048x1152@60
VGA:
• VESA: 800x600@60 | 1024x768@60 | 1280x800@60 | 1280x720@50/59.94/60 | 1280x960@60 | 1280x1024@60 | 1400x1050@60 | 1600x1200@60 | 1920x1080@23.98/24/25/29.97/30/50/59.94/60
CVBS:
• SMPTE: 480i | 576i
YPbPr:
• SMPTE: 480i | 576i | 720@50/59.94/60 | 1080i@50/59.94/60 | 1080p@23.98/24/25/29.97/30/50/59.94/60
Output Resolutions:
Select from below or configure customized
SDI:
• SMPTE: 720p@50/59.94/60 | 1080i@50/59.94/60 | 1080p@23.98/24/25/29.97/30/50/59.94/60
DVI | HDMI | HDBaseT | DP:
• SMPTE: 480i | 576i | 720p@50/59.4/60 | 1080i@50/59.94/60 | 1080p@50/59.54/60
• VESA: 800x600@60 | 1024x768@60 | 1280x720@50/59.94/60 | 1280x800@60 | 1280x960@60 | 1280x1024@60 | 1400x1050@60 | 1600x1200@60 | 1920x1080@23.98/24/25/29.97/30/50/59.94/60 | 2048x1152@60 | 2560x816@60
CVBS:
• SMPTE: 480i | 576i
YPbPr:
• SMPTE: 480i | 576i | 720@50/59.94/60 | 1080i@50/59.94/60 | 1080p@23.98/24/25/29.97/30/50/59.94/60
Supported Standards:
SDI: SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI
HDMI: 1.3
DVI: Single Link
DisplayPort: 1.1
HDBaseT: 1.0
Power:
Input Voltage: AC100V~240V, 50/60Hz
Max Power: 400W
Environment:
Temperature: 0℃～40℃
Humidity: 10%~85%
Physical:
Weight: Net(device) 17kg, Packaged 25kg
Dimensions: Net(device) 484mm x 458mm x 221mm, Packaged 630mm x 595mm x 255mm
