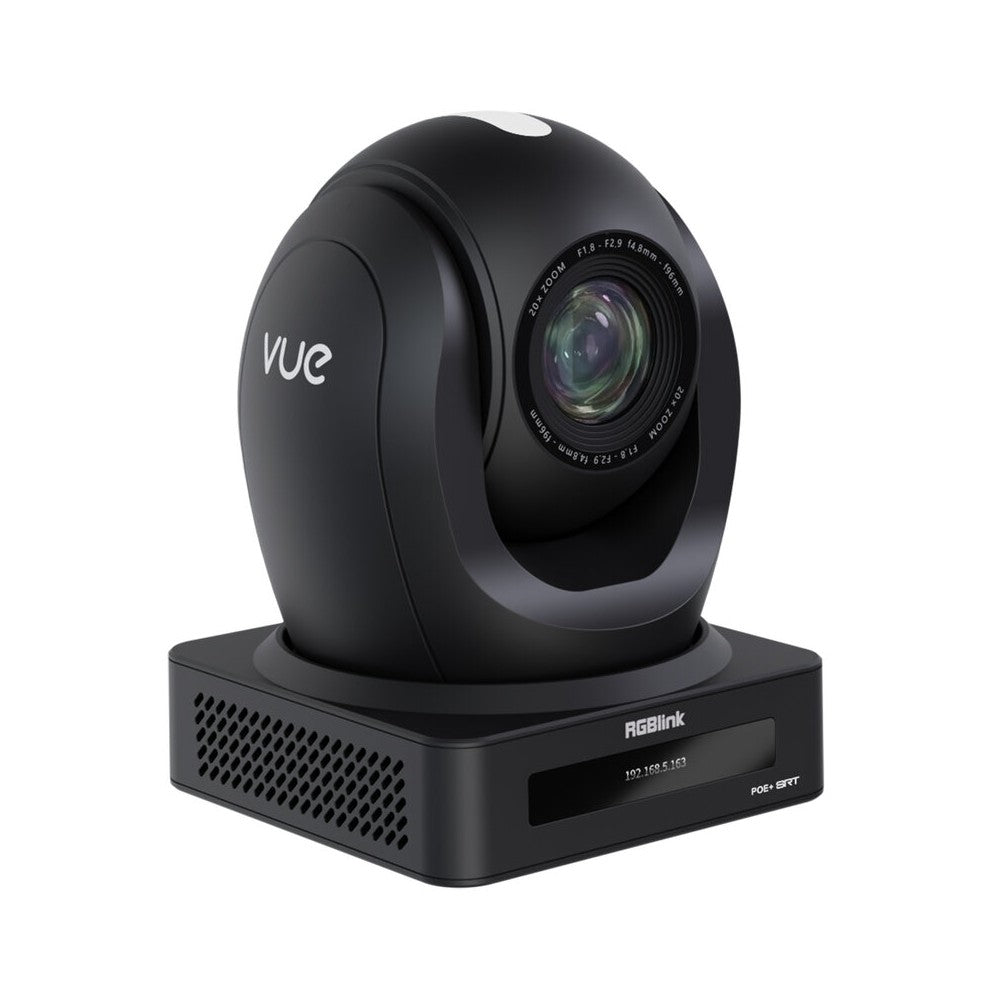

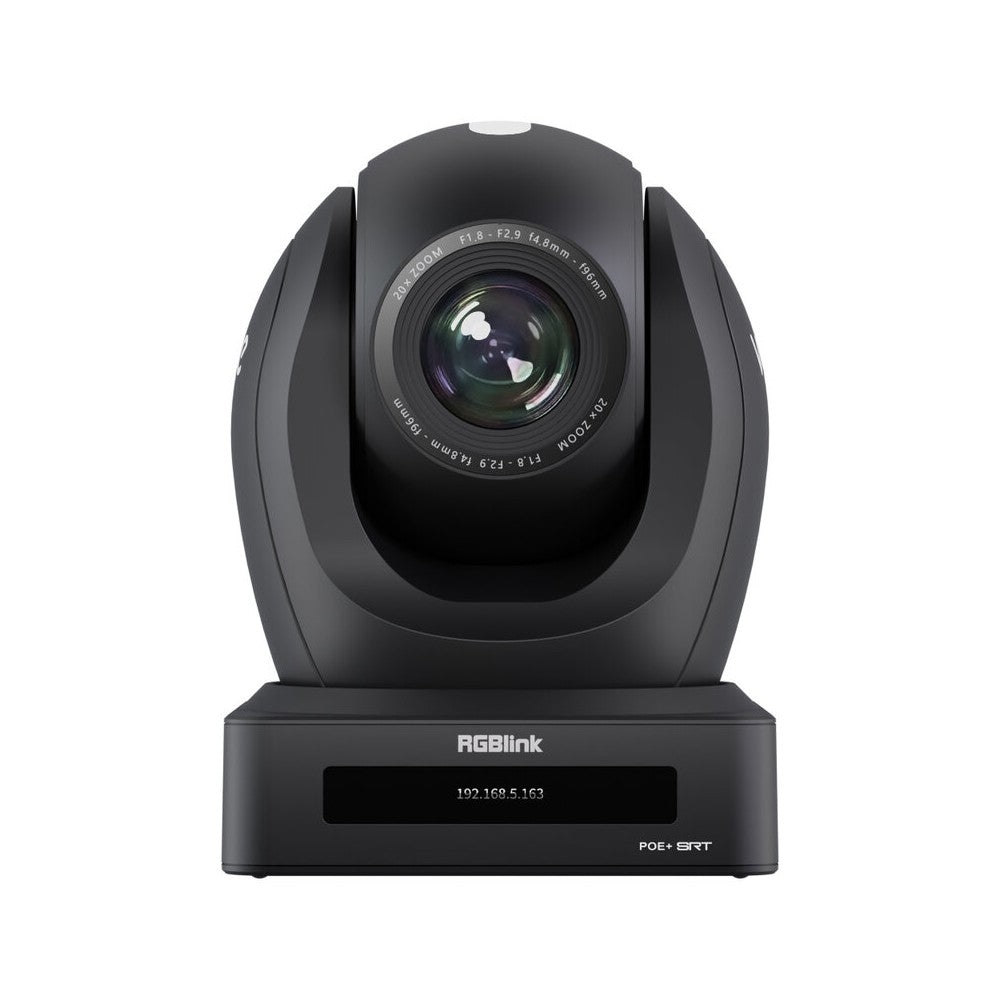

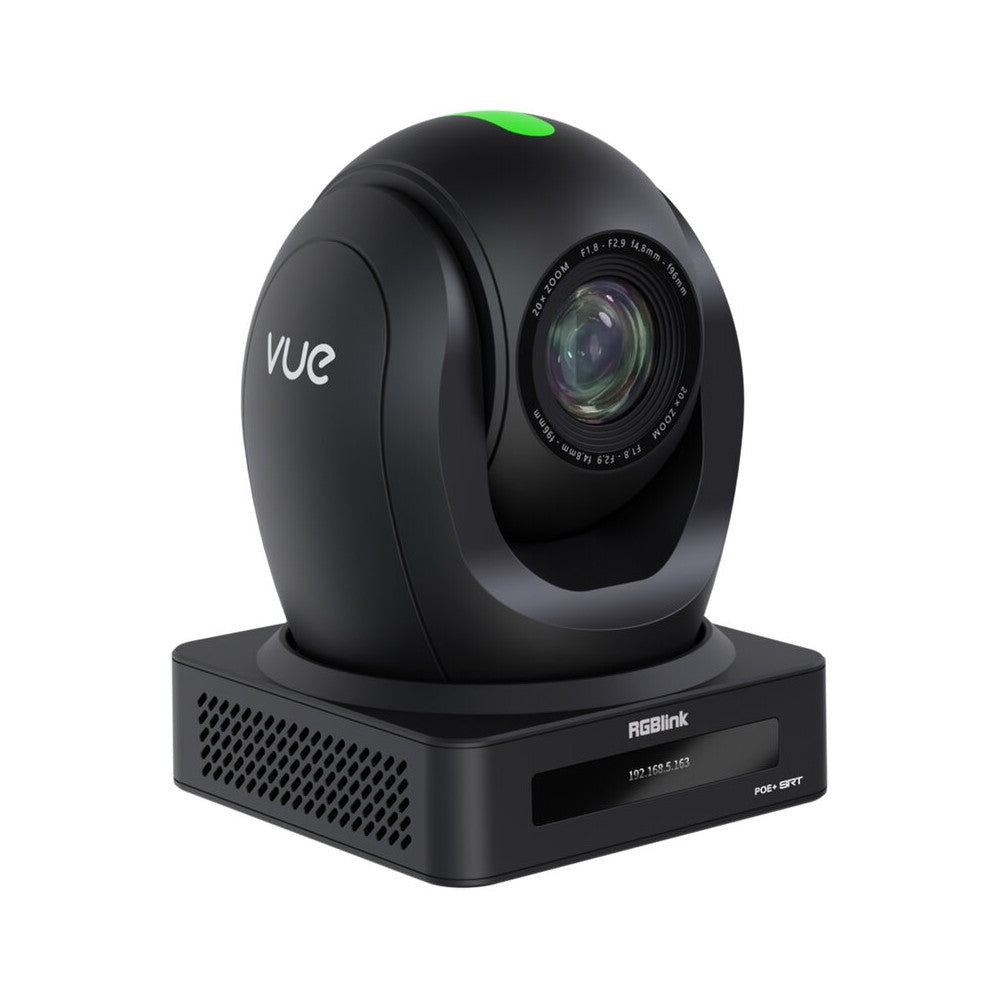

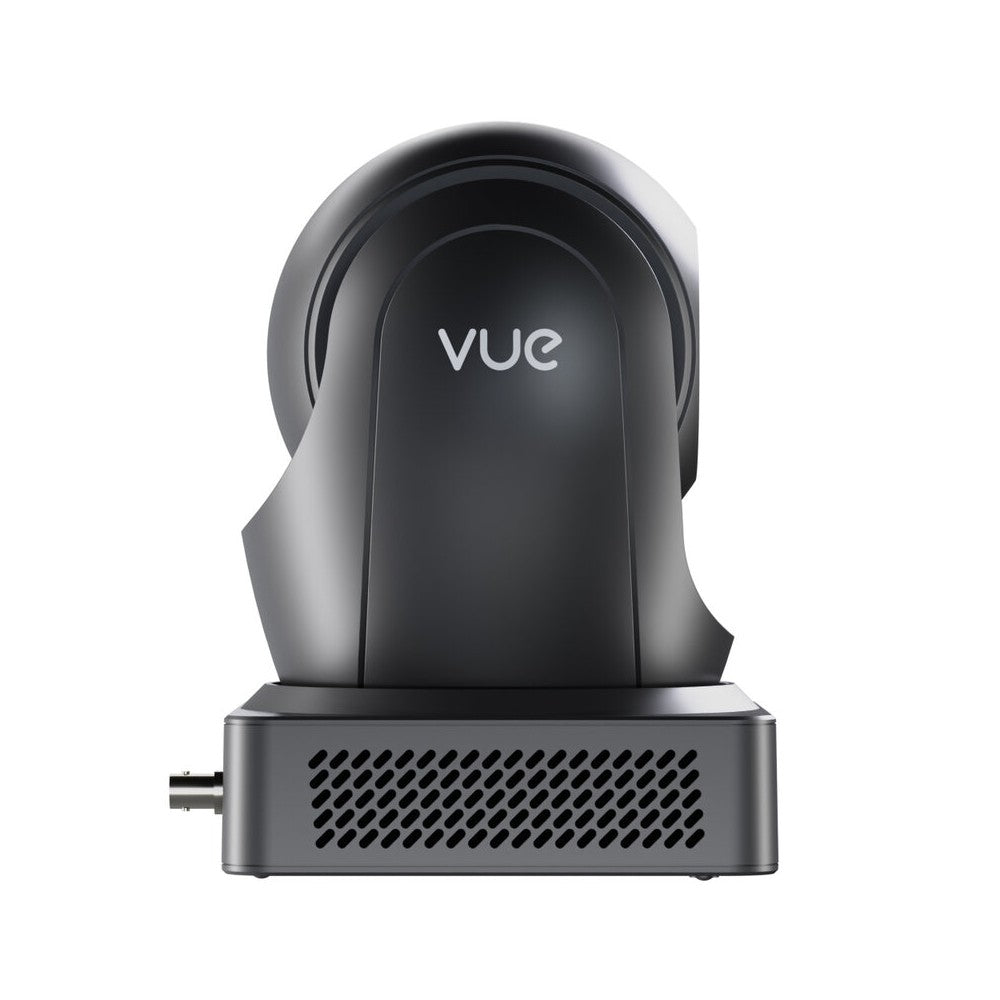

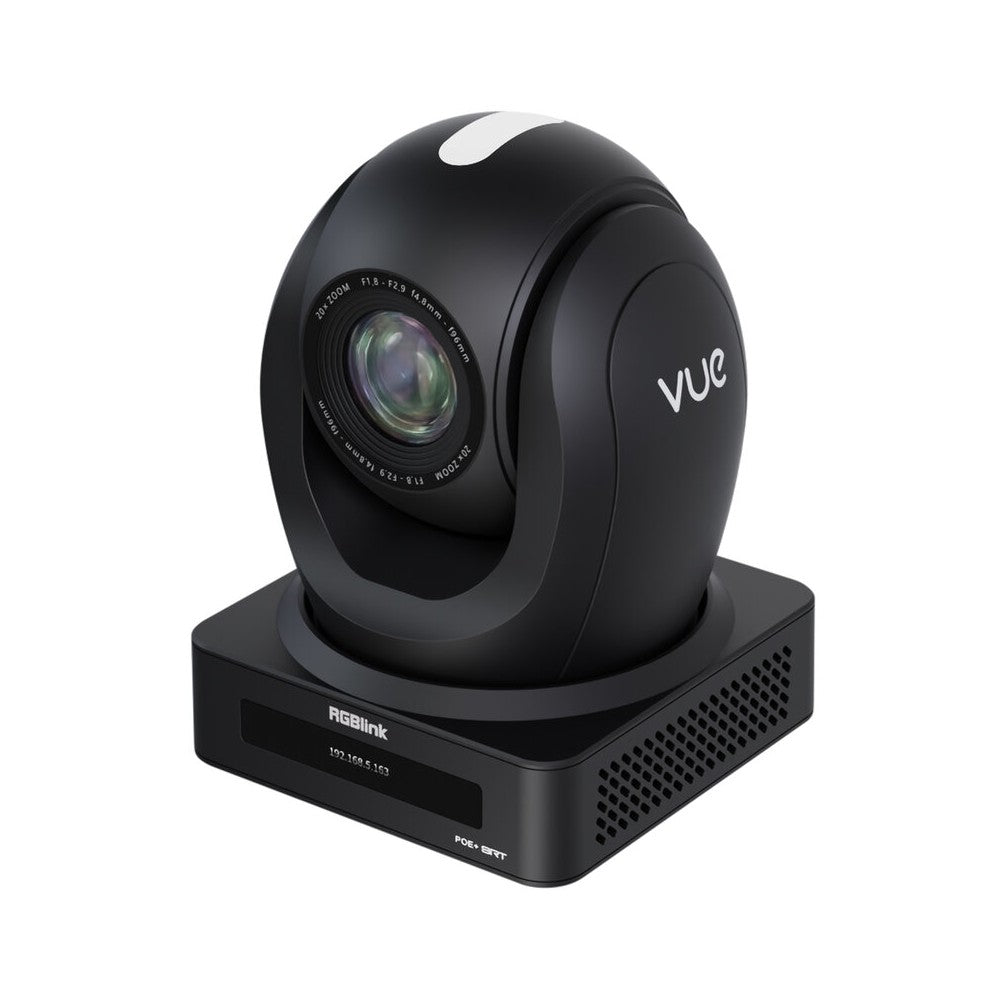

RGBlink PoE+ PTZ camera, 20x optical zoom, 16x digital zoom, 4K with HDMI1.4 / 3G-SDI / USB3.0 / LAN, NDI|HX3, OLED screen, Tall
Estimated delivery in Italy between 18 and 22 June
Paga in 3 rate da €372,66 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
FEATURES
RGBlink's vue 4K PTZ Gen2 is a PTZ camera equipped with a 1/2.8" 8.42 Mpixel CMOS sensor, offering high-definition images with excellent clarity thanks to 2D/3D noise reduction and advanced autofocus that ensures fast and reliable focusing. This particular version features an NDI|HX3 interface, which allows for improved video quality and lower latency for network streaming, meeting the demands for superior performance from professional users.
It supports resolutions up to 4K 30, with H.265/H.264 video compression, and is compatible with ONVIF, RTSP, RTMP, and NDI|HX3 protocols for direct streaming. The camera integrates AI tracking functions with facial recognition. It has HDMI, SDI, USB, and LAN outputs, with SDI capable of transmitting 1080p 60 signals up to 100 meters. Control is ensured by RS232 and RS485 interfaces with support for VISCA and PELCO-D/P protocols, while the silent gimbal with a stepping motor ensures smooth movements. It also has AAC (16 - 48 kHz) audio input and supports G.711A at 8 kHz.
Up to 255 presets can be stored, ten of which can be directly recalled from the included infrared remote control. The low-power mode reduces energy consumption to under 400 mW, making it efficient even in contexts of prolonged use.
User Benefits
- Resolution up to 4K 60
- Smart AI tracking functions
- Wide compatibility of connections: HDMI, SDI, USB, and LAN
- Direct streaming for live broadcasts on platforms and network systems
- Smooth and silent movements of the optical unit
- Energy efficient
Areas of Use
- Education
- Conferences
- Medical environments
- Control systems
- Judicial and legal environments
SPECIFICATIONS
- Video format / resolution
- HDMI: 3840 x 2160 @ 30 / 29.97 / 25, 1920 x 1080p @ 60 / 59.94 / 50 / 30 / 29.97 / 25, 1280 x 720p @ 60 / 59.94 / 50
- SDI: 1920 x 1080p @ 60 / 59.94 / 50 / 30 / 29.97 / 25, 1920 x 1080i @ 60 / 50 / 59.94, 1280 x 720p @ 60 / 59.94 / 50
- USB:
- YUY2 / NV12: 1920 x 1080, 1280 x 720, 1024 x 576, 800 x 600, 800 x 448, 640 x 480, 640 x 360, 480 x 270, 320 x 180p @ 30 / 25 / 20 / 15 / 10 / 5 fps
- H264 / H265 / MJPG: 3840 x 2160 @ 30 / 29.97 / 25, 1920 x 1080, 1600 x 896, 1280 x 720, 1024 x 576, 960 x 540, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 480 x 270, 352 x 288, 320 x 240 @ 60 / 30 / 25 / 20 / 15 / 10 / 5 fps
- LAN:
- H264 / H265: main code stream 3840 x 2160, 2592 x 1944, 2304 x 1296 @ 30 / 29.97 / 25, 1920 x 1080, 1280 x 720 @ 60 / 30 / 25 / 20 / 15 / 10 / 5 fps, subcode stream 1920 x 1080, 1280 x 720, 640 x 360, 640 x 480, 320 x 240, 320 x 180 @ 30 / 25 / 20 / 15 / 10 / 5 fps
- Image bitstream: dual stream output capability
- Image sensor: 1/2.8" high-quality CMOS sensor
- Effective pixels (approx.): 8.42 Mpixel, 16:9 aspect ratio
- Min. illumination: 0.5 lux @ (F1.8, AGC ON)
- Electronic shutter: 1/30 s - 1/10,000 s
- Zoom ratio: 20x optical, 16x digital zoom
- Iris control: auto / manual
- Digital noise reductions: 2D / 3D
- White balance: auto, manual, one-click white balance, specified color temperature (2400 - 7100 K, 100 K step)
- Focus mode: auto, manual, one-press focus
- Panning / tilting range: Pan ±170°, Tilt -30° to 90°
- Preset: 255 preset positions (10 via remote control)
- Focal length: 20x, f = 4.8 - 96 mm, F1.8 - F2.9
- Field of view: 60° - 3.81°

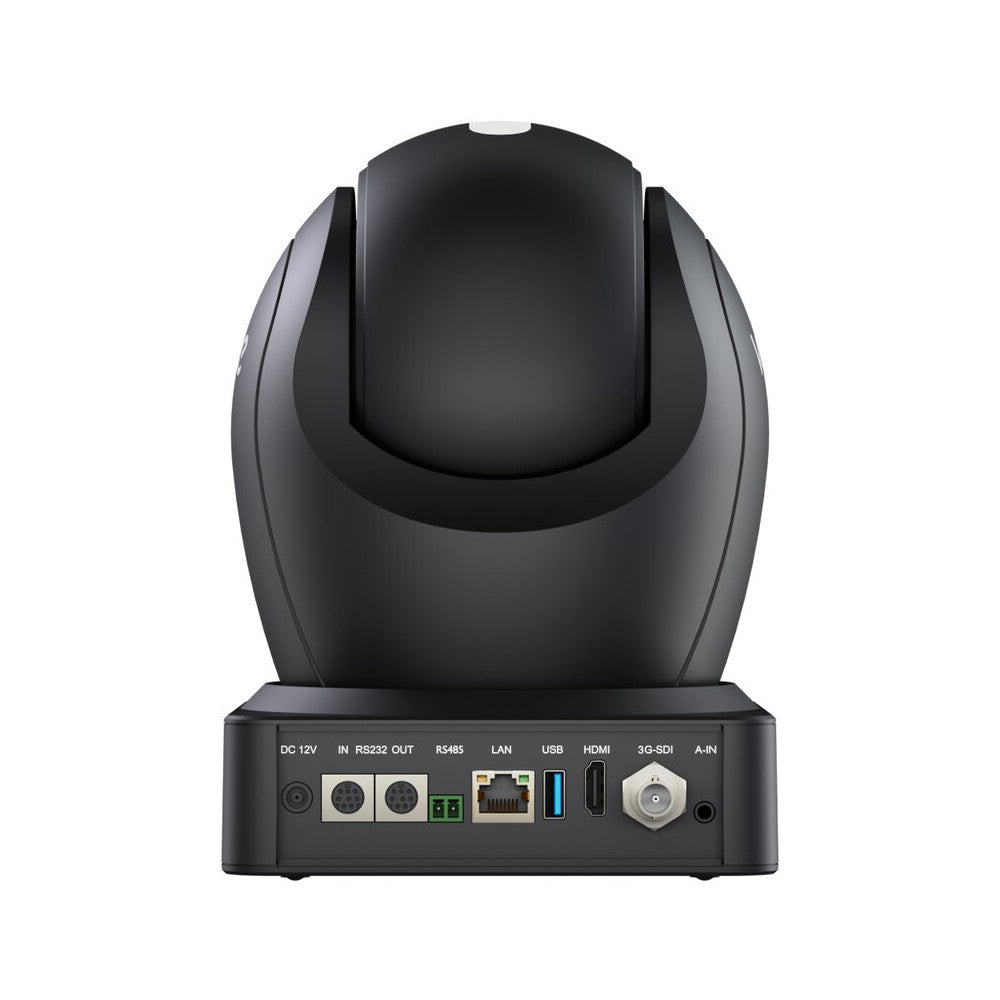

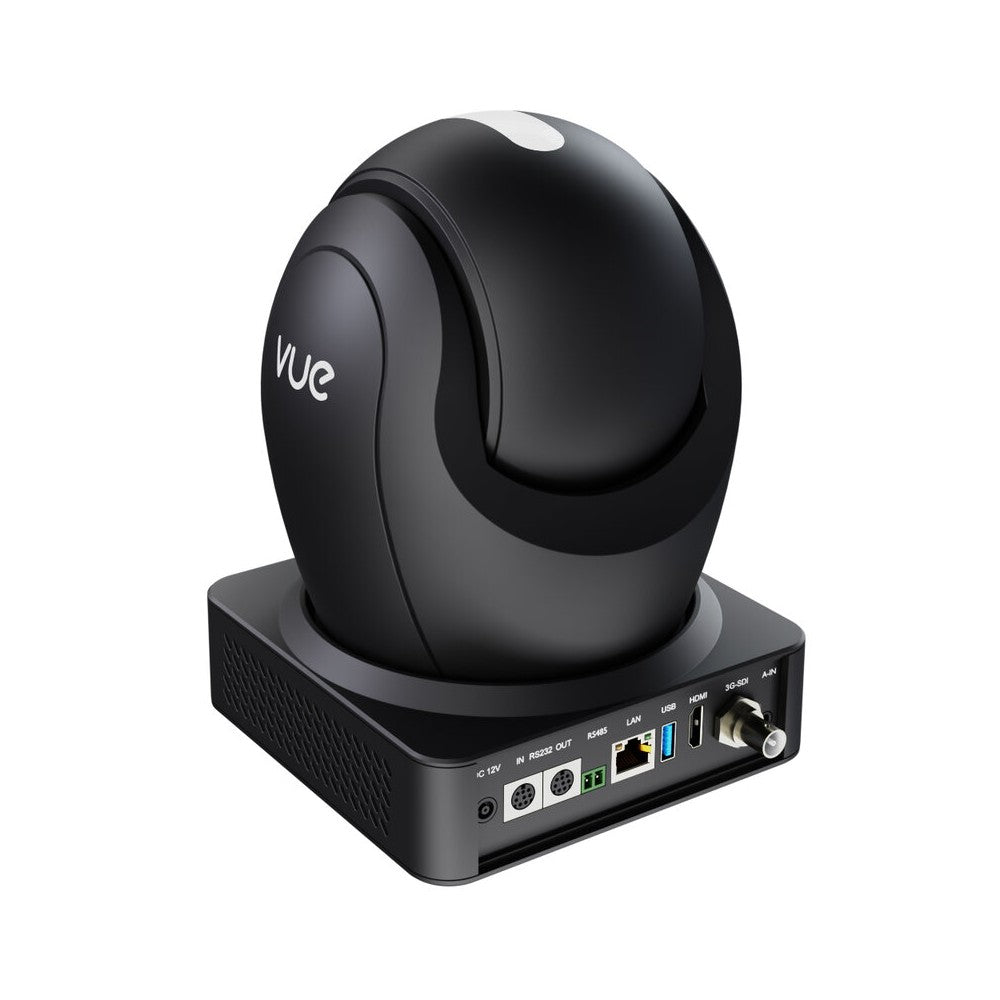

- Video output:
- 1 x HDMI
- 1 x 3G-SDI
- 1 x LAN RJ45 (PoE+)
- 1 x USB3.0
- Audio input: dual-channel 3.5 mm audio jack

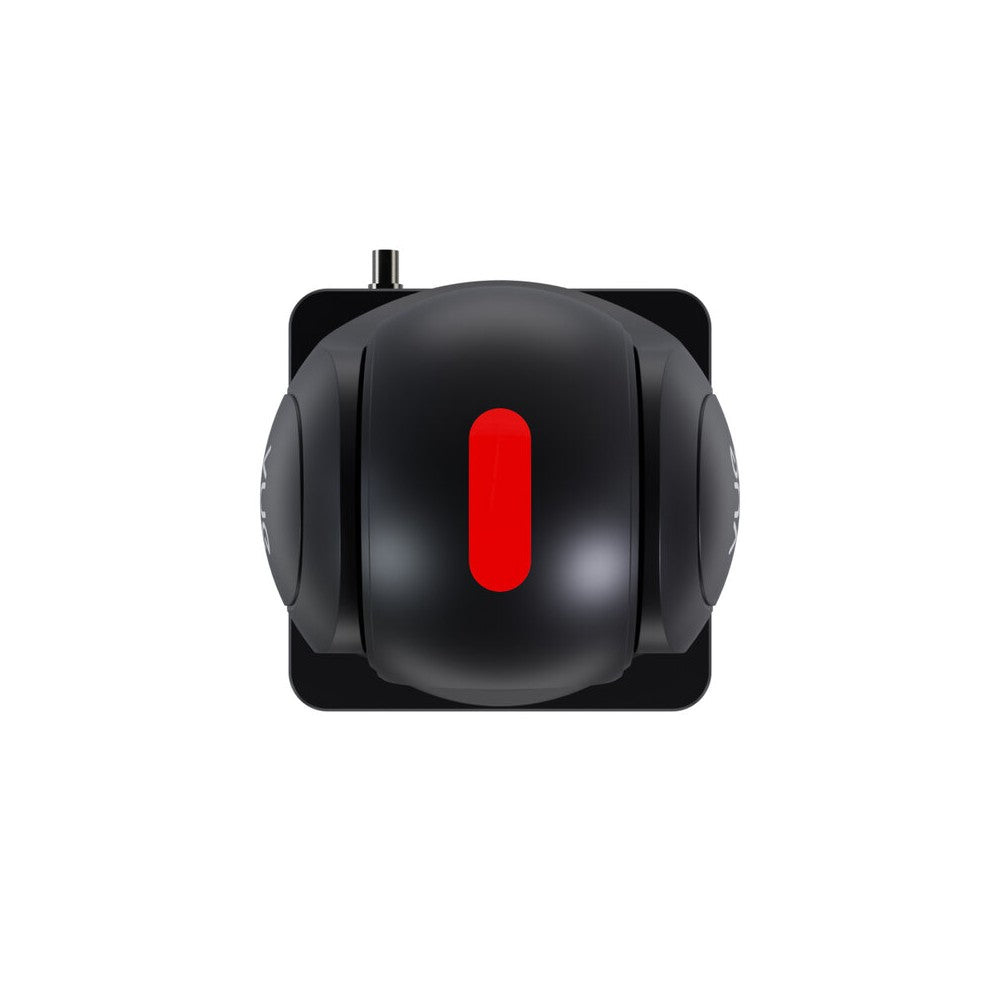

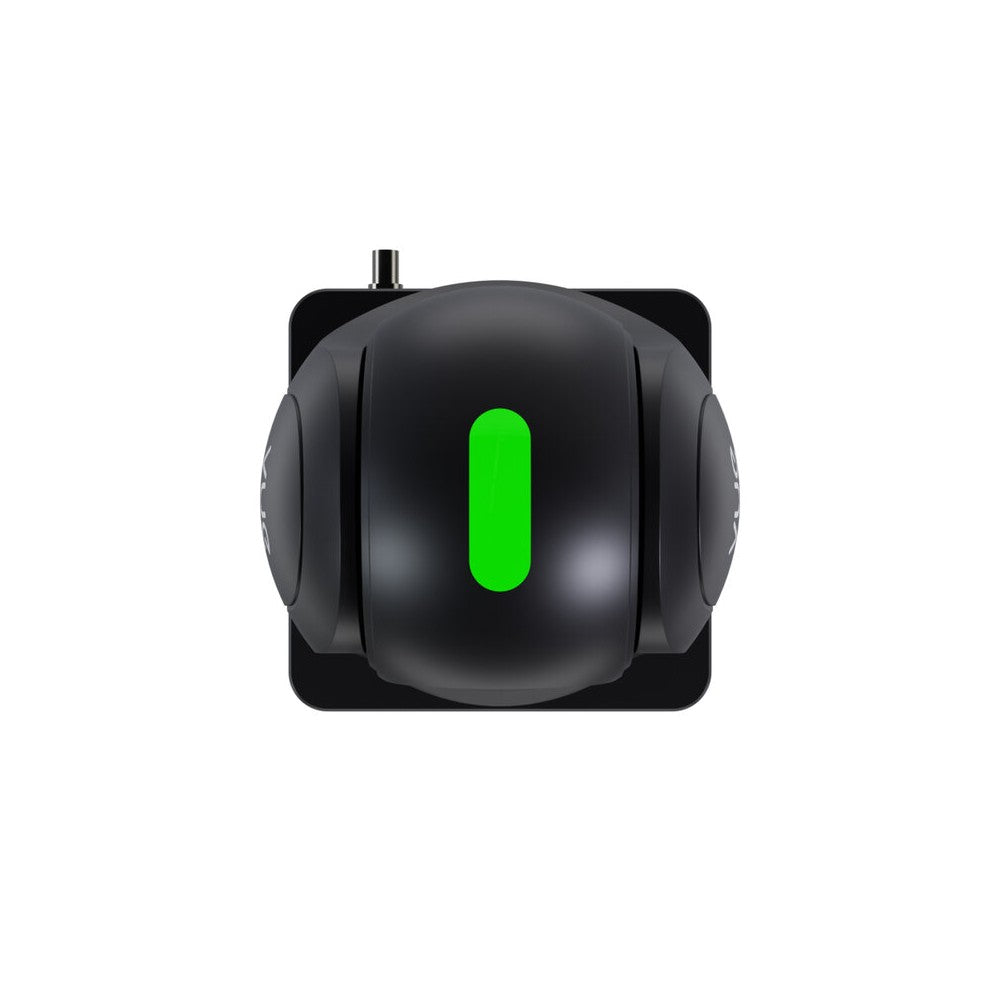

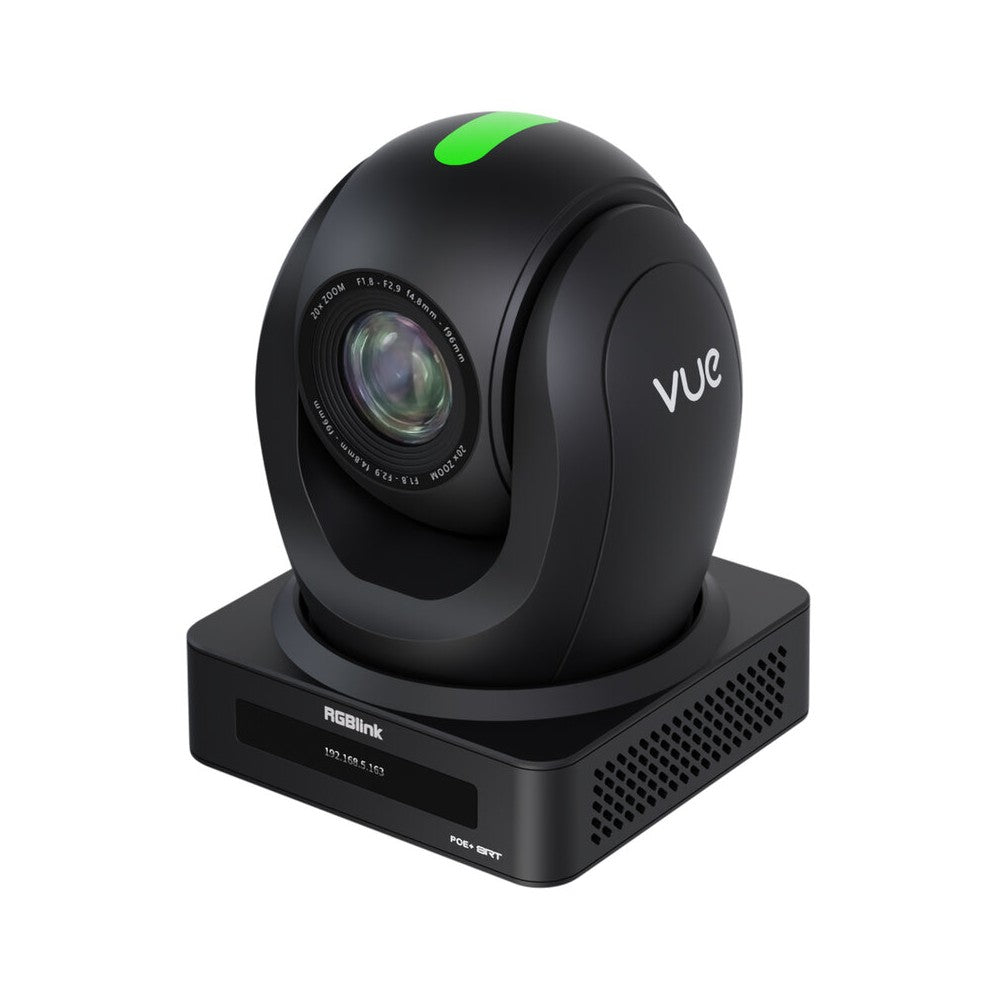

- Tally indicator: yes
- Control protocol: Pelco-D, Pelco-P, VISCA
- Remote control interface: IR, RS-232 / RS-485 (RS232 supports cascading)
- Video compression format: LAN: H.264 / H.265, USB 3.0: MJPG, H.264, H.265, YUY2, NV12
- Audio compression format: AAC (16 - 48 kHz), G.711A (8 kHz)
- Streaming protocols: RTSP, RTMP, ONVIF, SRT, NDI|HX3; network VISCA control protocol supported
- Remote firmware upgrade, reboot and reset supported
- USB communication protocol: UVC (USB Video Class) and UAC (USB Audio Class) compliant
- PoE: PoE+
- IR control: yes
- Operating temp. range: -10 to 50 °C
- Power: 12 VDC 2.5 A
- Power consumption: 18 W max.
- Color: black
- Dimension (W x H x D): 16.7 x 15.2 x 21 cm
- Weight: 1.9 kg
