RME HDSPE AES 32-Channel AES I/O PCI Express Card
Estimated delivery in Italy between 10 and 12 November
Pay in 3 installments of €283,00 interest-free
Pay in 3 installments of €283,00 interest-free with PayPal
Split into 3 installments of €283,00 with your card via HeyLight
Simulate your installment financing with Findomestic
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
32-Channel AES I/O Card 24 Bit/192 kHz - PCI Express

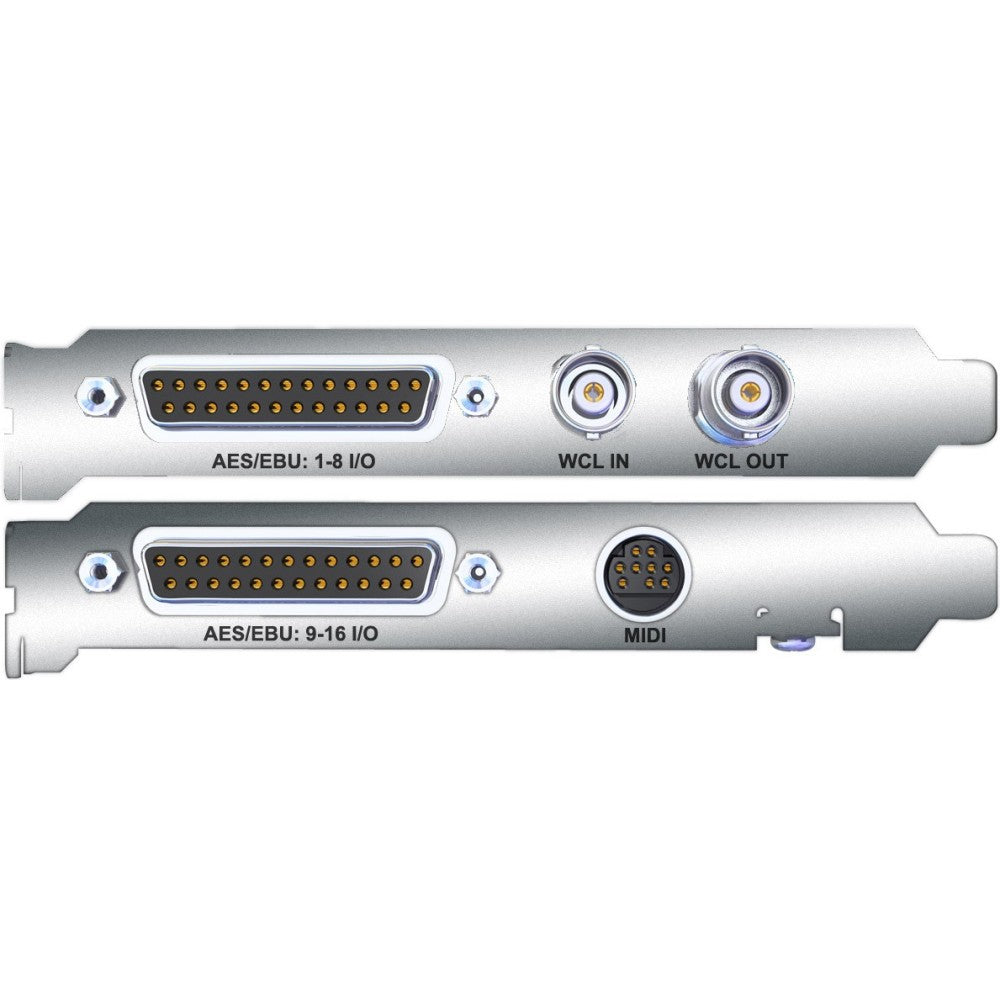

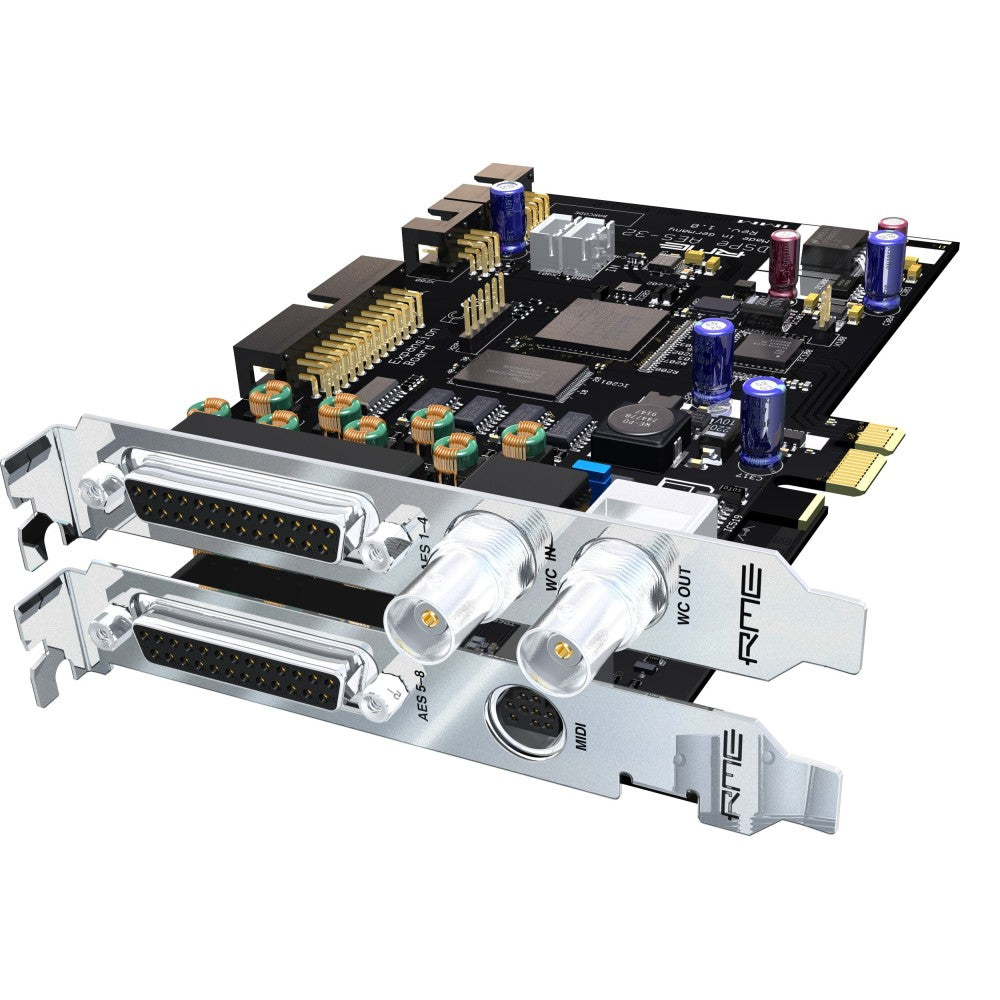

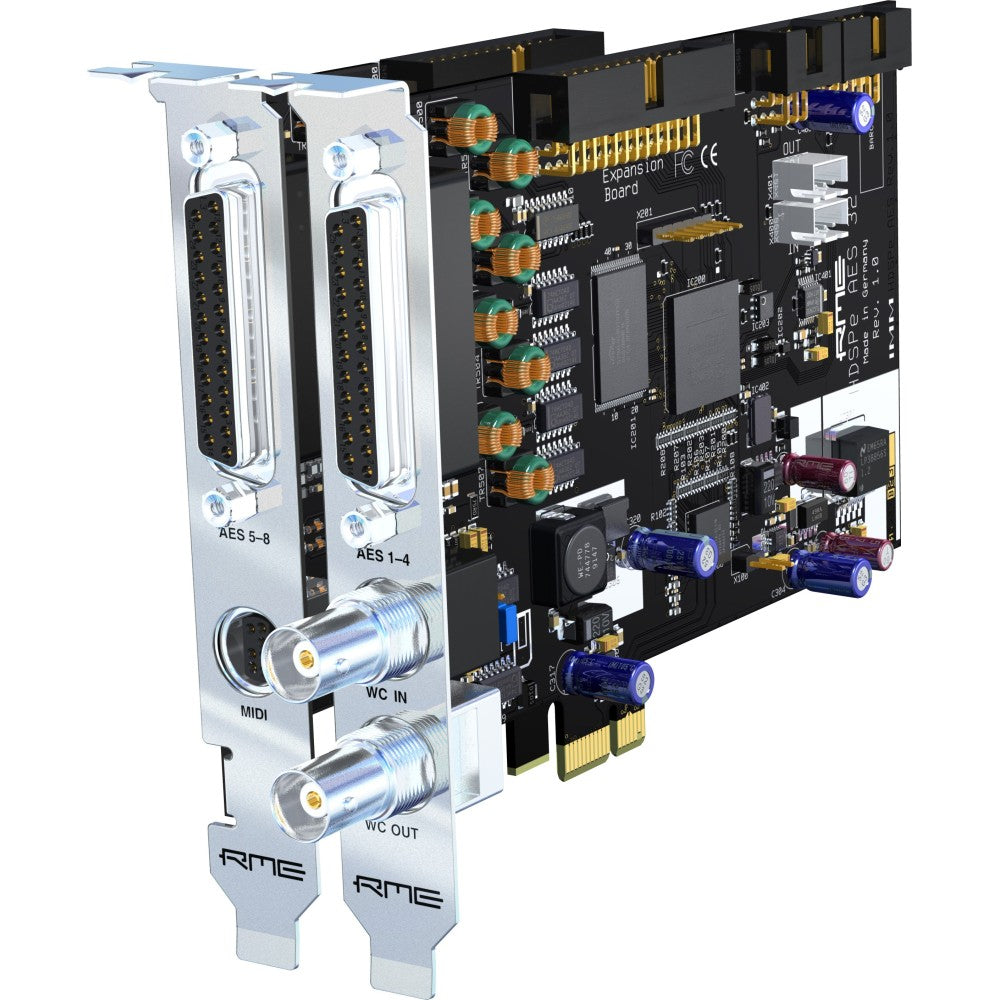

The HDSPe AES-32 is a 32-channel 24 Bit 192 kHz I/O interface in AES format that can rely on the high performance guaranteed by full PCI Express protocol support. This is a PCIe card equipped with 8 AES inputs and outputs up to 192 kHz. Equipped with MIDI I/O ports, word clock and optional TCO module for synchronization to LTC and video signals. Finally, an AES interface with the renowned RME quality. The HDSP AES-32 represents the definitive solution for all recording studios, broadcast and TV and, wherever required, interfacing with machines adopting the professional AES standard. The interface consists of a main PCI Express card equipped with word clock I/O connections and 25-pin D-sub for 4 inputs (XLRF) and 4 AES outputs (XLR-M). The expansion card adds channels 9-16 and 2 MIDI I/O ports (via additional cable). Thanks to TotalMix (DSP-based mixer fully remote controllable via MIDI) all 16 physical inputs can be freely routed to any of the 16 outputs, offering monitoring capabilities never seen before. A 1-unit 19" rack breakout box is available with connections accessible from both front and rear panels: the BOB-32, with D-sub connections with Tascam and Yamaha pinouts, usable with other third-party digital equipment.
Specifications
- Support for 192 kHz without reducing the number of channels
- Native support for Double and Quad Wire transfer protocols
- Direct conversion between these two formats
- SteadyClock technology for maximum jitter suppression and clock regeneration
- TotalMix: 512-channel mixer/matrix with 40-bit internal resolution
- 48 Peak/RMS level indicators (hardware-computed)
