SHOWTEC ACT Fresnel 150 RGBAL Compact 150W RGBAL Theatre LED Fresnel
Estimated delivery in Italy between 18 and 20 August
Pay in 3 installments of €210,66 interest-free
Pay in 3 installments of €210,66 interest-free with PayPal
Split into 3 installments of €210,66 with your card via HeyLight
Simulate your installment financing with Findomestic
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
Compact 150 W RGBAL Fresnel Theatre LED
The Showtec ACT series offers a wide range of theatre lighting fixtures consisting of Fresnels, Profiles and Flood Lights, suitable for indoor locations. All ACT fixtures have accurate colour rendition (high CRI), reliability, long lifespan and are flicker-free. A uniform light distribution is ensured at any required colour temperature, from Warm White to soft pastels and vivid colours. All Showtec ACT fixtures meet the high standard of quality required for operation in theatres, on stages and during corporate events.ACT Fresnels project a soft light field with a wide range of controllable zoom, dimmer, and strobe effects, suitable for short and medium-range applications. All ACT Profiles consist of shapers equipped with a zoom lens that can provide a concentrated, sharp and precise light output even over long distances. The Showtec ACT Flood projectors project a bright Wash effect, emitting a brilliant RGBW light with a wide angle in short-range applications.
Each projector offers various control functions and some are equipped with included accessories to enhance functionality. Contact us now for a consultation and to receive an offer you can't refuse or check our product pages for more information.

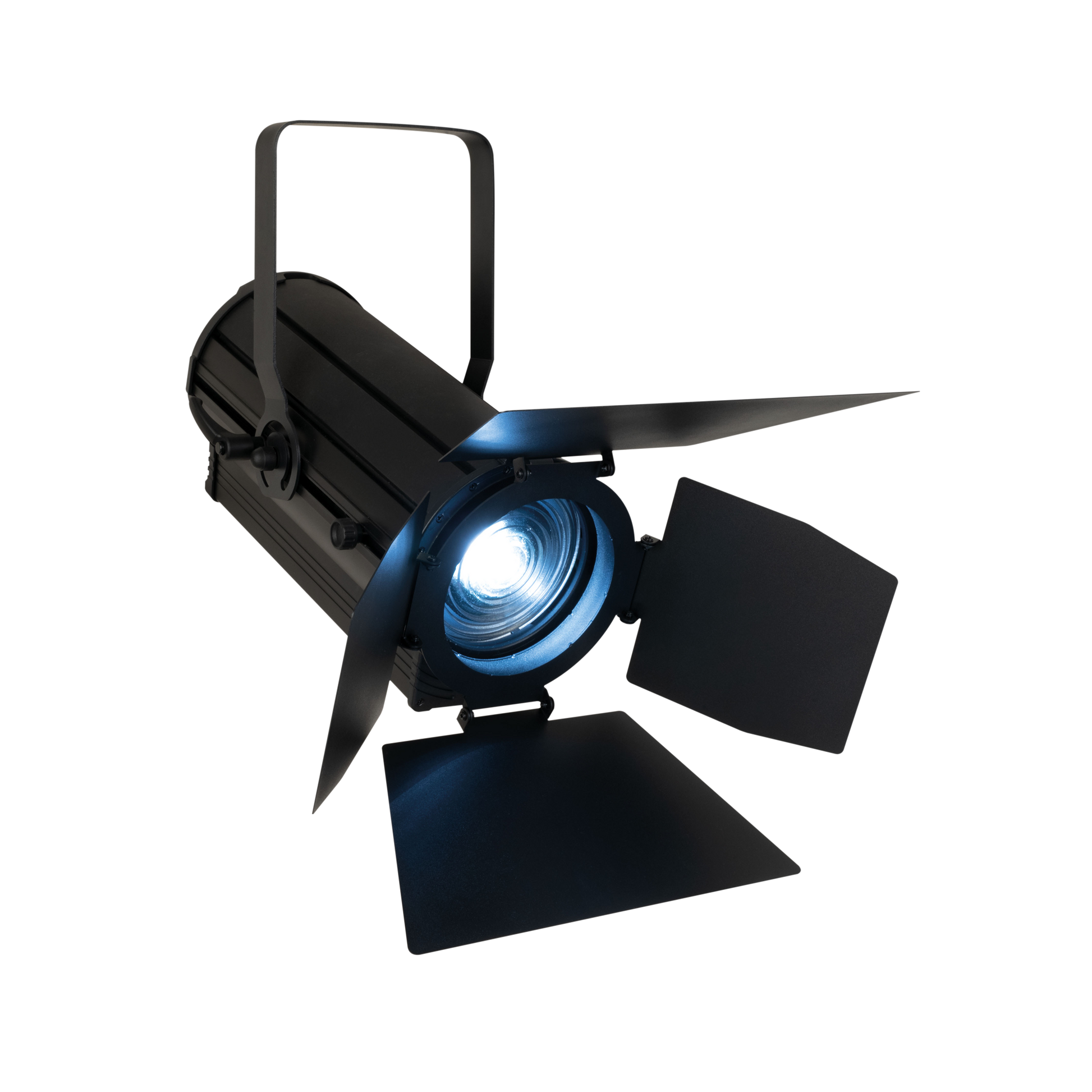

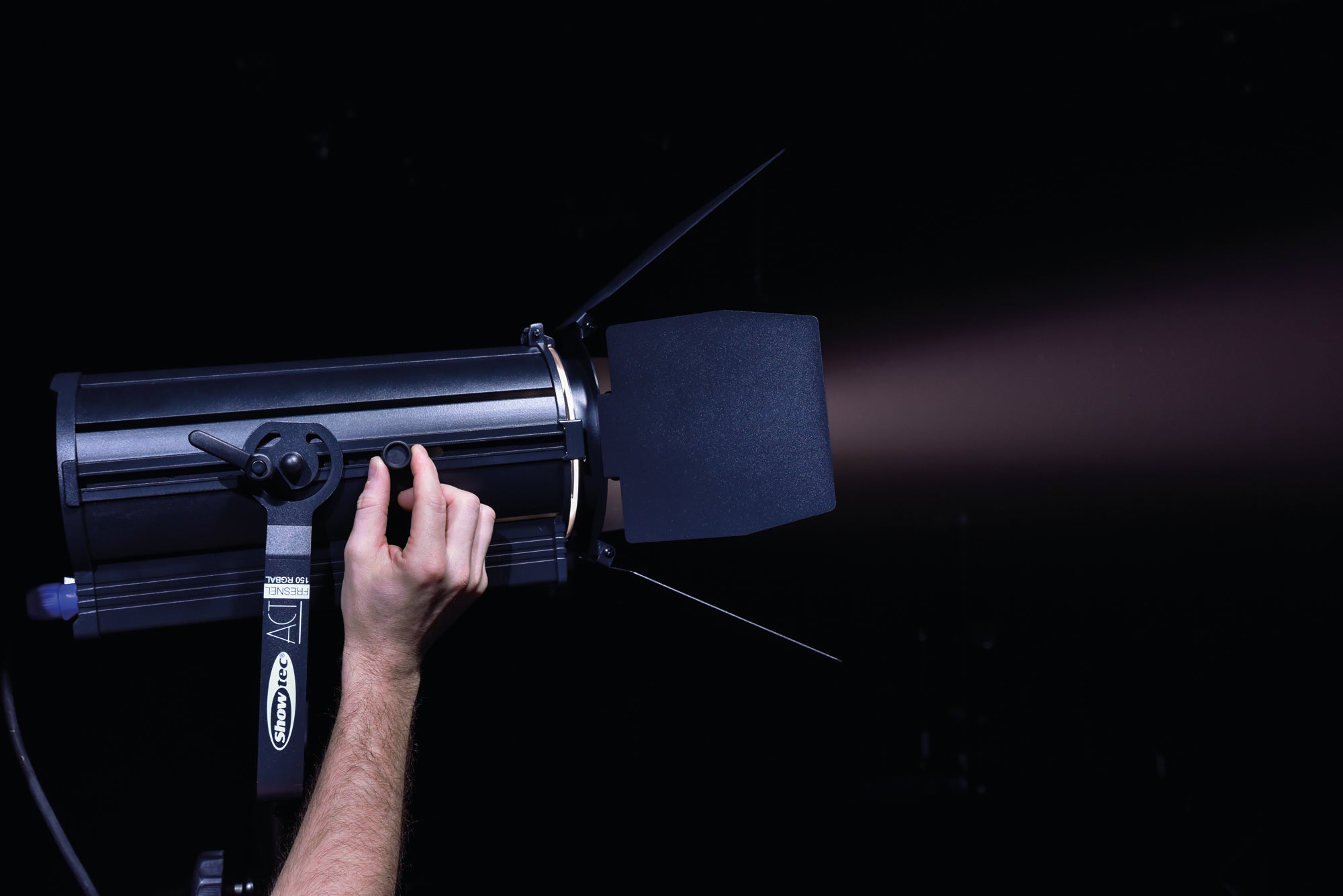

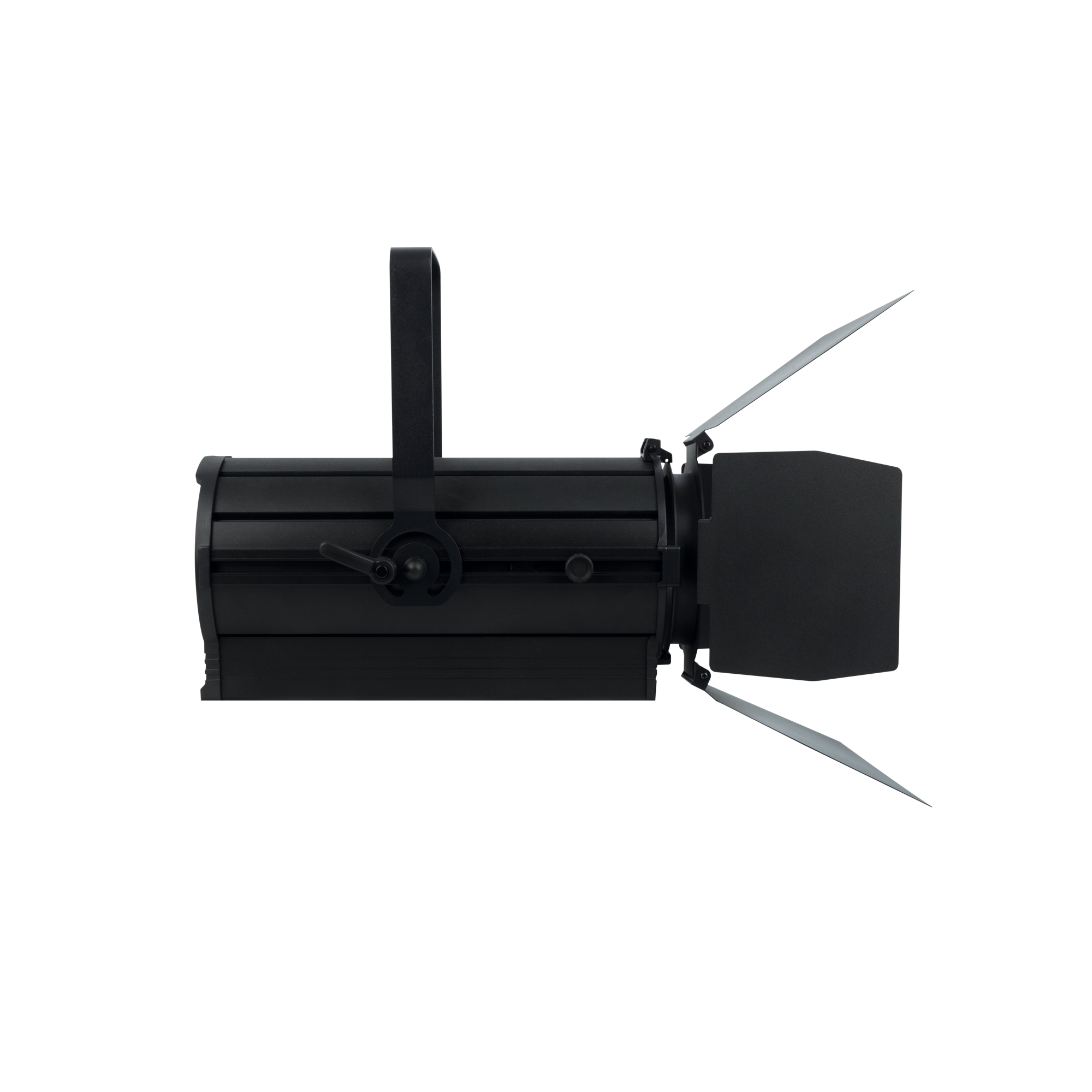

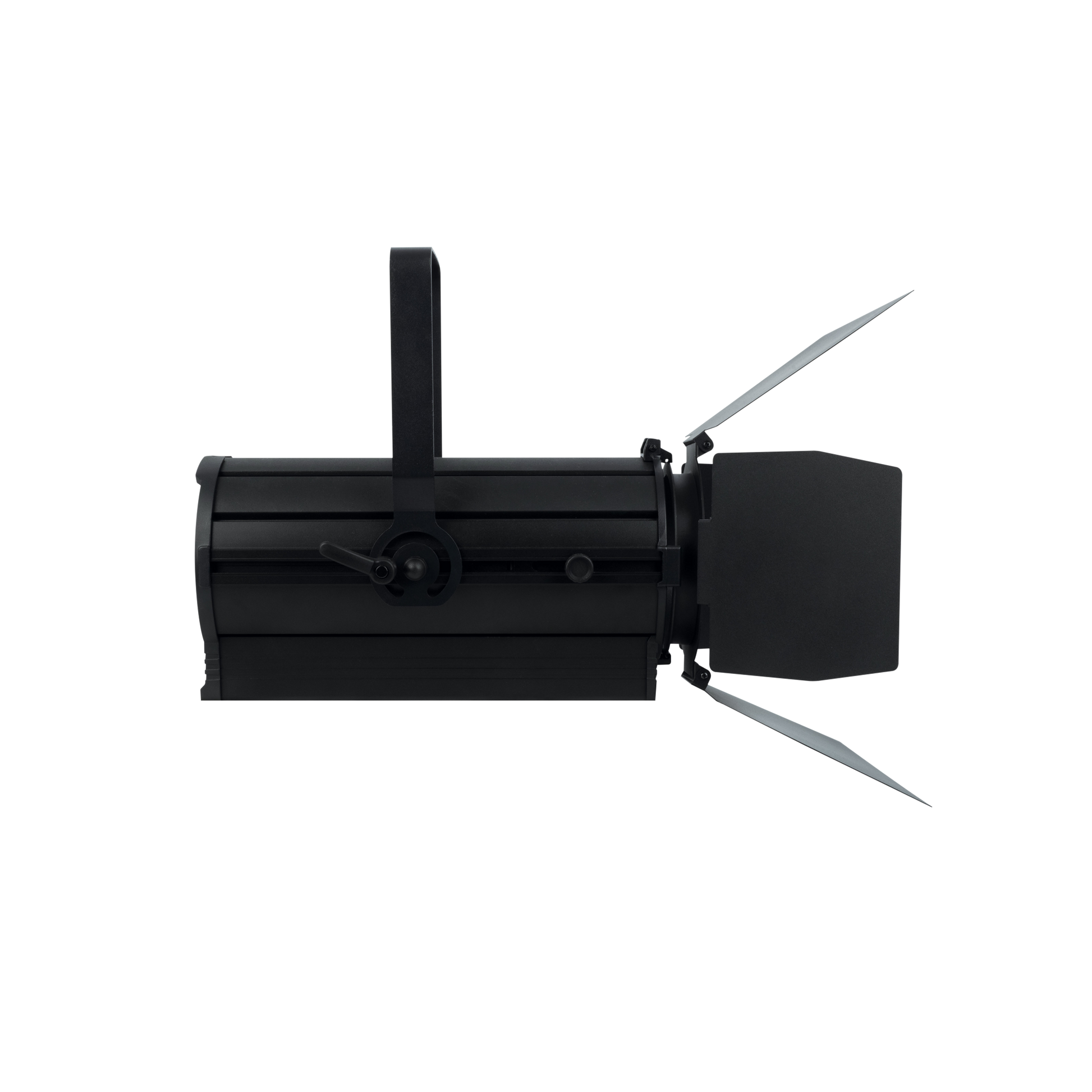

The Showtec ACT Fresnel 150 RGBAL is a compact 150-watt warm white RGBAL COB LED spot with high CRI (>90) and silent operation, suitable for theatre applications, museums and exhibitions. It uses a 280 W RGBAL light source to optimize colour rendition, allowing you to create a wide range of colours while maintaining a high CRI. This allows for high light output even with single colours. The 280 W LED has 56 W per colour and a maximum total of 150 W. It projects a bright, lightweight beam of light within a wide manually adjustable zoom range from 14° to 36°. The ACT Fresnel 150 RGBAL can be controlled via DMX, RDM and has two knobs for manual control of colour and dimmer. It is equipped with a filter frame and barndoors that allow you to shape its output.
SPECIFICATIONS
- Light Source Type: LED
- Number of Light Sources: 1
- Light Source Power: 280 W
- LED Colour: RGBAL
- Light Source: COB
- Luminosity at 2m: 7665 lx
- Luminosity at 3m: 3407 lx
- Luminosity at 5m: 1226 lx
- Luminous Flux (total): 2355 lm
- CRI: 93
- CCT Min: 2700 K
- CCT Max: 10000 K
- Minimum Field Angle (circular): 23°
- Maximum Field Angle (circular): 53°
- Zoom Type: Manual
- Zoom Ratio: 1:3
- Zoom Min: 14°
- Zoom Max: 36°
- Control Mode: DMX / Manual
- DMX Channels: 5 / 8 / 12
- Protocols: DMX / RDM
- Display: OLED
- Dimmer Resolution: 16 bit
- Dimmer: 0-100%
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 176 W
- Fuse: 3.15 A

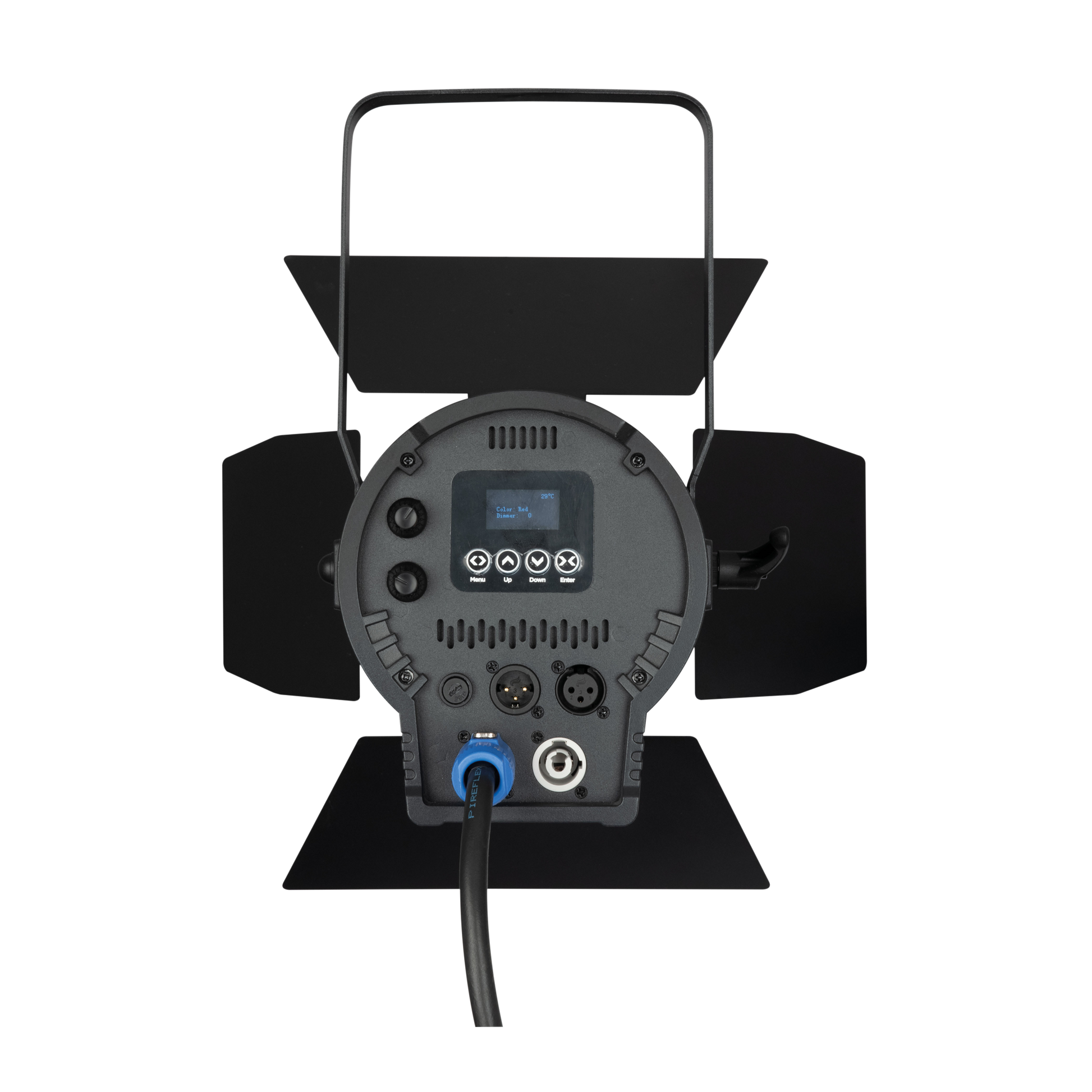

- Power Input Connection: Power Pro Blue
- Power Output Connector: Power Pro Grey
- DMX Connection: XLR 3P In/Out
- DMX Input Connection: XLR 3P
- DMX Output Connection: XLR 3P
- Length (mm): 362 mm
- Width (mm): 220 mm
- Height (mm): 343 mm
- Weight: 5.9 kg
- IP Rating: IP20 (indoor use only)
- Material: Aluminium
- Housing: Aluminium
- Colour: Black
- Cooling: Forced convection
- Mounting Options: Bracket
- Safety Attachments: Yes
- Safety Rings: 1
- Maximum Ambient Temperature: 40 °C
- Minimum Ambient Temperature: 0 °C
- Minimum Operating Temperature: 0 °C
- Cables Included: Power Pro Cable
- Accessories Included: Barndoor / Colour frame
