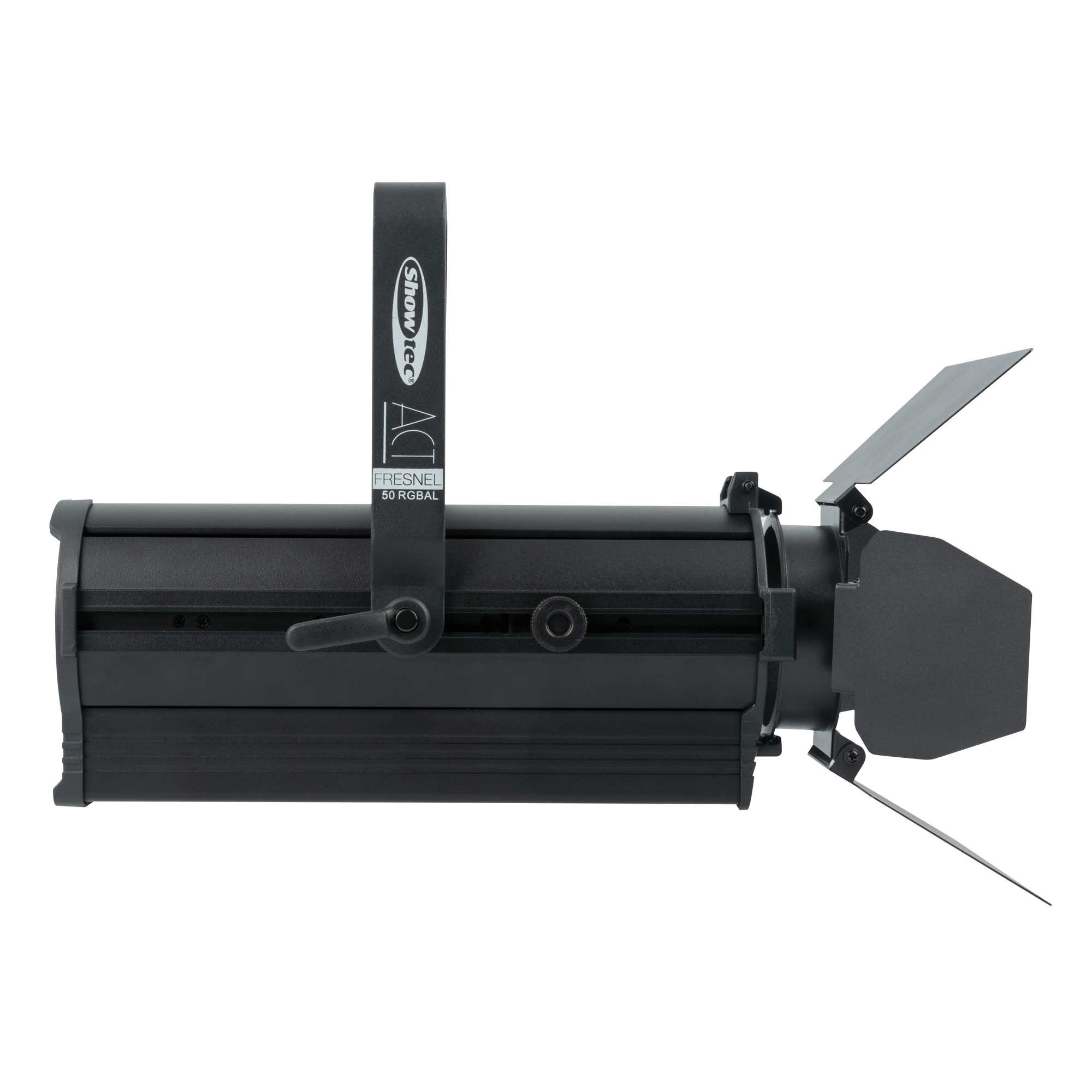

SHOWTEC ACT Fresnel 50 RGBAL Compact 50W RGBAL Theatre LED Fresnel
Estimated delivery in Italy between 18 and 20 August
Pay in 3 installments of €134,66 interest-free
Pay in 3 installments of €134,66 interest-free with PayPal
Split into 3 installments of €134,66 with your card via HeyLight
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
Compact 50W RGBAL Theatre Fresnel LED

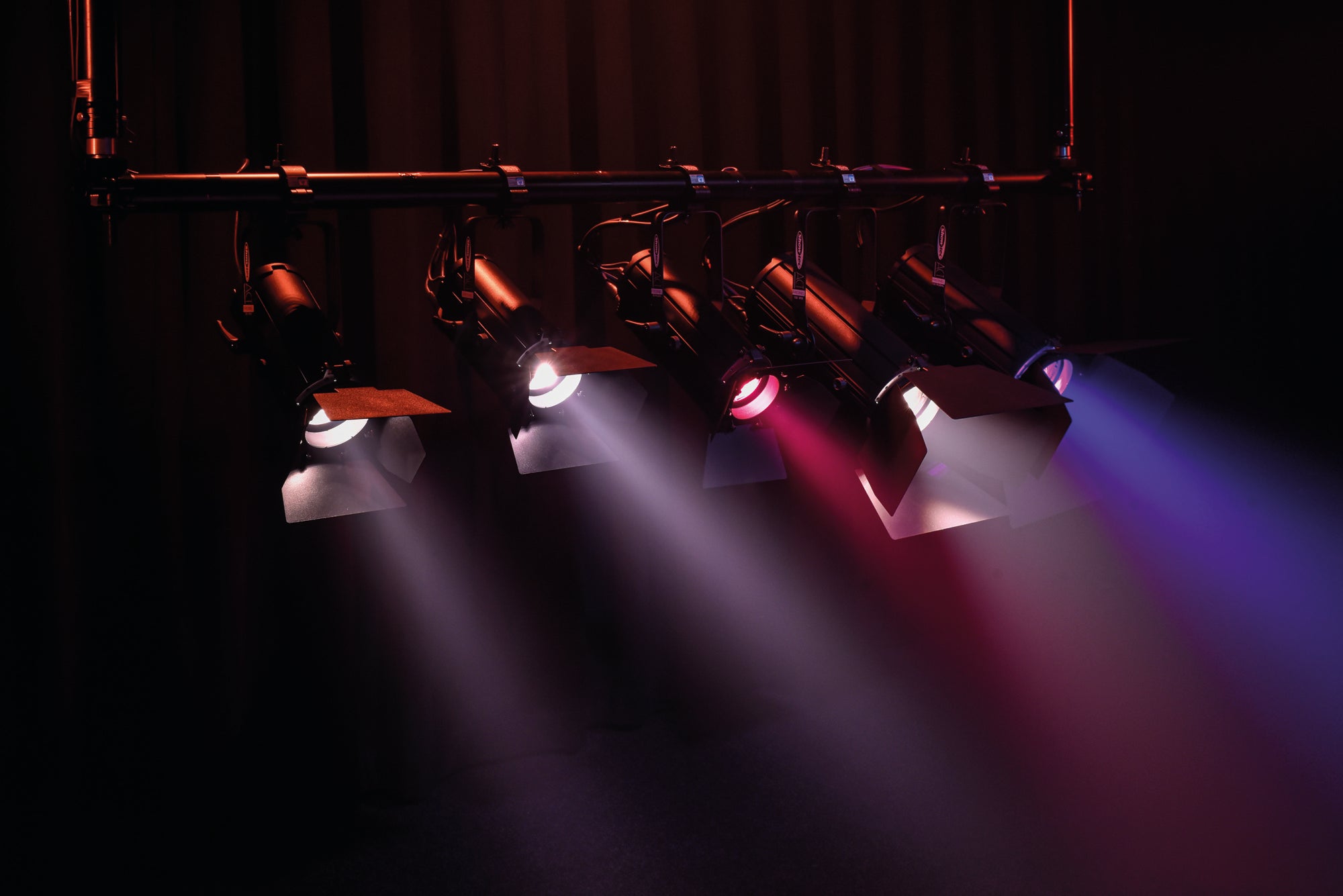

Showtec's ACT series offers a wide range of theatre lighting fixtures consisting of Fresnels, Ellipsoidals, and Flood Lights, suitable for indoor locations. All ACT fixtures have accurate colour rendition (high CRI), reliability, long lifespan, and no flickering. A uniform and smooth light distribution is ensured at any required colour temperature, from Warm White to soft pastels and vivid colours. All Showtec ACT fixtures meet the high standard of quality required to operate in theatres, on stages, and during corporate events.ACT Fresnels project a soft light field with a wide range of controllable zoom, dimmer, and strobe effects, suitable for short to mid-throw applications. All ACT Profiles consist of ellipsoidal fixtures with a zoom lens that can provide a concentrated, sharp, and precise light output even over long distances. Showtec ACT Flood projectors project a bright Wash effect, emitting a brilliant RGBW light with a wide angle in short-throw applications.
Each projector offers various control functions, and some come with included accessories to enhance functionality. Contact us now for a consultation and to receive an offer you can't refuse, or check our product pages for more information.

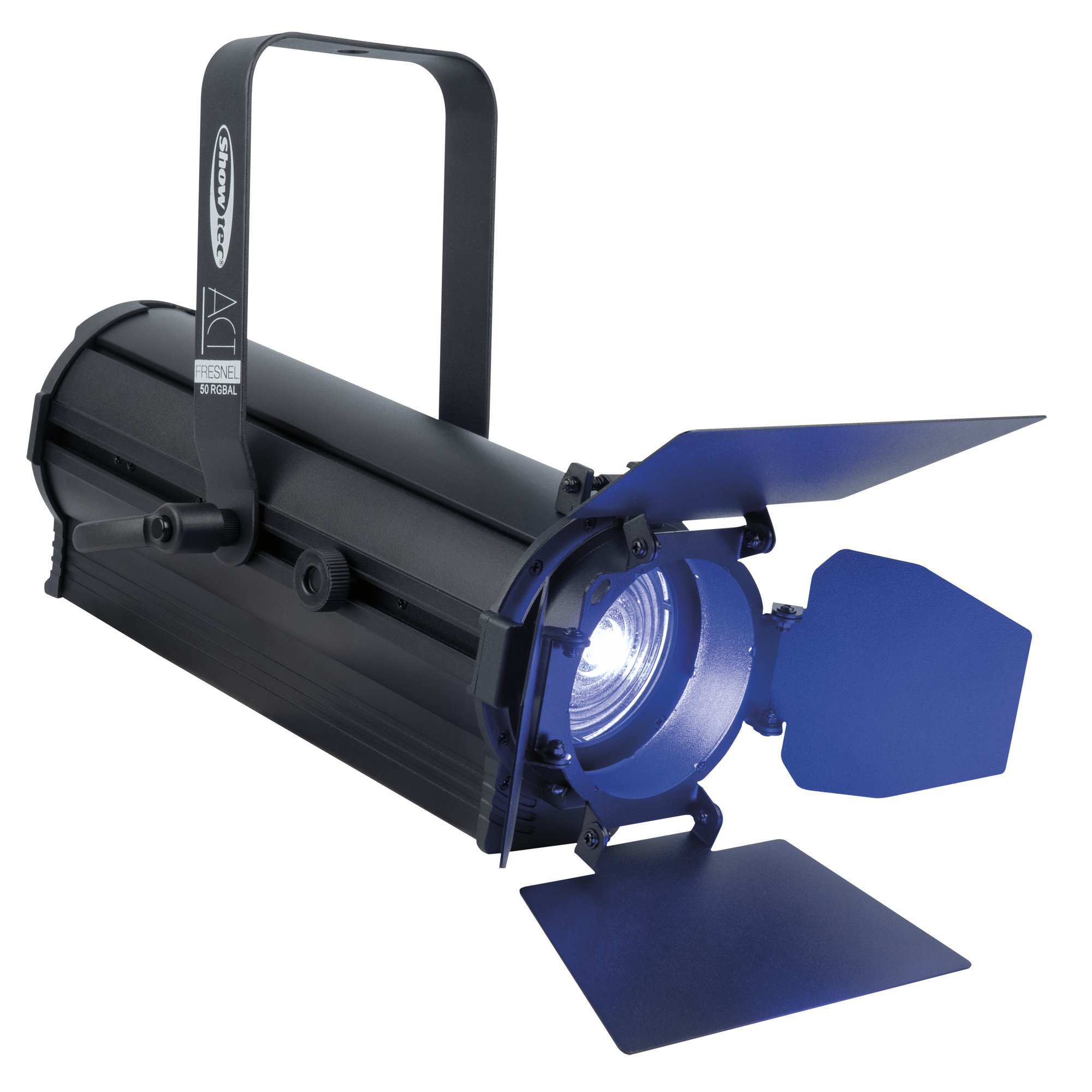

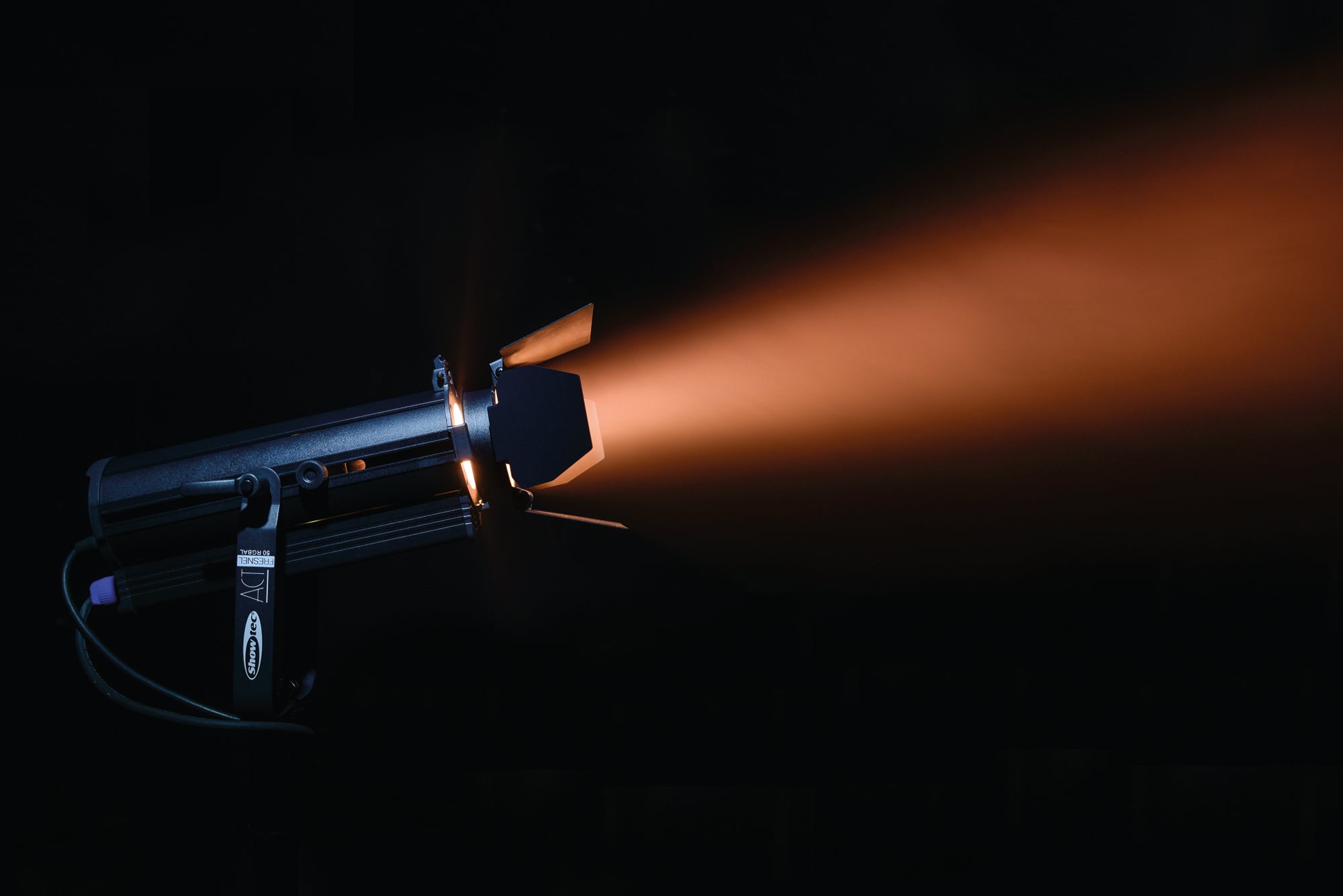

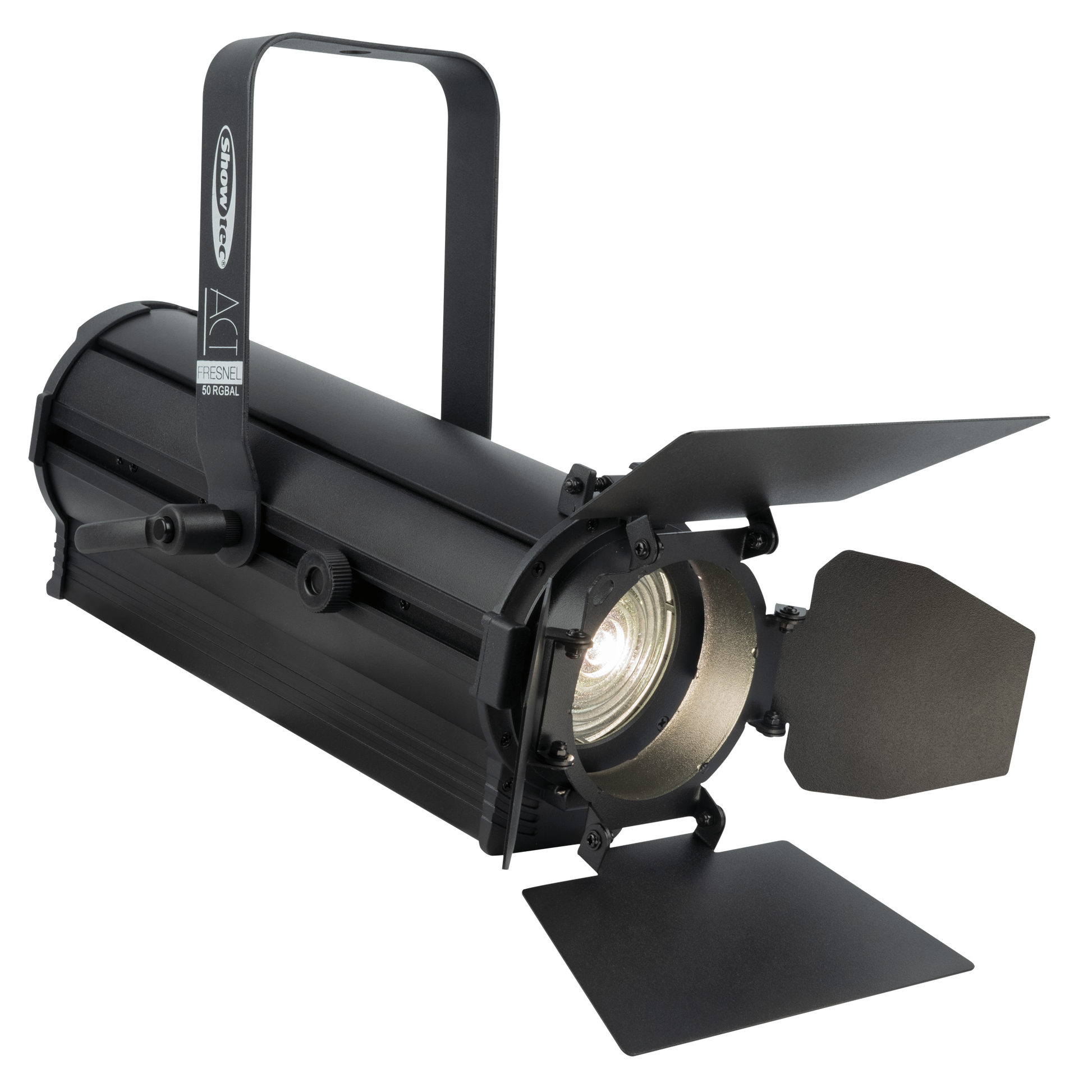

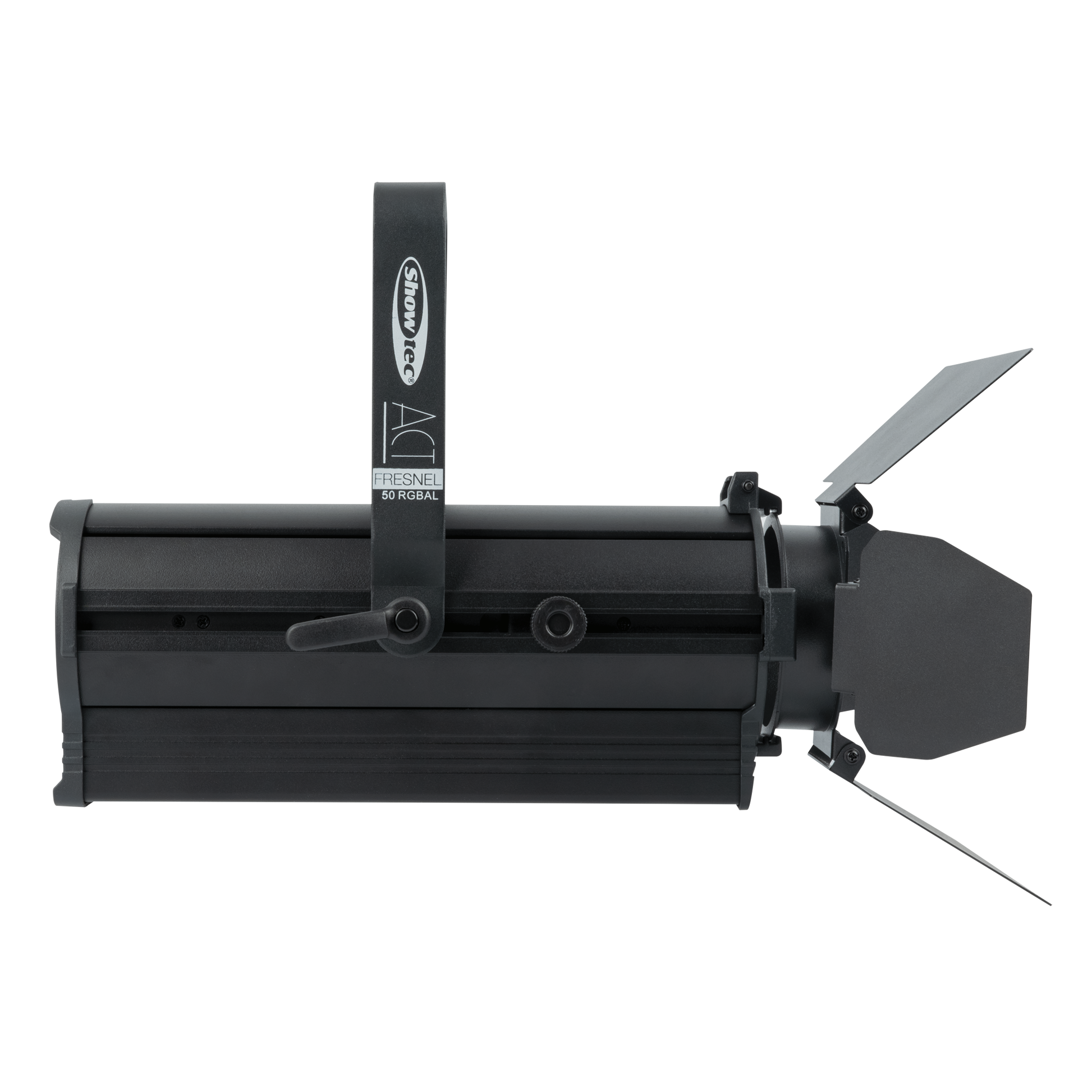

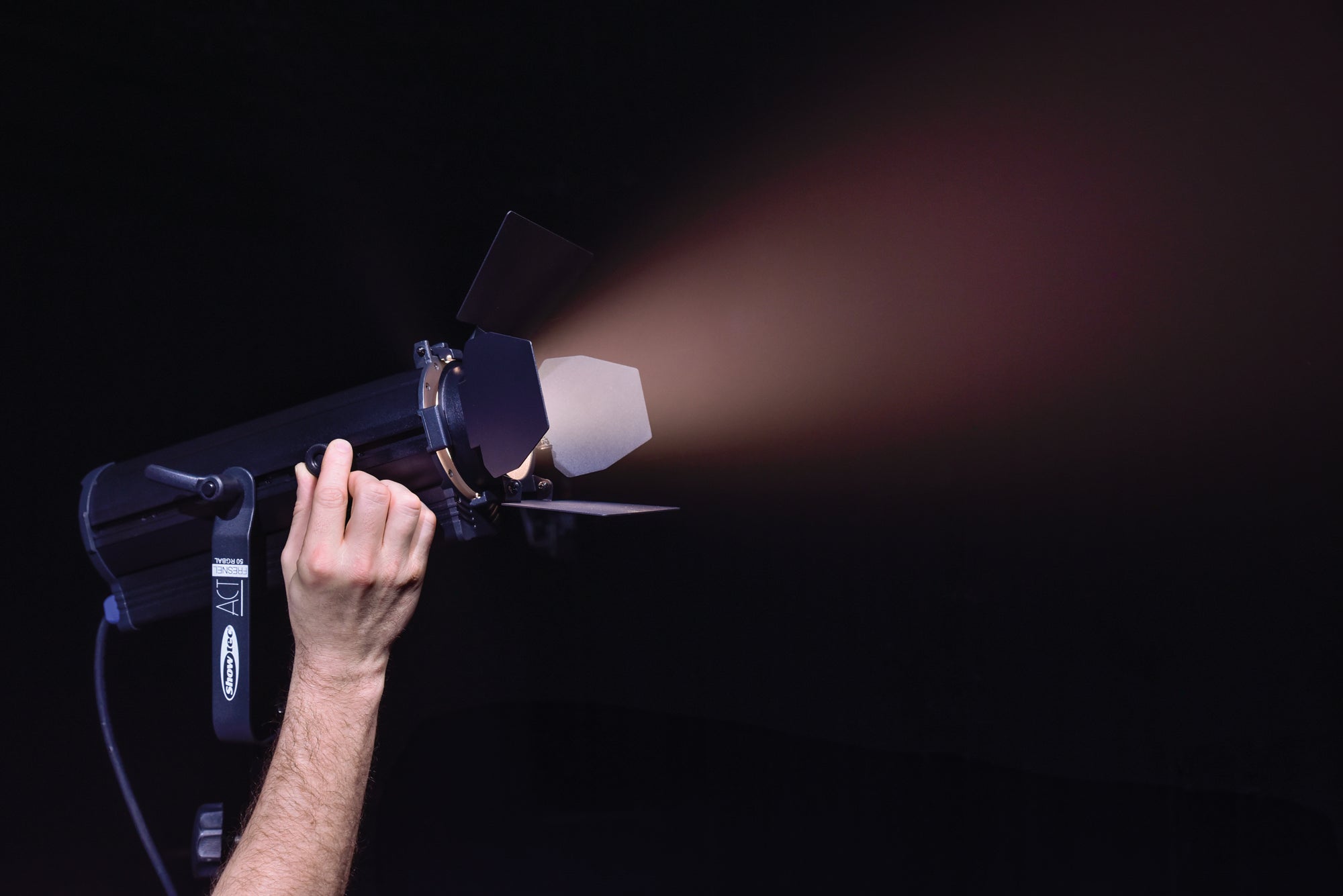

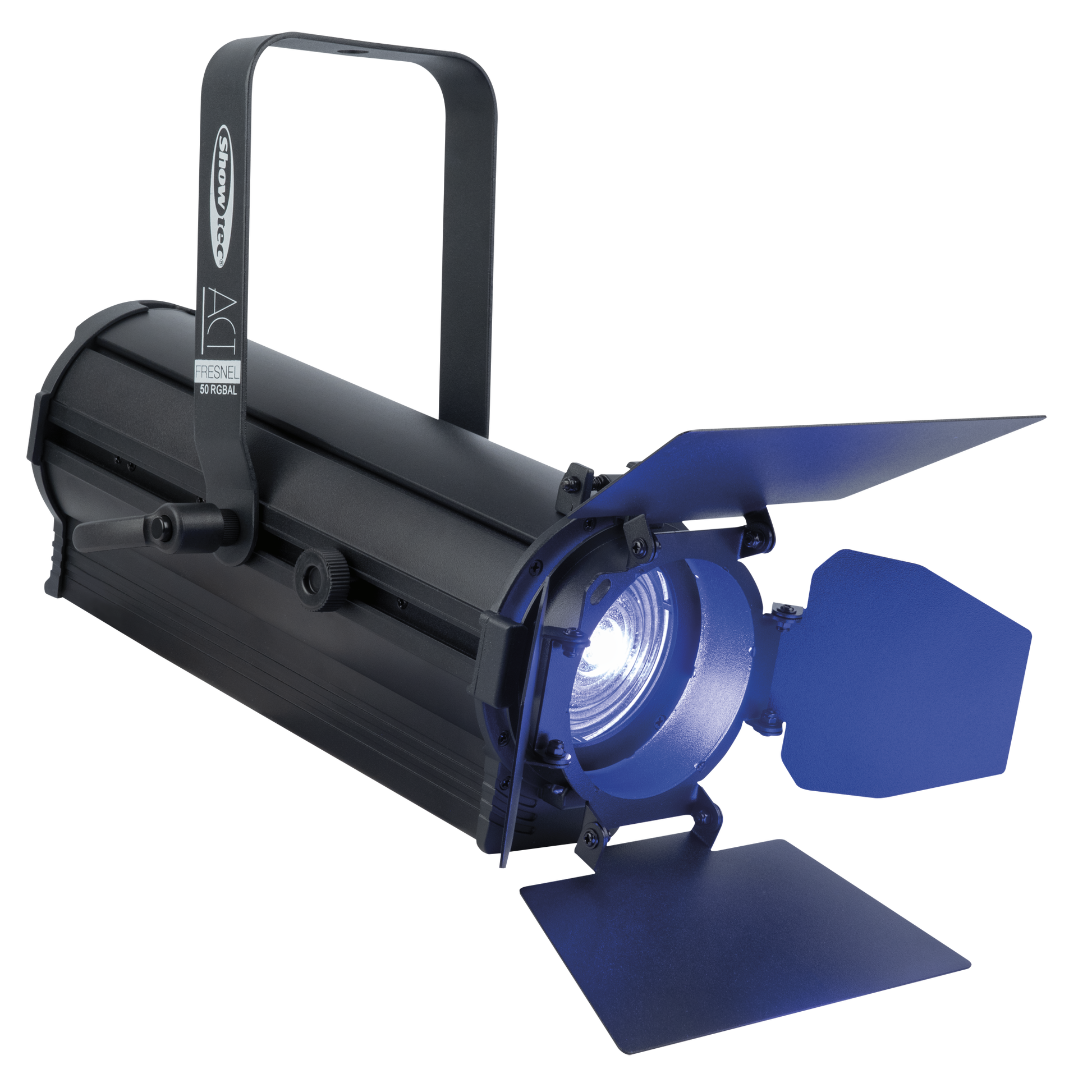

The Showtec ACT Fresnel 50 RGBAL is a compact 50-watt warm white RGBAL COB LED spotlight with high CRI (>92) and silent operation, suitable for theatre applications, museums, and exhibitions. It uses a 150 W RGBAL light source to optimize colour rendition, allowing you to create a wide range of colours while maintaining a high CRI. This allows for high light output even with single colours. The 150 W LED has 30 W per colour and a maximum total of 50 W. It projects a bright and soft light beam within a wide manually adjustable zoom range of 15° to 35°. The ACT Fresnel 50 RGBAL can be controlled via DMX, RDM, and features knobs for manual colour and dimmer control. It comes with a filter frame and barndoors that allow you to shape its output.
SPECIFICATIONS
- Light Source Type: LED
- Light Source Quantity: 1
- Light Source Power: 150 W
- LED Colour: RGBAL
- Light Source: 5-in-1
- Refresh Rate: 1200 Hz
- Luminance @ 2m: 1410 lx
- Luminance @ 3m: 627 lx
- Luminance @ 5m: 226 lx
- Luminous Flux (total): 952 lm
- Luminous Flux (red): 504 lm
- Luminous Flux (green): 958 lm
- Luminous Flux (blue): 313 lm
- Luminous Flux (amber): 320 lm
- Luminous Flux (lime): 1024 lm
- CRI: 92
- CCT Min: 2800 K
- CCT Max: 10000 K
- Beam Angle Circular (min): 15°
- Beam Angle Circular (max): 35°
- Field Angle Min (circular): 30°
- Field Angle Max (circular): 50°
- Zoom Type: Manual
- Zoom Ratio: 1:2
- Zoom Min: 15°
- Zoom Max: 35°

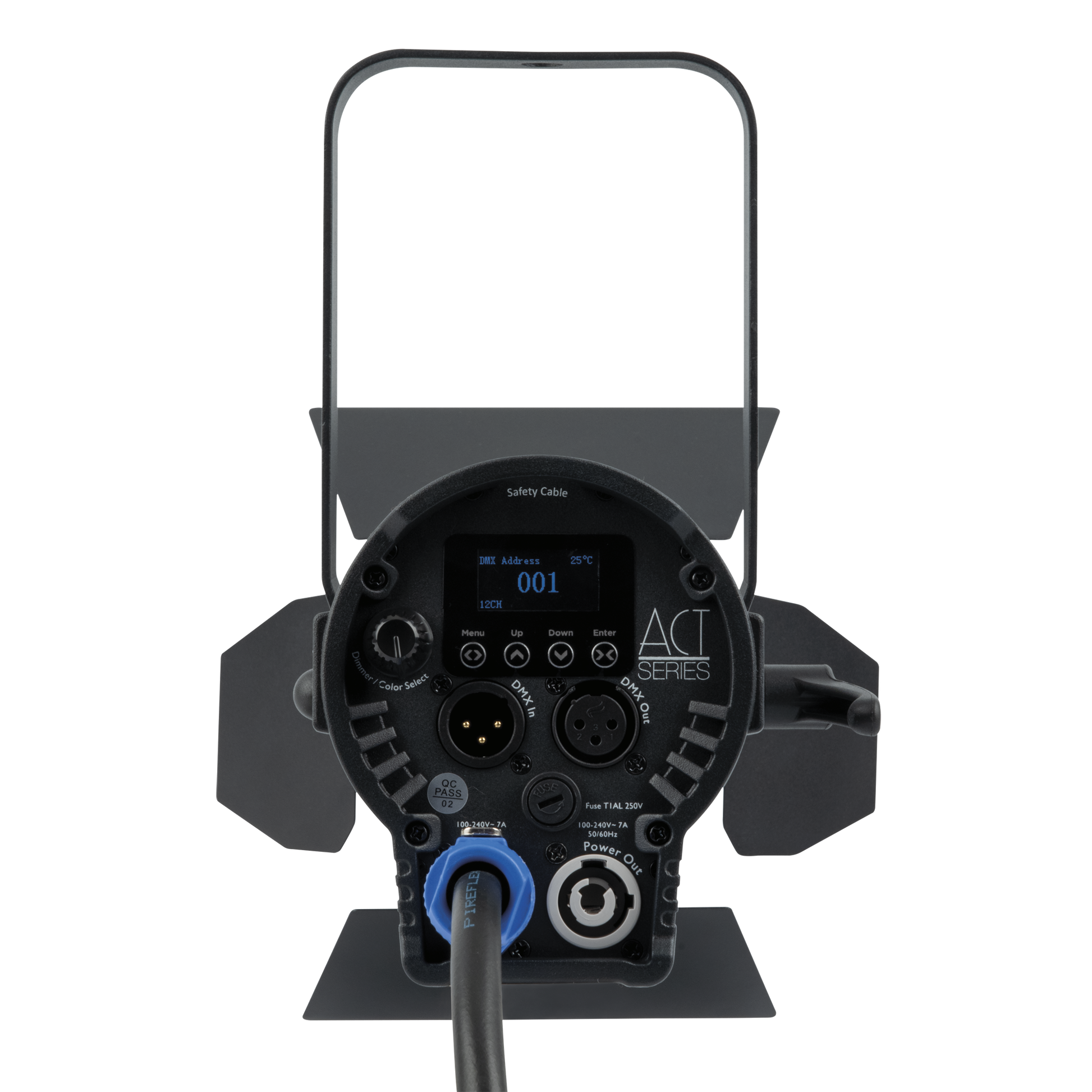

- Control Mode: DMX / Manual
- DMX Channels: 5 / 8 / 12
- Protocols: DMX / RDM
- Display: OLED
- Dimmer Curve: Linear / Square / I-Square / S-Curve
- Dimmer Resolution: 16 bit
- Dimmer: 0-100 %
- Strobe: 0-20 Hz
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 52.5 W
- Power Input Connection: Power Pro Blue
- Power Connector Output: Power Pro Grey
- DMX Connection: XLR 3P In/Out
- DMX Input Connection: XLR 3P
- DMX Output Connection: XLR 3P
- Length (mm): 317 mm
- Width (mm): 168 mm
- Height (mm): 263 mm
- Weight: 2.9 kg
- Maximum Noise Level: 36 dB
- IP Rating: IP20 (for indoor use only)
- Material: ABS / Aluminium
- Housing: Aluminium
- Colour: Black
- Cooling: Forced Convection
- Mounting Options: Bracket
- Safety Attachments: Yes
- Safety Rings: 1
- Maximum Ambient Temperature: 45 °C
- Minimum Ambient Temperature: 0 °C
- Cables Included: Power Pro Cable
- Accessories Included: Barndoor / Filterframe
