Showtec LED Dim-8 HV DIN Rail
Estimated delivery in Italy between 16 and 18 November
Pay in 3 installments of €65,33 interest-free
Pay in 3 installments of €65,33 interest-free with PayPal
Split into 3 installments of €65,33 with your card via HeyLight
Are you a company or a professional with a VAT number? Request Operational Leasing with Grenke
DIN Guide

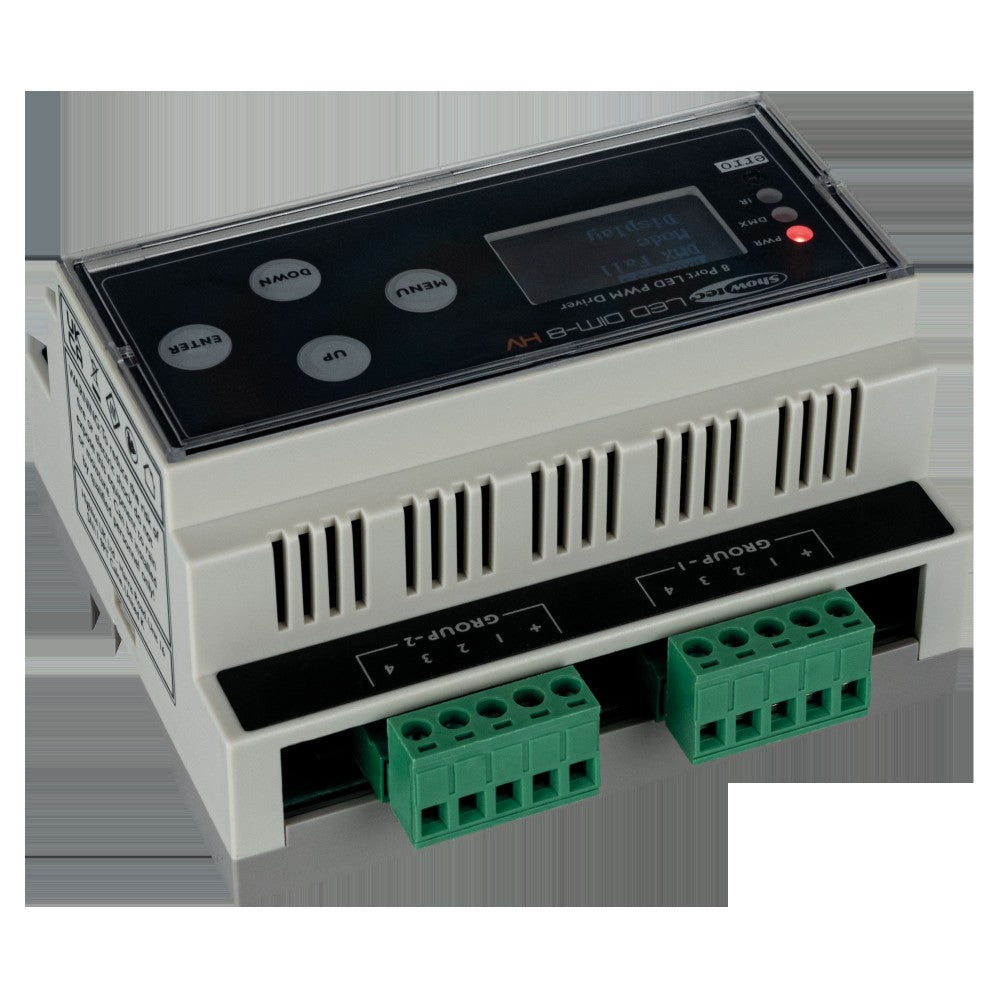

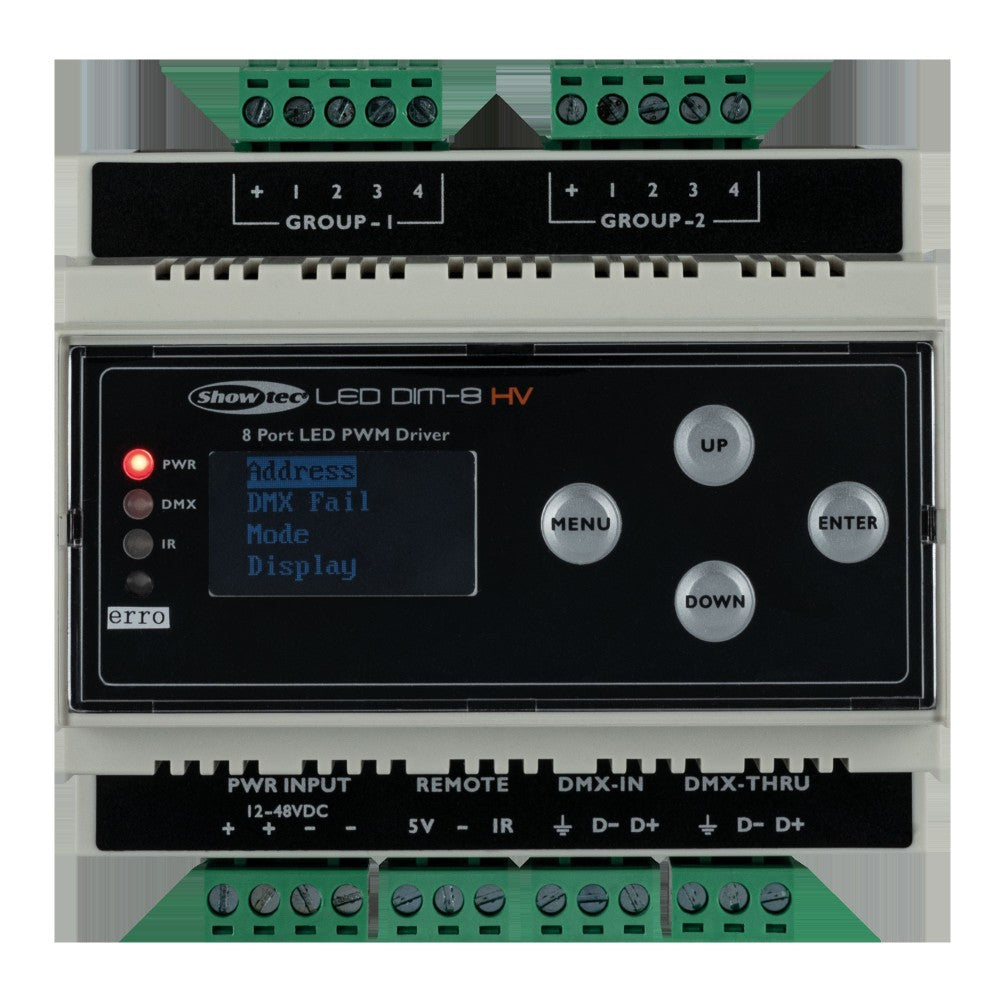

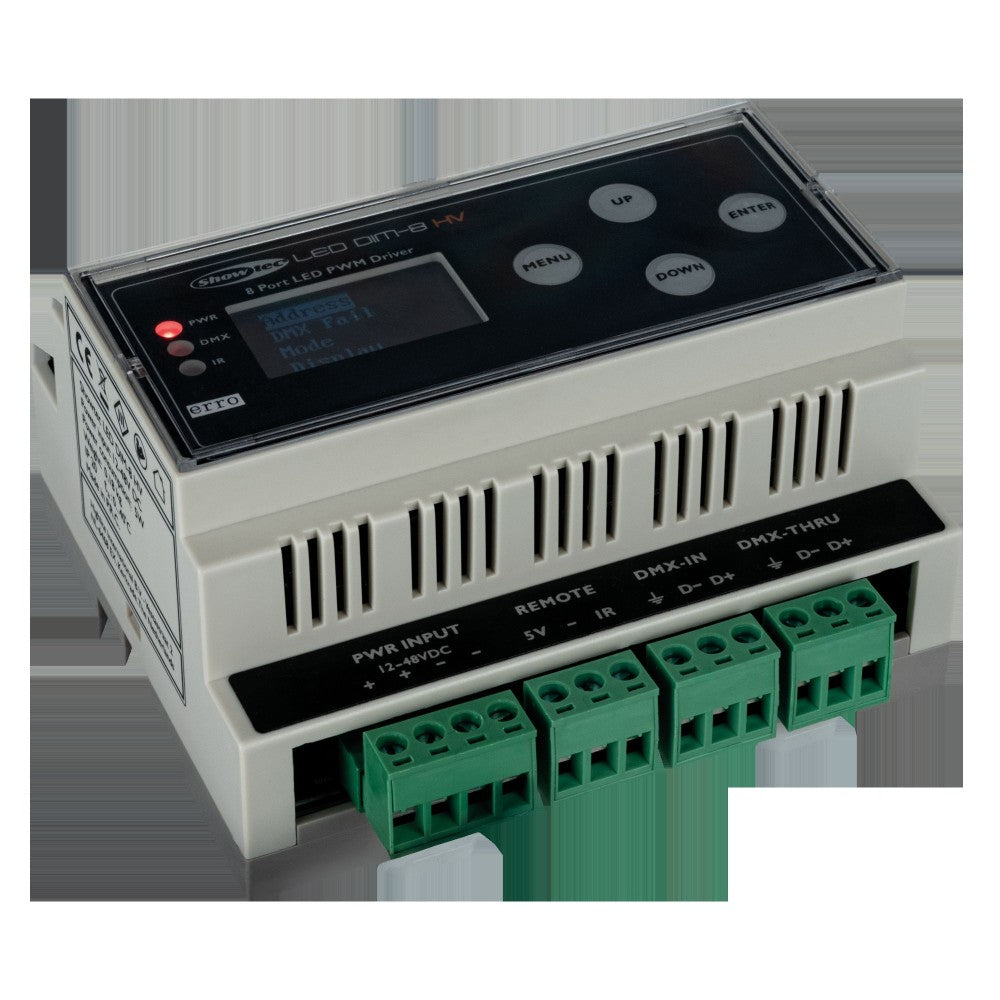

The Showtec LED Dim-8 HV is the high-voltage version of the Showtec LED Dim-8 Install and is the ideal compact PWM dimmer for long RGBW LED strips. It offers two groups of 4 outputs for RGBW control with a maximum output of 8 A per group, 16 A total. All connections are easy to make thanks to plug-in Phoenix terminals. The LED Dim-8 HV is very easy to use and is universally configurable for different LED strips. It can control constant voltage strips from 12 V to 48 V via DMX or as a standalone controller for single scenes and chases. The user interface is very convenient thanks to the high-quality O-LED display. The LED Dim-8 mounted on DIN rail is ideal for network system integration projects.SPECIFICATIONS
- Control Mode: DMX / IR / Manual / Remote
- DMX Channels: 8
- Power Supply: 12-48 V DC
- Output Voltage: 12-48 V DC
- Power Consumption: 5 W
- Output Current (A): 16 A
- Power Input Connection: Phoenix
- DMX Input Connection: Phoenix
- DMX Output Connection: Phoenix
- Length (mm): 106 mm
- Width (mm): 87 mm
- Height (mm): 58 mm
- Weight: 0.22 kg
- Housing: Plastic
- Color: Gray
- DIN Rail Spacing: 35 mm
