DIN Rail

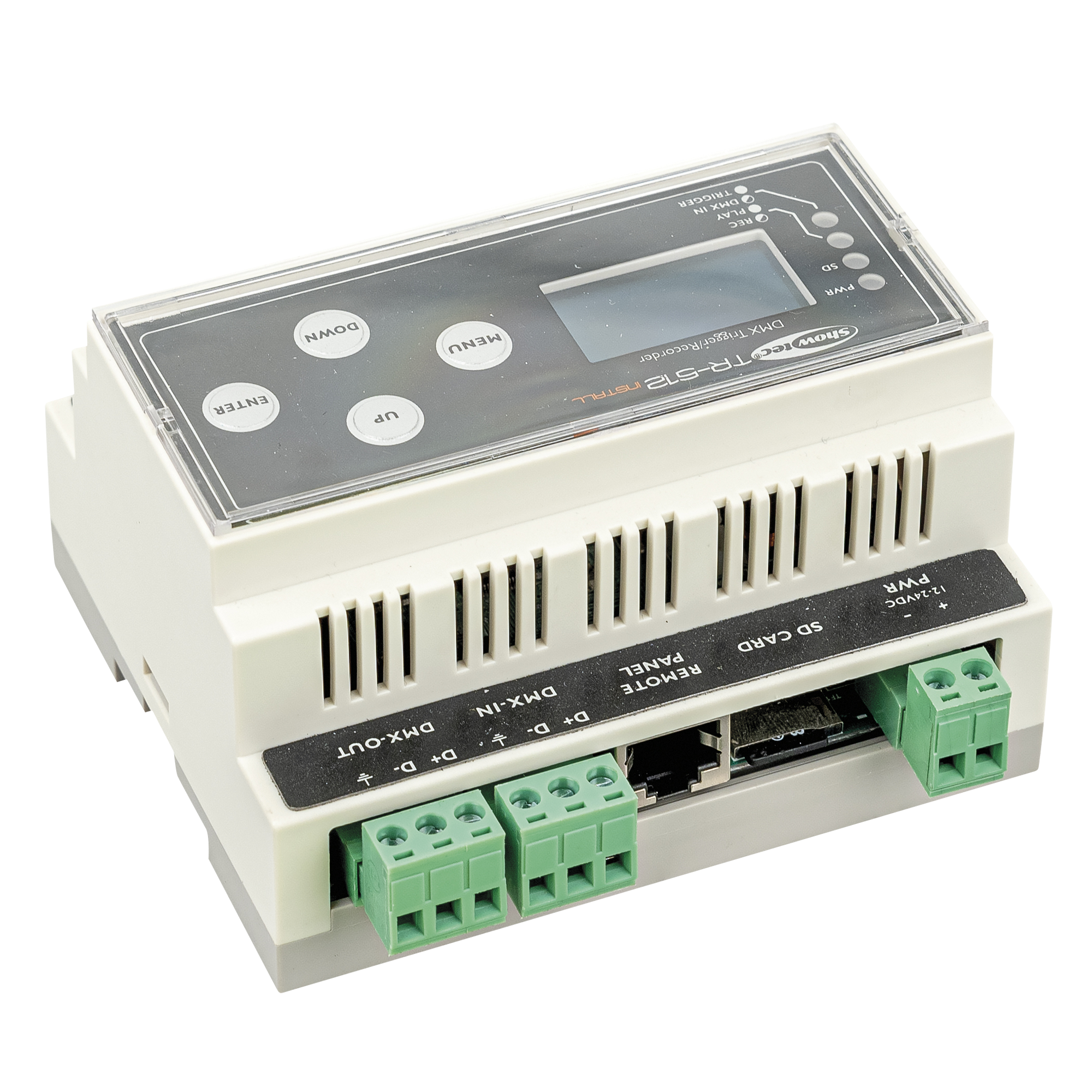

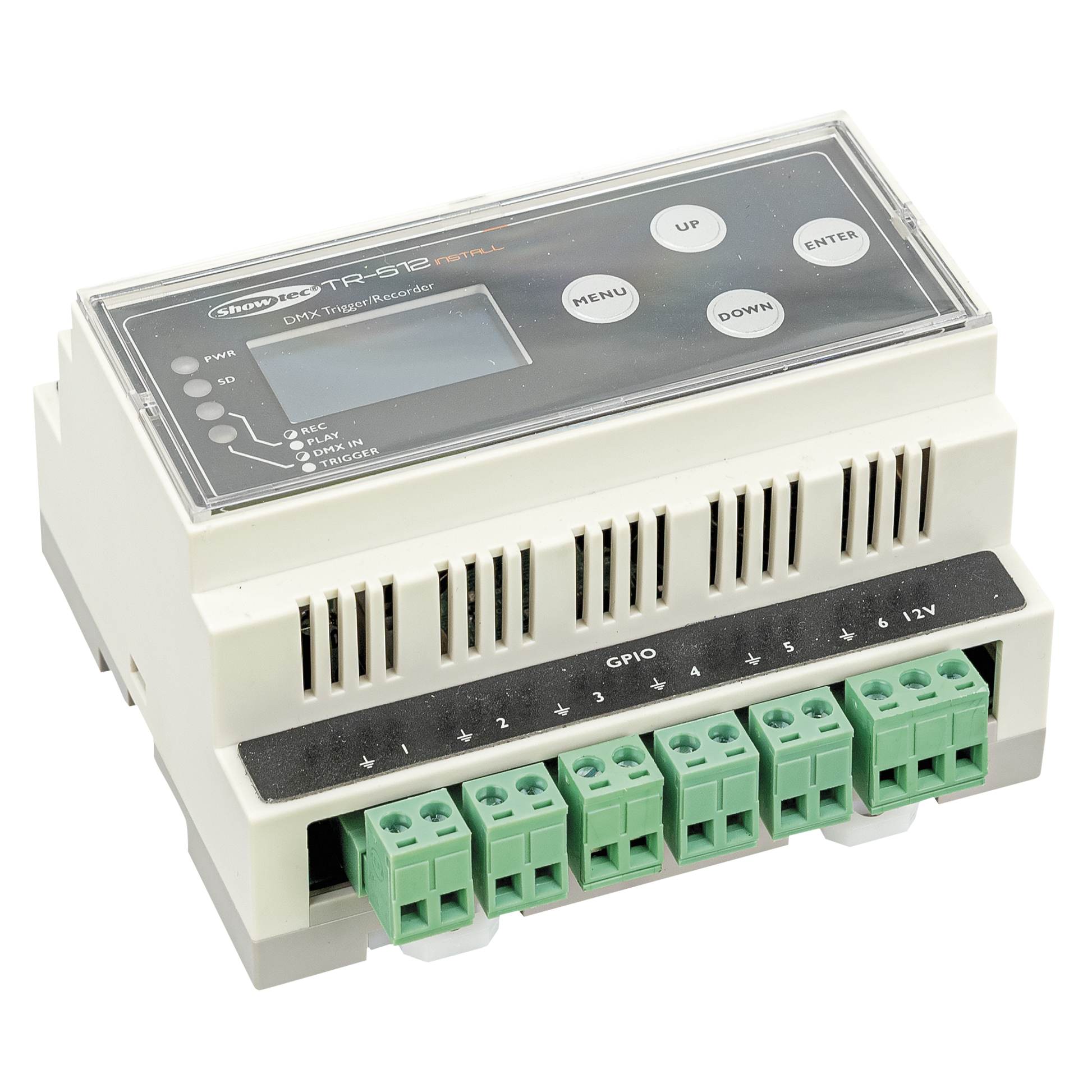

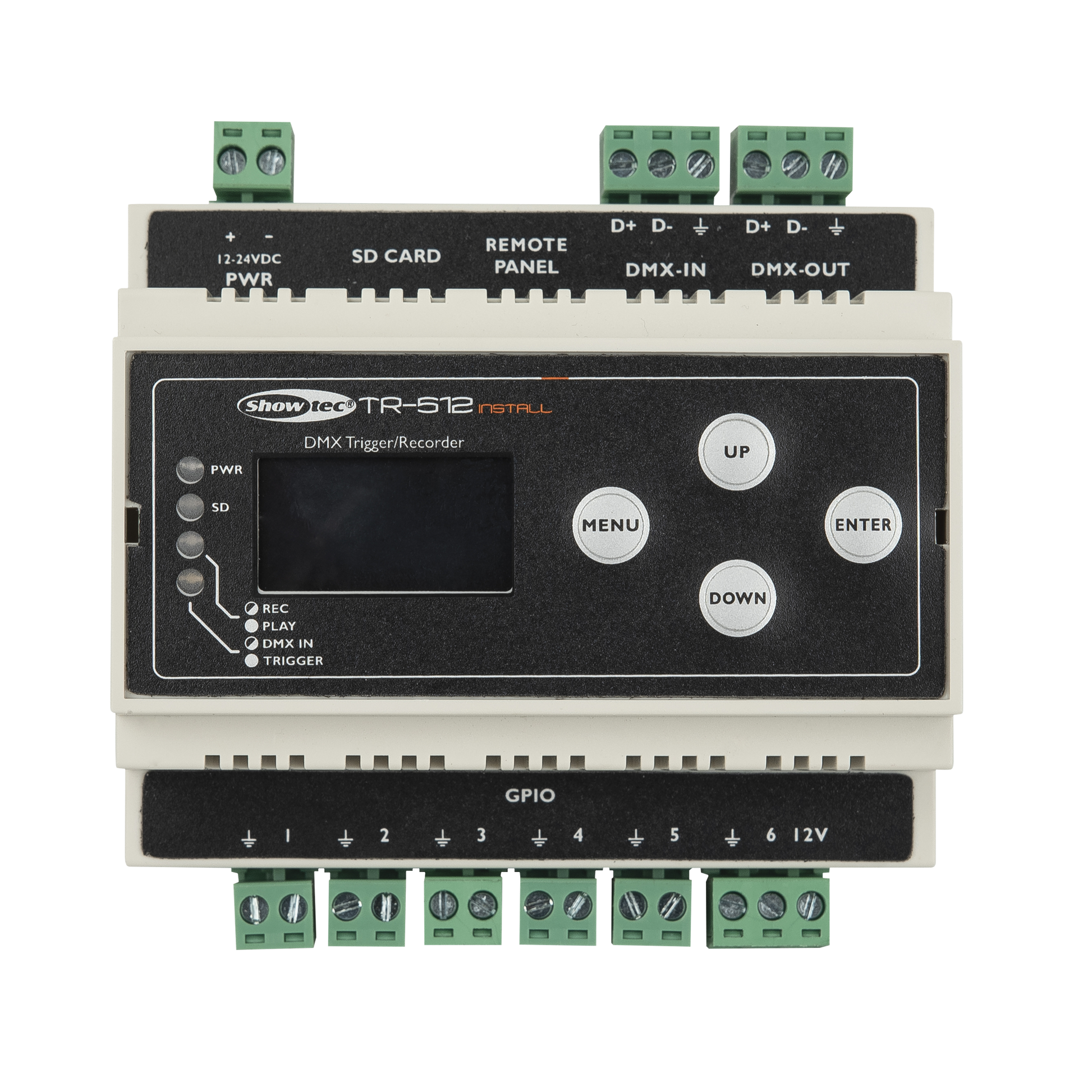

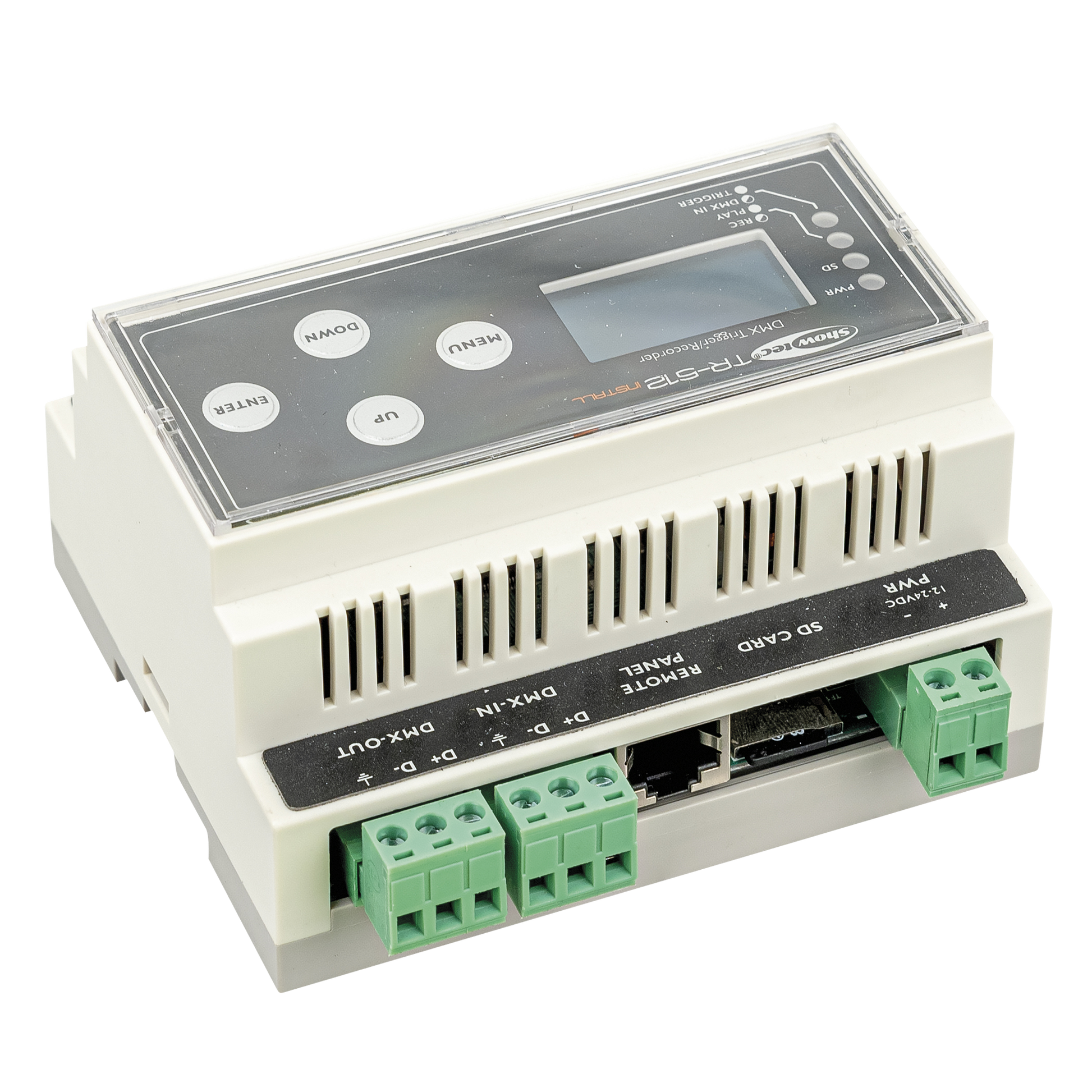

The Showtec TR-512 Install is the ideal, compact fixed-installation DMX Recorder/Playback unit, capable of effortlessly triggering any light show. The TR-512 Install unit can record and play back various shows, which can be stored on the included micro-SD card. Each show can be played in loop mode or single playback. An auto-start on power-up or a delayed start can also be set, allowing precise control over your show. There are 6 GPIO pins available to start or stop your shows via external triggers such as switches or motion detection sensors. A dedicated remote wall panel can also be easily connected with a standard cat-5 cable. The DIN rail-mounted TR-512 is the right product to trigger your shows in theme parks, museums, shops, or other system integration projects. Please note, this wall panel remote can ONLY be used with the Wall Panel Remote for TR-512 Install/Pocket (50827/50828).SPECIFICATIONS
- Memory Type: SD-Card
- Power Supply: 12 VDC
- Power Consumption: 6 W
- Power Input Connection: Phoenix
- DMX Connection: Phoenix In/Out
- DMX Input Connection: Phoenix
- DMX Output Connection: Phoenix
- Length (mm): 106 mm
- Width (mm): 87 mm
- Height (mm): 58 mm
- Weight: 0.18 kg
- IP Rating: IP20 (indoor use only)
- Housing: Plastic
- Colour: Gray
- DIN Rail Spaces: 35 mm
- Control Modes: DMX / GPIO / Manual / Remote
- DMX Channels: 512
- Protocols: DMX
- Display: OLED
- Universes: 1
