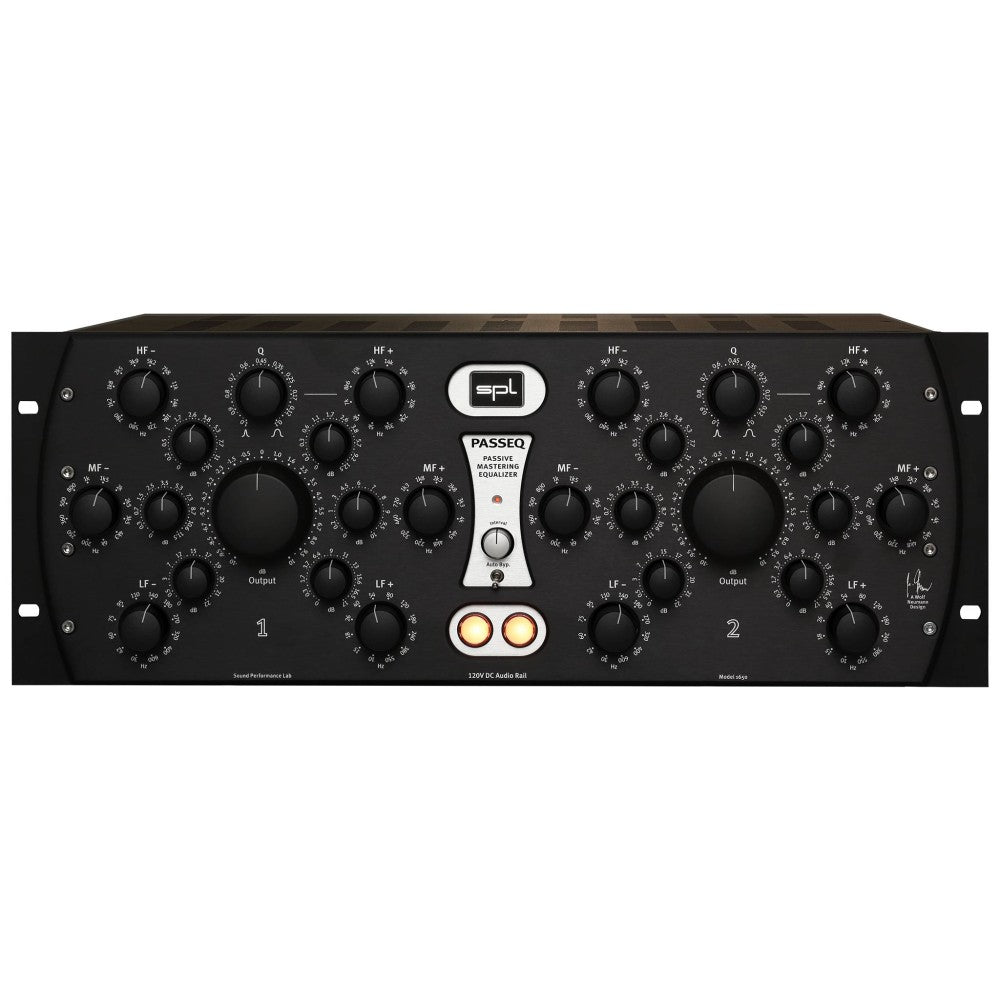

SPL PASSEQ BLACK 2-channel analog equalizer
Estimated delivery in Italy between 16 and 18 June
Paga in 3 rate da €1.555,33 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
2-channel analog equalizer
The SPL PASSEQ is a 2-channel analog equalizer. The new dual-channel SPL PASSEQ (Model 1650/1654) is the resolute evolution of its predecessor, Model 2595. The SPL PASS EQ now features an Air band, a stepped output control ranging from -10dB to +10dB, and a mid-cut band that starts at 200Hz. These features were on the wish list of many mastering engineers. Additionally, we swapped capacitor arrays in the filters with individual custom capacitors and optimized the bandwidth for each frequency range. This evolution is a sonic revolution. The SPL PASSEQ offers adjustments for high, mid, and low frequencies with individual boosts and cuts, and with 12 selectable frequencies per band. The SPL PASSEQ was the most powerful passive EQ system ever made, with a total of 36 boost and 36 cut frequencies. An important part of the SPL PASSEQ's sound is produced by the loading and saturation characteristics of the coil and capacitor. The resulting inertia, in contrast to the fast reaction of active filters, is the reason for the pleasant sound we get from passive designs. Finally, each boost and cut frequency now has an optimized Q factor. Especially the mid bands (extended down to 200Hz) are more harmonious.
Specifications
- Inputs: Max. Input Level: +32.5 dBu / Input Impedance: 20 kOhms (balanced)
- Outputs: Max. Output Level: +32.5 dBu / Output Impedance: <600 Ohms (balanced)
- Harmonic Distortion: at -30 dBu: 0.076% / at -20 dBu: 0.026% / at 0 dBu: 0.026% / at +10 dBu: 0.0086% / at +30 dBu: 0.0012%
- Noise (unweighted, (Gain +0 dBu, EQ = 0 dB B/C): -91.8 dBu
- Noise (A-weighted, (Gain +0 dBu, EQ = 0 dB B/C): -95.2 dBu
- Noise CCIR, (Gain +0 dBu, EQ = 0 dB B/C): -86.2 dBu
- THD & N (Gain +0 dBu, EQ = 0 dB B/C): >102 dB
- Common-Mode-Rejection: > -60 dBu / (at 1 kHz, gain +0 dBu, EQ = 0dB B/C)
- Transmission Bandwidth (-3 dB): 10 Hz - 200 kHz
- Frequency Range: 10 Hz - 35 kHz
- Power Consumption: 0.06 Amp, 230 V/50 Hz, 9.5 Watts, 13.6 VA / 0.09 Amp, 115 V/60 Hz, 9.5 Watts, 13.6 VA
- Fuses: 230 V/50 Hz: 0.5 Amp / 115 V/60 Hz: 1 Amp
Couldn't load pickup availability
About SPL
SPL (Sound Performance Lab) is a German company renowned worldwide for producing professional audio equipment of the highest quality. Specializing in dynamics processors, preamplifiers, DA/AD converters, monitor controllers, and mastering hardware, SPL is a benchmark in the most prestigious recording, mastering, and broadcasting studios worldwide. The proprietary Voltair technology, which operates at 120 volts in audio circuits, ensures superior dynamic range and headroom compared to conventional devices. SPL products combine precision German engineering, selected components, and a functional design oriented towards professional workflow. On musicdelivery.net, you can find the complete range of outboard gear, monitor controllers, and recording studio solutions by SPL.
