Mastering Equalizer

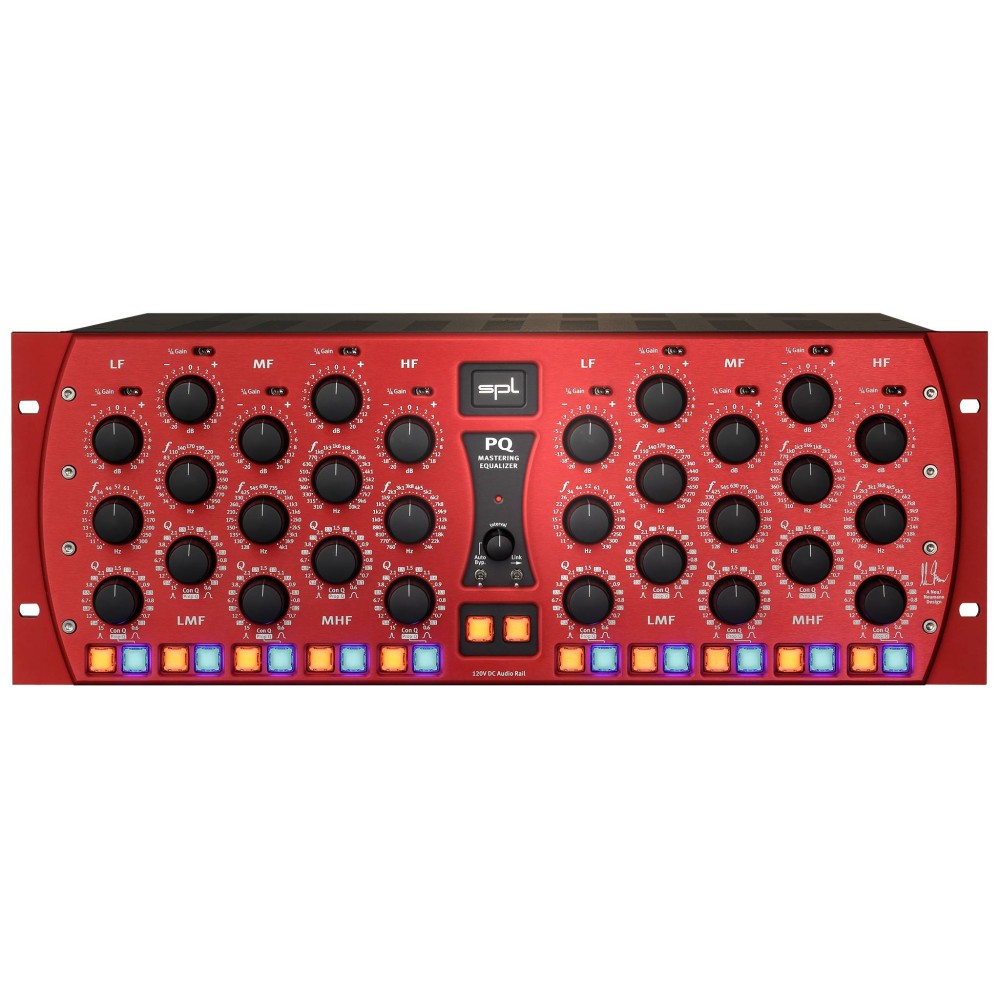

The SPL PQ MASTERING EQUALIZER is a dual-channel, fully parametric five-band mastering equalizer. The SPL PQ MASTERING EQUALIZER Model 1540/1544 is a revised new edition of the well-known SPL PQ MASTERING EQUALIZER Model 2050. Both units are based on 120V rail technology, and the new SPL PQ MASTERING EQUALIZER features the same high-quality characteristics as the previous model. All five bands can be activated or deactivated, and you have the option (for each individual band) to switch separately between constant Q and proportional Q characteristics, a feature that has not yet been replicated in any other equalizer. Each channel can be fully activated or deactivated, thanks to Auto-Bypass, which can also be automated in a freely selectable time interval. Furthermore, the bypass of each band and the constant Q of the left side can be controlled from the right side in Link mode. Thanks to the 1/4 Gain-Switch, you can reduce the maximum amplitude boost or attenuation by a factor of 3/4, which adjusts the potentiometer from max +/- 20 dB to +/- 5 dB cut. This gives you the ability to make small corrections, common in Mastering, or larger ones in Proportional-Q mode. With the SPL PQ MASTERING EQUALIZER, you can also adjust the Gain, Frequency, and Q parameters in 41 steps with stepped potentiometers, allowing for extremely precise adjustments.
Specifications
- Frequency range: 10Hz - 40kHz
- CMRR (1 kHz, +34 dBu, band 1-5 ON, B / C = 0: > -82dB
- Transmission bandwidth: (3 dB, band 1-5 ON, B / C = 0) - THD & N 10 Hz-100 kHz (@ 24dBu, Constant-Q)> 107dB - THD & N (@ 24dBu, Proportional-Q)> 106dB
- Noise (unweighted, at 24 dBu, band 1-5 ON, B / C = 0) - 91dBu
- Noise (A-weighted, 24 dBu, band 1-5 ON, B / C = 0) - 94dBu
- Noise (CCIR, at 24 dBu, band 1-5 ON, B / C = 0) - 86dBu
- Harmonic distortion: 0.2% at 1 kHz / -30 dBu - 0.05% at 1 kHz / -20 dBu - 0.01% at 1 kHz / 0 dB - 0.002% at 1 kHz / + 10 dBu - 0.0005% @ 1kHz / + 30 dBu
- Input Impedance: 20kOhm - Max. Input Level: + 32.5 dBu
- Output Impedance: <600Ohm - Max. Output Level: + 32.5 dBu
- Power consumption: max. 61W
- Fuses: 230 V / 50 Hz: 3.15 Amp - 115 V / 60 Hz: 6.3 Amp
Couldn't load pickup availability
About SPL
SPL (Sound Performance Lab) is a German company renowned worldwide for producing professional audio equipment of the highest quality. Specializing in dynamics processors, preamplifiers, DA/AD converters, monitor controllers, and mastering hardware, SPL is a benchmark in the most prestigious recording, mastering, and broadcasting studios worldwide. The proprietary Voltair technology, which operates at 120 volts in audio circuits, ensures superior dynamic range and headroom compared to conventional devices. SPL products combine precision German engineering, selected components, and a functional design oriented towards professional workflow. On musicdelivery.net, you can find the complete range of outboard gear, monitor controllers, and recording studio solutions by SPL.
