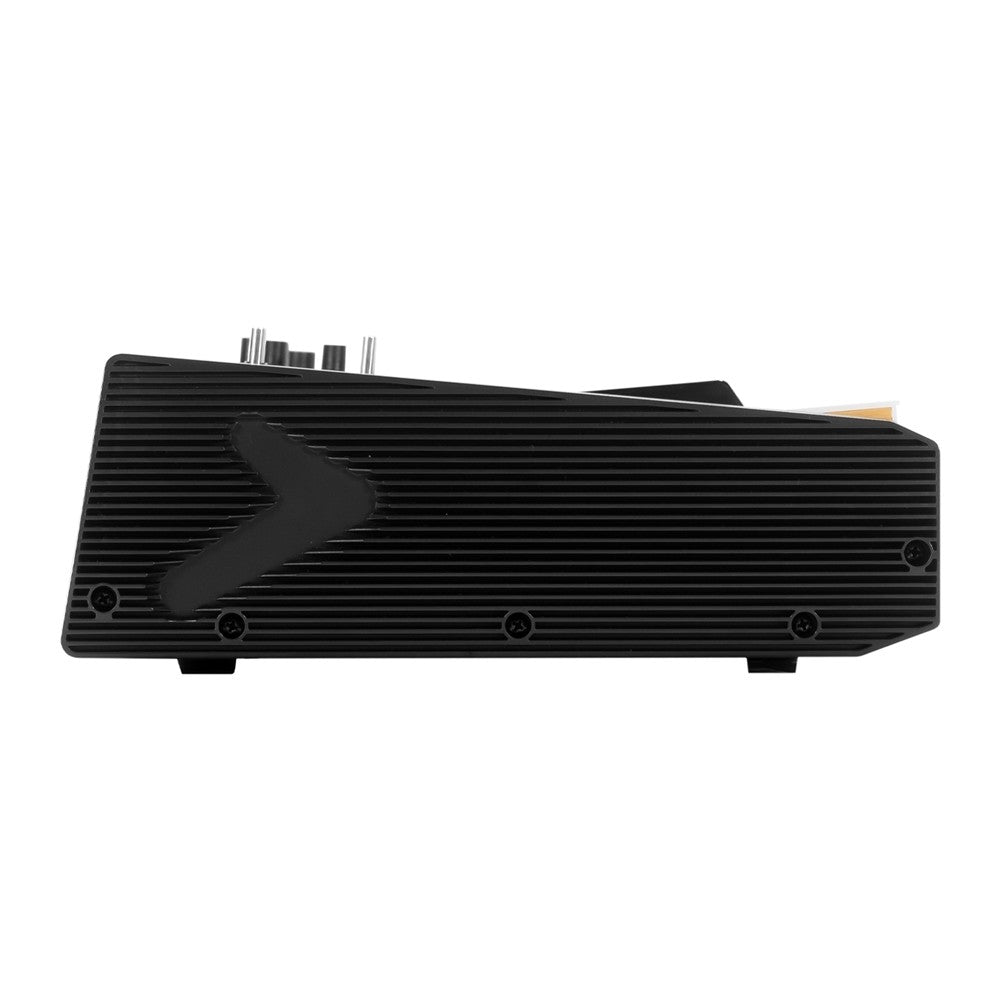

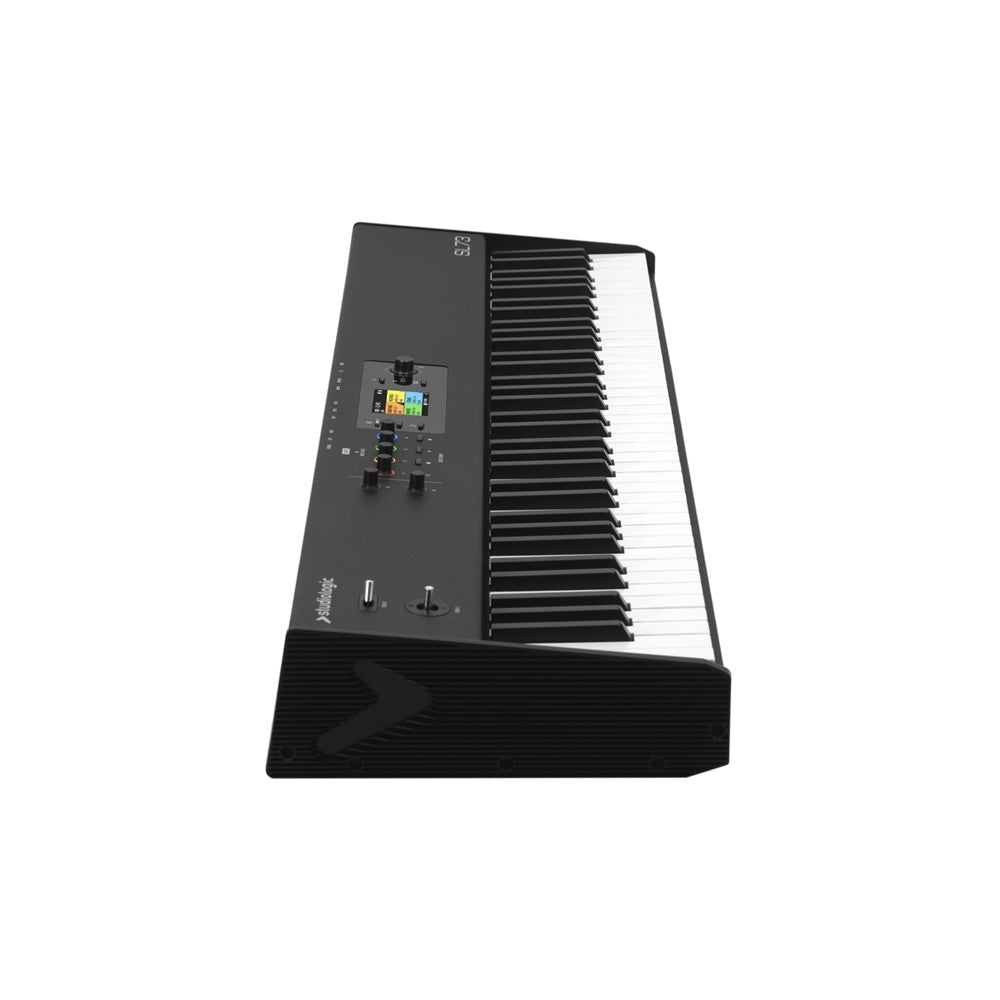

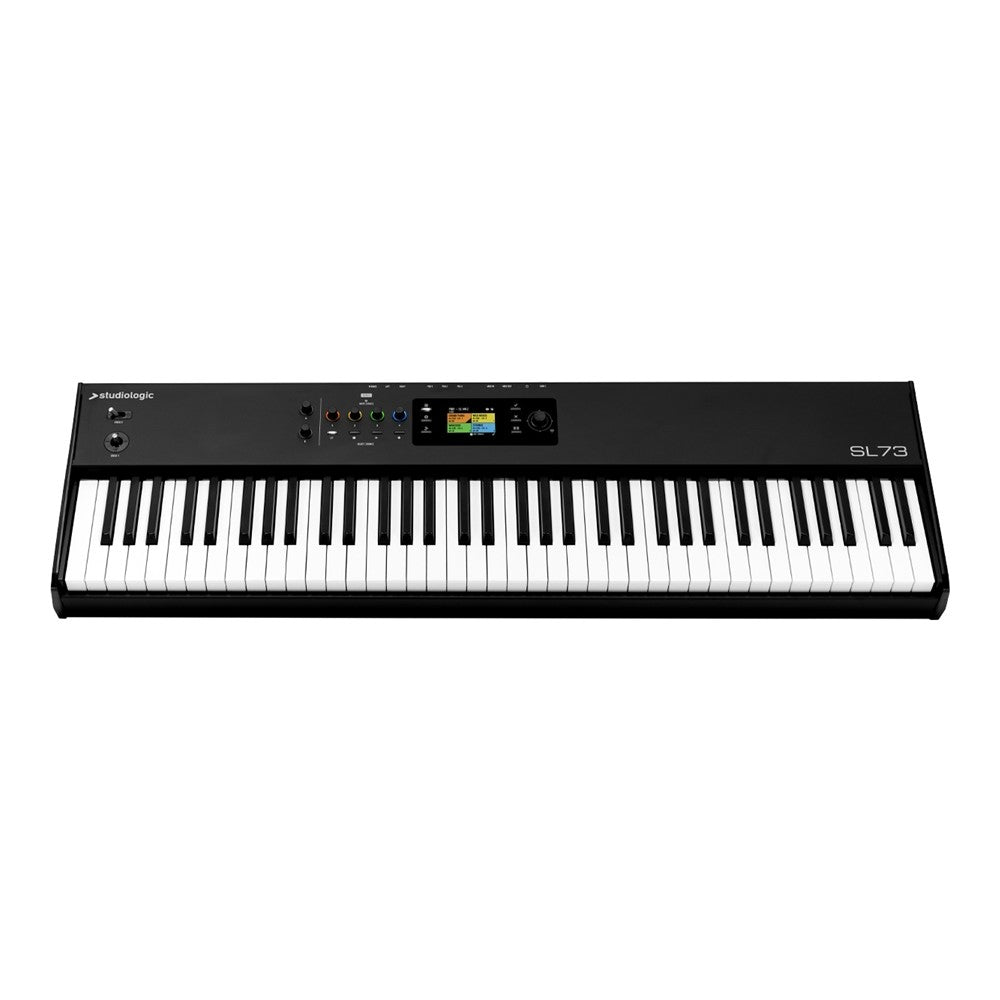

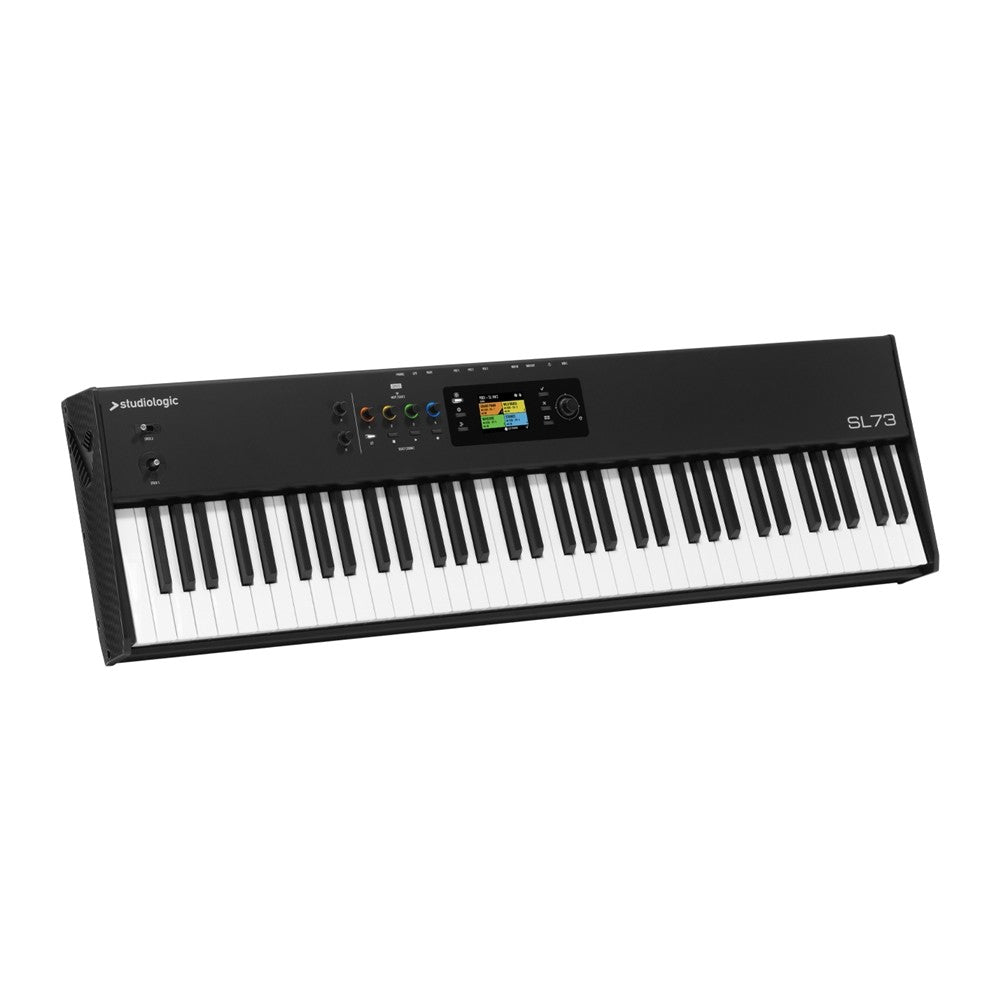

With SL73 MK2, Studiologic introduces several significant innovations to this line of Master Keyboards, such as the TP/110 Premium Hammer Action Keybed with 73 weighted keys and aftertouch; the UX Logic user interface already successfully used on Numa X Piano; the SL Link, a communication system that optimizes connection and control of the Numa Player, the implementation of the MIDI 2.0 protocol, and the integrated audio interface.

Key Features of SL73 MK2

•

• TP/110 Premium Hammer Action Keybed with 73 weighted keys and aftertouch

• UX Logic user interface, intuitive, fast, and innovative

• SL Link integration and control of Numa Player

• Implementation of the MIDI 2.0 protocol

• Integrated professional audio interface

• DAW controls on the panel


TP/110 Premium Hammer Action Keybed

The SL73 MK2 features the TP/110 Premium Hammer Action keybed with aftertouch, a 73-weighted key keyboard with a consistent piano feel that offers a playing experience similar to that of an acoustic grand piano. Its mechanism precisely simulates hammer action, including the difference in weight between bass and treble zones, with dynamic response adjustment; ultimately the ideal partner for musicians who do not want to compromise on piano touch live or in the studio.

UX Logic User Interface

The SL73 MK2 implements the UX Logic user interface, based on the interaction of physical controls with the display, where all the various paths are easily identifiable by a color code that illuminates the controls appropriately during the selection of various operating modes, resulting in logical and immediate operation, easy for the musician to learn and use.

Panel Controls

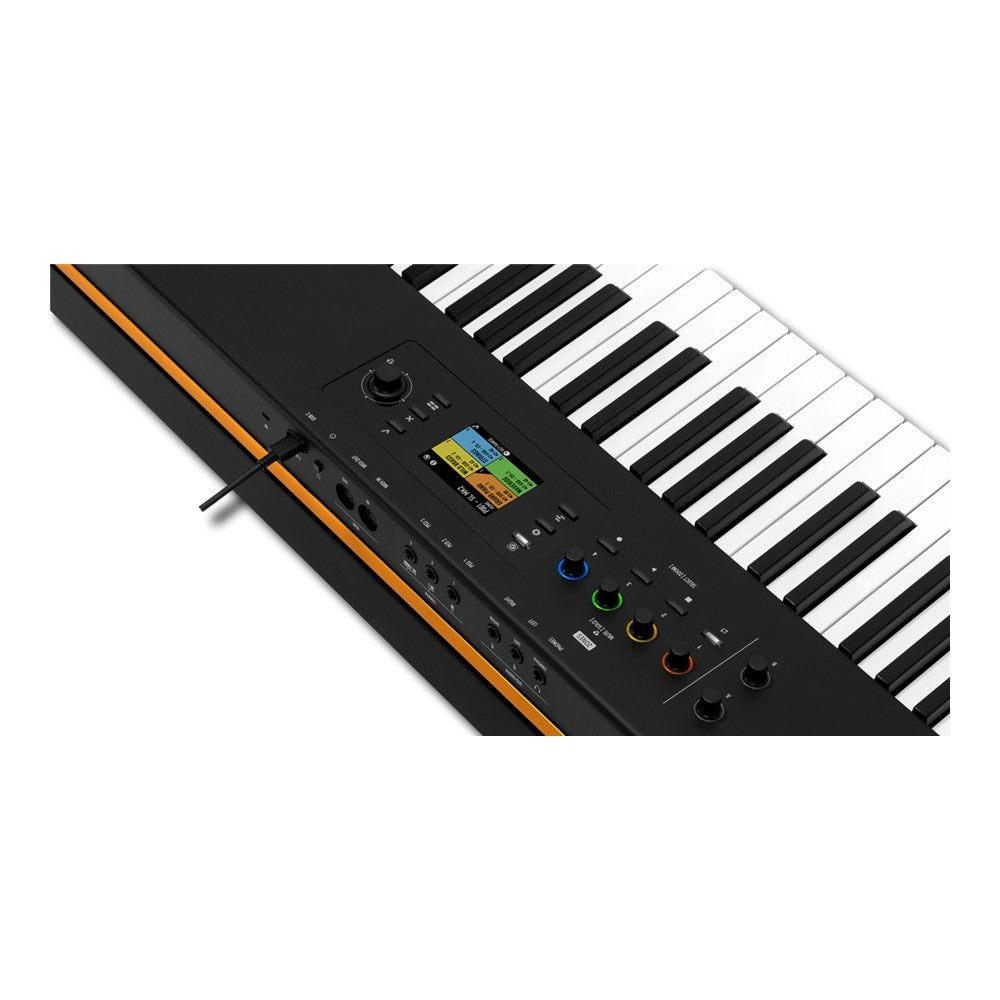

The SL73 MK2 panel offers a carefully selected set of physical controls, such as the 4 rotary encoders that command the respective keyboard zones, alongside 2 programmable A/B encoders, supported by an equal number of buttons that also control DAW transport: Play/Stop/Rec/Cycle. The central part is occupied by the backlit color display and navigation buttons with a layout configuration already successfully used by Studiologic.

SL Link Integration and Control of Numa Player

This innovative Studiologic protocol allows immediate and total control of the Numa Player, its proprietary virtual instrument, without the need for complex operations. Numa Player is a multi-platform software instrument, designed to offer maximum quality and versatility with a wide selection of high-quality sound libraries downloadable from the Studiologic website and available to all users of the SL series.

MIDI 2.0 Compatibility

SL73 MK2 is compatible with the new MIDI 2.0 protocol, the standard that elevates communication between different musical devices, offering many advantages over traditional MIDI, with which it is fully compatible.

Integrated Audio Interface

The SL73 MK2 can also function as a high-quality audio interface; essentially, you can connect your computer or other device directly to the integrated USB-C port, use your favorite music apps, and connect the audio provided by the Master Keyboard directly to a mixer or headphones, without the need for another device, thus optimizing the organization of your setup.

SL73 MK2 TECHNICAL SPECIFICATIONS

•

• Keyboard: TP/110 Premium Hammer Action, triple sensor detection system, aftertouch, keyboard sensitivity adjustment, key sensitivity, white/black key balance, aftertouch sensitivity Features: 100 Programs, 24 Programs Groups, 4 Programmable Zones, MIDI 2.01, Numa Player Integration

• DAW Control: Transport Buttons: Cycle, Stop, Play, Record


Supported DAWs:

•

• Ableton Live

• Apple Logic Pro

• Steinberg Cubase

• Any app compliant with the Mackie protocol

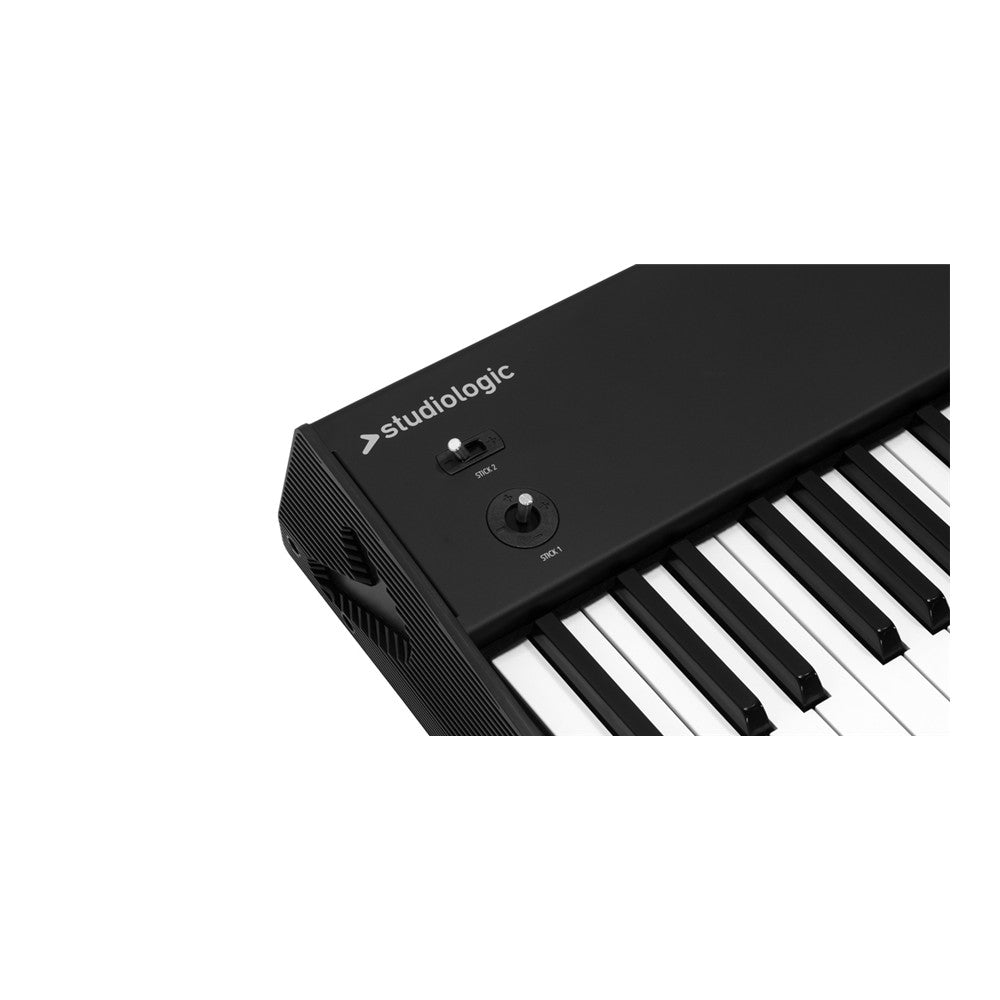

• Controls / UI: 4 Zone encoders, 2 Assignable encoders, 2.8" LCD Display, Programmable Sticks: Stick 1 bi-directional spring-loaded, Stick 2 bi-directional non-spring-loaded

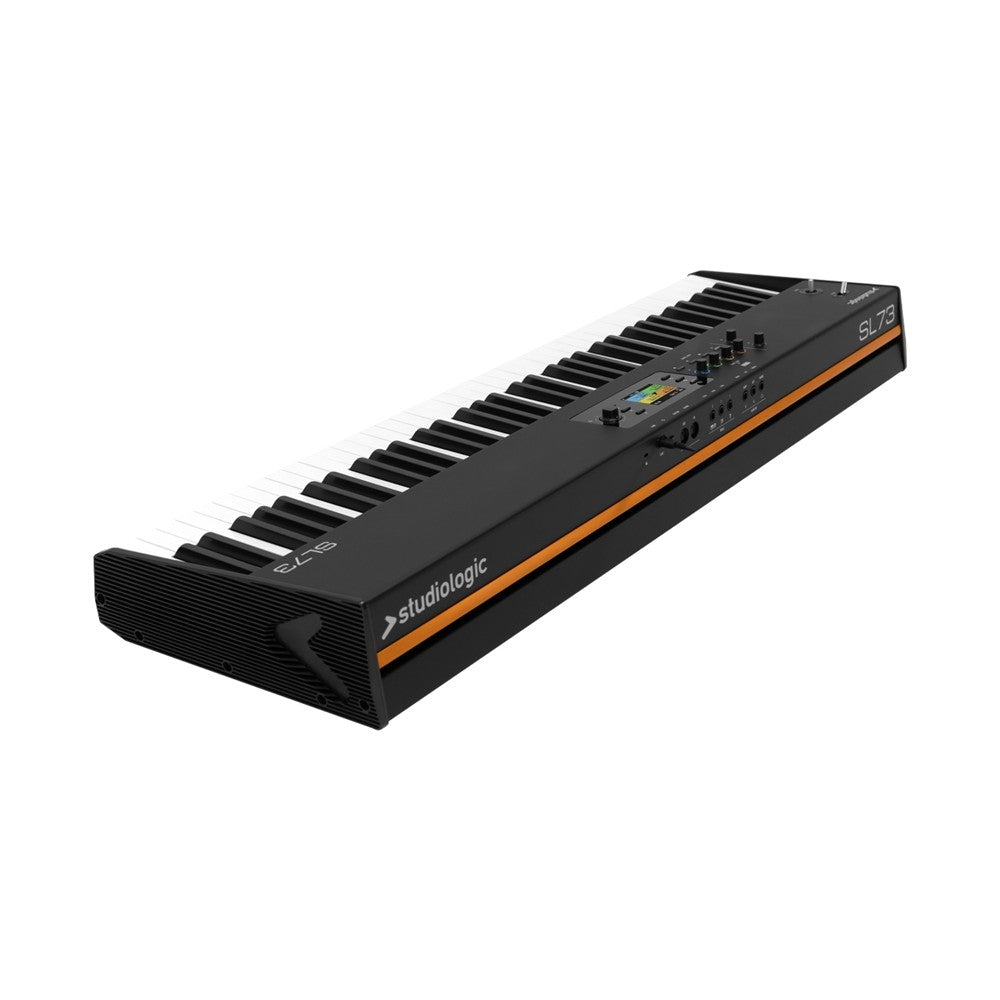

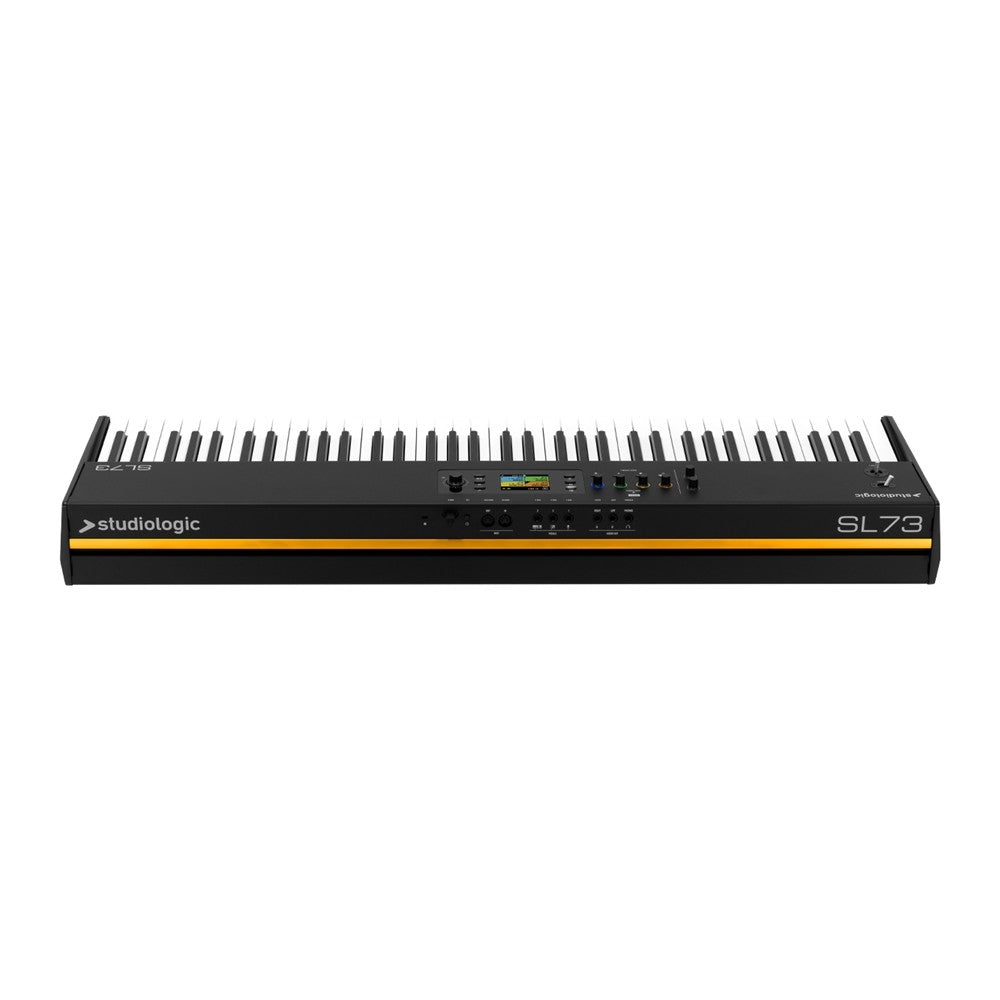

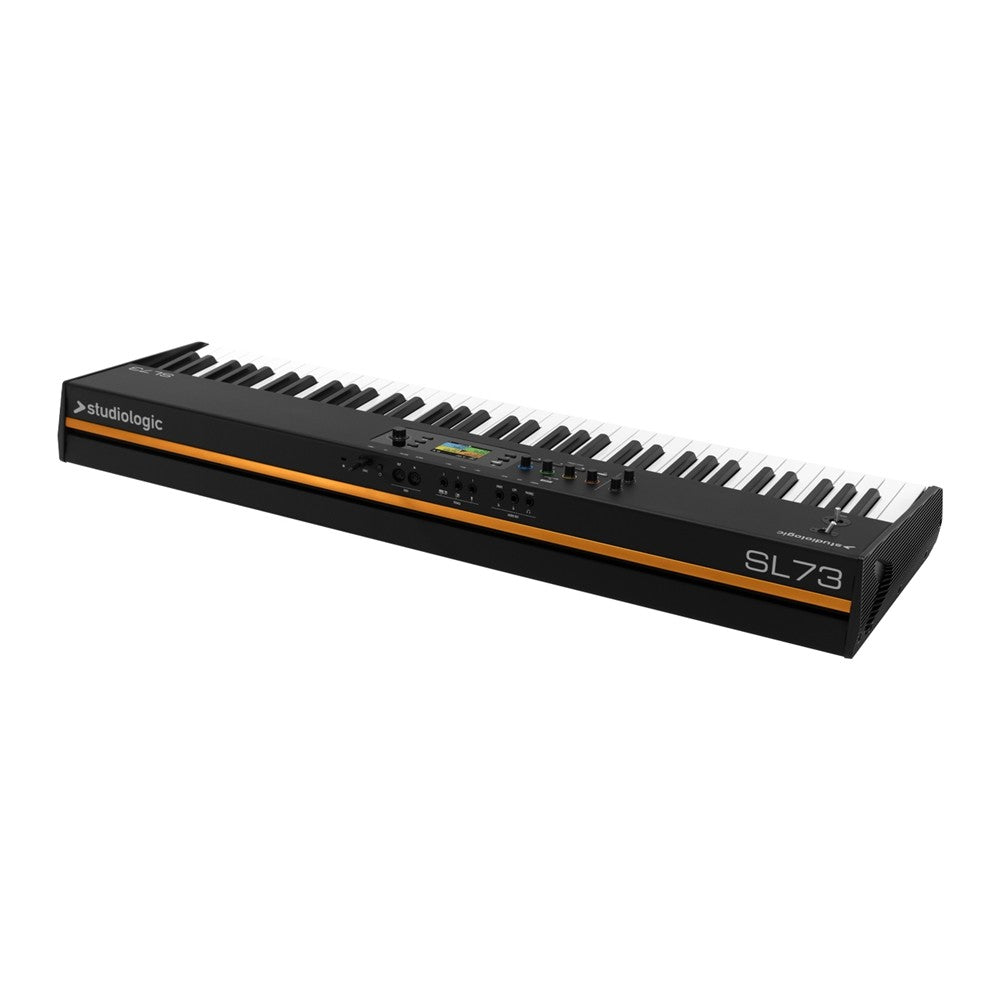

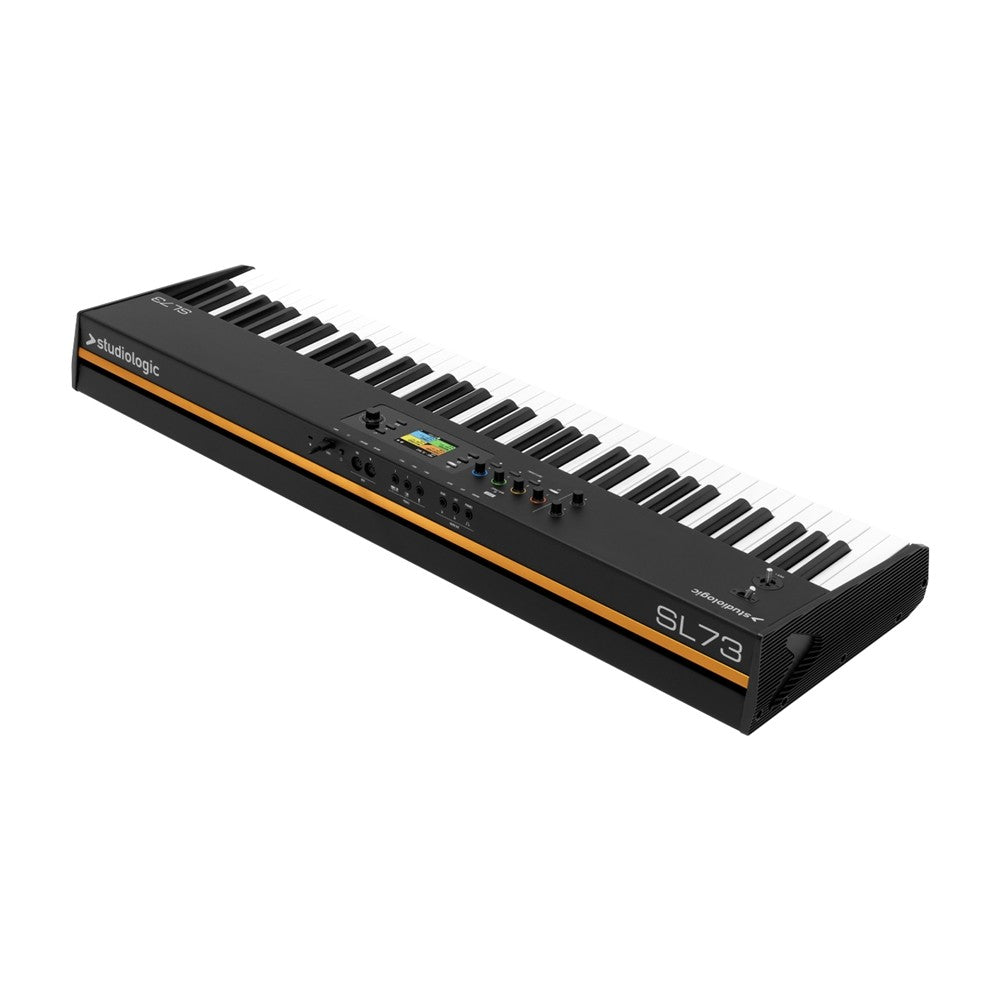

Connections:

•

• USB-C: Audio In, MIDI, Numa Player, Power,

• MIDI: In, Out

• Pedals x 2: Switch, switch/continuous, universal

• Audio Outputs: 2x 6.3 mm TS/mono jack (L+R) - 6.3 mm TRS/stereo jack (headphone)


SL73 MK 2 Dimensions:

•

• Width: 105.2 cm

• Depth: 31 cm

• Height: 12.3 cm

• Weight: 11.2 kg / 24.7 lbs


Compatible Accessories:

•

• Softcase SIZE B, SIZE C

• Magnetic Music Stand TYPE A

• Magnetic Computer Plate TYPE A

• Soft case SIZE B, SIZE C

• Magnetic Music Stand TYPE A

• Magnetic Computer Plate TYPE A


Pedals:

•

• PS/100, PS/150, PS/250

• VFP1/10, VFP1/15, VFP1/25

• VFP2/10, VFP2/15

• SLP3-D

• VP/25, VP/27

• FP/50
