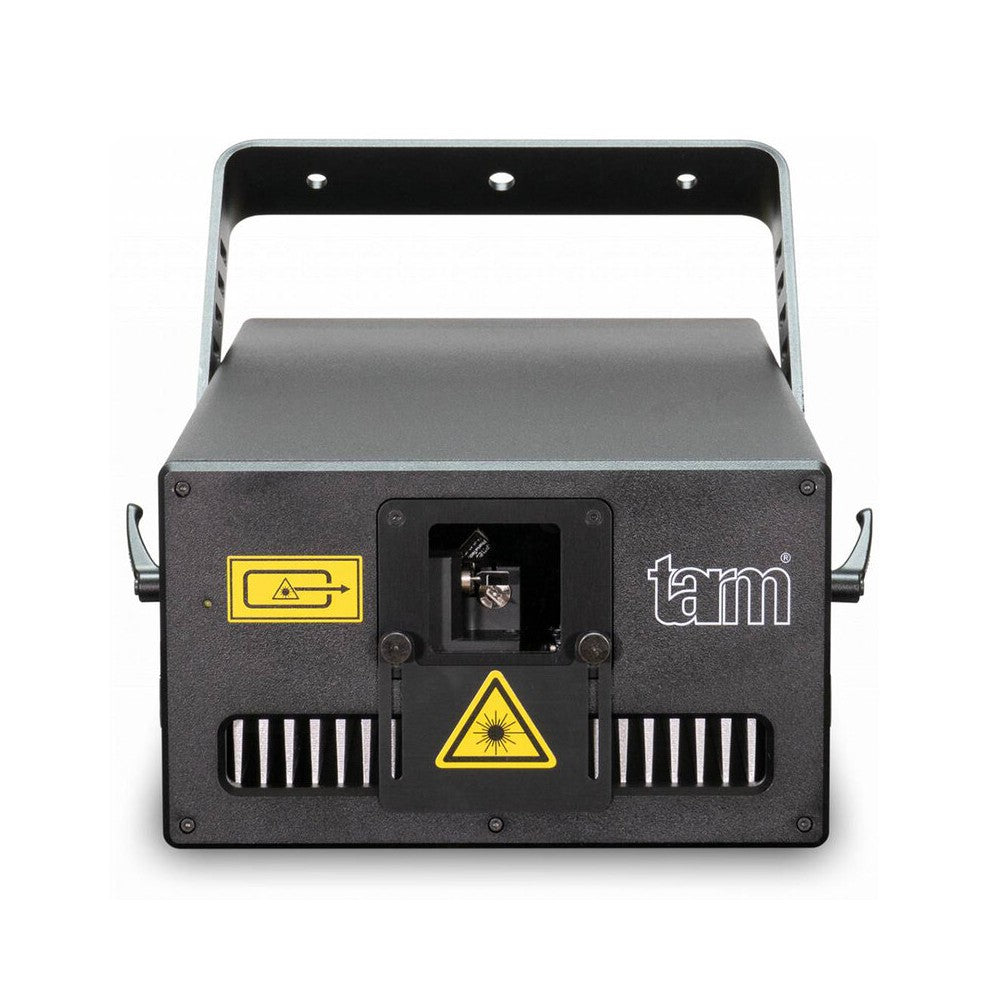

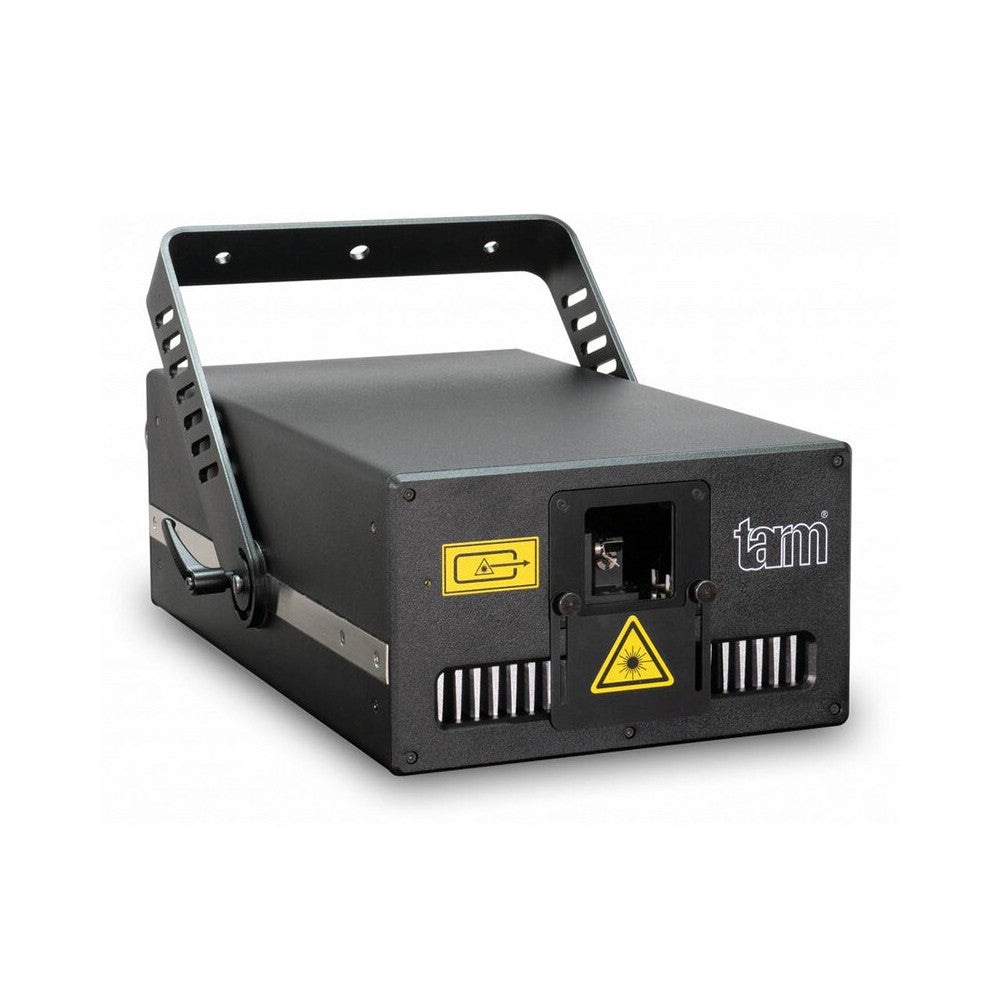

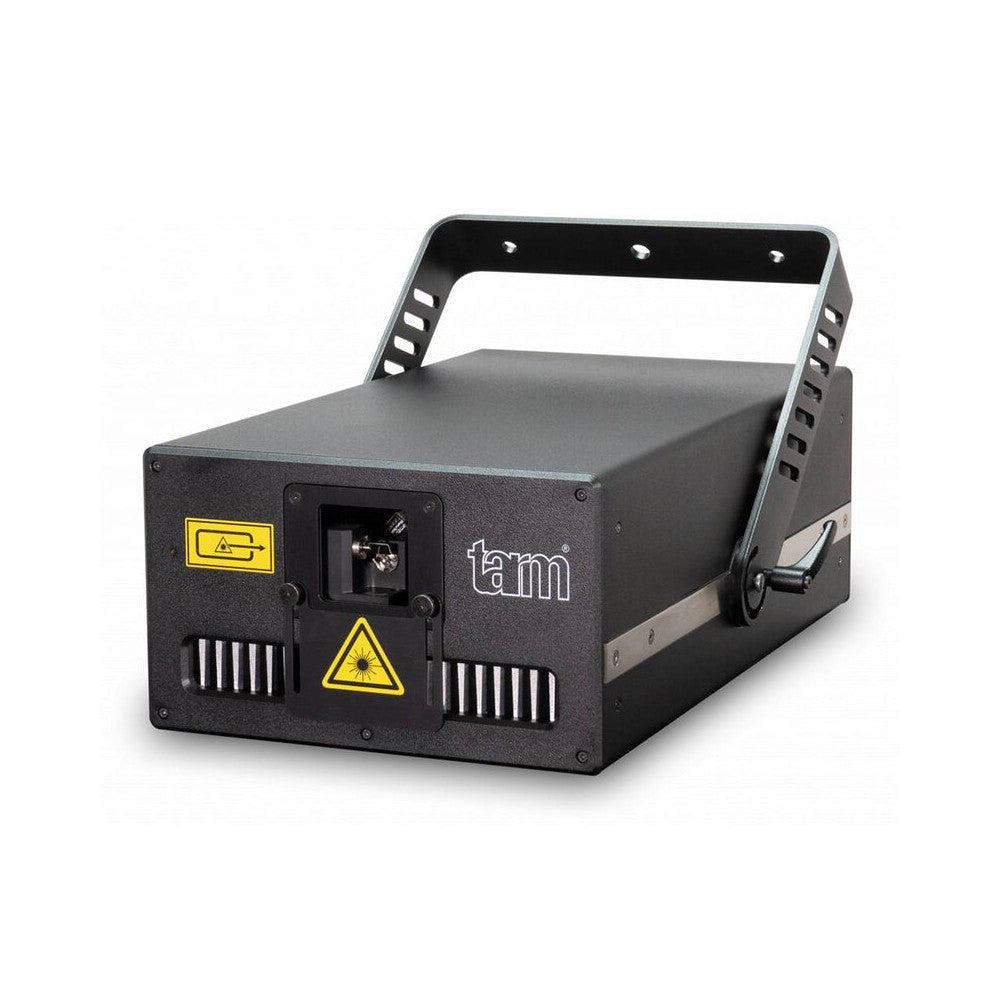

TARM Lasers 13,000 mW compact show laser with FB4 interface

FEATURES

tarm 13 FB4, made in Germany, is a compact show laser system, ideal for professional laser show applications of any kind. It is built with the latest RTI semiconductor laser modules, specially designed to keep the spot size and divergence equal on both the x and y axes. This is significantly advantageous compared to solutions with very good divergence on one axis, but poor divergence on the other. The laser modules inside the tarm 13 FB4 are diverse: the spot size and shape are the same for all colors and on both axes!

The beam specifications of the tarm 13 FB4 are a diameter of only approx. 5 mm and a divergence < 0.8 mrad, which applies to both axes.

tarm 13 FB4 impresses with a guaranteed RGB output power of 13,000 mW. Excellent visibility is achieved with the new RTI semiconductor laser (RSL) modules with special wavelengths for increased visibility: 4000 mW / 637 nm for a very bright red combined with 5800 mW / 525 nm green and a powerful blue laser module with 5000 mW / 455 nm. The 525 nm green provides a warmer shade of green than 520 nm diodes and has higher visibility.
These new RSL modules, with their extremely low divergence and homogeneous beam shape, make the tarm 13 FB4 a top-tier professional laser system. The extremely small beam diameter of only about 5 mm allows the use of small scanner mirrors which results in reduced inertia and higher scanning speeds. This is particularly important, as the tarm 13 FB4 can be used for any type of laser show application: super sharp beams and vibrant colors for large-scale concerts and festivals, but also a perfectly matched beam for crisp graphics.

RTI Semiconductor laser modules are maintenance-free and do not lose internal alignment.

Standard scanners can operate at a maximum of 45 kpps at 8° ILDA and a maximum scan angle of 50°. CT-6210 scanners with LAS Turboscan drivers are available as an option and provide even higher scanning speeds up to 60 kpps at 8° ILDA.

A Pangolin FB4 interface, in this case installed instead of the Shownet interface, allows control of the laser with Pangolin software.

The powerful tarm 13 FB4 is suitable for indoor and outdoor show laser applications. Demanding graphic projections or long-distance projections are possible without problems, thanks to the excellent divergence.

Main Features

• 13 W total RGB power in a small housing of only 44.1 x 26 x 15.3 cm
• Super small spot of approx. 5 mm for reduced inertia and therefore fast scanning
• All wavelengths are matched in divergence and beam size
• Extremely low divergence of < 0.8 mrad, on both axes!
• Integrated network switch for connecting the control signal
• Compact form factor, module size same as Coherent OPSL modules
• Extremely lightweight unit
• Different, brighter wavelengths for increased visibility
• Brilliant colors and excellent color fading
• Laser modules do not go out of internal alignment
• Maintenance-free laser modules
• High quality product, made in Germany
• Excellent scanning performance suitable for both projections and beams
• Integrated Pangolin FB4 mainboard

Benefits for Users

• High guaranteed output power of 13,000 mW
• Ability to handle complex graphics
• Extremely sharp intense beams, especially when compared to other lasers of this power
• Powerful integrated mainboard with advanced configuration features and DAC
• Robust compact housing
• Waterproof flight case included
• Pangolin FB4 interface

Areas of Use

• Indoor and outdoor laser shows at concerts, festivals and other large events

SPECIFICATIONS

Technical characteristics

• Guaranteed power at aperture: 13,000 mW
• Power red: 4000 mW / 637 nm
• Power green: 5800 mW / 525 nm
• Power blue: 5000 mW / 455 nm
• Beam specifications: ca. 5.0 mm / < 0.8 mrad
• Scanner: 45 kpps @ 8° ILDA; optional CT-6210 with LAS Turboscan 60 kpps@8° ILDA, max. 60°
• Max. scan angle: 50°
• Laser source: RSL modules
• Laser Class: 4
• Operation modes: ILDA, DMX, LAN, Art-Net, integrated SD card, stand-alone, master-slave; integrated intelligent FB4 laser mainboard with display
• Basic patterns: over 120 (layers, tunnels, fences, waves, etc.)
• Accessories: incl. waterproof flightcase, rain cover, power cable, manual, key, interlock connector, full version Showeditor software license included
• IP rating: IP54
• Power supply: 85 - 250 V_AC
• Power consumption: 350 W
• Dimensions: 44.1 x 26 x 15.3 cm
• Weight: 18 kg
