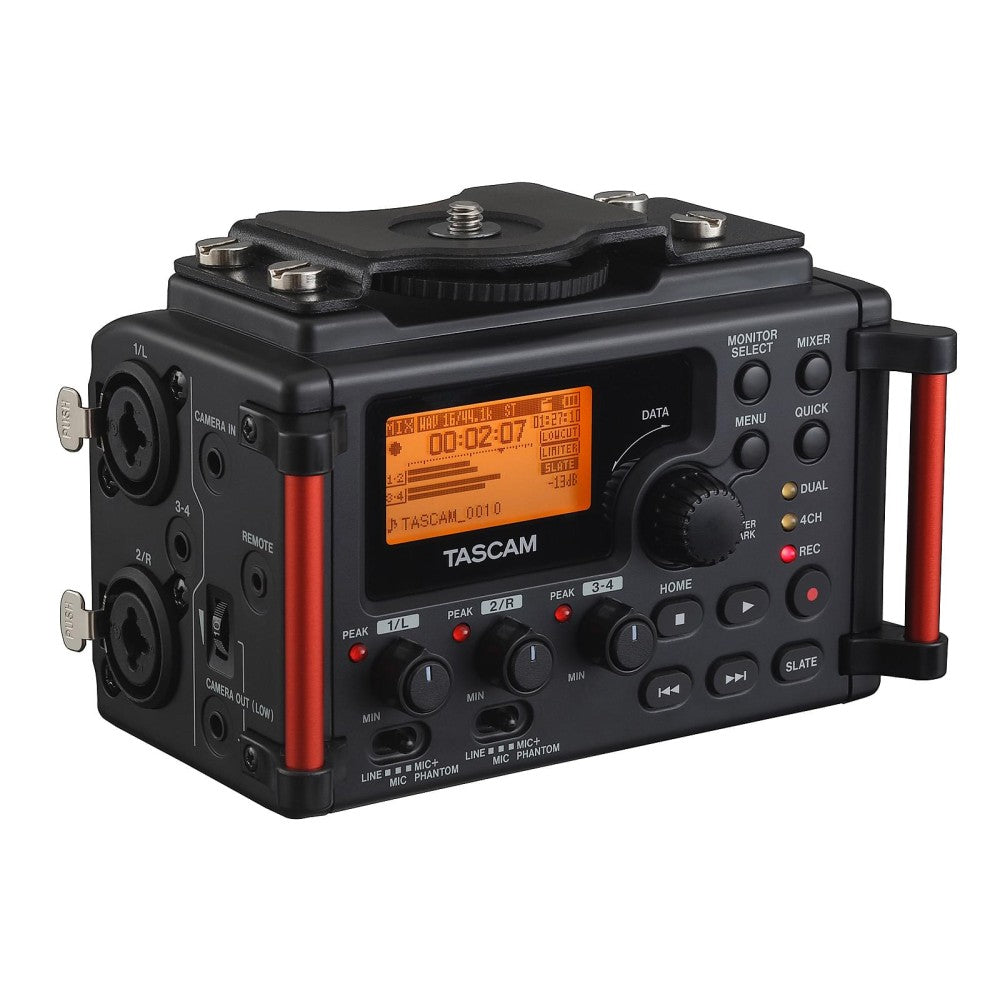

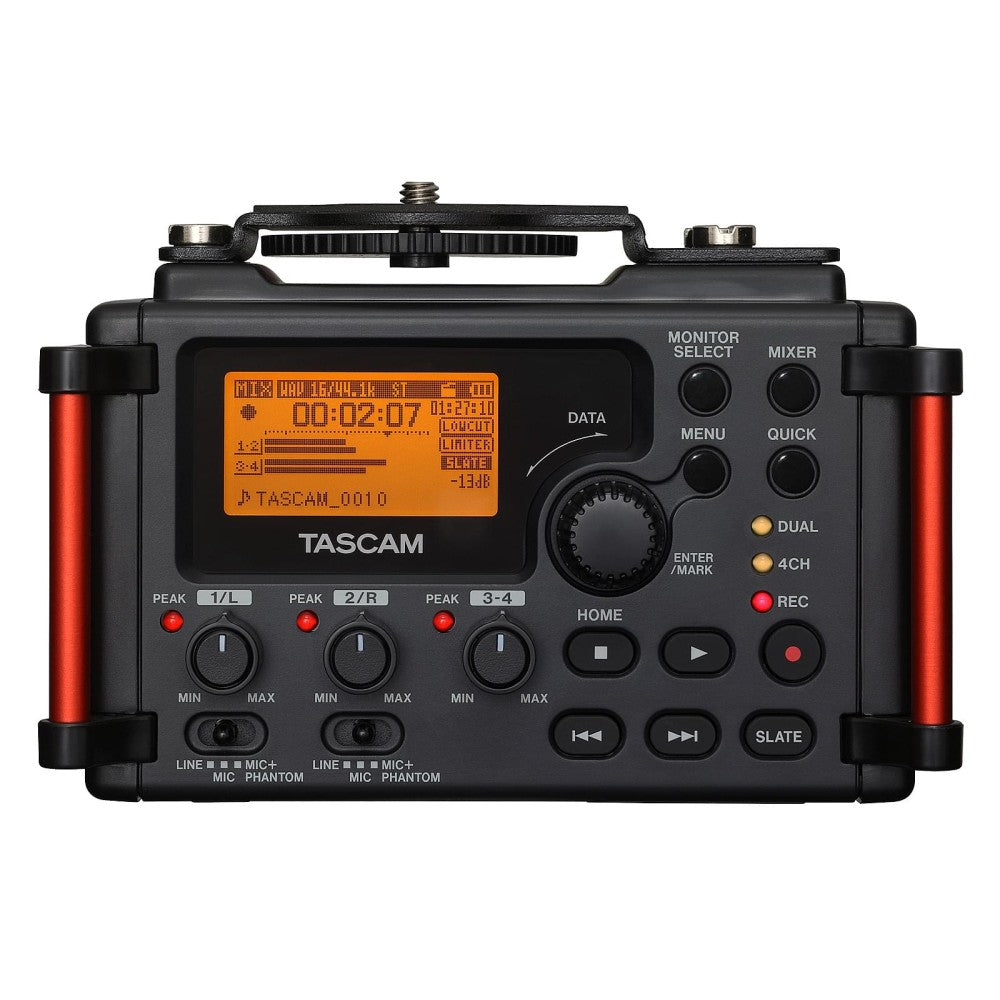

TASCAM DR-60DMK2 MULTITRACK RECORDER

4-TRACK AUDIO RECORDER, FOR DSLR CAMERAS

The DR-60D MKII is a compact 4-track recorder designed for use with digital single-lens reflex (DSLR) or digital single-lens mirrorless (DSLM) cameras. It can be mounted directly on the camera to record high-resolution audio. It uses HDDA microphone preamplifiers, whose quality is considered state-of-the-art for S/N ratio and low distortion. Recordings can be made in 44.1/48/96 kHz, 16/24-bit WAV or BWF format. It records in stereo mode and up to 4 channels simultaneously, which can then be reduced to a stereo signal. Recording levels can be adjusted independently for inputs 1, 2, and 3, 4, and the Dual Recording function allows two files to be recorded in parallel at different levels.

Specifications

• Compact recorder for dedicated use with DSLR systems
• Uses SD/SDHC card format
• Uses Tascam "High Definition Discrete Architecture" (HDDA) microphone preamps
• Stereo recording and up to four channels
• Four channels can be remixed to two.
• Recording levels with independent adjustment for inputs 1, 2, and 3, 4
• Dual recording function to record two files at different levels
• Recordings in 44.1/48/96 kHz, 16/24-bit PCM (WAV) format
• Support for Broadcast Wave (BVF) format

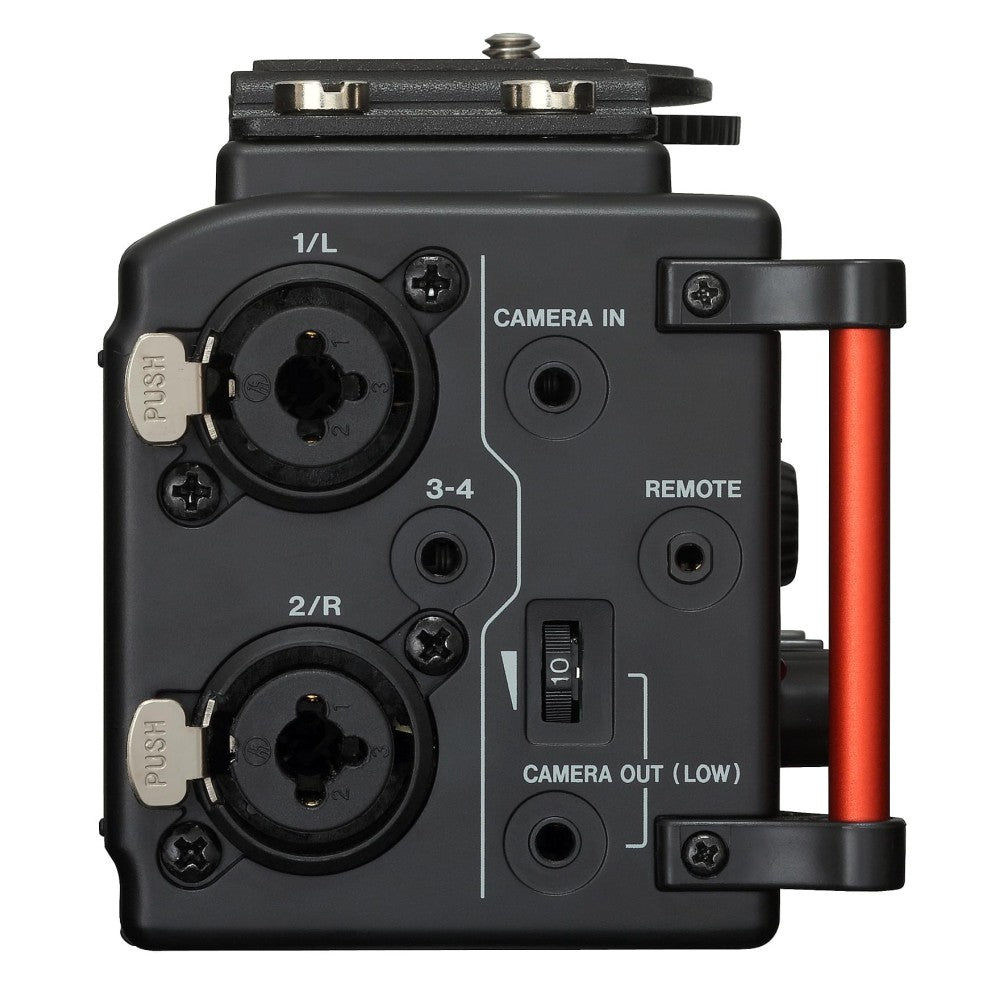

• XLR mic/line inputs with phantom power (+24V/+48V)
• TRS mic/line inputs with +24 dBu input support when used as line inputs
• "HI+PLUS" setting allows a maximum gain of 64 dB
• Stereo mini-jack input with microphone support
• Low-cut filter (40 Hz, 80 Hz, 120 Hz)
• The camera input allows monitoring of audio from a DSLR camera
• Mid-side decoding capability with the use of MS configuration setups
• Slate tone (automatic/manual) to simplify synchronization of video files during editing
• Pre-recording function that allows the unit to record two seconds of sound before recording is activated
• Auto recording function for start and stop via input level
• A new file can be created during recording (manually or by file size)
• Self-timer function to start recording after a preset period of time
• Jump-back function that allows a portion of a file to be repeated for a few seconds with a single button press
• Adjustable delay to eliminate time discrepancies due to different distances of two input sources
• QUICK button for easy access to various functions
• Divide function that allows files to be split at the desired point
• Mark function to quickly jump to a precise point in the file
• EQ function for playback and level alignment for consistent sound perception
• Resume function to memorize the playback position before the unit is turned off

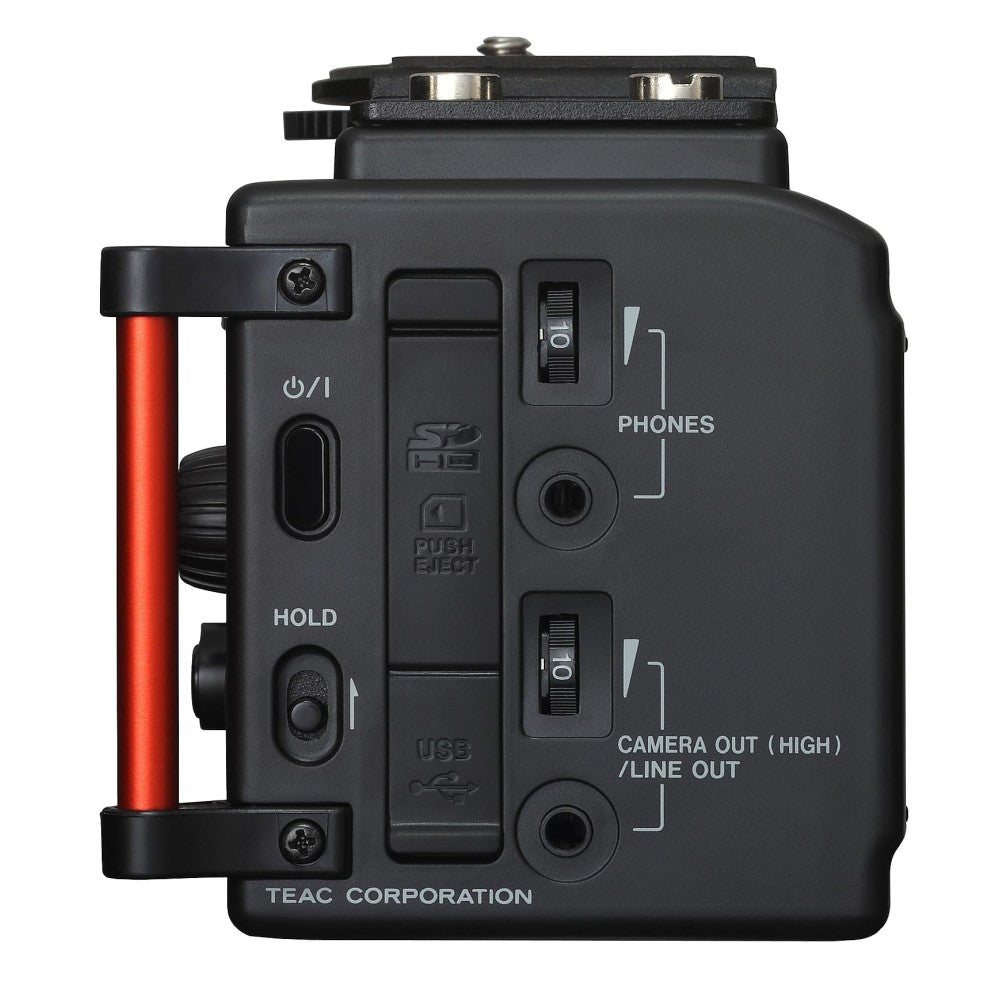

• Line and headphone outputs with individual level controls (3.5-mm jack)
• Backlit 128 x 64 pixel display
• USB 2.0 port
• Stand adapter (¼ inch)
• DSLR bracket
• Jack for optional dedicated remote controller (for use with RC-10 and RC-3F (sold separately))
• Hold switch to prevent unintended operations
• Practical front handles
• Operates with AA batteries or with Tascam PS-P520E AC adapter (not included), Tascam BP-6AA battery pack or USB
• Automatic switching from external to internal power when needed (with display warning)
