TASCAM ML-16D 16-channel Dante Converter

16-channel Dante Converter

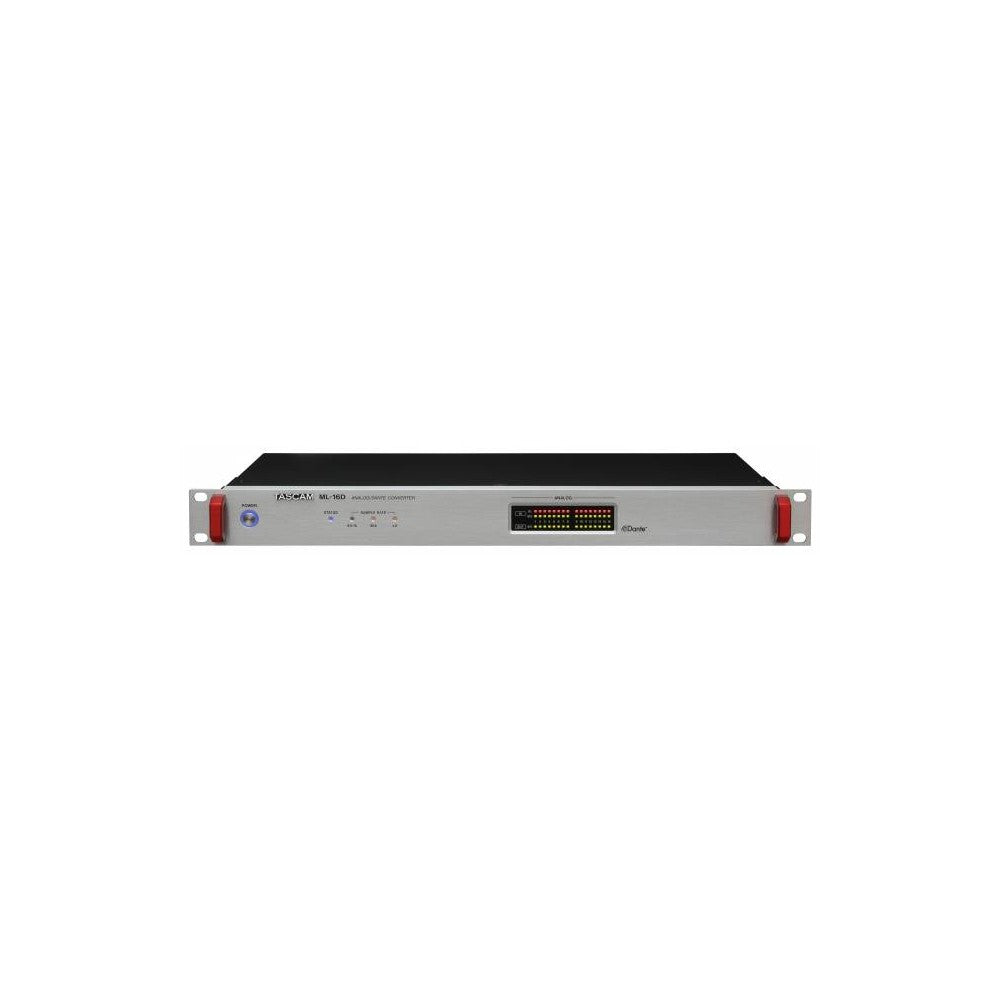

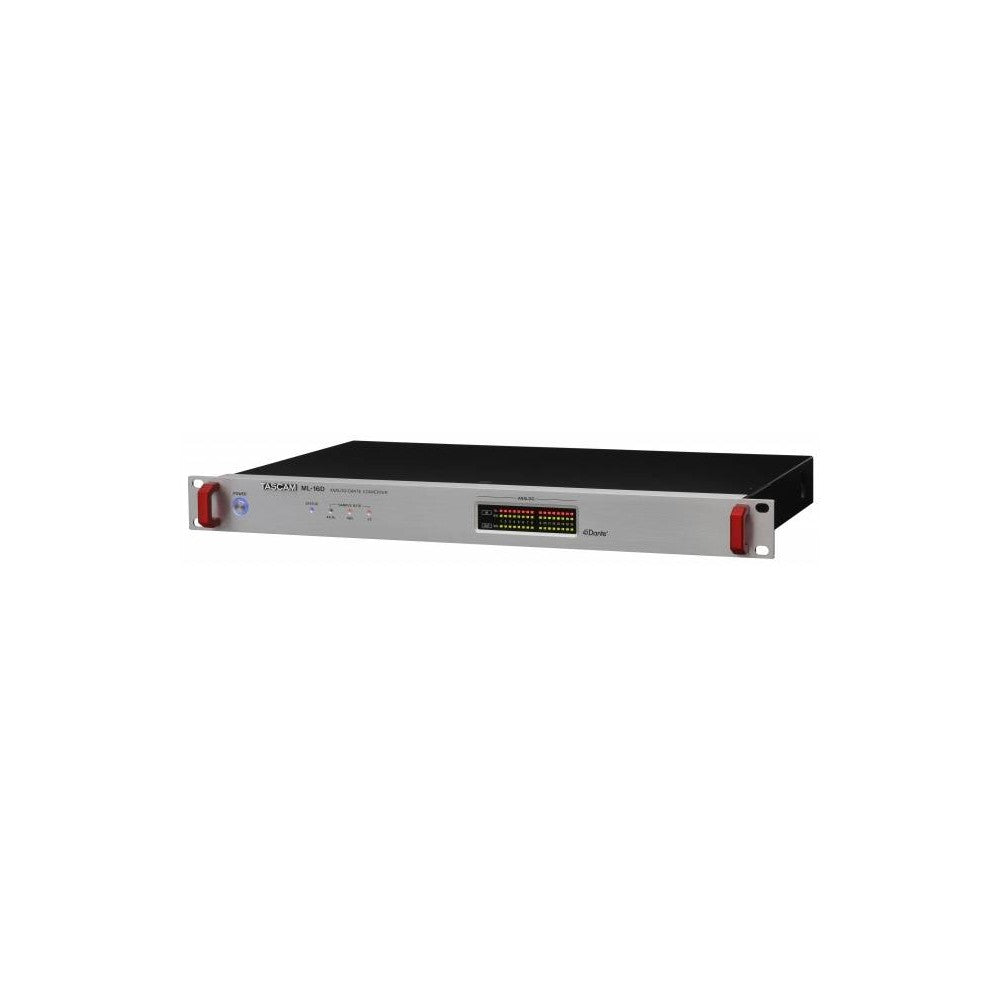

The TASCAM ML-16D is a 16-channel Dante converter specifically designed to embed or extract analog audio to or from a Dante (Digital Audio Network Through Ethernet) network using external breakout devices that use Sub-D format connectors.

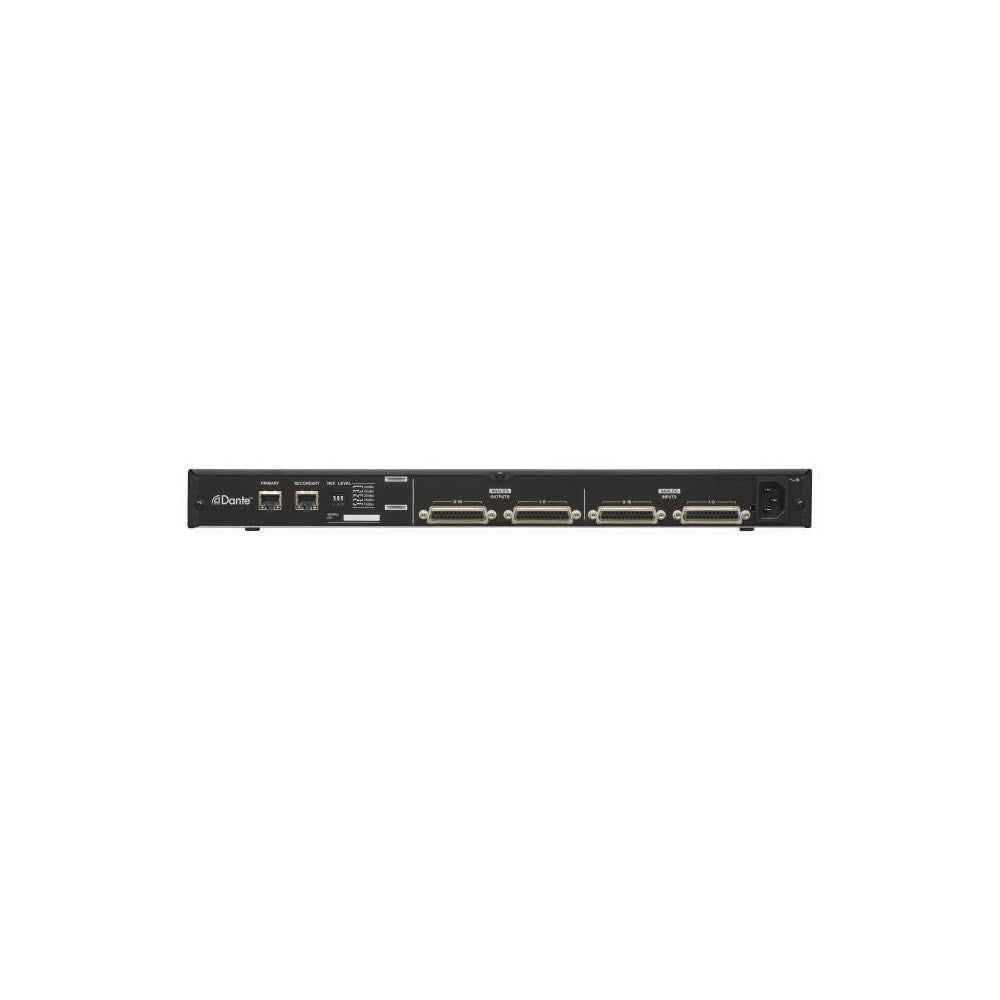

A powerful and flexible solution, the TASCAM ML-16D has 2 D-Sub inputs and 2 D-Sub outputs, which can be easily connected to any of the many devices that use D-Sub connectors such as microphone preamplifiers, large and small format console mixers, audio interfaces, amplifiers and devices with euro block connectors. This simple, yet elegant solution allows you to quickly and easily embed or extract audio from the Dante audio stream.
The primary and secondary connectors allow you to create a redundant system with a duplex network. Should the primary network fail, the TASCAM ML-16D automatically switches to the secondary network path. This highly secure system prevents interruptions and introduces no noise during the switch.
The TASCAM ML-16D uses Dante Controller to configure the main unit and to connect to other Dante compatible devices. Dante Controller allows flexible routing configuration to other Dante compatible devices.
The front panel features a signal/overload indicator that allows monitoring of analog input/output signals. The signal indicator lights up when a signal level falls below -60dBF.
The TASCAM ML-16D offers a selectable reference level setting from 5 maximum level options: +24dBu, +22dBu, +20dBu, and +18dBu (the standard level is +4dBu), and +15dBu (the standard level is +6dBu), which can adapt to a variety of purposes including professional use in broadcast studios, public address systems, and recording environments.

Specifications

Formats

• 44.1 / 48 kHz, 16/24 bit
• 88.2 / 96 kHz, 16/24 bit

PRIMARY / SECONDARY Connectors

• Connector: RJ-45
• Transmission Protocol: Dante
• Gigabit Ethernet Standard: 1000BASE-T (IEEE 802.3ab)
• Cables: Category 5e or faster STP cables

ANALOG OUTPUT Connectors

• Connector: 25-pin D-sub
• Locking Screws: No. 4-40 UNC (inch type)
• Nominal Output Levels: +4 dBu, +6 dBu (only when maximum output level is +15 dBu)
• Maximum Output Levels: +24 dBu, +22 dBu, +20 dBu, +18 dBu, +15 dBu (set by REF. LEVEL switches)
• Output Impedance: 200 Ω or less
• Applicable Load Impedance: 2 kΩ or more

ANALOG INPUT Connectors

• Connector: 25-pin D-sub
• Locking Screws: No. 4-40 UNC (inch type)
• Nominal Input Levels: +4 dBu, +6 dBu (only when maximum input level is +15 dBu)
• Maximum Input Level: +24 dBu, +22 dBu, +20 dBu, +18 dBu, +15 dBu (set by REF. LEVEL switches)
• Input Impedance: 10 kΩ or more

ANALOG IN to DANTE OUT

• Frequency Response: +0.1 dB / -0.5 dB: 20 Hz / 20 kHz (-16 dBFS input, sampling frequency 44.1 / 48 kHz, JEITA), +0.1 dB / -0.5 dB: 20 Hz / 40 kHz (-16 dBFS input, sampling frequency 88.2 / 96 kHz, JEITA)
• Distortion (THD+N): 0.001% or less (-1 dBFS input, 1 kHz, sampling frequency 44.1 / 48 / 88.2 / 96 kHz, JEITA)
• S/N Ratio: 113 dB or more (sampling frequency 44.1 / 48 / 88.2 / 96 kHz, JEITA)
• Crosstalk: 115 dB or more (1 kHz sampling frequency, 44.1 / 48 / 88.2 / 96 kHz, JEITA)

DANTE IN to ANALOG OUT

• Frequency Response: +0.1 dB / -0.5 dB: 20 Hz / 20 kHz (-16 dBFS input, sampling frequency 44.1 / 48 kHz, JEITA), +0.1 dB / -1.0 dB: 20 Hz / 40 kHz (-16 dBFS input, sampling frequency 88.2 / 96 kHz, JEITA)
• Distortion (THD+N): 0.001% or less (-1 dBFS input, 1 kHz, sampling frequency 44.1 / 48 / 88.2 / 96 kHz, JEITA)
• S/N Ratio: 110 dB or more (sampling frequency 44.1 / 48 / 88.2 / 96 kHz, JEITA)
• Crosstalk: 115 dB or more (1 kHz sampling frequency, 44.1 / 48 / 88.2 / 96 kHz, JEITA)

Other

• Power: AC100-240 V, 50/60 Hz
• Power Consumption: 22W
• Operating Temperature Range: 0-40º
• Included items: Main unit x1, Power cord x1, Rack mount screw kit x1, Instruction manual (this document) including warranty x1
