UNIVERSAL AUDIO 6176 Vintage Channel Strip
Estimated delivery in Italy between 16 and 18 June
Paga in 3 rate da €1.107,66 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
Vintage channel strip

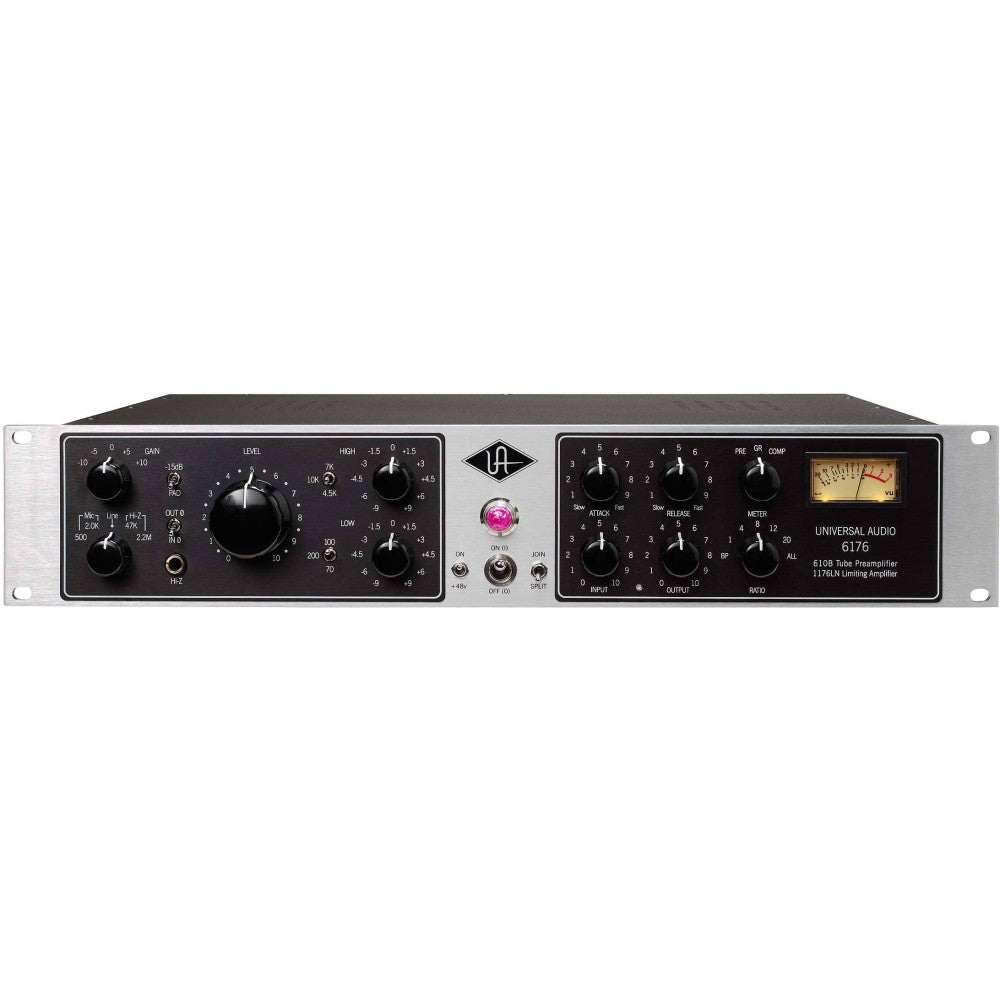

The UNIVERSAL AUDIO 6176 is a TEC Award-winning vintage channel strip that combines a channel of the classic 610 amplifier with an updated version of the 1176LN to create the ultimate channel strip. The UNIVERSAL AUDIO 6176 features Mic, Line, and Hi-Z inputs, a two-band shelving EQ, and a -15dB Pad.
The 1176 section in the UNIVERSAL AUDIO 6176 retains all the characteristics of the legendary 1176LN.
Each unit has dedicated inputs and outputs that can be used independently in "Split" mode or in "Join" mode via a simple switch.
Specifications
- All-tube microphone preamp section derived from Bill Putnam's legendary 610 modular console
- Signature 1176LN Class A FET compressor section
- "Split" or "Join" switch for separate or series operation of the preamp and compressor
- High and low frequency shelving EQ
- Variable impedance input, gain and output levels
- Balanced Mic, Line and Hi-Z inputs
- Ultra-quiet operation
- Stereo interlink via 1176-SA
- Hand-built in the USA; backed by a 1-year limited warranty
Preamplifier
- Microphone input impedance: selectable, 500 Ω (ohms) or 2k
- Balanced line input impedance: 20k Ω
- Hi-Z input impedance: selectable between 2.2 M Ω or 47 k Ω
- Maximum microphone input level: +18 dBu (2k input impedance and 15 dB input)
- Maximum output level: +20 dBm
- Internal output impedance: 80 Ω
- Minimum recommended load: 600 Ω
- Frequency response: 20 Hz to 20 kHz +0, -1 dB
- Maximum gain: 65 dB (500 Ω input impedance)
- Signal/noise ratio > 90 dB (@ max gain)
Amplifier-limiter
- Input impedance: selectable, 15k Ω (ohms) or 600 Ω
- Output load: 600 Ω (floating) impedance
- Frequency response: 20 Hz to 20 kHz ± 1 dB
- Gain: 40 dB, ± 1 dB
- Distortion: > 0.5% T.H.D. from 50 Hz to 15 kHz with limiting, with 1.1 second release setting. Output of +22 dBm with no more than 0.5% T.H.D.
- Signal-to-noise ratio: > 75 dB
- Attack time: adjustable, 20 to 800 microseconds
- Release time: adjustable, 50 milliseconds to 1.1 seconds
- Stereo interlink: optional, using the 1176SA stereo interlink accessory
General
- Tubes: (1) 12AX7A, (1) 12AT7A
- Power requirements: 115 V / 230 V
- Power connector: removable IEC power cable.
- Fuse: 400 mA slow blow / 115 V, 200 mA slow blow / 230 V
- Power indicator: 28 V bulb (type 1819)
