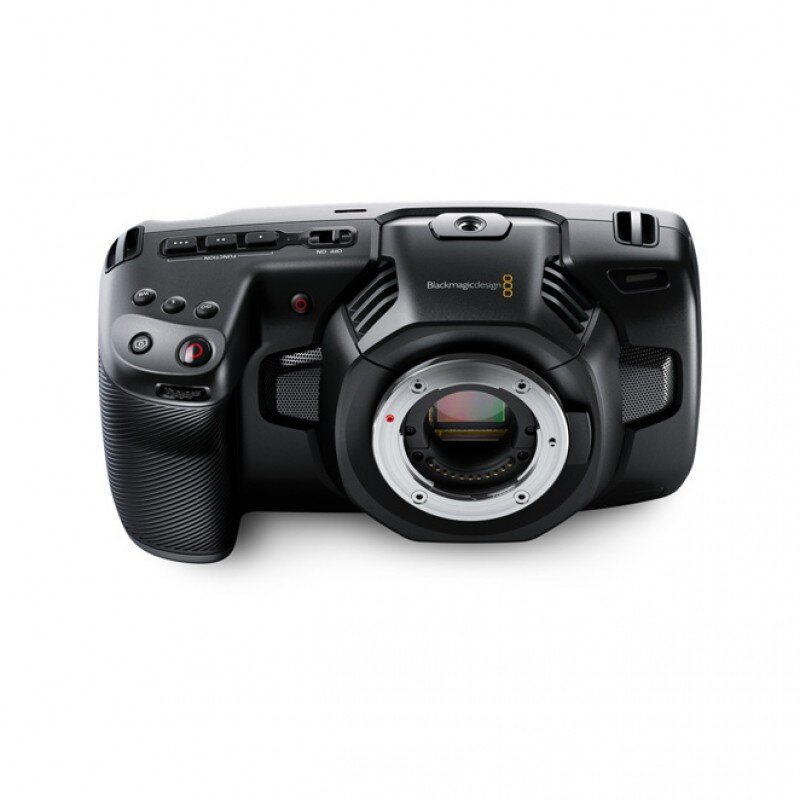

Blackmagic Design Blackmagic Pocket Cinema Camera 4K

CARATTERISTICHE

Alta qualità e prestazioni con la Blackmagic Pocket Cinema Camera 4K, una videocamera progettata con sensore di dimensioni Micro 4/3, 13 stop di gamma dinamica e doppio ISO nativo 400 e 3200 per immagini HDR e incredibili prestazioni in condizioni di scarsa luminosità.

Le funzioni essenziali sono facilmente raggiungibili grazie ai controlli esterni, mentre l'ampio touchscreen da 5" permette di inquadrare, mettere a fuoco con precisione e modificare le impostazioni della fotocamera in modo pratico. Inoltre, troviamo uno slot CFast e uno slot SD UHS‑II e una porta di espansione USB-C per registrare esternamente su dischi in formato Blackmagic RAW o ProRes, ingresso mini XLR, HDMI full size, supporto 3D LUT, Bluetooth e altro ancora.

Caratteristiche principali

• Cinepresa digitale 4K per riprese a mano
• Doppio ISO nativo per ottime prestazioni con scarsa illuminazione
• Ideale per film indipendenti, blog ed eventi
• Registrazione su schede CFast, SD UHS-II o drive USB C esterni
• 4K, 13 stop di gamma dinamica, baionetta micro 4/3, touchscreen da 5"

SPECIFICHE

Technical characteristics

Camera features

• Effective sensor size: 18.96 x 10 mm (Micro Four Thirds)
• Lens mount: Active MFT mount
• Lens control: Iris, focus and zoom on supported lenses
• Dynamic range: 13 stops
• Dual native ISO: 400 and 3200
• Shooting resolutions: 4096 x 2160p 60, 4096 x 1720p 75, 3840 x 2160p 60, 2880 x 2160p 80, 2688 x 1512p 120, 1920 x 1080p 120
• Frame rates: max. sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates up to 60 fps in 4K DCI, 120 fps in 2.6K 16:9 and HD windowed
• Focus: Auto focus available using compatible lenses
• Iris control: Iris wheel and touchscreen slider for manual adjustment, auto iris button on compatible lenses
• Screen dimensions: 5” 1920 x 1080
• Screen type: LCD capacitive touchscreen
• Metadata support: automatically populated lens data from electronic Micro Four Thirds lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files
• Controls: touchscreen menus, 1 x power switch, 1 x record button, 1 x stills button, 1 x scroll wheel, 1 x ISO button, 1 x white balance, 1 x shutter button, 3 x Fn buttons, 1 x IRIS button, 1 x focus button, 1 x HFR button, 1 x zoom button, 1 x menu button, 1 x playback button

Connections

• Total video inputs: none
• Total video outputs: 1 x HDMI up to 1080p 60
• Analog audio inputs: 1 x mini XLR analog switchable between mic with Phantom power support and line level (up to +14 dBu). 1 x 3.5 mm stereo input. Can also be used for Time Code input
• Analog audio outputs: 1 x 3.5 mm headphone jack
• Computer interface: USB Type-C for external drive recording, PTP camera control, software updates

Audio

• Microphone: integrated stereo microphone
• Built in speaker: 1 x mono speaker

Video standards

• HD: 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60
• Ultra HD: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 50, 2160p 59.94, 2160p 60
• 4K DCI: 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI, 4Kp 29.97 DCI, 4Kp 30 DCI, 4Kp 50 DCI, 4Kp 59.94 DCI, 4Kp 60 DCI

Media

• Media: 1 x CFast card slot, 1 x SD UHS-II card slot, 1 x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW, Apple ProRes RAW and Apple ProRes recording
• Media format: can format media to ExFAT (Windows / Mac) or HFS+ (Mac) file systems

Supported codecs

•
• Blackmagic RAW Constant Bitrate 3:1, Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1, Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q5, Apple ProRes RAW HQ, Apple ProRes RAW, Apple ProRes 422 HQ QuickTime, Apple ProRes 422 QuickTime, Apple ProRes 422 LT QuickTime, Apple ProRes 422 Proxy QuickTime
Control
• External control: iPad control, Bluetooth control, USB PTP camera control. External control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and internal record start and stop when used with a compatible ATEM and ATEM Software Control

Cloud synchronization

• Blackmagic Cloud

Color corrector

• Color corrector: DaVinci YRGB

Storage features

• Storage type: 1 x CFast 2.0, 1 x SD UHS-II, 1 x high speed USB-C expansion port for external media
• Recording formats: Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3, Q5 plus Apple ProRes RAW HQ and Apple ProRes RAW at 4096 x 2160, 4096 x 1720, 3840 x 2160, 2880 x 2160, 2688 x 1512 and 1920 x 1080 with film, extended video or video dynamic range or custom 3D LUT embedded in metadata. Apple ProRes at 4096 x 2160, 3840 x 2160 and 1920 x 1080 with film, extended video or video dynamic range or custom 3D LUT. Supports recording optional portrait mode metadata for all resolutions in Blackmagic RAW, Apple ProRes RAW and Apple ProRes
• Storage rates (30 fps):
  • 4096 x 2160: RAW 3:1 136 MB/s, 5:1 82 MB/s, 8:1 51 MB/s, 12:1 35 MB/s, Q0 102–203 MB/s, Q1 68–163 MB/s, Q3 46–116 MB/s, Q5 28–68 MB/s; ProRes RAW HQ 185 MB/s, RAW 122.8 MB/s, 422 HQ 117.88 MB/s, 422 78.63 MB/s, 422 LT 54.63 MB/s, Proxy 24.25 MB/s
  • 4096 x 1720: RAW 3:1 108 MB/s, 5:1 65 MB/s, 8:1 41 MB/s, 12:1 28 MB/s, Q0 81–162 MB/s, Q1 55–130 MB/s, Q3 37–93 MB/s, Q5 22–55 MB/s; ProRes RAW HQ 147.7 MB/s, RAW 98 MB/s
  • 3840 x 2160: RAW 3:1 127 MB/s, 5:1 77 MB/s, 8:1 48 MB/s, 12:1 32 MB/s, Q0 96–190 MB/s, Q1 64–153 MB/s, Q3 43–109 MB/s, Q5 26–64 MB/s; ProRes RAW HQ 173.6 MB/s, RAW 115.2 MB/s, 422 HQ 110 MB/s, 422 73.6 MB/s, 422 LT 51 MB/s, Proxy 22.4 MB/s
  • 2880 x 2160: RAW 3:1 96 MB/s, 5:1 58 MB/s, 8:1 36 MB/s, 12:1 25 MB/s, Q0 72–143 MB/s, Q1 48–115 MB/s, Q3 32–82 MB/s, Q5 20–48 MB/s; ProRes RAW HQ 85.8 MB/s, RAW 57 MB/s
  • 2688 x 1512: RAW 3:1 63 MB/s, 5:1 38 MB/s, 8:1 24 MB/s, 12:1 16 MB/s, Q0 48–94 MB/s, Q1 32–76 MB/s, Q3 22–54 MB/s, Q5 13–32 MB/s
  • 1920 x 1080: RAW 3:1 33 MB/s, 5:1 20 MB/s, 8:1 13 MB/s, 12:1 8.4 MB/s, Q0 25–49 MB/s, Q1 17–39 MB/s, Q3 11–28 MB/s, Q5 7–17 MB/s; ProRes RAW HQ 44.3 MB/s, RAW 29.5 MB/s, 422 HQ 27.5 MB/s, 422 18.4 MB/s, 422 LT 12.75 MB/s, Proxy 5.6 MB/s

Software included

• Blackmagic OS
Operating systems
• Mac: 13.0 Ventura, 14.0 Sonoma or later
• Windows: 10 and 11

Power requirements

• Power supply: 1 x external 12 V power supply
• External power input: 1 x 2-pin locking connector
• Battery type: Canon LP-E6
• Battery life: approximately 60 min (24 fps, no external USB-C device)
• Power: 12 - 20 V

Accessories

• Optional accessories: Blackmagic Pocket Camera Battery Grip

Environmental specifications

• Operating temperature: 5 to 40 °C
• Storage temperature: -20 to 45 °C
• Relative humidity: 0 to 90% non-condensing

Physical specifications

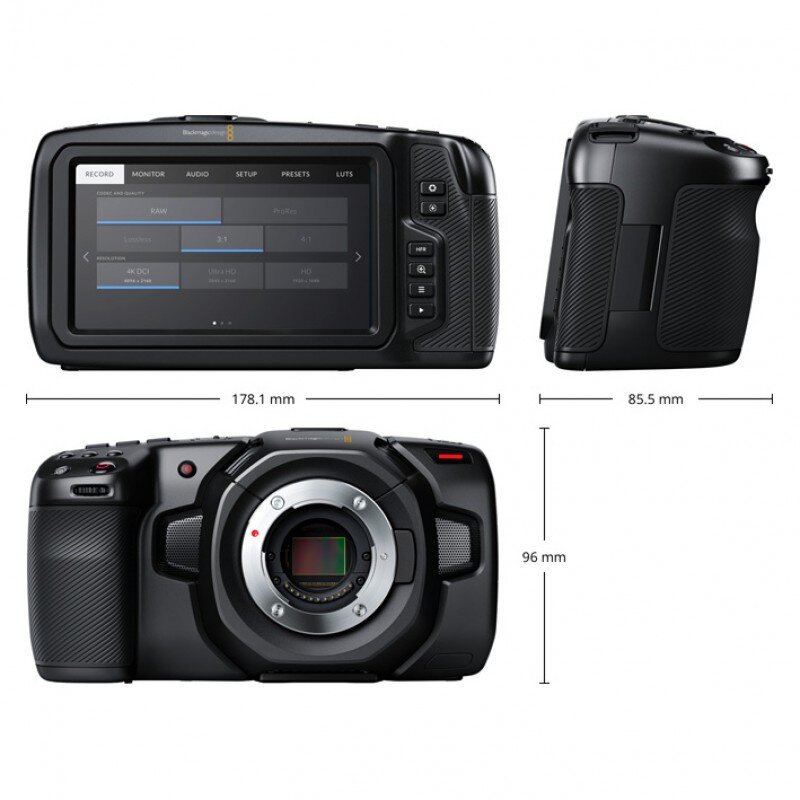

• Dimensions: 17.81 x 8.55 x 9.6 cm
• Weight: 0.68 kg

What’s included

• Blackmagic Pocket Cinema Camera 4K
• Lens turret dust cap
• 30 W power supply with locking connector and international adapters
• LP-E6 battery
• Welcome wallet with QR code for software download
• Welcome card
• DaVinci Resolve Studio with activation key
