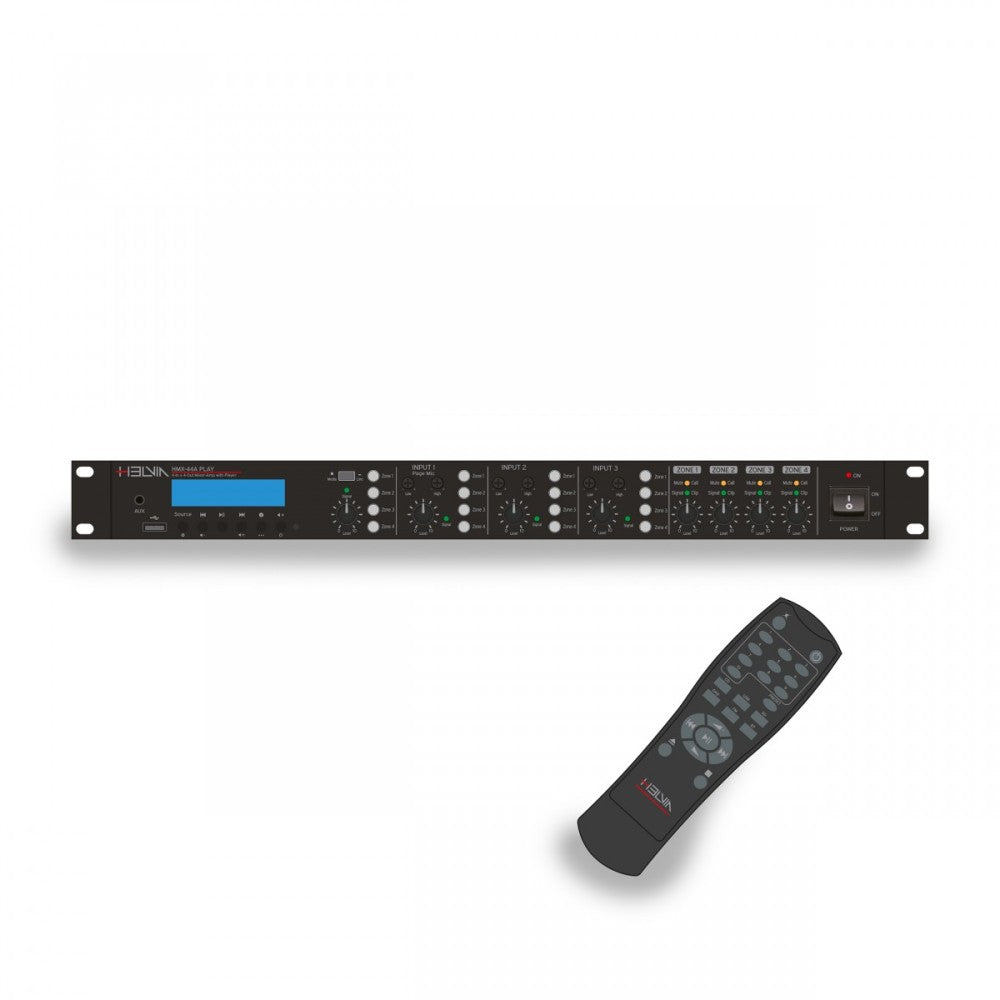

HELVIA HMX-44A PLAY 4IN-4OUT 4X60W MULTI PLAYER DAB+
Estimated delivery in Italy between 16 and 18 June
Paga in 3 rate da €199,66 senza interessi
Paga a rate con PayPal, se disponibile al checkout
Dilaziona il pagamento in comode rate mensili con la tua carta
Acquista ora e paga a rate. Calcola la tua rata con Findomestic
Sei un'azienda o un professionista con partita IVA? Richiedi il Noleggio operativo con Grenke
MATRIX-AMP 4A 4IN-4OUT 4X60W MULTI PLAYER DAB+
HELVIA has designed a solution to meet some of the main needs of those involved in small-to-medium audio installations by combining versatility and compactness, offering an integrated solution such as the HMX-44A. This little gem integrates a matrix with a 4-input and 4-output mixer, a multimedia player, and 4 independent 60W amplifiers. A passive version is also available, without the 4 amplifiers, for use with external power amplifiers in larger installations. The mixer section features 3 combo Mic-Line inputs with 48V Phantom power, a front stereo mini-jack Line input paired with the multimedia player with DAB+, FM, USB, and BT. Each input has independent level control, and the 3 combo Mic/Line inputs also have high and low tone control. All 4 inputs are independently assignable to the 4 zones, and each zone is equipped with output level control. The HMX-44A provides connection to the HMX-MIC microphone base via an RJ-45 connection. The station is equipped with chimes for announcements and allows independent selection of the 4 zones. The 60W Class-D amplifier modules integrate digital processing with limiter, overheating protection, fan control, DC-offset, and current protection to ensure safe operation at any audio level, both at 100V and 4 ohms.
SPECIFICATIONS
- 4-In / 4-Out Matrix
- 4-channel mixer with 3 combo Mic/Line inputs and 1 Front Stereo Mini-jack input
- RCA Line Outputs
- Multimedia Player with DAB+, FM, USB, BT and Remote Control
- 48V Phantom Power for condenser microphones and Priority on Mic 1
- 4 Class-D Amplifiers of 60W each
- 100 Volt and 4 ohm operation independently for each zone
- Compact dimensions in 1 rack unit
- Mute function in case of emergency
- Amplifier structure: Class D + line transformer
- Output power: 4 x 60W rms
- Frequency response: 100Hz - 24kHz
- THD: <0.76% @ 1kHz
- Input impedance: 1k Ohm (mic/line)
- Input sensitivity: -11 dB (line), -46 dB (mic)
- SNR: 84dB (line), 82dB (mic)
- Inputs: 1Mic (XLR), 2 x mic/line (XLR/jack), 1 Line (RCA/Euro-block terminal)
- Zone line outputs: 4 RCA (mono) outputs
- Zone speaker outputs: 2 outputs with Euro-block terminal (100V / 4Ohm)
- Multimedia player: DAB+/FM/USB/BT
- Phantom power: +48V switchable on each XLR input
- Mute relay contacts: +24V
- BT version: 2.0
- Call station connection: RJ45 port (with power)
- Mains power: 170-264Vac, 50Hz (IEC)
- Fuse: T2A/250V
- Unit Dimensions: 435 x 252 x 44 mm (17.1 x 9.9 x 1.7 inches)
- Packaging Dimensions: 550 x 227 x 69 mm (21.6 x 8.9 x 2.7 inches)
- Unit Weight: 6.84 kg - 15.1 lbs
- Packaging Weight: 7.82 kg - 17.2 lbs
