Blackmagic Design ATEM Television Studio HD8 ISO

CARATTERISTICHE

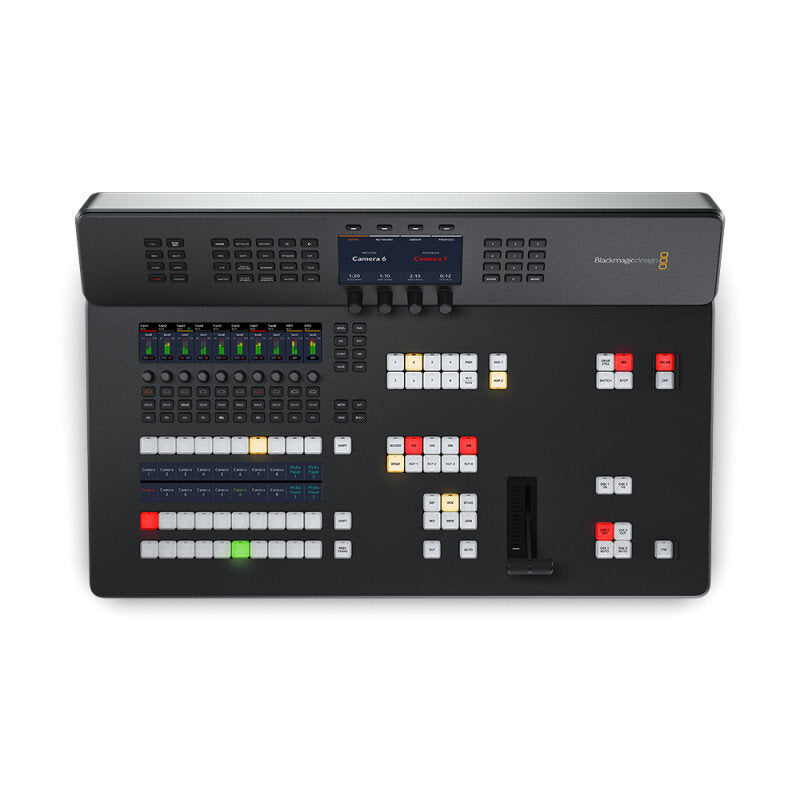

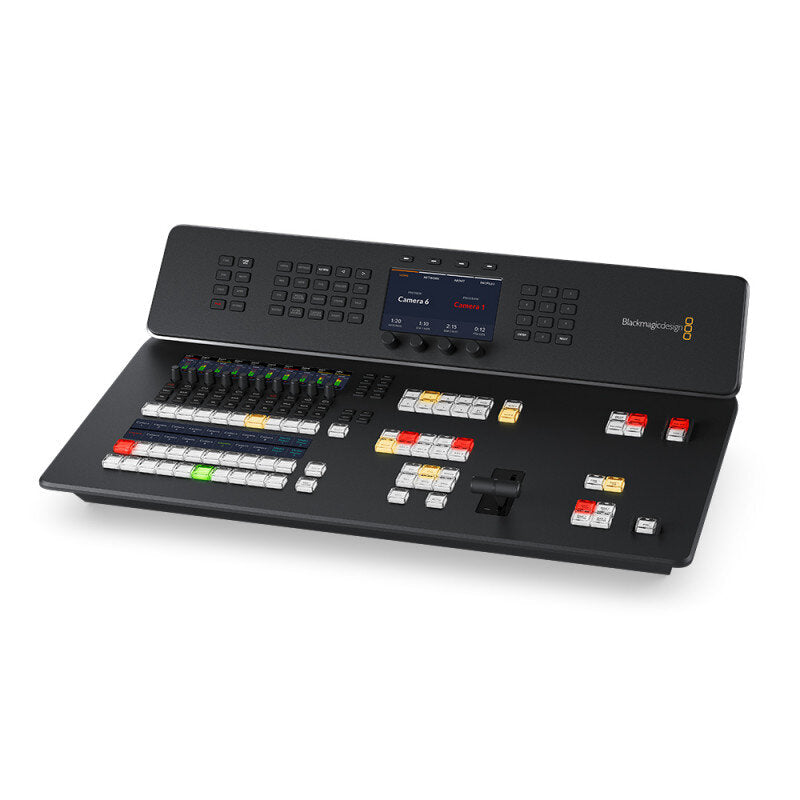

Blackmagic Design ATEM Television Studio HD8 ISO è uno switcher di produzione live professionale.

Offre tutte le funzioni del modello ATEM Television Studio HD8 e supporta otto camere remote tramite la rete Ethernet locale, o a livello globale tramite Internet, fornendo tally e controllo camera.

Questo dispositivo è integrato in un pannello di controllo broadcast, il che lo rende portatile e ideale per location che non dispongono di armadi rack o veicoli di regia mobile. È dotato di otto ingressi SDI con conversione di standard, due uscite ausiliarie, quattro chiavi cromatiche e due chiavi secondarie. Inoltre, dispone di SuperSource e due lettori multimediali.

Tra le sue funzioni più avanzate troviamo lo streaming hardware, la registrazione, il mixer audio, il talkback, il multiview e un archivio di rete interno condiviso opzionale. Il modello ISO è particolarmente apprezzato perché può registrare tutti gli otto ingressi video in file separati, offrendo una flessibilità e un dettaglio maggiore durante il montaggio.

SPECIFICHE

Technical characteristics

Connections

• SDI video inputs: 8
• SDI video outputs: 12
• SDI rates: 1.5G, 3G
• HDMI video outputs: 1
• Total audio inputs: 2 x XLR balanced analog audio, 1 x BNC 32 CH MADI digital audio, 2 x RCA stereo analog audio, 1 x 5-pin XLR Talkback
• Total audio outputs: 4 x 1/4" jack analog audio, 1 x BNC 64 CH MADI digital audio, up to 50 active, 1 x 5-pin XLR Talkback
• SDI audio inputs: 4 CH embedded audio on all SDI inputs
• SDI audio outputs: 2 CH embedded audio on all SDI outputs
• Time Code connections: 1 x BNC IN, 1 x BNC OUT
• Reference input: 1 x BNC IN, 1 x BNC OUT Tri-Sync or Black Burst
• Video input re-sync: on all 8 inputs
• Frame rate and format converters: on all 8 inputs
• SDI aux outputs: 2
• SDI program outputs: 1
• Webcam output: 2 x USB-C supporting 720p or 1080p at PGM frame rate
• Total multi views: 1 x 3G-SDI, 1 x HDMI
• Remote: RJ12 supports RS-422
• Control panel connection: Ethernet direct connection between panel and chassis, or via network
• Internal Time Code generator: yes
• Talkback: RJ45 for 3rd party talkback systems
• Tally output: added via Ethernet connection to Blackmagic Design GPI and Tally Interface product (not included)
• Ethernet: 4 x RJ45 with Internet network switch supports 10/100/1000 BASE-T
• Computer interface: 2 x USB-C supports USB 2.0 for external drive recording, webcam out, software control, software updates and switcher connection

Standards

• SD video standards: none
• HD video input standards: 720p 50, 720p 59.94, 720p 60 - 1080i 50, 1080i 59.94, 1080i 60 - 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60
• SDI compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B
• Video sampling: 4:2:2
• Color precision: 10-bit
• Color space: REC 709
• SDI auto switching: automatically detects between 1.5G-SDI and level A or level B 3G-SDI

Product specifications

• Upstream keyers: 4
• Downstream keyers: 2
• Advanced chroma keyers: 4
• Supersource: 1
• Linear / luma keyers: 7
• Transition keyer (stinger / DVE): 1 Stinger, 1 DVE
• Total number of layers: 8
• Pattern generators: 7
• Color generators: 2
• Control panel: integrated panel with full control of switching and settings
• Routable windows: 16
• Windows source labels: yes
• Tally: red for program and green for preview indication
• Talkback support: yes
• Mix minus support: yes

Streaming sources

• Total streaming sources: up to 8
• Streaming source format: RTMP video with audio over a local network or internet connection from compatible Blackmagic Design cameras outputting HyperDeck High, HyperDeck Medium, HyperDeck Low, Streaming High, Streaming Medium or Streaming Low quality setting
• Streaming source setup: mapped to inputs in ATEM Software control settings

Streaming

• Direct streaming: supports direct live streaming using Real Time Messaging Protocol (RTMP) over Ethernet or a shared Internet connection over USB‑C

Recording

• Direct recording video and audio: USB-C expansion port can record directly to external media
• Video recording: program recorded as a H.264 .mp4 file at the streaming quality setting and at the ATEM video standard with AAC audio SDI inputs recorded as separate H.264 .mp4 files at up to 70 Mb/s quality at the ATEM video standard with AAC audio
• Audio recording: audio inputs recorded as separate 24‑bit 48 kHz .wav files includes 8 x SDI 2 channel embedded audio inputs, 4 x analog audio inputs and up to 32 channels of MADI digital audio
• Switching: program switching recorded as a DaVinci Resolve project .drp file
• Media: all media pool stills and clips saved to a separate media folder
• Media format: supports media formatted ExFAT (Windows/Mac) APFS or HFS+ (Mac)

Multi View Monitoring

• Multi view monitoring: 1 x multi view via SDI and HDMI configurable to 16, 13, 10, 7 or 4 up views includes monitoring of Program, Preview, Inputs, Media Players, DSKs, SuperSource, Clean Feed with optional labels and audio meters
• Multi view video standard: HD
• Display minimum resolution: 1366 x 768

Media player

• Media players: 2
• Channels: fill and key for each media player
• Media pool still image capacity: 20
• Media pool still image format: PNG, TGA, BMP, GIF, JPEG and TIFF
• Media pool clip capacity: 2 x up to 1080p60
• Media player clip length in 720 HD: 400 frames
• Media player clip length in 1080 HD: 200 frames
• Media pool video file format: TGA sequence
• Media pool audio file format: WAV, MP3 and AIFF

Processing

• Processing delay: < 10 lines when genlocked and in the same format as the switcher
• Audio mixer: 58 channel mixer selectable ON / OFF / audio-follow-video level and peak metering, master gain control, 6 band parametric EQ, dynamics including expander, gate, compressor and limiter
• Camera control: when used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start / stop
• Down conversion: none

Power requirements

• Power supply: 1 x iInternal 100 - 240 V_AC 50/60 Hz with IEC C14 socket, 1 x 4 pin XLR 12 V_DC IN for external power supply or battery use
• Power usage: 100 W max.
